IEC 60502-2 Armoured (LC-SWA) Fire retardant

Description

Description

Standards

  • International
    IEC 60228; IEC 60332-3-22 Cat.A; IEC 60502-2

Applications

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial applications, in moist areas, where hydrocarbon and mechanical protections are needed. The lead cover brings an enhanced resistance to aromatic hydrocarbons.

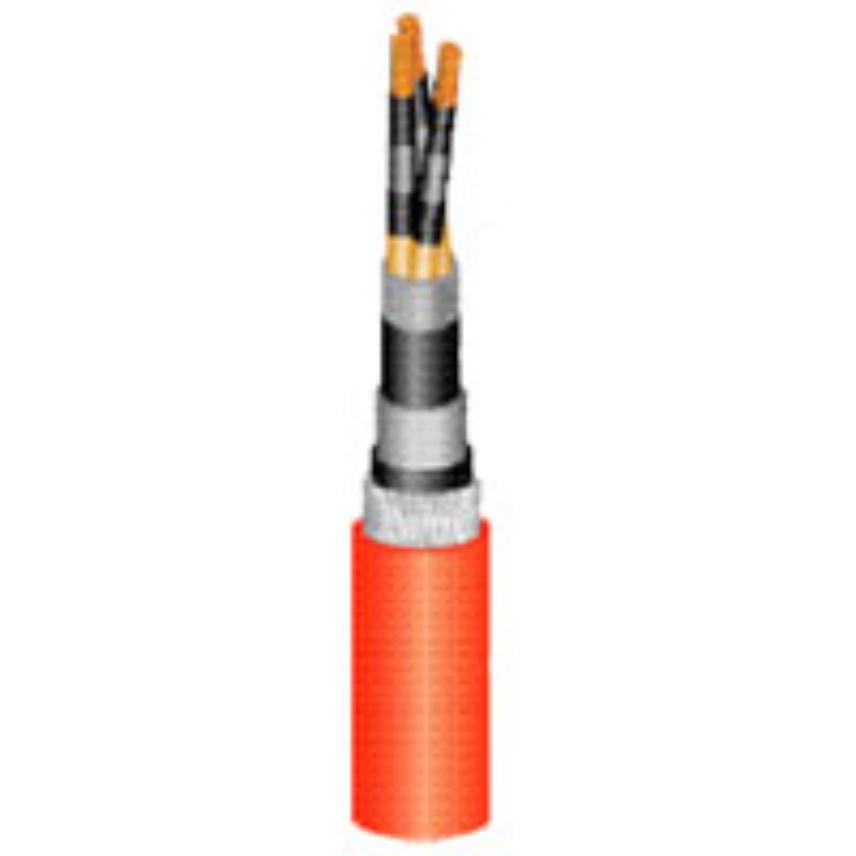

Design

Conductor:

Stranded bare copper (class 2)

Semi conductor

Insulation:

Cross-linked polyethylene (XLPE)

Semi conductor

Screen:

Copper tape

Bedding (optional):

An inner sheath acting as a filler with practically zero thickness

Inner sheath:

Polyvinyl chloride (PVC)

Lead cover (lead sheath)

Bedding sheath (intermediate sheath):

Polyvinyl chloride (PVC).

Armour:

Galvanized steel wires (SWA) or aluminium wires (AWA) for 1 core cable

Outer sheath:

Polyvinyl chloride (PVC). Colour: red. Other colour on request



Core identification

1 core: natural
3x: black - green - brown (by tape under copper screen).




Marking

NEXANS 279 XLPE/PVC/LC/PVC/SWA or AWA/PVC VOLTAGE Nber of cores and cross-section Cu/Alu IEC 60332-3-22(A) MM YYYY Manufacturing number + metric marking.



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
-
Type of conductor
-
Insulation
-
Screen
-
Inner sheath
-
Intermediate sheath
-
Armour type
Galvanized steel wires
Lead Sheath
-
Outer sheath
-
Protection
-

Dimensional characteristics

Dimensional characteristics

Number of cores
-
Conductor cross-section
- mm²

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
-

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Fire retardant
IEC 60332-3-22
Chemical resistance
Aliphatic and aromatic hydrocarbons resistant
Max. conductor temperature in service
90 °C
Operating temperature, range
-20 ... 60 °C
U.V resistance
Yes

Resources

Resources

Selling & delivery Information

Other fire performances IEC 60332-1 or IEC 60332-3-24(C) on request.


Minimum bending radius:

1 core: 10 x outer diameter
3 cores: 8 x outer diameter
To be double during laying operations


Aluminium conductors available on request.
