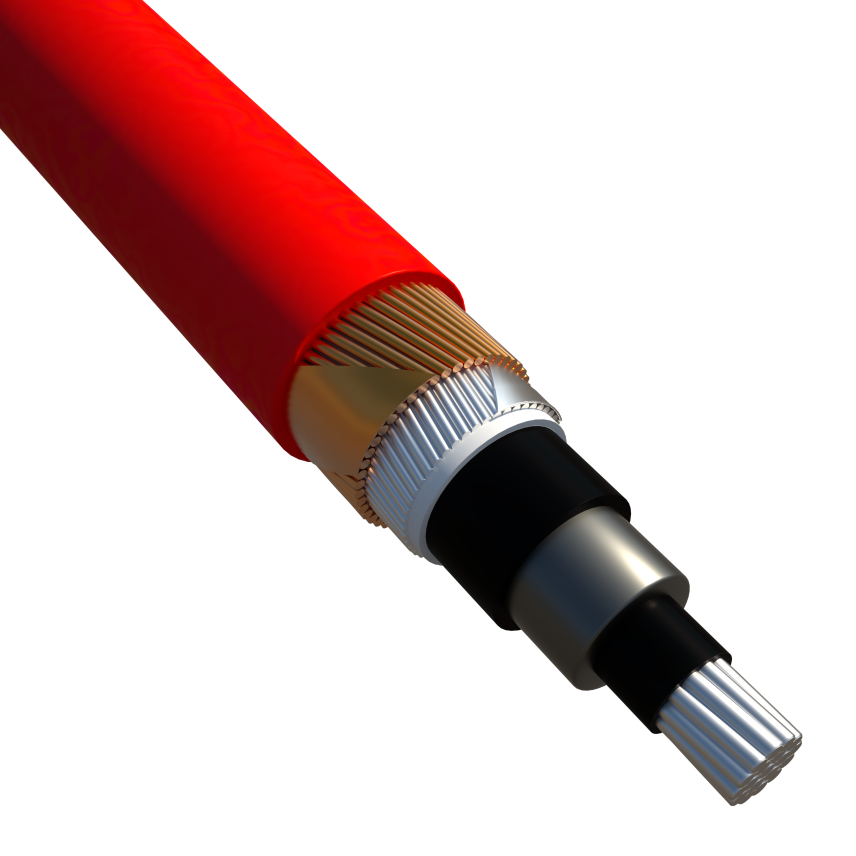

YHKXS 6/10KV, 12/20KV, 18/30 KV

Products

YHKXS 1*500/50 12/20 KV NEW

Nexans ref. M5N4 001900 - Country ref. M5N4 1*500/50//POL-3

  • Packaging: Cut to length (m)
  • Conductor cross-section: 500 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 47.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*630/50 12/20 KV NEW

Nexans ref. M6N4 001155 - Country ref. M6N4 1*630/50//POL-3

  • Packaging: Cut to length (m)
  • Conductor cross-section: 630 mm²
  • Nominal insulation thickness: 8.0 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 47.1 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*630/95 6/10 KV

Nexans ref. M3N4 001631 - Country ref. M3N4 1*630/95//POL-3

  • Packaging: Cut to length (m)
  • Conductor cross-section: 630 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 95 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 48.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*120/16 12/20KV

Nexans ref. M5N4 011880 - Country ref. M5N4 1*120/16//POL-3

  • Conductor cross-section: 120 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 31.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*120/50 18/30KV

Nexans ref. M6N4 000160 - Country ref. M6N4 1*120/50//POL-3

  • Packaging: Bag (Day)
  • Conductor cross-section: 120 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 36.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*150/25 12/20KV

Nexans ref. M5N4 000800 - Country ref. M5N4 1*150/25//POL-3

  • Conductor cross-section: 150 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 32.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*150/50 6/10KV

Nexans ref. M3N4 000521 - Country ref. M3N4 1*150/50//POL-3

  • Conductor cross-section: 150 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 29.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*185/25 12/20KV

Nexans ref. M5N4 010800 - Country ref. M5N4 1*185/25//POL-3

  • Conductor cross-section: 185 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 34.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*185/50 6/10KV

Nexans ref. M3N4 000165 - Country ref. M3N4 1*185/50//POL-3

  • Conductor cross-section: 185 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 30.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*240/16 12/20KV

Nexans ref. M5N4 011883 - Country ref. M5N4 1*240/16//POL-3

  • Conductor cross-section: 240 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 36.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*240/25 12/20KV

Nexans ref. M5N4 001883 - Country ref. M5N4 1*240/25//POL-3

  • Conductor cross-section: 240 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 37.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*240/50 6/10KV

Nexans ref. M3N4 000530 - Country ref. M3N4 1*240/50//POL-3

  • Conductor cross-section: 240 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 33.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*300/50 12/20KV NEW

Nexans ref. M5N4 000571 - Country ref. M5N4 1*300/50//POL-3

  • Packaging: Cut to length (m)
  • Conductor cross-section: 300 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 39.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*300/50 18/30KV NEW

Nexans ref. M6N4 000256 - Country ref. M6N4 1*300/50//POL-3

  • Packaging: Cut to length (m)
  • Conductor cross-section: 300 mm²
  • Nominal insulation thickness: 8.0 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 44.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*300/50 6/10KV

Nexans ref. M3N4 000374 - Country ref. M3N4 1*300/50//POL-3

  • Packaging: Cut to length (m)
  • Conductor cross-section: 300 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 35.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*35/16 12/20KV

Nexans ref. M5N4 000801 - Country ref. M5N4 1*35/16//POL-3

  • Conductor cross-section: 35 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*50/16 12/20KV

Nexans ref. M5N4 010801 - Country ref. M5N4 1*50/16//POL-3

  • Conductor cross-section: 50 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 26.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*500/50 18/30KV NEW

Nexans ref. M6N4 000155 - Country ref. M6N4 1*500/50//POL-3

  • Packaging: Cut to length (m)
  • Conductor cross-section: 500 mm²
  • Nominal insulation thickness: 8.0 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 52.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*500/50 18/30KV NEW

Nexans ref. M6N4 000157 - Country ref. M6N4 1*500/50//POL-3,

  • Packaging: Cut to length (m)
  • Conductor cross-section: 500 mm²
  • Nominal insulation thickness: 8.0 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 51.0 mm
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*70/16 12/20KV

Nexans ref. M5N4 010802 - Country ref. M5N4 1*70/16//POL-3

  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 28.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*70/25 12/20KV

Nexans ref. M5N4 010803 - Country ref. M5N4 1*70/25//POL-3

  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 5.5 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 28.0 mm
  • Rated Voltage Uo/U (Um): 12 / 20 (24) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 1*95/35 6/10KV

Nexans ref. M3N4 000643 - Country ref. M3N4 1*95/35//POL-3

  • Conductor cross-section: 95 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 26.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



YHKXS 3*240/25 6/10KV

Nexans ref. M3N4 000930 - Country ref. M3N4 3*240/25//POL-3

  • Conductor cross-section: 240 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 3.2 mm
  • Nominal outer diameter: 68.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 8xD
  • Bending factor when laying: 16 (xD)



YHKXS 3*240/50 6/10KV

Nexans ref. M3N4 000931 - Country ref. M3N4 3*240/50//POL-3

  • Conductor cross-section: 240 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 3.2 mm
  • Nominal outer diameter: 68.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 8xD
  • Bending factor when laying: 16 (xD)



YHKXS 3*35/25 6/10KV

Nexans ref. M3N4 020975 - Country ref. M3N4 3*35/25//POL-3

  • Conductor cross-section: 35 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 42.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 8xD
  • Bending factor when laying: 16 (xD)



YHKXS 3*35/25 6/10KV CAT B

Nexans ref. M3N4 023126 - Country ref. M3N4 3*35/25//POL-2

  • Conductor cross-section: 35 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 43.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 8xD
  • Bending factor when laying: 16 (xD)



YHKXS 3*70/25 6/10KV

Nexans ref. M3N4 000975 - Country ref. M3N4 3*70/25//POL-3

  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 48.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 8xD
  • Bending factor when laying: 16 (xD)



YHKXS 3*70/25 6/10KV CAT B

Nexans ref. M3N4 023125 - Country ref. M3N4 3*70/25//POL-2

  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 49.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 8xD
  • Bending factor when laying: 16 (xD)



YHKXS 3*95/95 6/10KV

Nexans ref. M3N4 010641 - Country ref. M3N4 3*95/95//POL-3

  • Conductor cross-section: 95 mm²
  • Nominal insulation thickness: 3.4 mm
  • Screen section: 95 mm²
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 52.0 mm
  • Rated Voltage Uo/U (Um): 6 / 10 (12) kV
  • Cable flexibility: 10xD
  • Bending factor when laying: 20 (xD)



Description

Description

Standards

  • International
    IEC 60332-1-2; IEC 60502-2

CU/SC/XLPE/SC/SC TAPE/CU WIRES/ low temp. PVC



APPLICATION

Power use outdoor application, even wet.

Suitable for fixed installations at open air, in tube or canals and underground.

Max. Operation temperature: 90°

Max. Short circuit temperature : 250° (Max 5 s)



CONSTRUCTION

1. Conductor:

Compacted Round conductor class 2

2. Insulation:

Extruded inner semi conductive layer, XLPE insulation and  extruded outer semi conductive layer + Semi-conductive tape

3. Metallic screen layer:

Copper wires with open helix copper tape

4. Outer sheath:

Low Temperature PVC, Red or as per customer requirement

5. Marking:

By Inkjet

6. Packing:

Drums can be wooden or steel

TEST AT WORKS according to IEC 60502-2

Liban Cables will carry out these tests on all the lengths and tests certificates will be provided



Sample tests

 -          Check of the build - up and color coding of the cable

 -          Check of dimensions

            Insulation          :           according to IEC 60502-2                       Parag.  17.5.2

            Metallic screen  :           according to IEC 60502-2                       Parag.  17.7

            Oversheath       :           according to IEC 60502-2                       Parag.  17.5.3

- Hot Set Test for XLPE insulation according to IEC 60502-2 parag. 17.10



These tests will be carried out on one length of each size during each inspection .

Tests certificates will be provided by Liban Cables



Type tests

Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-2.

These tests will be carried out on one length of the order.

Tests certificates will be provided by Liban Cables

DRAWING YnHKXS

Characteristics

Characteristics

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

U.V resistance
Yes
Laying depth, center of system
800 mm
Ambient air temperature
30 °C
Ambient ground temperature
20 °C
Max. conductor temperature in service
90 °C

Resources

Resources

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
