YnHKXS 6/10KV up to 18/30 KV IEC 60332-3 CAT B
YnHKXS 6/10KV up to 18/30 KV IEC 60332-3 CAT B

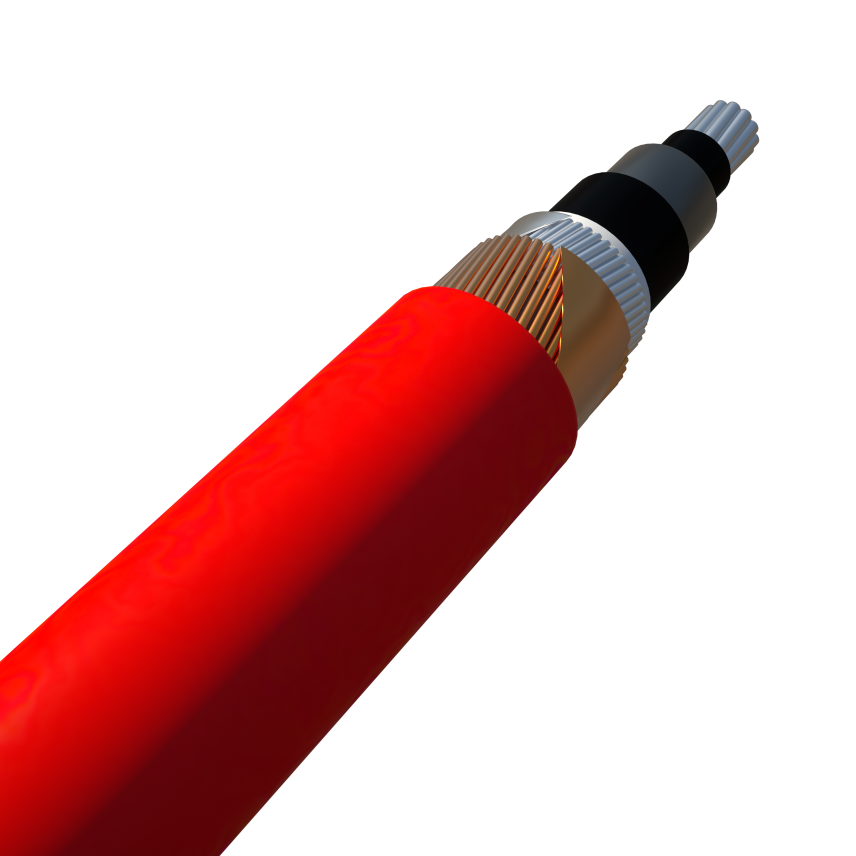

XLPE Unarmored cable with Copper conductor
international code: N2XSY for single core, N2XSEY for 3 cores
YnHKXS 1*120/50 6/10KV IEC 60332-3 CAT B
Nexans ref. M3N4 000646 - Country ref. M3N4 1*120/50//POL-2
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 30.0 mm
- Approximate net weight: 2080 kg/km
YnHKXS 1*300/50 6/10KV IEC 60332-3 CAT B
Nexans ref.
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.3 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 38.0 mm
- Approximate net weight: 3945 kg/km
YnHKXS 3*120/50 6/10KV IEC 60332-3 CAT B
Nexans ref. M3N4 000649 - Country ref. M3N4 3*120/50//POL-2
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.9 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 59.0 mm
- Approximate net weight: 6282 kg/km
Description
Description
Standards
-
InternationalIEC 60332-1-2; IEC 60332-3-23; IEC 60502-2
CU/SC/XLPE/SC/SC TAPE/CU WIRES/ low temp. PVC
APPLICATION
Power use outdoor application, even wet.
Suitable for fixed installations at open air, in tube or canals and underground.
Max. Operation temperature: 90°
Max. Short circuit temperature : 250° (Max 5 s)
CONSTRUCTION
1. Conductor:
Compacted Round conductor class 2
2. Insulation:
Extruded inner semi conductive layer, XLPE insulation and extruded outer semi conductive layer + Semi-conductive tape
3. Metallic screen layer:
Copper wires with open helix copper tape
4. Outer sheath:
Low Temperature PVC, Red or as per customer requirement
5. Marking:
By Inkjet
6. Packing:
Drums can be wooden or steel
TEST AT WORKS according to IEC 60502-2 & IEC 60332-3-23 CAT B
Routine Tests
-Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-2 parag. 16.1 & 16.2
-High voltage test acc. to IEC 60502-2 parag. 16.1 & 16.4
-Max. partial discharge test at 1.73 Uo acc. to IEC 60502-2 parag. 16.1 & 16.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided
Sample tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-2 Parag. 17.5.2
Metallic screen : according to IEC 60502-2 Parag. 17.7
Oversheath : according to IEC 60502-2 Parag. 17.5.3
- Hot Set Test for XLPE insulation according to IEC 60502-2 parag. 17.10
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-2.
Fire retardance test according to IEC 60332-3-23 CAT B
These tests will be carried out on one length of the order.
Tests certificates will be provided by Liban Cables
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
