Bare Copper conductors CNUR

Products

CNUR 1.2D

Nexans ref. CNUR 000080 - Country ref. CNUR 1.2D

  • Conductor cross-section: 1.2 mm²
  • Conductor diameter: 1.2 mm
  • Nominal overall diameter: 1.2 mm
  • Maximum outer diameter: 1.21 mm
  • Approximate weight: 10.1 kg/km
  • Max. DC resistance of the conductor at 20°C: - Ohm/km



CNUR 1.38D

Nexans ref. CNUR 000070 - Country ref. CNUR 1.38D

  • Conductor cross-section: 1.38 mm²
  • Conductor diameter: 1.38 mm
  • Nominal overall diameter: 1.38 mm
  • Maximum outer diameter: 1.39 mm
  • Approximate weight: 13 kg/km
  • Max. DC resistance of the conductor at 20°C: - Ohm/km



CNUR 1.5//M

Nexans ref. CNUR 000019 - Country ref. CNUR 1.5//M

  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.48 mm
  • Nominal overall diameter: 1.48 mm
  • Maximum outer diameter: 1.48 mm
  • Approximate weight: 13 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km



CNUR 1.8D

Nexans ref. CNUR 000090 - Country ref. CNUR 1.8D

  • Conductor cross-section: 1.8 mm²
  • Conductor diameter: 1.8 mm
  • Nominal overall diameter: 1.8 mm
  • Maximum outer diameter: 1.82 mm
  • Approximate weight: 23 kg/km
  • Max. DC resistance of the conductor at 20°C: - Ohm/km



CNUR 10//M

Nexans ref. CNUR 000114 - Country ref. CNUR 10//M

  • Conductor cross-section: 10 mm²
  • Conductor diameter: 3.76 mm
  • Nominal overall diameter: 3.76 mm
  • Maximum outer diameter: 3.77 mm
  • Approximate weight: 85 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km



CNUR 120//M

Nexans ref. CNUR 001002 - Country ref. CNUR 120//M

  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.86 mm
  • Nominal overall diameter: 12.86 mm
  • Maximum outer diameter: 12.89 mm
  • Approximate weight: 1029 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km



CNUR 150//M

Nexans ref. CNUR 001053 - Country ref. CNUR 150//M

  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.17 mm
  • Nominal overall diameter: 14.17 mm
  • Maximum outer diameter: 14.21 mm
  • Approximate weight: 1272 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km



CNUR 16//M

Nexans ref. CNUR 000127 - Country ref. CNUR 16//M

  • Conductor cross-section: 16 mm²
  • Conductor diameter: 4.67 mm
  • Nominal overall diameter: 4.67 mm
  • Maximum outer diameter: 4.68 mm
  • Approximate weight: 137 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km



CNUR 185

Nexans ref. CNUR 001111 - Country ref. CNUR 185

  • Conductor cross-section: 185 mm²
  • Conductor diameter: 15.85 mm
  • Nominal overall diameter: 15.85 mm
  • Maximum outer diameter: 15.89 mm
  • Approximate weight: 1600 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km



CNUR 185//M

Nexans ref. CNUR 001113 - Country ref. CNUR 185//M

  • Conductor cross-section: 185 mm²
  • Conductor diameter: 15.85 mm
  • Nominal overall diameter: 15.85 mm
  • Maximum outer diameter: 15.89 mm
  • Approximate weight: 1590 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km



CNUR 2.5//M

Nexans ref. CNUR 000026 - Country ref. CNUR 2.5//M

  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal overall diameter: 1.9 mm
  • Maximum outer diameter: 1.91 mm
  • Approximate weight: 21 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km



CNUR 240//M

Nexans ref. CNUR 001202 - Country ref. CNUR 240//M

  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal overall diameter: 18.1 mm
  • Maximum outer diameter: 18.15 mm
  • Approximate weight: 2060 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km



CNUR 25//M

Nexans ref. CNUR 000137 - Country ref. CNUR 25//M

  • Conductor cross-section: 25 mm²
  • Conductor diameter: 5.87 mm
  • Nominal overall diameter: 5.87 mm
  • Maximum outer diameter: 5.88 mm
  • Approximate weight: 215 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km



CNUR 300//M

Nexans ref. CNUR 001228 - Country ref. CNUR 300//M

  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal overall diameter: 20.3 mm
  • Maximum outer diameter: 20.65 mm
  • Approximate weight: 2595 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km



CNUR 35//M

Nexans ref. CNUR 000157 - Country ref. CNUR 35//M

  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.91 mm
  • Nominal overall diameter: 6.91 mm
  • Maximum outer diameter: 6.93 mm
  • Approximate weight: 296 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km



CNUR 4//M

Nexans ref. CNUR 000027 - Country ref. CNUR 4//M

  • Conductor cross-section: 4 mm²
  • Conductor diameter: 2.43 mm
  • Nominal overall diameter: 2.43 mm
  • Maximum outer diameter: 2.44 mm
  • Approximate weight: 34 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km



CNUR 400//M

Nexans ref. CNUR 001238 - Country ref. CNUR 400//M

  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Nominal overall diameter: 23.2 mm
  • Maximum outer diameter: 23.26 mm
  • Approximate weight: 3332 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km



CNUR 50

Nexans ref. CNUR 000178 - Country ref. CNUR 50

  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.13 mm
  • Nominal overall diameter: 8.13 mm
  • Maximum outer diameter: 8.15 mm
  • Approximate weight: 407 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km



CNUR 50//M

Nexans ref. CNUR 000177 - Country ref. CNUR 50//M

  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.13 mm
  • Nominal overall diameter: 8.13 mm
  • Maximum outer diameter: 8.15 mm
  • Approximate weight: 407 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km



CNUR 500//M

Nexans ref. CNUR 001239 - Country ref. CNUR 500//M

  • Conductor cross-section: 500 mm²
  • Conductor diameter: 27.0 mm
  • Nominal overall diameter: 27.0 mm
  • Maximum outer diameter: 27.06 mm
  • Approximate weight: 4315 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km



CNUR 6//M

Nexans ref. CNUR 000038 - Country ref. CNUR 6//M

  • Conductor cross-section: 6 mm²
  • Conductor diameter: 2.97 mm
  • Nominal overall diameter: 2.97 mm
  • Maximum outer diameter: 2.98 mm
  • Approximate weight: 51 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km



CNUR 630//M

Nexans ref. CNUR 001253 - Country ref. CNUR 650//M

  • Conductor cross-section: 630 mm²
  • Conductor diameter: 30.2 mm
  • Nominal overall diameter: 30.2 mm
  • Maximum outer diameter: 30.26 mm
  • Approximate weight: 5570 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km



CNUR 70//M

Nexans ref. CNUR 000252 - Country ref. CNUR 70//M

  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.71 mm
  • Nominal overall diameter: 9.71 mm
  • Maximum outer diameter: 9.73 mm
  • Approximate weight: 586 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km



CNUR 95

Nexans ref. CNUR 000950 - Country ref. CNUR 95

  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.35 mm
  • Nominal overall diameter: 11.35 mm
  • Maximum outer diameter: 11.38 mm
  • Approximate weight: 1000 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km



CNUR 95//M

Nexans ref. CNUR 000960 - Country ref. CNUR 95//M

  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.35 mm
  • Nominal overall diameter: 11.35 mm
  • Maximum outer diameter: 11.38 mm
  • Approximate weight: 813 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km



Description

Description

Standards

  • Product
    IEC 60228

DESCRIPTION:    CU

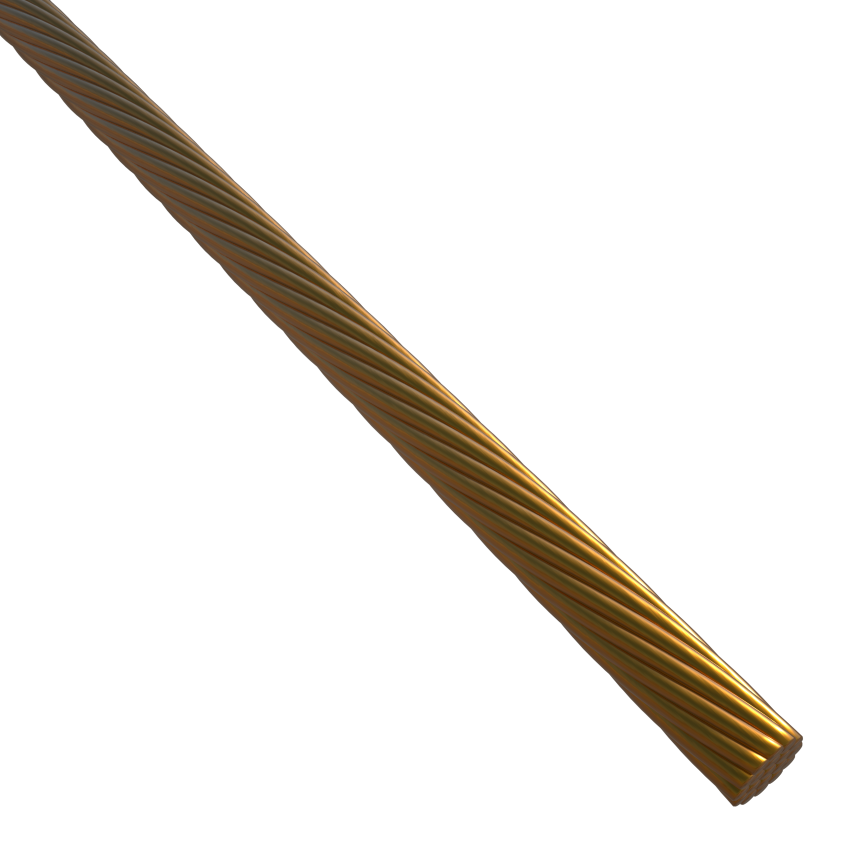

CONDUCTOR:   STRANDED ANNEALED COPPER Class 2 acc. to IEC 60228

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Type of conductor
Stranded copper
Conductor shape
Circular
Conductor flexibility
Class 2 IEC 60228
Conductor material
Bare copper
Number of conductors
1

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
N/A
