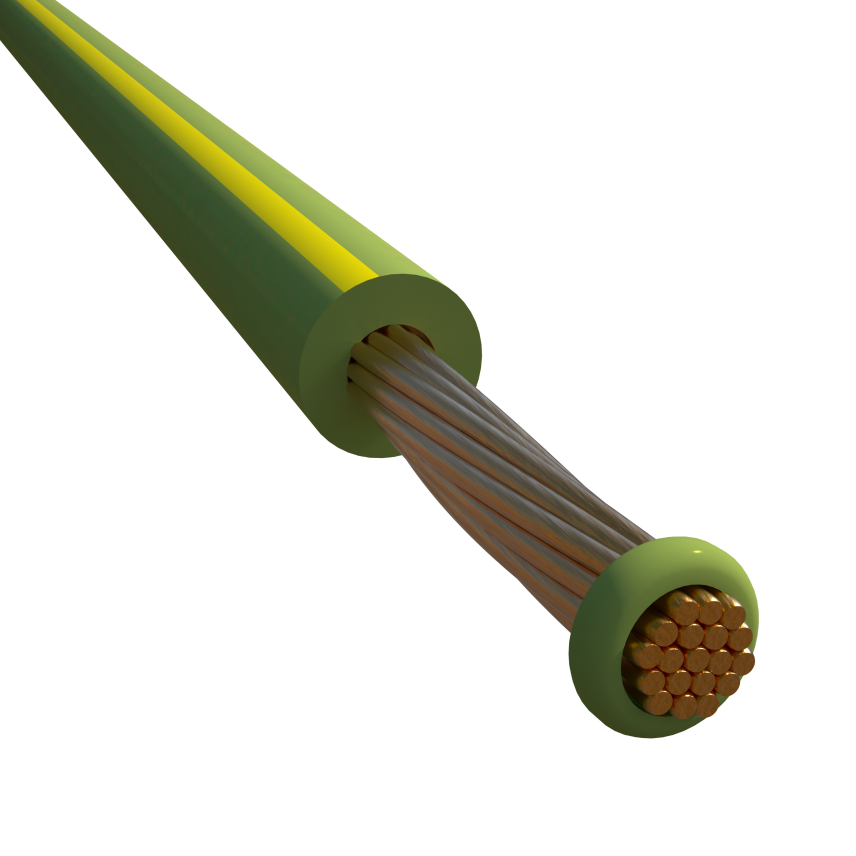

D(NYA) and E(NYA)

D(NYA) and E(NYA)

D(NYA) and E(NYA)

building wires, rated voltage 1000V, CU/PVC flame retardant

Read more
Find distributor
Contact us

Products

Actions
Filters

  • products

D(NYA) 0.75 SOLID

Nexans ref. DNYA 000095 - Country ref. D(NYA) 0.75RE

  • Conductor flexibility: Solid class 1
  • Conductor cross-section: 0.75 mm²
  • Conductor diameter: 1.0 mm
  • Nominal insulation thickness: 0.6 mm
  • Nominal overall diameter: 2.2 mm
  • Maximum outer diameter: 2.35 mm
  • Approximate weight: 12 kg/km
  • Max. DC resistance of the conductor at 20°C: 24.5 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 1 SOLID

Nexans ref. DNYA 000201 - Country ref. D(NYA) 1RE

  • Conductor flexibility: Solid class 1
  • Conductor cross-section: 1 mm²
  • Conductor diameter: 1.1 mm
  • Nominal insulation thickness: 0.6 mm
  • Nominal overall diameter: 2.4 mm
  • Maximum outer diameter: 2.57 mm
  • Approximate weight: 14 kg/km
  • Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 1.5

Nexans ref. DNYA 000172 - Country ref. D(NYA) 1.5(3)//FILVIT

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.6 mm
  • Nominal overall diameter: 2.9 mm
  • Maximum outer diameter: 3.1 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 1.5

Nexans ref. DNYA 000040 - Country ref. D(NYA) 1.5(7)//FILVIT

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.6 mm
  • Nominal overall diameter: 2.6 mm
  • Maximum outer diameter: 2.78 mm
  • Approximate weight: 19 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 1.5 PASSEO

Nexans ref. DNYA 000921 - Country ref. DNYA 1.5(3)//FILVIT-PASSEO

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.6 mm
  • Nominal overall diameter: 2.9 mm
  • Maximum outer diameter: 3.1 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 1.5 PASSEO - M

Nexans ref. DNYA...700921 - Country ref. DNYA 1.5(3)//FILVIT-PASSEO-M

  • Packaging: Coil (100m)
  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.6 mm
  • Nominal overall diameter: 2.9 mm
  • Maximum outer diameter: 3.1 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 1.5 SOLID

Nexans ref. DNYA 000401 - Country ref. D(NYA) 1.5RE

  • Conductor flexibility: Solid class 1
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.6 mm
  • Nominal overall diameter: 2.6 mm
  • Maximum outer diameter: 2.78 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 1.5(3) T

Nexans ref. DNYA 700501 - Country ref. D(NYA) 1.5(3)//T

  • Packaging: Drum (1000m)
  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.6 mm
  • Nominal overall diameter: 2.88 mm
  • Maximum outer diameter: 2.88 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 10

Nexans ref. DNYA 001601 - Country ref. D(NYA) 10

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 10 mm²
  • Conductor diameter: 1.4 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal overall diameter: 5.7 mm
  • Maximum outer diameter: 6.1 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 10//5

Nexans ref. DNYA 001604 - Country ref. D(NYA) 10//5

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 10 mm²
  • Conductor diameter: 1.4 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal overall diameter: 5.7 mm
  • Maximum outer diameter: 6.1 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Maximum operating temperature: 85 °C



D(NYA) 16

Nexans ref. DNYA 001901 - Country ref. D(NYA) 16

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 16 mm²
  • Conductor diameter: 4.7 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal overall diameter: 6.7 mm
  • Maximum outer diameter: 7.17 mm
  • Approximate weight: 168 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 16//5

Nexans ref. DNYA 001906 - Country ref. D(NYA) 16//5

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 16 mm²
  • Conductor diameter: 4.7 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal overall diameter: 6.7 mm
  • Maximum outer diameter: 7.17 mm
  • Approximate weight: 168 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Maximum operating temperature: 85 °C



D(NYA) 1D

Nexans ref. DNYA 000101 - Country ref. DNYA 1D

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 1 mm²
  • Conductor diameter: 1.0 mm
  • Nominal insulation thickness: 0.6 mm
  • Nominal overall diameter: 2.2 mm
  • Maximum outer diameter: 2.35 mm
  • Approximate weight: 12 kg/km
  • Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 2.5

Nexans ref. DNYA 000174 - Country ref. D(NYA) 2.5//FILVIT

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal overall diameter: 3.3 mm
  • Maximum outer diameter: 3.53 mm
  • Approximate weight: 29 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 2.5 PASSEO

Nexans ref. DNYA 000923 - Country ref. DNYA 2.5//FILVIT-PASSEO

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal overall diameter: 3.3 mm
  • Maximum outer diameter: 3.53 mm
  • Approximate weight: 29 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 2.5 PASSEO - M

Nexans ref. DNYA...700923 - Country ref. DNYA 2.5//FILVIT-PASSEO-M

  • Packaging: Coil (100m)
  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal overall diameter: 3.3 mm
  • Maximum outer diameter: 3.53 mm
  • Approximate weight: 29 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 2.5 RE

Nexans ref. DNYA 000237 - Country ref. D(NYA) 2.5RE//RI

  • Conductor flexibility: Solid class 1
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.8 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal overall diameter: 3.2 mm
  • Maximum outer diameter: 3.42 mm
  • Approximate weight: 29 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 2.5 SOLID

Nexans ref. DNYA 000801 - Country ref. D(NYA) 2.5RE

  • Conductor flexibility: Solid class 1
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.8 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal overall diameter: 3.2 mm
  • Maximum outer diameter: 3.42 mm
  • Approximate weight: 29 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 2.5 T

Nexans ref. DNYA 001174 - Country ref. D(NYA) 2.5 T

  • Packaging: Drum (1000m)
  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal overall diameter: 3.3 mm
  • Maximum outer diameter: 3.53 mm
  • Approximate weight: 29.4 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 25

Nexans ref. DNYA 002001 - Country ref. D(NYA) 25

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 25 mm²
  • Conductor diameter: 5.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal overall diameter: 8.3 mm
  • Maximum outer diameter: 8.88 mm
  • Approximate weight: 262 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 25//5

Nexans ref. DNYA 002003 - Country ref. D(NYA) 25//5

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 25 mm²
  • Conductor diameter: 5.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal overall diameter: 8.3 mm
  • Maximum outer diameter: 8.88 mm
  • Approximate weight: 262 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Maximum operating temperature: 85 °C



D(NYA) 3

Nexans ref. DNYA 000175 - Country ref. D(NYA) 3//FILVIT

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 3 mm²
  • Conductor diameter: 2.1 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 3.7 mm
  • Maximum outer diameter: 3.96 mm
  • Approximate weight: 35.8 kg/km
  • Max. DC resistance of the conductor at 20°C: 6.48 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 3 PASSEO

Nexans ref. DNYA 000924 - Country ref. DNYA 3//FILVIT-PASSEO

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 3 mm²
  • Conductor diameter: 2.1 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 3.7 mm
  • Maximum outer diameter: 3.96 mm
  • Approximate weight: 35.8 kg/km
  • Max. DC resistance of the conductor at 20°C: 6.48 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 4

Nexans ref. DNYA 000176 - Country ref. D(NYA) 4//FILVIT

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 4 mm²
  • Conductor diameter: 2.4 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 3.9 mm
  • Maximum outer diameter: 4.17 mm
  • Approximate weight: 46 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 4

Nexans ref. DNYA 001176 - Country ref. DNYA 4//FILVIT-T

  • Packaging: Drum
  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 4 mm²
  • Conductor diameter: 2.4 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 3.9 mm
  • Maximum outer diameter: 4.17 mm
  • Approximate weight: 46 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 4 PASSEO

Nexans ref. DNYA 000925 - Country ref. DNYA 4//FILVIT-PASSEO

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 4 mm²
  • Conductor diameter: 2.4 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 3.9 mm
  • Maximum outer diameter: 4.17 mm
  • Approximate weight: 46 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 4 SOLID

Nexans ref. DNYA 001101 - Country ref. D(NYA) 4RE

  • Conductor flexibility: Solid class 1
  • Conductor cross-section: 4 mm²
  • Conductor diameter: 2.3 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 3.9 mm
  • Maximum outer diameter: 4.17 mm
  • Approximate weight: 46 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 4//5

Nexans ref. DNYA 001203 - Country ref. D(NYA) 4//5

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 4 mm²
  • Conductor diameter: 2.4 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 3.9 mm
  • Maximum outer diameter: 4.17 mm
  • Approximate weight: 46 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Maximum operating temperature: 85 °C



D(NYA) 6

Nexans ref. DNYA 000177 - Country ref. D(NYA) 6//FILVIT

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 6 mm²
  • Conductor diameter: 3.0 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 4.6 mm
  • Maximum outer diameter: 4.92 mm
  • Approximate weight: 66 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 6 SOLID

Nexans ref. DNYA 001301 - Country ref. D(NYA) 6RE

  • Conductor flexibility: Solid class 1
  • Conductor cross-section: 6 mm²
  • Conductor diameter: 2.8 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 4.4 mm
  • Maximum outer diameter: 4.71 mm
  • Approximate weight: 66 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Maximum operating temperature: 70 °C



D(NYA) 6 T

Nexans ref. DNYA 008177 - Country ref. DNYA 6//T

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 6 mm²
  • Conductor diameter: 3.0 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 4.6 mm
  • Maximum outer diameter: 4.92 mm
  • Approximate weight: 66 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Maximum operating temperature: 70 °C



DNYA 2

Nexans ref. DNYA 000173 - Country ref. D(NYA) 2//FILVIT

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 2 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.7 mm
  • Nominal overall diameter: 3.3 mm
  • Maximum outer diameter: 3.53 mm
  • Approximate weight: 28 kg/km
  • Max. DC resistance of the conductor at 20°C: 9.11 Ohm/km
  • Maximum operating temperature: 70 °C



DNYA 3/0.029//FILVIT

Nexans ref. DNYA 000171 - Country ref. DNYA 3/0.029//FILVIT

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 3 mm²
  • Conductor diameter: 1.6 mm
  • Nominal insulation thickness: 0.6 mm
  • Nominal overall diameter: 2.8 mm
  • Maximum outer diameter: 3.0 mm
  • Approximate weight: 17.69 kg/km
  • Max. DC resistance of the conductor at 20°C: - Ohm/km
  • Maximum operating temperature: 70 °C



DNYA 6 PASSEO

Nexans ref. DNYA 000926 - Country ref. DNYA 6//FILVIT-PASSEO

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 6 mm²
  • Conductor diameter: 3.0 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal overall diameter: 4.6 mm
  • Maximum outer diameter: 4.92 mm
  • Approximate weight: 66 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 120

Nexans ref. ENYA 000501 - Country ref. E(NYA) 120

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal overall diameter: 16.0 mm
  • Maximum outer diameter: 17.12 mm
  • Approximate weight: 1142 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 120//105

Nexans ref. ENYA 002055 - Country ref. E(NYA) 120//105

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal overall diameter: 16.0 mm
  • Maximum outer diameter: 17.12 mm
  • Approximate weight: 1142 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Maximum operating temperature: 105 °C



E(NYA) 120//EDL-SP

Nexans ref. ENYA 000321 - Country ref. E(NYA) 120//EDL-SP

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal overall diameter: 16.0 mm
  • Maximum outer diameter: 17.12 mm
  • Approximate weight: 1142 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 150

Nexans ref. ENYA 000601 - Country ref. E(NYA) 150

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 1.8 mm
  • Nominal overall diameter: 18.0 mm
  • Maximum outer diameter: 19.26 mm
  • Approximate weight: 1410 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 150//5

Nexans ref. ENYA 000621 - Country ref. E(NYA) 150//5

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 1.8 mm
  • Nominal overall diameter: 18.0 mm
  • Maximum outer diameter: 19.26 mm
  • Approximate weight: 1400 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Maximum operating temperature: 85 °C



E(NYA) 185

Nexans ref. ENYA 000701 - Country ref. E(NYA) 185

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 15.9 mm
  • Nominal insulation thickness: 2.0 mm
  • Nominal overall diameter: 20.0 mm
  • Maximum outer diameter: 21.4 mm
  • Approximate weight: 1761 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 240

Nexans ref. ENYA 000750 - Country ref. E(NYA) 240

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal overall diameter: 23.0 mm
  • Maximum outer diameter: 24.61 mm
  • Approximate weight: 2275 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 240//5

Nexans ref. ENYA 000633 - Country ref. E(NYA) 240//5

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal overall diameter: 23.0 mm
  • Maximum outer diameter: 24.61 mm
  • Approximate weight: 2263 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Maximum operating temperature: 85 °C



E(NYA) 240//EDL-SP

Nexans ref. ENYA 000323 - Country ref. E(NYA) 240//EDL-SP

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal overall diameter: 23.0 mm
  • Maximum outer diameter: 24.61 mm
  • Approximate weight: 2275 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 240//EDL-SP-BE

Nexans ref. ENYA 000543 - Country ref. E(NYA) 240//EDL-SP-BE

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal overall diameter: 23.0 mm
  • Maximum outer diameter: 24.61 mm
  • Approximate weight: 2275 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 240//EDL-SP-J

Nexans ref. ENYA 000542 - Country ref. E(NYA) 240//EDL-SP-J

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal overall diameter: 23.0 mm
  • Maximum outer diameter: 24.61 mm
  • Approximate weight: 2275 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 240//EDL-SP-JV

Nexans ref. ENYA 000544 - Country ref. E(NYA) 240//EDL-SP-JV

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal overall diameter: 23.0 mm
  • Maximum outer diameter: 24.61 mm
  • Approximate weight: 2275 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 240//EDL-SP-N

Nexans ref. ENYA 000541 - Country ref. E(NYA) 240//EDL-SP-N

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal overall diameter: 23.0 mm
  • Maximum outer diameter: 24.61 mm
  • Approximate weight: 2275 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 240//EDL-SP-R

Nexans ref. ENYA 000540 - Country ref. E(NYA) 240//EDL-SP-R

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal overall diameter: 23.0 mm
  • Maximum outer diameter: 24.61 mm
  • Approximate weight: 2275 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 300

Nexans ref. ENYA 001001 - Country ref. E(NYA) 300

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 2.4 mm
  • Nominal overall diameter: 25.0 mm
  • Maximum outer diameter: 26.75 mm
  • Approximate weight: 2857 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 35

Nexans ref. ENYA 000101 - Country ref. E(NYA) 35

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal overall diameter: 9.3 mm
  • Maximum outer diameter: 9.95 mm
  • Approximate weight: 352 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 35//5

Nexans ref. ENYA 000117 - Country ref. E(NYA) 35//5

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal overall diameter: 9.3 mm
  • Maximum outer diameter: 9.95 mm
  • Approximate weight: 352 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Maximum operating temperature: 85 °C



E(NYA) 35//EDL-SP

Nexans ref. ENYA 000329 - Country ref. E(NYA) 35//EDL-SP

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal overall diameter: 9.3 mm
  • Maximum outer diameter: 9.95 mm
  • Approximate weight: 352 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 35//EDL-SP-JV

Nexans ref. ENYA 000550 - Country ref. E(NYA) 35//EDL-SP-JV

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal overall diameter: 9.3 mm
  • Maximum outer diameter: 9.95 mm
  • Approximate weight: 352 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 400

Nexans ref. ENYA 001101 - Country ref. E(NYA) 400

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Nominal insulation thickness: 2.6 mm
  • Nominal overall diameter: 29.0 mm
  • Maximum outer diameter: 31.03 mm
  • Approximate weight: 3655 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 50

Nexans ref. ENYA 000201 - Country ref. E(NYA) 50

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal overall diameter: 11.0 mm
  • Maximum outer diameter: 11.77 mm
  • Approximate weight: 471 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 50//EDL-SP

Nexans ref. ENYA 000331 - Country ref. E(NYA) 50//EDL-SP

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal overall diameter: 11.0 mm
  • Maximum outer diameter: 11.77 mm
  • Approximate weight: 471 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 50//EDL-SP-JV

Nexans ref. ENYA 000332 - Country ref. E(NYA) 50//EDL-SP-JV

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal overall diameter: 11.0 mm
  • Maximum outer diameter: 11.77 mm
  • Approximate weight: 471 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 500

Nexans ref. ENYA 001201 - Country ref. E(NYA) 500

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Nominal insulation thickness: 2.8 mm
  • Nominal overall diameter: 32.0 mm
  • Maximum outer diameter: 34.24 mm
  • Approximate weight: 4705 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 630

Nexans ref. ENYA 001301 - Country ref. E(NYA) 630

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 30.2 mm
  • Nominal insulation thickness: 2.8 mm
  • Nominal overall diameter: 36.0 mm
  • Maximum outer diameter: 38.52 mm
  • Approximate weight: 6014 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 70

Nexans ref. ENYA 000301 - Country ref. E(NYA) 70

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal overall diameter: 12.5 mm
  • Maximum outer diameter: 13.38 mm
  • Approximate weight: 660 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 70//EDL-SP

Nexans ref. ENYA 000320 - Country ref. E(NYA) 70//EDL-SP

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal overall diameter: 12.5 mm
  • Maximum outer diameter: 13.38 mm
  • Approximate weight: 660 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 70//EDL-SP-JV

Nexans ref. ENYA 000545 - Country ref. E(NYA) 70//EDL-SP-JV

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal overall diameter: 12.5 mm
  • Maximum outer diameter: 13.38 mm
  • Approximate weight: 660 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 95

Nexans ref. ENYA 000401 - Country ref. E(NYA) 95

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal overall diameter: 14.5 mm
  • Maximum outer diameter: 15.52 mm
  • Approximate weight: 913 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Maximum operating temperature: 70 °C



E(NYA) 95//5

Nexans ref. ENYA 000428 - Country ref. E(NYA) 95//5

  • Conductor flexibility: Stranded class 2
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal overall diameter: 14.5 mm
  • Maximum outer diameter: 15.52 mm
  • Approximate weight: 913 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Maximum operating temperature: 85 °C



Description

Description

Standards

  • International
    IEC 60228; IEC 60332-1-2
  • National
    DIN VDE 0250

1-SCOPE

This specification covers single core, PVC insulated cables, intended for internal wiring in dry locations,concealed in conduits.



2.1-Conductor

Plain, annealed, electrolytic copper conductors, solid or stranded, complying with the applicable requirements of IEC 228.



2.2 - Insulation

PVC based thermoplastic material

TEST AT WORKS building wires

Routine Tests

 - Max. DC conductor resistance at 20°C acc. to IEC 60228

 - Spark test during insulation



Liban Cables will carry out these tests on all the length and tests certificates will be provided.



Sample Tests

 -          Check of the build - up and color coding of the cable

 -          Check of dimensions

            Insulation :  according to VDE 250  Table 6  Column 2



These tests will be carried out on one length of each size during each inspection .

Tests certificates will be provided by Liban Cables



Type Tests

Mechanical characteristics on insulation  material (tensile strength and elongation at break) in accordance with VDE 250.

These tests will be carried out on one length of the order

Tests certificates will be provided by Liban Cables

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
PVC
Conductor shape
Circular
Number of conductors
1

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
1000 V

Usage characteristics

Usage characteristics

Installation temperature, range
-5 ... 50 °C
Operating temperature, range
-15 ... 55 °C
Short-circuit max. conductor temperature
160 °C

Resources

Resources

Find a Distributor

Waiting…

No items found

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
