EAY 1*120
Nexans ref. EAY 000166 - Country ref. EAY 1*120
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal overall diameter: 16.0 mm
- Approximate weight: 417 kg/km
- Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
EAY 1*150
Nexans ref. EAY 000171 - Country ref. EAY 1*150
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal overall diameter: 18.0 mm
- Approximate weight: 523 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
EAY 1*185
Nexans ref. EAY 000176 - Country ref. EAY 1*185
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 2.0 mm
- Nominal overall diameter: 21.0 mm
- Approximate weight: 666 kg/km
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
EAY 1*240
Nexans ref. EAY 000178 - Country ref. EAY 1*240
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal overall diameter: 22.0 mm
- Approximate weight: 828 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
EAY 1*300
Nexans ref. EAY 000182 - Country ref. EAY 1*300
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 2.4 mm
- Nominal overall diameter: 25.0 mm
- Approximate weight: 1039 kg/km
- Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
EAY 1*400
Nexans ref. EAY 000800 - Country ref. EAY 1*400
- Conductor cross-section: 400 mm²
- Nominal insulation thickness: 2.6 mm
- Nominal overall diameter: 29.0 mm
- Approximate weight: 1331 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
EAY 1*50
Nexans ref. EAY 000146
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal overall diameter: 11.0 mm
- Approximate weight: 185 kg/km
- Max. DC resistance of the conductor at 20°C: 0.641 Ohm/km
EAY 1*500
Nexans ref. EAY 000185 - Country ref. EAY 1*500
- Conductor cross-section: 500 mm²
- Nominal insulation thickness: 2.8 mm
- Nominal overall diameter: 32.0 mm
- Approximate weight: 1675 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
EAY 1*70
Nexans ref. EAY 000151 - Country ref. EAY 1*70
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal overall diameter: 12.5 mm
- Approximate weight: 248 kg/km
- Max. DC resistance of the conductor at 20°C: 0.443 Ohm/km
EAY 1*95
Nexans ref. EAY 000161 - Country ref. EAY 1*95
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal overall diameter: 15.0 mm
- Approximate weight: 349 kg/km
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
Description
Description
Standards
-
ProductIEC 60227-3; IEC 60228
-
TestIEC 60332-1-2
1-SCOPE

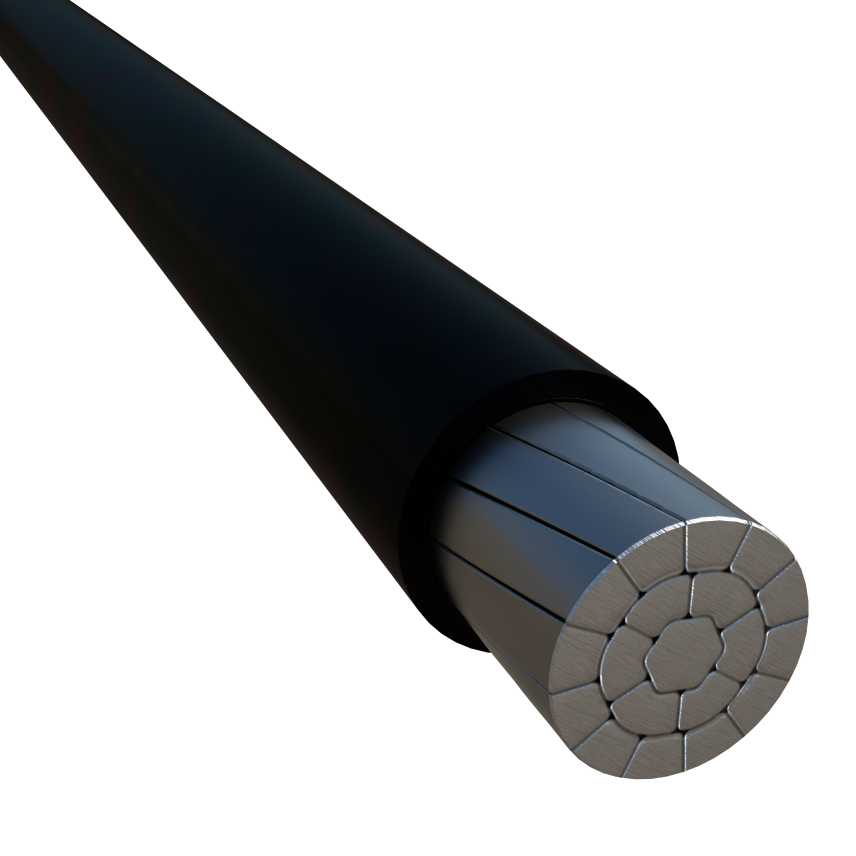

This specification covers single core, PVC insulated cables, intended for internal wiring in dry locations,concealed in conduits.
2.1-Conductor
Aluminum conductors, complying with the applicable requirements of IEC 228.
2.2 - Insulation
PVC based thermoplastic material
Test at works IEC 227-3
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60227-2 parag.2.1
- Spark test during insulation
Liban Cables will carry out these tests on all the length and tests certificates will be provided
Sample Tests
Check of the build - up and color coding of the cable
Check of dimensions
Insulation : according to IEC 60227-2 parag. 1.9
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation material (tensile strength and elongation at break ) in accordance with IEC 60227-3
These tests will be carried out on one length of the order.
Tests certificates will be provided by Liban Cables
