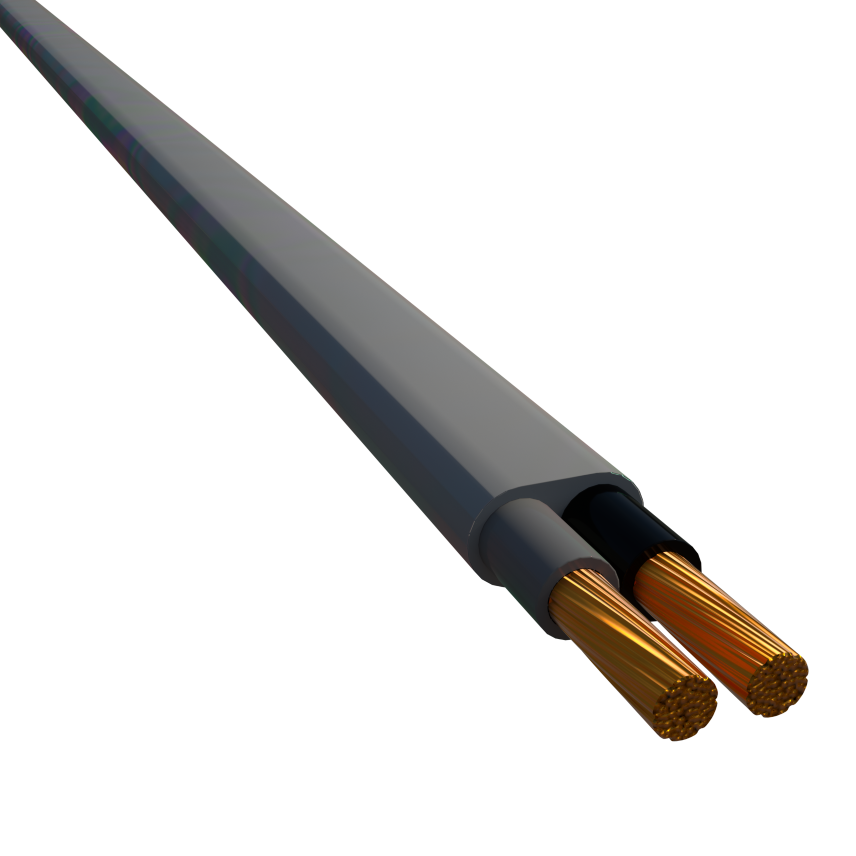

Flat two flexible cords, PVC insulated(FNYZ)
FNYZ 2*0.5
Nexans ref. FNYZ 000301 - Country ref. FNYZ 2*0.50
- Packaging: Coil (m)
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 5.0 mm
- Approximate weight: 21 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
FNYZ 2*0.5NO
Nexans ref. FNYZ 000315 - Country ref. FNYZ 2*0.5NO
- Packaging: Coil (m)
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 5.0 mm
- Approximate weight: 21 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
FNYZ 2*0.5RN
Nexans ref. FNYZ 000311 - Country ref. FNYZ 2*0.50RN
- Packaging: Coil (m)
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 5.0 mm
- Approximate weight: 21 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
FNYZ 2*0.75
Nexans ref. FNYZ 000401 - Country ref. FNYZ 2*0.75
- Packaging: Coil (m)
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 5.4 mm
- Approximate weight: 27 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
FNYZ 2*0.75NO
Nexans ref. FNYZ 000404 - Country ref. FNYZ 2*0.75NO
- Packaging: Coil (m)
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 5.4 mm
- Approximate weight: 27 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
FNYZ 2*0.75RN
Nexans ref. FNYZ 000411 - Country ref. FNYZ 2*0.75RN
- Packaging: Coil (m)
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 5.4 mm
- Approximate weight: 27 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
FNYZ 2*1
Nexans ref. FNYZ 000501 - Country ref. FNYZ 2*1
- Packaging: Coil (m)
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 5.7 mm
- Approximate weight: 31 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
FNYZ 2*1.5
Nexans ref. FNYZ 000601 - Country ref. FNYZ 2*1.5
- Packaging: Coil (m)
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 6.2 mm
- Approximate weight: 41 kg/km
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
FNYZ 2*1.5NO
Nexans ref. FNYZ 000603 - Country ref. FNYZ 1.5NO
- Packaging: Coil (m)
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 6.2 mm
- Approximate weight: 41 kg/km
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
FNYZ 2*1.5RN
Nexans ref. FNYZ 000611 - Country ref. FNYZ 2*1.5RN
- Packaging: Coil (m)
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 6.2 mm
- Approximate weight: 41 kg/km
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
FNYZ 2*1RN
Nexans ref. FNYZ 000511 - Country ref. FNYZ 2*1RN
- Packaging: Coil (m)
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 5.7 mm
- Approximate weight: 31 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
FNYZ 2*2
Nexans ref. FNYZ 000701 - Country ref. FNYZ 2*2
- Packaging: Coil (m)
- Conductor cross-section: 2 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal overall diameter: 7.2 mm
- Approximate weight: 56 kg/km
- Max. DC resistance of the conductor at 20°C: 9.5 Ohm/km
FNYZ 2*2.5
Nexans ref. FNYZ 000801 - Country ref. FNYZ 2*2.5
- Packaging: Coil (m)
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal overall diameter: 7.4 mm
- Approximate weight: 63 kg/km
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
FNYZ 2*2.5RN
Nexans ref. FNYZ 000811 - Country ref. FNYZ 2*2.5RN
- Packaging: Coil (m)
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal overall diameter: 7.4 mm
- Approximate weight: 63 kg/km
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
FNYZ 2*2RN
Nexans ref. FNYZ 000711 - Country ref. FNYZ 2*2RN
- Packaging: Coil (m)
- Conductor cross-section: 2 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal overall diameter: 7.2 mm
- Approximate weight: 56 kg/km
- Max. DC resistance of the conductor at 20°C: 9.5 Ohm/km
Description
Description
Standards
-
ProductDIN VDE 0250
-
TestIEC 60332-1-2
Scope
This specification covers 380 V rated cords of two conductors laid parallel and insulated simultaneously; allowing insulated conductors to be joined but easily separated without causing damage to the insulation, for use in dry locations for connecting portable electrical appliances ( excluding heating appliances ), also for lighting circuits, offering both flexibility and durability.
2 - CONSTRUCTION
2.1 - Conductor
Flexible annealed copper Class 5 acc. to IEC 60228.
2.2 - Arrangement of cores
Two conductors are laid flat side by side and covered with the insulating material in one process.
2.3 - Insulation
PVC based thermoplastic material.
TEST AT WORKS for FNYZ, FNYMHY & FNYLHY
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided
Sample tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to VDE 250 parag. 402 table 6
Oversheath : Generally to VDE 250 table 402-1
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type tests
Mechanical characteristics on insulation material (tensile strength and elongation at break) in accordance with VDE 250
These tests will be carried out on one length of the order
Tests certificates will be provided by Liban Cables
