FNYLHY 12*0.5
Nexans ref. FNYLHY 001011 - Country ref. FNYLHY 12*0.5
- Sheath colour: Black
- Number of cores: 12
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 1.2 mm
- Nominal overall diameter: 11.0 mm
- Approximate weight: 153 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
- Permissible current rating in open air: 10 A
FNYLHY 2*0.5
Nexans ref. FNYLHY 000101 - Country ref. FNYLHY 2*0.5
- Sheath colour: White
- Number of cores: 2
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 5.2 mm
- Approximate weight: 38 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
- Permissible current rating in open air: 10 A
FNYLHY 2*0.5
Nexans ref. FNYLHY 000112 - Country ref. FNYLHY 2*0.5//BLACK
- Sheath colour: Black
- Number of cores: 2
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 5.2 mm
- Approximate weight: 38 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
- Permissible current rating in open air: 10 A
FNYLHY 2*0.5
Nexans ref. FNYLHY 000102 - Country ref. FNYLHY 2*0.5//R
- Sheath colour: White
- Number of cores: 2
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 5.2 mm
- Approximate weight: 38 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
- Permissible current rating in open air: 10 A
FNYLHY 2*0.75
Nexans ref. FNYLHY 000201 - Country ref. FNYLHY 2*0.75
- Sheath colour: White
- Number of cores: 2
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 5.5 mm
- Approximate weight: 46 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
- Permissible current rating in open air: 14 A
FNYLHY 2*0.75
Nexans ref. FNYLHY 000113 - Country ref. FNYLHY 2*0.75//BLACK
- Sheath colour: Black
- Number of cores: 2
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 5.5 mm
- Approximate weight: 46 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
- Permissible current rating in open air: 14 A
FNYLHY 2*0.75//R
Nexans ref. FNYLHY 000202 - Country ref. FNYLHY 2*0.75//R
- Sheath colour: Black
- Number of cores: 2
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 5.5 mm
- Approximate weight: 46 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
- Permissible current rating in open air: 14 A
FNYLHY 2*1
Nexans ref. FNYLHY 000301 - Country ref. FNYLHY 2*1
- Sheath colour: White
- Number of cores: 2
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.6 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 6.0 mm
- Approximate weight: 57 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Permissible current rating in open air: 15 A
FNYLHY 2*1
Nexans ref. FNYLHY 000650 - Country ref. FNYLHY 2*1//BLACK
- Sheath colour: Black
- Number of cores: 2
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.6 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 6.0 mm
- Approximate weight: 57 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Permissible current rating in open air: 15 A
FNYLHY 2*1
Nexans ref. FNYLHY 000307 - Country ref. FNYLHY 2*1//R
- Sheath colour: White
- Number of cores: 2
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.6 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 6.0 mm
- Approximate weight: 57 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Permissible current rating in open air: 15 A
FNYLHY 3*0.5
Nexans ref. FNYLHY 001401 - Country ref. FNYLHY 3*0.5//BLACK
- Sheath colour: Black
- Number of cores: 3
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 5.5 mm
- Approximate weight: 44 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
- Permissible current rating in open air: 9 A
FNYLHY 3*0.5
Nexans ref. FNYLHY 000401 - Country ref. FNYLHY 3*0.5
- Sheath colour: Black
- Number of cores: 3
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 5.5 mm
- Approximate weight: 44 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
- Permissible current rating in open air: 10 A
FNYLHY 3*0.75
Nexans ref. FNYLHY 000501 - Country ref. FNYLHY 3*0.75
- Sheath colour: White
- Number of cores: 3
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 6.0 mm
- Approximate weight: 55 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
- Permissible current rating in open air: 12 A
FNYLHY 3*0.75
Nexans ref. FNYLHY 000575 - Country ref. FNYLHY 3*0.75//BLACK
- Sheath colour: Black
- Number of cores: 3
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 6.0 mm
- Approximate weight: 55 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
- Permissible current rating in open air: 12 A
FNYLHY 3*0.75
Nexans ref. FNYLHY 000203 - Country ref. FNYLHY 3*0.75//R
- Sheath colour: White
- Number of cores: 3
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 6.0 mm
- Approximate weight: 55 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
- Permissible current rating in open air: 12 A
FNYLHY 3*1
Nexans ref. FNYLHY 000601 - Country ref. FNYLHY 3*1
- Sheath colour: White
- Number of cores: 3
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.6 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 6.6 mm
- Approximate weight: 70 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Permissible current rating in open air: 13 A
FNYLHY 3*1
Nexans ref. FNYLHY 000606 - Country ref. FNYLHY 3*1//BLACK
- Sheath colour: Black
- Number of cores: 3
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.6 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 6.6 mm
- Approximate weight: 70 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Permissible current rating in open air: 13 A
FNYLHY 3*1
Nexans ref. FNYLHY 000607 - Country ref. FNYLHY 3*1//R
- Sheath colour: White
- Number of cores: 3
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.6 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 6.6 mm
- Approximate weight: 70 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Permissible current rating in open air: 13 A
FNYLHY 4*0.5
Nexans ref. FNYLHY 000701 - Country ref. FNYLHY 4*0.5
- Sheath colour: Black
- Number of cores: 4
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 6.0 mm
- Approximate weight: 53 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
- Permissible current rating in open air: 9 A
FNYLHY 4*0.75
Nexans ref. FNYLHY 000801 - Country ref. FNYLHY 4*0.75
- Sheath colour: White
- Number of cores: 4
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 6.5 mm
- Approximate weight: 67 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
- Permissible current rating in open air: 12 A
FNYLHY 4*1
Nexans ref. FNYLHY 000901 - Country ref. FNYLHY 4*1
- Sheath colour: White
- Number of cores: 4
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.6 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 7.3 mm
- Approximate weight: 86 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Permissible current rating in open air: 13 A
FNYLHY 4*1
Nexans ref. FNYLHY 009112 - Country ref. FNYLHY 4*1//BLACK
- Sheath colour: Black
- Number of cores: 4
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.6 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 7.3 mm
- Approximate weight: 86 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Permissible current rating in open air: 13 A
FNYLHY 4*1
Nexans ref. FNYLHY 000109 - Country ref. FNYLHY 4*1//R
- Sheath colour: White
- Number of cores: 4
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.6 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 7.3 mm
- Approximate weight: 86 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Permissible current rating in open air: 13 A
FNYLHY 5*0.75
Nexans ref. FNYLHY 000636 - Country ref. FNYLHY 5*0.75
- Sheath colour: White
- Number of cores: 5
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 0.7 mm
- Nominal overall diameter: 7.5 mm
- Approximate weight: 76 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
- Permissible current rating in open air: 12 A
FNYLHY 6*0.5
Nexans ref. FNYLHY 001006 - Country ref. FNYLHY 6*0.5
- Sheath colour: Black
- Number of cores: 6
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 1.0 mm
- Nominal overall diameter: 7.9 mm
- Approximate weight: 84 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
- Permissible current rating in open air: 10 A
FNYLHY 8*0.5
Nexans ref. FNYLHY 001008 - Country ref. FNYLHY 8*0.5
- Sheath colour: Black
- Number of cores: 8
- Conductor cross-section: 0.5 mm²
- Nominal insulation thickness: 0.5 mm
- Nominal outer sheath thickness: 1.2 mm
- Nominal overall diameter: 8.9 mm
- Approximate weight: 107 kg/km
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
- Permissible current rating in open air: 10 A
Description
Description
Standards
-
InternationalIEC 60228; IEC 60332-1-2
-
NationalDIN VDE 0250
Application

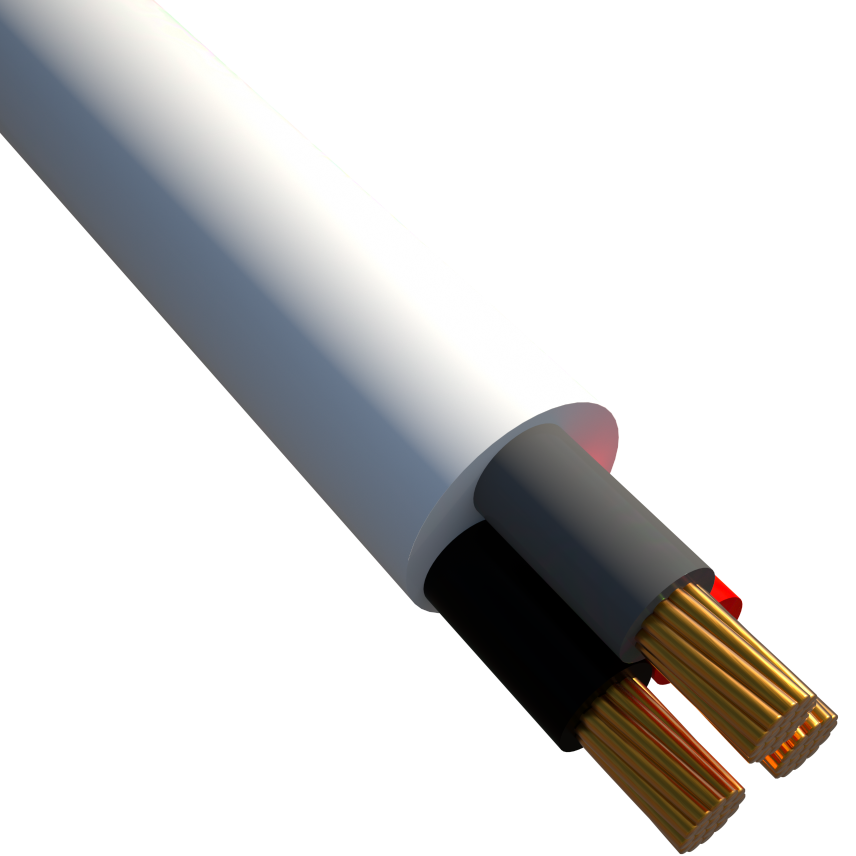

FNYLHY cables are designed generally to VDE 0250/69.
Flexible cable for inside Buildings.
Installation
Open air.
TEST AT WORKS for FNYZ, FNYMHY & FNYLHY
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided
Sample tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to VDE 250 parag. 402 table 6
Oversheath : Generally to VDE 250 table 402-1
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type tests
Mechanical characteristics on insulation material (tensile strength and elongation at break) in accordance with VDE 250
These tests will be carried out on one length of the order
Tests certificates will be provided by Liban Cables
DRAWING LV PVC/PVC
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
