FNYMHY

FNYMHY

FNYMHY

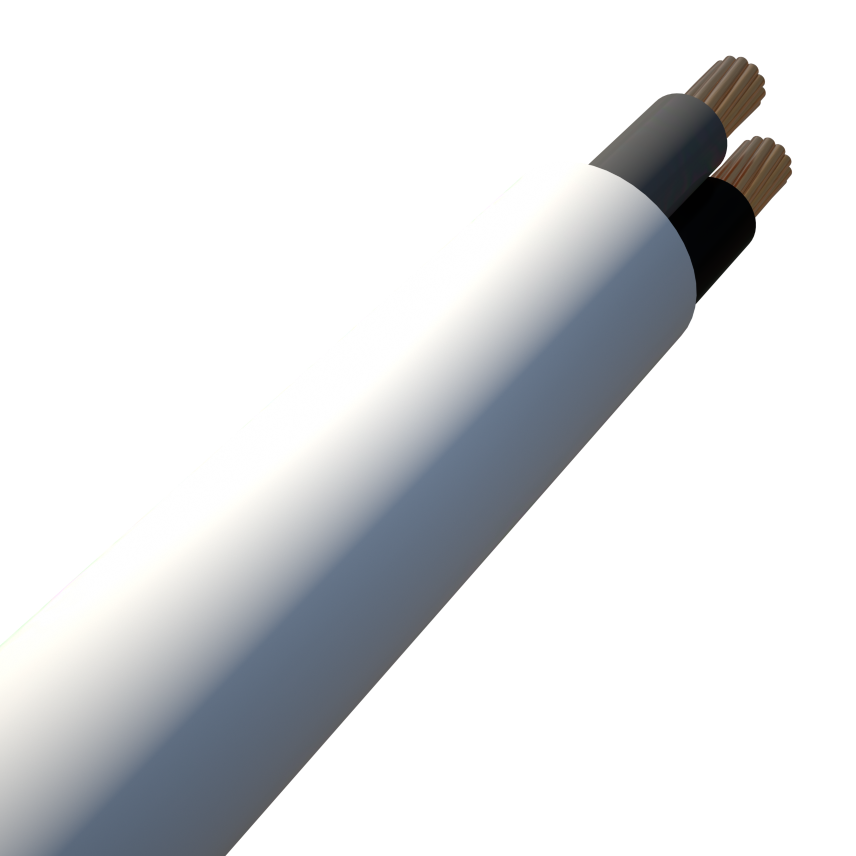

Flexible cable, PVC insulated, PVC sheathed, domestic use.

Read more
Find distributor
Contact us

Products

Actions
Filters

  • products

FNYMHY 10*1

Nexans ref. FNYMHY 002140 - Country ref. FNYMHY 10*1

  • Sheath colour: Black
  • Number of cores: 10
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 12.5 mm
  • Approximate weight: 203 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 10*1.5

Nexans ref. FNYMHY 002501 - Country ref. FNYMHY 10*1.5

  • Sheath colour: Black
  • Number of cores: 10
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 14.0 mm
  • Approximate weight: 267 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 10*1.5

Nexans ref. FNYMHY 000703 - Country ref. FNYMHY 10*1.5//BLACK

  • Sheath colour: Black
  • Number of cores: 10
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 14.0 mm
  • Approximate weight: 268 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 10*2.5

Nexans ref. FNYMHY 003590 - Country ref. FNYMHY 10*2.5

  • Packaging: Cut to length (m)
  • Sheath colour: Black
  • Number of cores: 10
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 16.5 mm
  • Approximate weight: 389 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 26 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 12*1

Nexans ref. FNYMHY 002149 - Country ref. FNYMHY 12*1

  • Sheath colour: Black
  • Number of cores: 12
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 12.5 mm
  • Approximate weight: 228 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 12*1.5

Nexans ref. FNYMHY 002601 - Country ref. FNYMHY 12*1.5

  • Sheath colour: Black
  • Number of cores: 12
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 14.5 mm
  • Approximate weight: 306 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 12*1.5

Nexans ref. FNYMHY 000662 - Country ref. FNYMHY 12*1.5//BLACK

  • Sheath colour: Black
  • Number of cores: 12
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 14.5 mm
  • Approximate weight: 307 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 12*1.5//NC

Nexans ref. FNYMHY 000181 - Country ref. FNYMHY 12*1.5//NC

  • Sheath colour: Black
  • Number of cores: 12
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 14.5 mm
  • Approximate weight: 306 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 12*2.5 NEW

Nexans ref. FNYMHY 003601 - Country ref. FNYMHY 12*2.5

  • Packaging: Cut to length (m)
  • Sheath colour: Black
  • Number of cores: 12
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 17.0 mm
  • Approximate weight: 467 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 26 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 14*2.5

Nexans ref. FNYMHY 003621 - Country ref. FNYMHY 14*2.5

  • Packaging: Cut to length (m)
  • Sheath colour: Black
  • Number of cores: 14
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 18.5 mm
  • Approximate weight: 548 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 26 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 15*1.5

Nexans ref. FNYMHY 002702 - Country ref. FNYMHY 15*1.5

  • Sheath colour: Black
  • Number of cores: 15
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 16.0 mm
  • Approximate weight: 386 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 16*1.5

Nexans ref. FNYMHY 002801 - Country ref. FNYMHY 16*1.5

  • Sheath colour: Black
  • Number of cores: 16
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 16.0 mm
  • Approximate weight: 408 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 18*1.5

Nexans ref. FNYMHY 002825 - Country ref. FNYMHY 18*1.5

  • Sheath colour: Black
  • Number of cores: 18
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 17.0 mm
  • Approximate weight: 446 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 19*1

Nexans ref. FNYMHY 002180 - Country ref. FNYMHY 19*1

  • Sheath colour: Black
  • Number of cores: 19
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 15.0 mm
  • Approximate weight: 349 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 19*1.5

Nexans ref. FNYMHY 002902 - Country ref. FNYMHY 19*1.5

  • Sheath colour: Black
  • Number of cores: 19
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 16.5 mm
  • Approximate weight: 459 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 19*2.5 NEW

Nexans ref. FNYMHY 003651 - Country ref. FNYMHY 19*2.5

  • Packaging: Cut to length (m)
  • Sheath colour: Black
  • Number of cores: 19
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 20.0 mm
  • Approximate weight: 691 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 26 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*1.5

Nexans ref. FNYMHY 000101 - Country ref. FNYMHY 2*1.5

  • Sheath colour: White
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 0.8 mm
  • Nominal overall diameter: 7.0 mm
  • Approximate weight: 74 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 19 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*1.5

Nexans ref. FNYMHY 002015 - Country ref. FNYMHY 2*1.5//BLACK

  • Sheath colour: Black
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 0.8 mm
  • Nominal overall diameter: 7.0 mm
  • Approximate weight: 74 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 19 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*1.5

Nexans ref. FNYMHY 003816 - Country ref. FNYMHY 2*1.5//T

  • Sheath colour: White
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 0.8 mm
  • Nominal overall diameter: 7.0 mm
  • Approximate weight: 74 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 19 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*1.5//105

Nexans ref. FNYMHY 001751 - Country ref. FNYMHY 2*1.5//105

  • Sheath colour: Black
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 0.8 mm
  • Nominal overall diameter: 7.0 mm
  • Approximate weight: 74 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 19 A
  • Max. conductor temperature in service: 105 °C



FNYMHY 2*1.5//R

Nexans ref. FNYMHY 000102 - Country ref. FNYMHY 2*1.5//R

  • Sheath colour: White
  • Number of cores: 2
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 0.8 mm
  • Nominal overall diameter: 7.0 mm
  • Approximate weight: 74 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 19 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*10

Nexans ref. FNYMHY 000501 - Country ref. FNYMHY 2*10

  • Sheath colour: White
  • Number of cores: 2
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 15.0 mm
  • Approximate weight: 391 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
  • Permissible current rating in open air: 63 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*16

Nexans ref. FNYMHY 000601 - Country ref. FNYMHY 2*16

  • Sheath colour: White
  • Number of cores: 2
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.7 mm
  • Nominal overall diameter: 18.5 mm
  • Approximate weight: 584 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
  • Permissible current rating in open air: 85 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*2.5

Nexans ref. FNYMHY 000201 - Country ref. FNYMHY 2*2.5

  • Sheath colour: White
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 8.6 mm
  • Approximate weight: 115 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 26 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*2.5

Nexans ref. FNYMHY 002018 - Country ref. FNYMHY 2*2.5//BLACK

  • Sheath colour: Black
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 8.6 mm
  • Approximate weight: 115 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 26 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*2.5//T

Nexans ref. FNYMHY 003814 - Country ref. FNYMHY 2*2.5//T

  • Packaging: Drum
  • Sheath colour: White
  • Number of cores: 2
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 8.6 mm
  • Approximate weight: 115 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 26 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*25

Nexans ref. FNYMHY 000701 - Country ref. FNYMHY 2*25

  • Packaging: Cut to length (m)
  • Sheath colour: White
  • Number of cores: 2
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal overall diameter: 22.0 mm
  • Approximate weight: 877 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.78 Ohm/km
  • Permissible current rating in open air: 112 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*4

Nexans ref. FNYMHY 000301 - Country ref. FNYMHY 2*4

  • Sheath colour: White
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 10.0 mm
  • Approximate weight: 166 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 35 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*4

Nexans ref. FNYMHY 002032 - Country ref. FNYMHY 2*4//BLACK

  • Sheath colour: Black
  • Number of cores: 2
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 10.0 mm
  • Approximate weight: 166 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 35 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 2*6

Nexans ref. FNYMHY 000401 - Country ref. FNYMHY 2*6

  • Sheath colour: White
  • Number of cores: 2
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 11.6 mm
  • Approximate weight: 231 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
  • Permissible current rating in open air: 46 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 20*1

Nexans ref. FNYMHY 002181 - Country ref. FNYMHY 20*1

  • Sheath colour: Black
  • Number of cores: 20
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 16.5 mm
  • Approximate weight: 387 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 20*1.5

Nexans ref. FNYMHY 002904 - Country ref. FNYMHY 20*1.5

  • Sheath colour: Black
  • Number of cores: 20
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 18.0 mm
  • Approximate weight: 488 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 21*1.5

Nexans ref. FNYMHY 002901 - Country ref. FNYMHY 21*1.5

  • Sheath colour: Black
  • Number of cores: 21
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 18.0 mm
  • Approximate weight: 507 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 24*1.5

Nexans ref. FNYMHY 003001 - Country ref. FNYMHY 24*1.5

  • Sheath colour: Black
  • Number of cores: 24
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 20.0 mm
  • Approximate weight: 594 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 24*2.5 NEW

Nexans ref. FNYMHY 003675 - Country ref. FNYMHY 24*2.5

  • Packaging: Cut to length (m)
  • Sheath colour: Black
  • Number of cores: 24
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 24.0 mm
  • Approximate weight: 887 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 26 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 25*1

Nexans ref. FNYMHY 001917 - Country ref. FNYMHY 25*1

  • Sheath colour: Black
  • Number of cores: 25
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 18.5 mm
  • Approximate weight: 471 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 25*1.5

Nexans ref. FNYMHY 003016 - Country ref. FNYMHY 25*1.5

  • Sheath colour: Black
  • Number of cores: 25
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 20.0 mm
  • Approximate weight: 616 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 27*1

Nexans ref. FNYMHY 002164 - Country ref. FNYMHY 27*1

  • Sheath colour: Black
  • Number of cores: 27
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 18.5 mm
  • Approximate weight: 498 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 27*1.5

Nexans ref. FNYMHY 003023 - Country ref. FNYMHY 27*1.5

  • Sheath colour: Black
  • Number of cores: 27
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 21.0 mm
  • Approximate weight: 652 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*1.5

Nexans ref. FNYMHY 000801 - Country ref. FNYMHY 3*1.5

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 0.8 mm
  • Nominal overall diameter: 7.3 mm
  • Approximate weight: 91 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 18 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*1.5

Nexans ref. FNYMHY 002016 - Country ref. FNYMHY 3*1.5//BLACK

  • Sheath colour: Black
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 0.8 mm
  • Nominal overall diameter: 7.3 mm
  • Approximate weight: 91 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 18 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*1.5

Nexans ref. FNYMHY 003801 - Country ref. FNYMHY 3*1.5//T

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 0.8 mm
  • Nominal overall diameter: 7.3 mm
  • Approximate weight: 91 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 18 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*1.5//LAM

Nexans ref. FNYMHY 000706 - Country ref. FNYMHY 3*1.5//LAM

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 0.8 mm
  • Nominal overall diameter: 7.3 mm
  • Approximate weight: 91 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 18 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*1.5//R

Nexans ref. FNYMHY 000915 - Country ref. FNYMHY 3*1.5//R

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 0.8 mm
  • Nominal overall diameter: 7.3 mm
  • Approximate weight: 91 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 18 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*10

Nexans ref. FNYMHY 001201 - Country ref. FNYMHY 3*10

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 16.5 mm
  • Approximate weight: 509 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
  • Permissible current rating in open air: 57 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*10//BLACK

Nexans ref. FNYMHY 002048 - Country ref. FNYMHY 3*10//BLACK

  • Sheath colour: Black
  • Number of cores: 3
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 16.5 mm
  • Approximate weight: 509 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
  • Permissible current rating in open air: 57 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*16

Nexans ref. FNYMHY 001301 - Country ref. FNYMHY 3*16

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal overall diameter: 20.0 mm
  • Approximate weight: 760 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
  • Permissible current rating in open air: 76 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*2.5

Nexans ref. FNYMHY 000901 - Country ref. FNYMHY 3*2.5

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 9.1 mm
  • Approximate weight: 142 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 24 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*2.5

Nexans ref. FNYMHY 002019 - Country ref. FNYMHY 3*2.5//BLACK

  • Sheath colour: Black
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 9.1 mm
  • Approximate weight: 142 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 24 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*2.5

Nexans ref. FNYMHY 003802 - Country ref. FNYMHY 3*2.5//T

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 9.1 mm
  • Approximate weight: 142 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 24 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*2.5//LAM

Nexans ref. FNYMHY 000705 - Country ref. FNYMHY 3*2.5//LAM

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 9.1 mm
  • Approximate weight: 142 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 24 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*2.5//R

Nexans ref. FNYMHY 000917 - Country ref. FNYMHY 3*2.5//R

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 9.1 mm
  • Approximate weight: 142 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 24 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*4

Nexans ref. FNYMHY 001001 - Country ref. FNYMHY 3*4

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.1 mm
  • Nominal overall diameter: 10.8 mm
  • Approximate weight: 210 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 32 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*4

Nexans ref. FNYMHY 002030 - Country ref. FNYMHY 3*4//BLACK

  • Sheath colour: Black
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.1 mm
  • Nominal overall diameter: 10.5 mm
  • Approximate weight: 210 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 32 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*4

Nexans ref. FNYMHY 003810 - Country ref. FNYMHY 3*4//T

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.1 mm
  • Nominal overall diameter: 10.5 mm
  • Approximate weight: 210 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 32 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*4//LAM

Nexans ref. FNYMHY 000707 - Country ref. FNYMHY 3*4//LAM

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.1 mm
  • Nominal overall diameter: 10.5 mm
  • Approximate weight: 210 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 32 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*6

Nexans ref. FNYMHY 001101 - Country ref. FNYMHY 3*6

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.3 mm
  • Nominal overall diameter: 12.5 mm
  • Approximate weight: 297 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
  • Permissible current rating in open air: 41 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*6

Nexans ref. FNYMHY 002038 - Country ref. FNYMHY 3*6//BLACK

  • Sheath colour: Black
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.3 mm
  • Nominal overall diameter: 12.5 mm
  • Approximate weight: 297 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
  • Permissible current rating in open air: 41 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 3*6//LAM

Nexans ref. FNYMHY 000704 - Country ref. FNYMHY 3*6//LAM

  • Sheath colour: White
  • Number of cores: 3
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.3 mm
  • Nominal overall diameter: 12.5 mm
  • Approximate weight: 297 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
  • Permissible current rating in open air: 41 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 37*1

Nexans ref. FNYMHY 002189 - Country ref. FNYMHY 37*1

  • Sheath colour: Black
  • Number of cores: 37
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 21.0 mm
  • Approximate weight: 649 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 37*1.5

Nexans ref. FNYMHY 003055 - Country ref. FNYMHY 37*1.5

  • Sheath colour: Black
  • Number of cores: 37
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 23.0 mm
  • Approximate weight: 852 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*1.5

Nexans ref. FNYMHY 002017 - Country ref. FNYMHY 4*1.5//BLACK

  • Sheath colour: Black
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 8.5 mm
  • Approximate weight: 119 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 18 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*1.5

Nexans ref. FNYMHY 001501 - Country ref. FNYMHY 4*1.5

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 8.5 mm
  • Approximate weight: 119 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 18 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*1.5//105

Nexans ref. FNYMHY 001750 - Country ref. FNYMHY 4*1.5//105

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 8.5 mm
  • Approximate weight: 119 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 18 A
  • Max. conductor temperature in service: 105 °C



FNYMHY 4*1.5//T

Nexans ref. FNYMHY 003817 - Country ref. FNYMHY 4*1.5//T

  • Sheath colour: Black
  • Number of cores: 4
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 8.5 mm
  • Approximate weight: 119 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 18 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*10

Nexans ref. FNYMHY 001901 - Country ref. FNYMHY 4*10

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.7 mm
  • Nominal overall diameter: 18.5 mm
  • Approximate weight: 640 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
  • Permissible current rating in open air: 57 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*10

Nexans ref. FNYMHY 002044 - Country ref. FNYMHY 4*10//BLACK

  • Sheath colour: Black
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.7 mm
  • Nominal overall diameter: 18.5 mm
  • Approximate weight: 640 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
  • Permissible current rating in open air: 57 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*10//LAM

Nexans ref. FNYMHY 001905 - Country ref. FNYMHY 4*10//LAM

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.7 mm
  • Nominal overall diameter: 18.5 mm
  • Approximate weight: 640 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
  • Permissible current rating in open air: 57 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*16

Nexans ref. FNYMHY 004001 - Country ref. FNYMHY 4*16//BLACK

  • Sheath colour: Black
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal overall diameter: 22.0 mm
  • Approximate weight: 954 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
  • Permissible current rating in open air: 76 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*16

Nexans ref. FNYMHY 002001 - Country ref. FNYMHY 4*16

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal overall diameter: 22.0 mm
  • Approximate weight: 954 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
  • Permissible current rating in open air: 76 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*16//LAM

Nexans ref. FNYMHY 002005 - Country ref. FNYMHY 4*16//LAM

  • Sheath colour: Black
  • Number of cores: 4
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal overall diameter: 22.0 mm
  • Approximate weight: 954 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
  • Permissible current rating in open air: 76 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*2.5

Nexans ref. FNYMHY 001601 - Country ref. FNYMHY 4*2.5

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 10.5 mm
  • Approximate weight: 183 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 24 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*2.5

Nexans ref. FNYMHY 002020 - Country ref. FNYMHY 4*2.5//BLACK

  • Sheath colour: Black
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 10.5 mm
  • Approximate weight: 183 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 24 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*2.5

Nexans ref. FNYMHY 003803 - Country ref. FNYMHY 4*2.5//T

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 10.5 mm
  • Approximate weight: 183 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 24 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*2.5//105

Nexans ref. FNYMHY 001515 - Country ref. FNYMHY 4*2.5//105

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 10.5 mm
  • Approximate weight: 183 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 24 A
  • Max. conductor temperature in service: 105 °C



FNYMHY 4*25 NEW

Nexans ref. FNYMHY 004101 - Country ref. FNYMHY 4*25//BLACK

  • Packaging: Cut to length (m)
  • Sheath colour: Black
  • Number of cores: 4
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal overall diameter: 27.0 mm
  • Approximate weight: 1432 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.78 Ohm/km
  • Permissible current rating in open air: 101 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*25 NEW

Nexans ref. FNYMHY 002101 - Country ref. FNYMHY 4*25

  • Packaging: Cut to length (m)
  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal overall diameter: 27.0 mm
  • Approximate weight: 1432 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.78 Ohm/km
  • Permissible current rating in open air: 101 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*4

Nexans ref. FNYMHY 001701 - Country ref. FNYMHY 4*4

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.3 mm
  • Nominal overall diameter: 12.5 mm
  • Approximate weight: 275 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 32 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*4

Nexans ref. FNYMHY 000656 - Country ref. FNYMHY 4*4//BLACK

  • Sheath colour: Black
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.3 mm
  • Nominal overall diameter: 12.5 mm
  • Approximate weight: 275 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 32 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*4

Nexans ref. FNYMHY 003804 - Country ref. FNYMHY 4*4//T

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.3 mm
  • Nominal overall diameter: 12.5 mm
  • Approximate weight: 275 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 32 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*4//105

Nexans ref. FNYMHY 001754 - Country ref. FNYMHY 4*4//105

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.3 mm
  • Nominal overall diameter: 12.5 mm
  • Approximate weight: 275 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 32 A
  • Max. conductor temperature in service: 105 °C



FNYMHY 4*6

Nexans ref. FNYMHY 001801 - Country ref. FNYMHY 4*6

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 14.0 mm
  • Approximate weight: 374 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
  • Permissible current rating in open air: 41 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*6

Nexans ref. FNYMHY 002042 - Country ref. FNYMHY 4*6//BLACK

  • Sheath colour: Black
  • Number of cores: 4
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 14.0 mm
  • Approximate weight: 374 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
  • Permissible current rating in open air: 41 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 4*6

Nexans ref. FNYMHY 003805 - Country ref. FNYMHY 4*6//T

  • Sheath colour: White
  • Number of cores: 4
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 14.0 mm
  • Approximate weight: 374 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
  • Permissible current rating in open air: 41 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 48*1

Nexans ref. FNYMHY 003189 - Country ref. FNYMHY 48*1

  • Sheath colour: Black
  • Number of cores: 48
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 24.0 mm
  • Approximate weight: 841 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 48*1.5

Nexans ref. FNYMHY 003056 - Country ref. FNYMHY 48*1.5

  • Sheath colour: Black
  • Number of cores: 48
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 26.0 mm
  • Approximate weight: 1070 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*1

Nexans ref. FNYMHY 002143 - Country ref. FNYMHY 5*1

  • Sheath colour: Black
  • Number of cores: 5
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 8.7 mm
  • Approximate weight: 108 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*1.5

Nexans ref. FNYMHY 000657 - Country ref. FNYMHY 5*1.5//BLACK

  • Sheath colour: Black
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 9.5 mm
  • Approximate weight: 137 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*1.5

Nexans ref. FNYMHY 002201 - Country ref. FNYMHY 5*1.5

  • Sheath colour: White
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 9.5 mm
  • Approximate weight: 137 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*1.5//105

Nexans ref. FNYMHY 002250 - Country ref. FNYMHY 5*1.5//105

  • Sheath colour: Black
  • Number of cores: 5
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 9.5 mm
  • Approximate weight: 132 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 105 °C



FNYMHY 5*1//105

Nexans ref. FNYMHY 012143 - Country ref. FNYMHY 5*1//105

  • Sheath colour: Black
  • Number of cores: 5
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 8.8 mm
  • Approximate weight: 109 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 105 °C



FNYMHY 5*10

Nexans ref. FNYMHY 003731 - Country ref. FNYMHY 5*10

  • Sheath colour: White
  • Number of cores: 5
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 21.0 mm
  • Approximate weight: 725 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
  • Permissible current rating in open air: 57 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*10

Nexans ref. FNYMHY 005053 - Country ref. FNYMHY 5*10//BLACK

  • Sheath colour: Black
  • Number of cores: 5
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 21.0 mm
  • Approximate weight: 725 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
  • Permissible current rating in open air: 57 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*16

Nexans ref. FNYMHY 002735 - Country ref. FNYMHY 5*16

  • Sheath colour: White
  • Number of cores: 5
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal overall diameter: 25.0 mm
  • Approximate weight: 1081 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
  • Permissible current rating in open air: 76 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*16//BLACK

Nexans ref. FNYMHY 002736 - Country ref. FNYMHY 5*16//BLACK

  • Sheath colour: Black
  • Number of cores: 5
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal overall diameter: 25.0 mm
  • Approximate weight: 1081 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
  • Permissible current rating in open air: 76 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*2.5

Nexans ref. FNYMHY 002050 - Country ref. FNYMHY 5*2.5//BLACK

  • Sheath colour: Black
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 11.5 mm
  • Approximate weight: 210 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 24 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*2.5

Nexans ref. FNYMHY 003101 - Country ref. FNYMHY 5*2.5

  • Sheath colour: White
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 11.5 mm
  • Approximate weight: 208 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 24 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*25

Nexans ref. FNYMHY 002740 - Country ref. FNYMHY 5*25

  • Packaging: Cut to length (m)
  • Sheath colour: Black
  • Number of cores: 5
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal overall diameter: 29.0 mm
  • Approximate weight: 1618 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.78 Ohm/km
  • Permissible current rating in open air: 101 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*25//BLACK

Nexans ref. FNYMHY 702740 - Country ref. FNYMHY 5*25//BLACK

  • Packaging: Cut to length (m)
  • Sheath colour: Black
  • Number of cores: 5
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal overall diameter: 29.0 mm
  • Approximate weight: 1618 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.78 Ohm/km
  • Permissible current rating in open air: 101 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*4

Nexans ref. FNYMHY 003711 - Country ref. FNYMHY 5*4

  • Sheath colour: White
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 14.0 mm
  • Approximate weight: 312 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 32 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*4

Nexans ref. FNYMHY 002051 - Country ref. FNYMHY 5*4//BLACK

  • Sheath colour: Black
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 14.0 mm
  • Approximate weight: 312 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
  • Permissible current rating in open air: 32 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*6

Nexans ref. FNYMHY 003721 - Country ref. FNYMHY 5*6

  • Sheath colour: White
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.5 mm
  • Nominal overall diameter: 15.5 mm
  • Approximate weight: 431 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
  • Permissible current rating in open air: 41 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 5*6//BLACK

Nexans ref. FNYMHY 002052 - Country ref. FNYMHY 5*6//BLACK

  • Sheath colour: Black
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.5 mm
  • Nominal overall diameter: 15.5 mm
  • Approximate weight: 432 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
  • Permissible current rating in open air: 41 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 6*1.5

Nexans ref. FNYMHY 000658 - Country ref. FNYMHY 6*1.5//BLACK

  • Sheath colour: Black
  • Number of cores: 6
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 11.0 mm
  • Approximate weight: 171 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 6*1.5

Nexans ref. FNYMHY 002251 - Country ref. FNYMHY 6*1.5

  • Sheath colour: Black
  • Number of cores: 6
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 11.0 mm
  • Approximate weight: 171 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 7*1

Nexans ref. FNYMHY 002145 - Country ref. FNYMHY 7*1

  • Sheath colour: Black
  • Number of cores: 7
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.0 mm
  • Nominal overall diameter: 9.4 mm
  • Approximate weight: 135 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 7*1.5

Nexans ref. FNYMHY 002301 - Country ref. FNYMHY 7*1.5

  • Sheath colour: Black
  • Number of cores: 7
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 11.0 mm
  • Approximate weight: 184 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 7*1.5

Nexans ref. FNYMHY 000702 - Country ref. FNYMHY 7*1.5//BLACK

  • Sheath colour: Black
  • Number of cores: 7
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 11.0 mm
  • Approximate weight: 184 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 7*1.5//105

Nexans ref. FNYMHY 002303 - Country ref. FNYMHY 7*1.5//105

  • Sheath colour: Black
  • Number of cores: 7
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 11.0 mm
  • Approximate weight: 184 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 105 °C



FNYMHY 7*2.5

Nexans ref. FNYMHY 003105 - Country ref. FNYMHY 7*2.5

  • Sheath colour: Black
  • Number of cores: 7
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 13.0 mm
  • Approximate weight: 280 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
  • Permissible current rating in open air: 26 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 8*1

Nexans ref. FNYMHY.000906 - Country ref. FNYMHY 8*1

  • Sheath colour: Black
  • Number of cores: 8
  • Conductor cross-section: 1 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 10.61 mm
  • Approximate weight: 169 kg/km
  • Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
  • Permissible current rating in open air: 15 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 8*1.5 NEW

Nexans ref. FNYMHY 002401 - Country ref. FNYMHY 8*1.5

  • Sheath colour: Black
  • Number of cores: 8
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 11.5 mm
  • Approximate weight: 214 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 8*1.5

Nexans ref. FNYMHY 000660 - Country ref. FNYMHY 8*1.5//BLACK

  • Sheath colour: Black
  • Number of cores: 8
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.2 mm
  • Nominal overall diameter: 11.5 mm
  • Approximate weight: 214 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



FNYMHY 9*1.5

Nexans ref. FNYMHY 001915 - Country ref. FNYMHY 9*1.5

  • Sheath colour: Black
  • Number of cores: 9
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.6 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 13.5 mm
  • Approximate weight: 247 kg/km
  • Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
  • Permissible current rating in open air: 20 A
  • Max. conductor temperature in service: 70 °C



Description

Description

Standards

  • Product
    DIN VDE 0250; IEC 60228
  • Test
    IEC 60332-1-2

Application

FNYMHY cables are designed generally to VDE 0250/69.

Flexible cable for inside Buildings.



Installation

Open air.

TEST AT WORKS for FNYZ, FNYMHY & FNYLHY

Routine Tests

 - Max. DC conductors resistance at 20°C acc. to IEC 60228

Liban Cables will carry out these tests on all the lengths and tests certificates will be provided



Sample tests

 - Check of the build - up and color coding of the cable

 - Check of dimensions

            Insulation          :           according to VDE 250 parag. 402  table 6

            Oversheath       :           Generally to VDE 250 table  402-1



These tests will be carried out on one length of each size during each inspection .

Tests certificates will be provided by Liban Cables



Type tests

Mechanical characteristics on insulation  material (tensile strength and elongation at break) in accordance with VDE 250

These tests will be carried out on one length of the order

Tests certificates will be provided by Liban Cables

Cable identification - LV cables ≤ 1KV

INSULATION COLORS:



Neutral

Cond.1

Cond.2

 Cond.3

Cond.4

1 Conductor



BLACK







2 Conductors

GREY

BLACK







3 Conductors



BLACK

RED

BLUE



4 Conductors

GREY

BLACK

RED

BLUE



5 Conductors

GREY

BLACK

RED

BLUE

GREEN



All numbered control cables (6 conductors and above), are insulated with white color, and numbered with black digits



CABLE MARKING OVER THE OUTER JACKET  (by inkjet printing):

LIBAN CABLES     DESCRIPTION     RATED VOLTAGE     SECTION MM2     Year of manufacture     meter marking



Other cable identification requirements are available upon request

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Flexible class 5
Conductor material
Copper
Insulation
PVC
Outer sheath
PVC
Conductor shape
Circular

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
500 V
Test voltage
2000 V

Usage characteristics

Usage characteristics

Flame retardant
IEC 60332-1-2
Ambient air temperature
30 °C
Short-circuit max. conductor temperature
160 °C
Operating temperature, range
-15 ... 55 °C
Installation temperature, range
-5 ... 50 °C

Resources

Resources

Find a Distributor

Waiting…

No items found

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
