H07V-K 1.5 NEW
Nexans ref. FH07VK 000500 - Country ref. FH07VK 1.5
- Packaging: Coil (m)
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer diameter: 2.9 mm
- Approximate weight: 20 kg/km
H07V-K 1.5 - M
Nexans ref. FH07VK.700500 - Country ref. FH07V-K 1.5//COIL-M
- Packaging: Coil (100m)
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer diameter: 2.9 mm
- Approximate weight: 20 kg/km
H07V-K 10
Nexans ref. FH07VK 000151 - Country ref. H07V-K 10
- Packaging: Coil (m)
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer diameter: 6.0 mm
- Approximate weight: 111 kg/km
H07V-K 10 - M
Nexans ref. FH07VK.700151 - Country ref. FH07VK 10//COIL-M
- Packaging: Coil (100m)
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer diameter: 6.0 mm
- Approximate weight: 111 kg/km
H07V-K 120
Nexans ref. FH07VK 030070 - Country ref. FH07VK 120
- Packaging: Coil (m)
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer diameter: 18.5 mm
- Approximate weight: 1144 kg/km
H07V-K 150
Nexans ref. FH07VK 000150 - Country ref. H07V-K 150
- Packaging: Coil (m)
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer diameter: 19.0 mm
- Approximate weight: 1398 kg/km
H07V-K 16
Nexans ref. FH07VK 000161 - Country ref. FH07VK 16
- Packaging: Coil (m)
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer diameter: 7.4 mm
- Approximate weight: 167 kg/km
H07V-K 185
Nexans ref. FH07VK 000152 - Country ref. H07V-K 185
- Packaging: Coil (m)
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 2.0 mm
- Nominal outer diameter: 23.0 mm
- Approximate weight: 1753 kg/km
H07V-K 2.5 NEW
Nexans ref. FH07VK 000121 - Country ref. FH07VK 2.5
- Packaging: Coil (m)
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer diameter: 3.5 mm
- Approximate weight: 31 kg/km
H07V-K 2.5 - M
Nexans ref. FH07VK.700121 - Country ref. FH07VK 2.5//COIL-M
- Packaging: Coil (100m)
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer diameter: 3.5 mm
- Approximate weight: 31 kg/km
H07V-K 240
Nexans ref. FH07VK 000240 - Country ref. H07V-K 240
- Packaging: Coil (m)
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 2271 kg/km
H07V-K 25
Nexans ref. FH07VK 000035 - Country ref. FH07VK 25
- Packaging: Coil (m)
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer diameter: 9.0 mm
- Approximate weight: 254 kg/km
H07V-K 35
Nexans ref. FH07VK 000171 - Country ref. FH07VK 35
- Packaging: Coil (m)
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer diameter: 10.5 mm
- Approximate weight: 346 kg/km
H07V-K 4 NEW
Nexans ref. FH07VK 000131 - Country ref. FH07VK 4
- Packaging: Coil (m)
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer diameter: 4.0 mm
- Approximate weight: 45 kg/km
H07V-K 4 - M
Nexans ref. FH07VK.700131 - Country ref. FH07VK 4//COIL-M
- Packaging: Coil (100m)
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer diameter: 4.0 mm
- Approximate weight: 45 kg/km
H07V-K 50
Nexans ref. FH07VK 000039 - Country ref. FH07VK 50
- Packaging: Coil (m)
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer diameter: 12.5 mm
- Approximate weight: 499 kg/km
H07V-K 6
Nexans ref. FH07VK 000141 - Country ref. FH07VK 6
- Packaging: Coil (m)
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer diameter: 4.6 mm
- Approximate weight: 63 kg/km
H07V-K 6 - M
Nexans ref. FH07VK.700141 - Country ref. FH07VK 6//COIL-M
- Packaging: Coil (100m)
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer diameter: 4.6 mm
- Approximate weight: 63 kg/km
H07V-K 70
Nexans ref. FH07VK 000070 - Country ref. FH07VK 70
- Packaging: Coil (m)
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer diameter: 14.0 mm
- Approximate weight: 688 kg/km
H07V-K 95
Nexans ref. FH07VK 000071 - Country ref. H07V-K 95
- Packaging: Coil (m)
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer diameter: 16.5 mm
- Approximate weight: 904 kg/km
Description
Description
Standards
-
ProductEN 50525-3-31; IEC 60228
-
TestIEC 60332-1-2
1-SCOPE

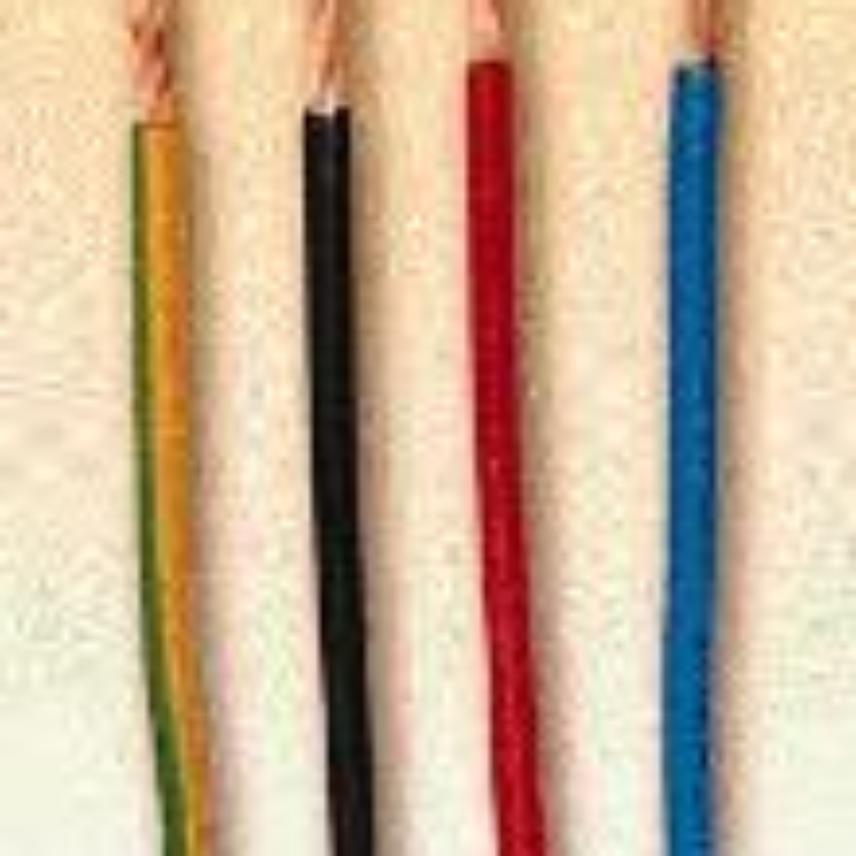

This specification covers single core, PVC insulated cables, intended for internal wiring in dry locations, concealed in conduits.
2.1-Conductor
Plain, annealed, electrolytic copper conductors, stranded class 5, complying with the applicable requirements of BS EN 60228.
2.2 - Insulation
PVC based thermoplastic material
TEST AT WORKS H07VK
Routine Tests
- Max. DC conductors resistance at 20°C acc. to BS EN 60228
Liban Cables will carry out these tests on all the length and tests certificates will be provided
Sample tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to BS EN 50525-2-31 parag. 4.1.1.3
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type tests
Mechanical characteristics on insulation material ( tensile strength and elongation at break ) in accordance with BS EN 50525-2-31.
These tests will be carried out on one length of the order
Tests certificates will be provided by Liban Cables
Characteristics
Characteristics
Construction characteristics
Construction characteristics
