H07V2-K
H07V2-K

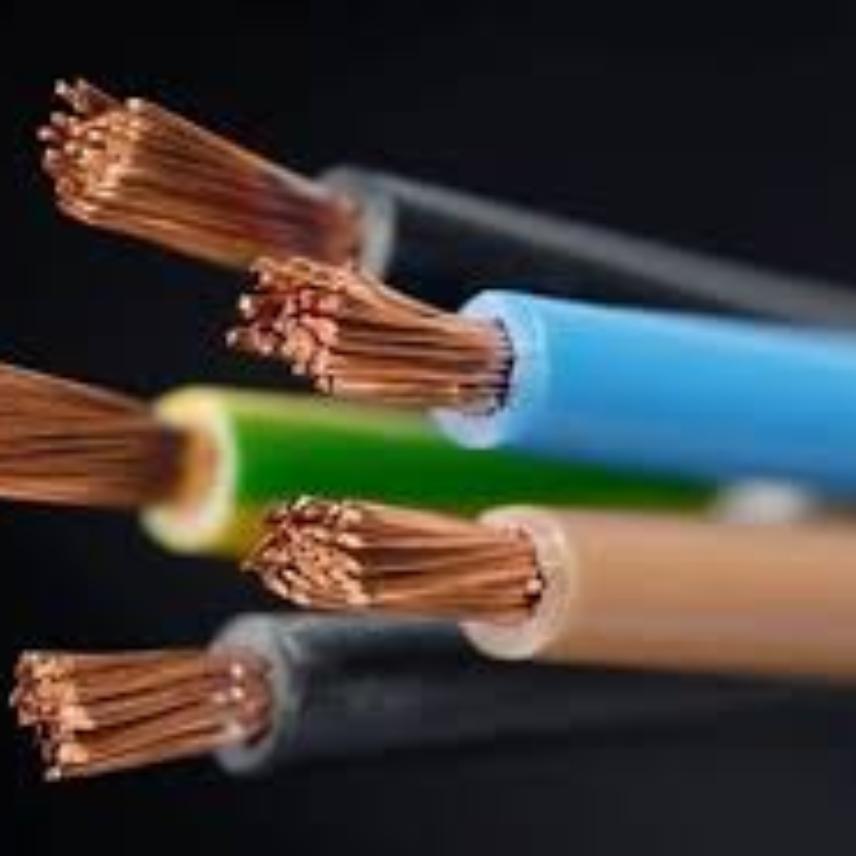

single core PVC insulated unsheathed flexible wire Generally to BS EN 50525-2-31
Read moreH07V2K 1.5
Nexans ref. FH07V2K000500 - Country ref. FH07V2K 1.5
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal overall diameter: 2.9 mm
- Approximate net weight: 18 kg/km
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
H07V2K 10
Nexans ref. FH07V2K000151 - Country ref. FH07V2K 10
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal overall diameter: 6.1 mm
- Approximate net weight: 108 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
H07V2K 2.5
Nexans ref. FH07V2K000121 - Country ref. FH07V2K 2.5
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 3.5 mm
- Approximate net weight: 29 kg/km
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
H07V2K 4
Nexans ref. FH07V2K000131 - Country ref. FH07V2K 4
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 4.1 mm
- Approximate net weight: 44 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
H07V2K 6
Nexans ref. FH07V2K000141 - Country ref. FH07V2K 6
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal overall diameter: 4.6 mm
- Approximate net weight: 62 kg/km
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
Description
Description
Standards
-
ProductBS EN 50525-2-31
-
TestIEC 60332-1-2
Construction:
1-Conductor
Plain, annealed, electrolytic copper conductors, stranded class 5
2 - Insulation
Heat resistant PVC based thermoplastic material
TEST AT WORKS TYPE H07V2-K ACCORDING TO BS EN 50525-2-31
Routine Tests
- Max. DC conductors resistance at 20°C acc. to EN 60228
Liban Cables will carry out these tests on all the length and tests certificates will be provided
Sample tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to BS 50525-2-31 parag. 5.2.1.3
& Table B.2
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type tests
Mechanical characteristics on insulation material (tensile strength and elongation at break ) in accordance with BS EN 50525-2-31
These tests will be carried out on one length of the order
Tests certificates will be provided by Liban Cables
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
