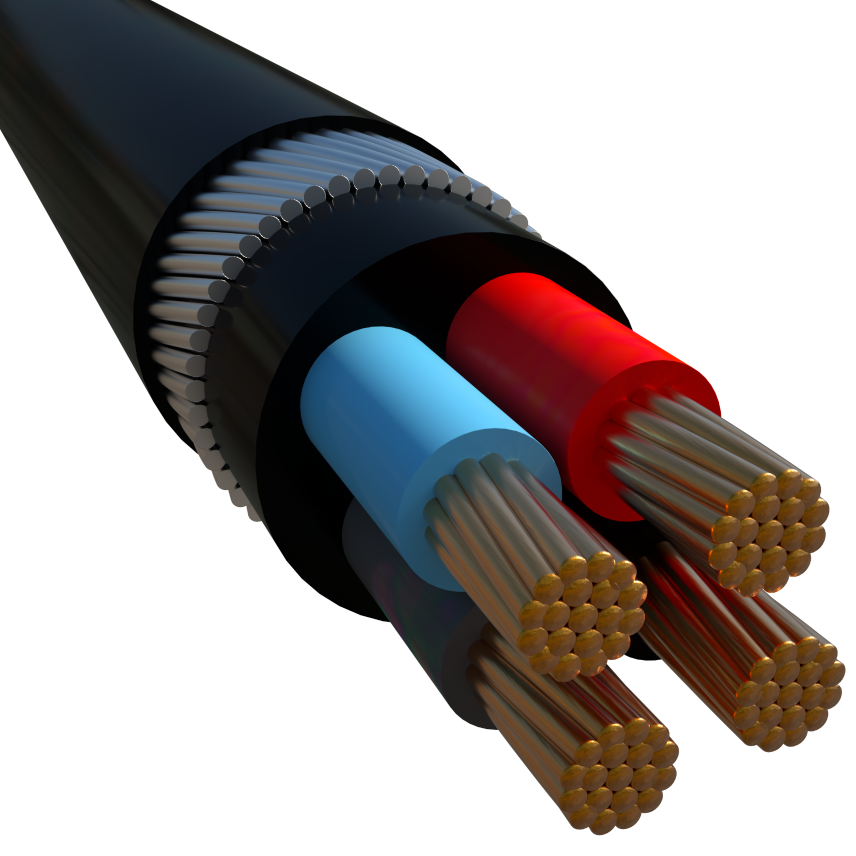

M1NXR, SWA Armored, XLPE insulated, PVC sheathed
M1NXR, SWA Armored, XLPE insulated, PVC sheathed
1.8/3 (3.6) KV POWER CABLES Conforming to IEC 60502-1
Read moreM1NXR 3*10
Nexans ref. M1NXR 011329 - Country ref. M1NXR 3*10
- Conductor shape: Circular
- Conductor cross-section: 10 mm²
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 1260 kg/km
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
M1NXR 3*120SM
Nexans ref. M1NXR 000244 - Country ref. M1NXR 3*120SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 120 mm²
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 46.0 mm
- Approximate weight: 5737 kg/km
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 339 A
- Permissible current rating when buried: 345 A
M1NXR 3*150SM
Nexans ref. M1NXR 000358 - Country ref. M1NXR 3*150SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 150 mm²
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal outer diameter: 51.0 mm
- Approximate weight: 6808 kg/km
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 390 A
- Permissible current rating when buried: 386 A
M1NXR 3*16
Nexans ref. M1NXR 011328 - Country ref. M1NXR 3*16
- Conductor shape: Circular
- Conductor cross-section: 16 mm²
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 27.0 mm
- Approximate weight: 1519 kg/km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
M1NXR 3*185SM
Nexans ref. M1NXR 003010 - Country ref. M1NXR 3*185SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 185 mm²
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.7 mm
- Nominal outer diameter: 52.0 mm
- Approximate weight: 7922 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 444 A
- Permissible current rating when buried: 435 A
M1NXR 3*240SM
Nexans ref. M1NXR 003240 - Country ref. M1NXR 3*240SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 240 mm²
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 56.5 mm
- Approximate weight: 9770 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 522 A
- Permissible current rating when buried: 504 A
M1NXR 3*240SM//R
Nexans ref. M1NXR 000702 - Country ref. M1NXR..000702
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 240 mm²
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 56.5 mm
- Approximate weight: 9770 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 522 A
- Permissible current rating when buried: 504 A
M1NXR 3*300SM
Nexans ref. M1NXR 000147 - Country ref. M1NXR 3*300SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 300 mm²
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 61.0 mm
- Approximate weight: 11853 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 595 A
- Permissible current rating when buried: 571 A
M1NXR 3*35
Nexans ref. M1NXR 000359 - Country ref. M1NXR 3*35
- Conductor shape: Circular
- Conductor cross-section: 35 mm²
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 32.0 mm
- Approximate weight: 2177 kg/km
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
M1NXR 3*50
Nexans ref. M1NXR 001340 - Country ref. M1NXR 3*50
- Conductor shape: Circular
- Conductor cross-section: 50 mm²
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 36.0 mm
- Approximate weight: 2920 kg/km
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 190 A
- Permissible current rating when buried: 204 A
M1NXR 3*70SM
Nexans ref. M1NXR 000354 - Country ref. M1NXR 3*70SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 70 mm²
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 38.0 mm
- Approximate weight: 3540 kg/km
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
M1NXR 3*70SM//R
Nexans ref. M1NXR 000701 - Country ref. M1NXR 3*70SM//R
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 70 mm²
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 38.0 mm
- Approximate weight: 3540 kg/km
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
M1NXR 3*95SM
Nexans ref. M1NXR 000242 - Country ref. M1NXR 3*95SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 95 mm²
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 41.0 mm
- Approximate weight: 4438 kg/km
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 293 A
- Permissible current rating when buried: 302 A
M1NXR 4*10
Nexans ref. M1NXR 011330 - Country ref. M1NXR 4*10
- Conductor shape: Circular
- Conductor cross-section: 10 mm²
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 27.0 mm
- Approximate weight: 1459 kg/km
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
M1NXR 4*120SM
Nexans ref. M1NXR 000357 - Country ref. M1NXR 4*120SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 120 mm²
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 51.0 mm
- Approximate weight: 7224 kg/km
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 339 A
- Permissible current rating when buried: 345 A
M1NXR 4*150SM
Nexans ref. M1NXR 000365 - Country ref. M1NXR 4*150SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 150 mm²
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.7 mm
- Nominal outer diameter: 54.0 mm
- Approximate weight: 8442 kg/km
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 390 A
- Permissible current rating when buried: 386 A
M1NXR 4*25
Nexans ref. M1NXR 001329 - Country ref. M1NXR 4*25
- Conductor shape: Circular
- Conductor cross-section: 25 mm²
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 32.0 mm
- Approximate weight: 2320 kg/km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 141 A
M1NXR 4*300SM
Nexans ref. M1NXR 000366 - Country ref. M1NXR 4*300SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 300 mm²
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.2 mm
- Nominal outer diameter: 69.0 mm
- Approximate weight: 15227 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 595 A
- Permissible current rating when buried: 571 A
M1NXR 4*35
Nexans ref. M1NXR 000360 - Country ref. M1NXR 4*35
- Conductor shape: Circular
- Conductor cross-section: 35 mm²
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 36.0 mm
- Approximate weight: 2945 kg/km
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
M1NXR 4*50
Nexans ref. M1NXR 001341 - Country ref. M1NXR 4*50
- Conductor shape: Circular
- Conductor cross-section: 50 mm²
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 39.0 mm
- Approximate weight: 3594 kg/km
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 190 A
- Permissible current rating when buried: 204 A
M1NXR 4*70SM
Nexans ref. M1NXR 000355 - Country ref. M1NXR 4*70SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 70 mm²
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 42.0 mm
- Approximate weight: 4438 kg/km
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
M1NXR 4*95SM
Nexans ref. M1NXR 000356 - Country ref. M1NXR 4*95SM
- Conductor shape: Sector-shaped stranded (SM)
- Conductor cross-section: 95 mm²
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal outer diameter: 48.0 mm
- Approximate weight: 6084 kg/km
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 293 A
- Permissible current rating when buried: 302 A
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2
Scope
This specification covers XLPE insulated, circular or shaped, multicore armoured cables, rated at 1.8/3 KV according to IEC 60502-1 for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present.
2.1 Conductor
Plain, annealed electrolytic copper conductors, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
XLPE thermosetting material, conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.
2.4 Armour
Galvanized round wires completely covering the assembly of cores complying to the applicable requirements of IEC 60502-1.
2.5 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.6 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
TEST AT WORKS according to IEC 60502-1 armored
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Voltage test acc. to IEC 60502-1 parag. 15.1 & 15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation: according to IEC 60502-1 Parag. 16.5.2
Armour: according to IEC 60502-1 Parag. 16.7
Oversheath: according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
