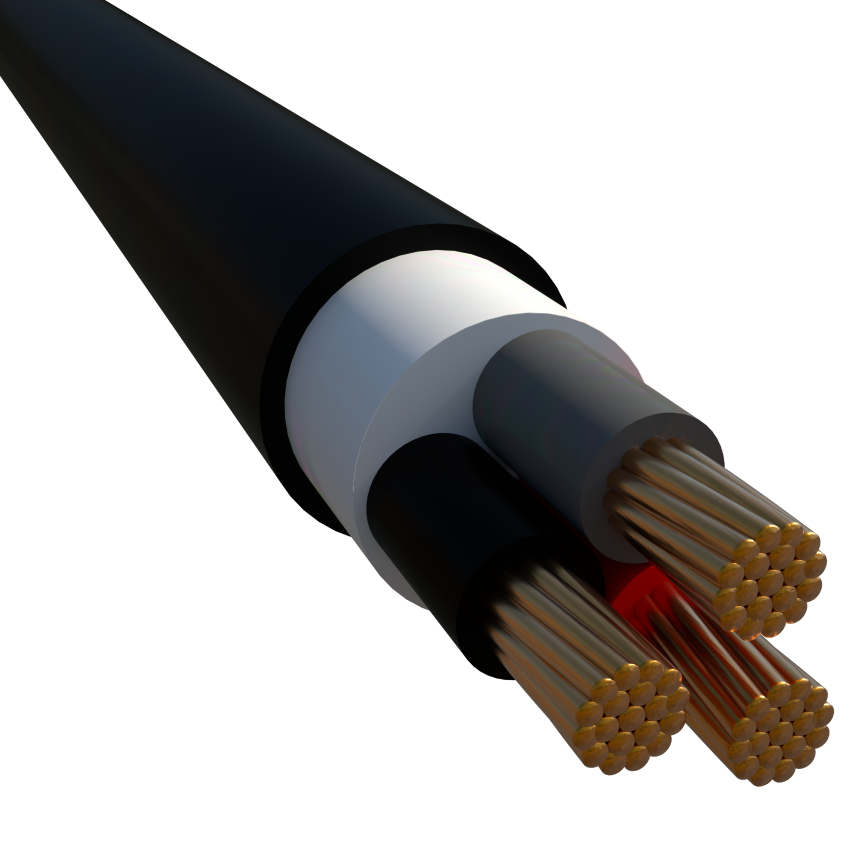

Multicore YKY 0.6/1kV
Multicore YKY 0.6/1kV
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreYKY 3*1.5 SOLID
Nexans ref. E(NYY) 007013 - Country ref. E(NYY) 3*1.5RE//POL
- Conductor flexibility: Solid class 1
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer diameter: 10.0 mm
- Approximate weight: 134 kg/km
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 18 A
- Permissible current rating when buried: 26 A
YKY 3*2.5 SOLID
Nexans ref. E(NYY) 007016 - Country ref. E(NYY) 3*2.5RE//POL
- Conductor flexibility: Solid class 1
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer diameter: 10.5 mm
- Approximate weight: 172 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 36 A
YKY 5*10
Nexans ref. E(NYY) 007031 - Country ref. E(NYY) 5*10//POL
- Conductor flexibility: Stranded class 2
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer diameter: 19.0 mm
- Approximate weight: 729 kg/km
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 57 A
- Permissible current rating when buried: 79 A
YKY 5*16
Nexans ref. E(NYY) 007033 - Country ref. E(NYY) 5*16//POL
- Conductor flexibility: Stranded class 2
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer diameter: 22.0 mm
- Approximate weight: 975 kg/km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 76 A
- Permissible current rating when buried: 100 A
YKY 5*2.5 SOLID
Nexans ref. E(NYY) 007034 - Country ref. E(NYY) 5*2.5RE//POL
- Conductor flexibility: Solid class 1
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer diameter: 12.5 mm
- Approximate weight: 233 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 36 A
YKY 5*4 SOLID
Nexans ref. E(NYY) 016103 - Country ref. E(NYY) 5*4RE//POL
- Conductor flexibility: Solid class 1
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer diameter: 15.0 mm
- Approximate weight: 380 kg/km
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 32 A
- Permissible current rating when buried: 46 A
YKY 5*6
Nexans ref. E(NYY) 007039 - Country ref. E(NYY) 5*6//POL
- Conductor flexibility: Stranded class 2
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer diameter: 16.5 mm
- Approximate weight: 491 kg/km
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 41 A
- Permissible current rating when buried: 58 A
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2
Scope
This specification covers PVC insulated, circular or shaped, multicore unarmoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, and in cable ducts.
Construction
2.1 Conductor
Plain, annealed electrolytic copper conductors, circular, or sectoral shape, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
PVC material, conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material.
2.4 Sheath
Special PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.5 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
TEST AT WORKS unarmored multicore
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Voltage test acc. to IEC 60502-1 parag. 15.1 & 15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided .
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Oversheath : according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables
