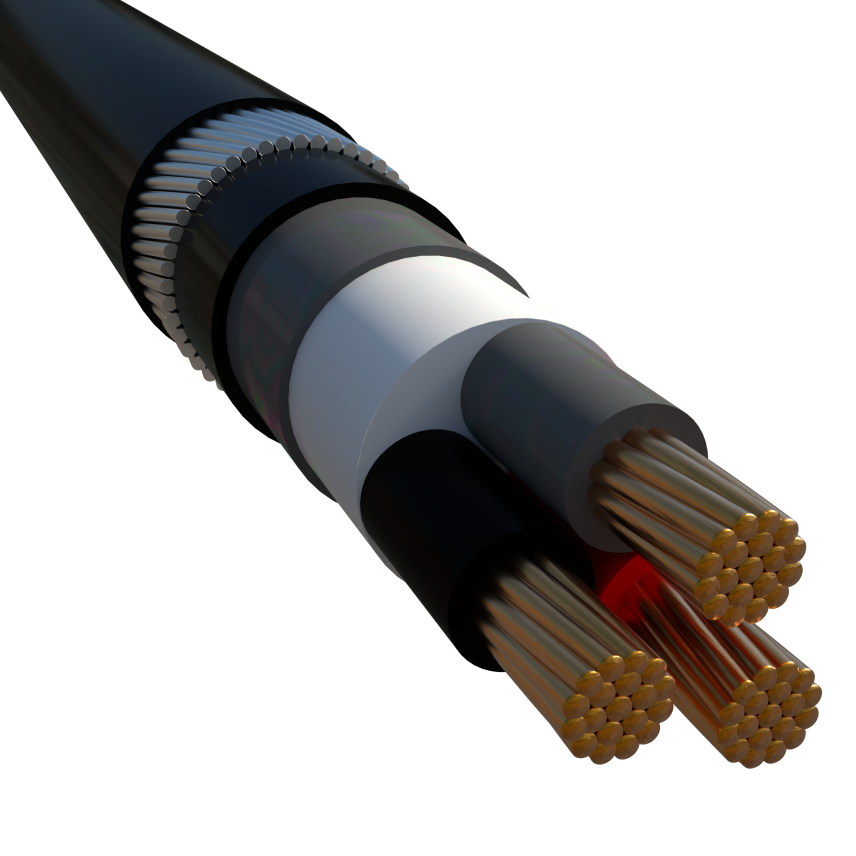

Multicore XLPE insulated, LEAD sheathed, Armored, PVC outer sheath
Multicore XLPE insulated, LEAD sheathed, Armored, PVC outer sheath
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreSXLRY 12*2.5 NEW
Nexans ref. SXLRY 012111 - Country ref. SXLRY 12*2.5//UV
- Conductor shape: Circular
- Outer sheath: PVC
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Lead sheath thickness nominal: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 1910 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 46 A
- U.V resistance: Yes
SXLRY 2*10 NEW
Nexans ref. SXLRY 005054 - Country ref. SXLRY 2*10
- Conductor shape: Circular
- Outer sheath: PVC
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Lead sheath thickness nominal: 1.2 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 22.0 mm
- Approximate weight: 1498 kg/km
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 80 A
- Permissible current rating when buried: 101 A
- U.V resistance: -
SXLRY 3*16 NEW
Nexans ref. SXLRY 000183 - Country ref. SXLRY 3*16
- Conductor shape: Circular
- Outer sheath: PVC
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Lead sheath thickness nominal: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 26.0 mm
- Approximate weight: 2197 kg/km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
- U.V resistance:
SXLRY 3*2.5 NEW
Nexans ref. SXLRY 012114 - Country ref. SXLRY 3*2.5//UV
- Conductor shape: Circular
- Outer sheath: PVC
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Lead sheath thickness nominal: 1.2 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 19.0 mm
- Approximate weight: 1098 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
- U.V resistance: Yes
SXLRY 3*4 NEW
Nexans ref. SXLRY 012115 - Country ref. SXLRY 3*4//UV
- Conductor shape: Circular
- Outer sheath: PVC
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Lead sheath thickness nominal: 1.2 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 20.0 mm
- Approximate weight: 1240 kg/km
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
- U.V resistance: Yes
SXLRY 3*50 NEW
Nexans ref. SXLRY 011000 - Country ref. SXLRY 3*50
- Conductor shape: Circular
- Outer sheath: PVC
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Lead sheath thickness nominal: 1.3 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 35.0 mm
- Approximate weight: 4031 kg/km
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 190 A
- Permissible current rating when buried: 204 A
- U.V resistance: -
SXLRY 4*150
Nexans ref. SXLRY 001452 - Country ref. SXLRY 4*150SM
- Conductor shape: Sector-shaped stranded (SM)
- Outer sheath: PVC
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Lead sheath thickness nominal: 1.9 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 56.0 mm
- Approximate weight: 11329 kg/km
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 390 A
- Permissible current rating when buried: 386 A
- U.V resistance:
SXLRY 4*25
Nexans ref. SXLRY 003126 - Country ref. SXLRY 4*25
- Conductor shape: Circular
- Outer sheath: PVC compound
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Lead sheath thickness nominal: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 32.0 mm
- Approximate weight: 3234 kg/km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 141 A
- U.V resistance:
SXLRY 4*50
Nexans ref. SXLRY 011010 - Country ref. SXLRY 4*50//THA
- Conductor shape: Circular
- Outer sheath: PVC-HR
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Lead sheath thickness nominal: 1.4 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 37.5 mm
- Approximate weight: 4749 kg/km
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 190 A
- Permissible current rating when buried: 204 A
- U.V resistance:
SXLRY 5*2.5 NEW
Nexans ref. SXLRY 012113 - Country ref. SXLRY 5*2.5//UV
- Conductor shape: Circular
- Outer sheath: PVC
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Lead sheath thickness nominal: 1.2 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 19.0 mm
- Approximate weight: 1151 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
- U.V resistance: Yes
SXLRY 5*2.5//ALE
Nexans ref. SXLRY 005117 - Country ref. SXLRY 5*2.5//ALE
- Conductor shape: Circular
- Outer sheath: PVC-HR
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Lead sheath thickness nominal: 1.2 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 19.0 mm
- Approximate weight: 1133 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
- U.V resistance:
SXLRY 5*6 NEW
Nexans ref. SXLRY 012116 - Country ref. SXLRY 5*6//UV
- Conductor shape: Circular
- Outer sheath: PVC
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Lead sheath thickness nominal: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 1868 kg/km
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
- U.V resistance: Yes
SXLRY 7*2.5 NEW
Nexans ref. SXLRY 012112 - Country ref. SXLRY 7*2.5//UV
- Conductor shape: Circular
- Outer sheath: PVC
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Lead sheath thickness nominal: 1.2 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 21.0 mm
- Approximate weight: 1285 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 46 A
- U.V resistance: Yes
SXLRY 7*2.5 NEW
Nexans ref. SXLRY 005118 - Country ref. SXLRY 7*2.5
- Conductor shape: Circular
- Outer sheath: PVC
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Lead sheath thickness nominal: 1.2 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 21.0 mm
- Approximate weight: 1285 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 46 A
- U.V resistance: -
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2
Scope
This specification covers XLPE insulated, circular or shaped, multicore lead armoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present.
Construction
2.1 Conductor
Plain, annealed electrolytic copper conductors, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
XLPE thermosetting material, conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled with non-hygroscopic material and covered with an extruded thickness of thermoplastic material where necessary.
2.4 Metal Sheath
LEAD.
2.5 Seperation Sheath
PVC
2.6 Armour
Galvanized round wires completely covering the assembly of cores complying to the applicable requirements of IEC 60502-1.
2.7 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.8 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
TEST AT WORKS LV CABLE ARMORED WITH LEAD SHEATH
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag.15.1&15.2
- Voltage test acc. to IEC 60502-1 parag. 15.1&15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Metal sheath : according to IEC 60502-1 Parag. 16.6
Separation sheath : according to IEC 60502-1 Parag. 16.5.3
Armouring : according to IEC 60502-1 Parag. 16.7
Oversheath : according to IEC 60502-1 Parag. 16.5.3
- Hot Set Test for XLPE insulation according to IEC 60502-1 Parag. 16.10
- Voltage test for 4 hours.
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break ) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables
Cable identification - LV cables ≤ 1KV
INSULATION COLORS:
|
|
Neutral |
Cond.1 |
Cond.2 |
Cond.3 |
Cond.4 |
|
1 Conductor |
|
BLACK |
|
|
|
|
2 Conductors |
GREY |
BLACK |
|
|
|
|
3 Conductors |
|
BLACK |
RED |
BLUE |
|
|
4 Conductors |
GREY |
BLACK |
RED |
BLUE |
|
|
5 Conductors |
GREY |
BLACK |
RED |
BLUE |
GREEN |
All numbered control cables (6 conductors and above), are insulated with white color, and numbered with black digits
CABLE MARKING OVER THE OUTER JACKET (by inkjet printing):
LIBAN CABLES DESCRIPTION RATED VOLTAGE SECTION MM2 Year of manufacture meter marking
Other cable identification requirements are available upon request
