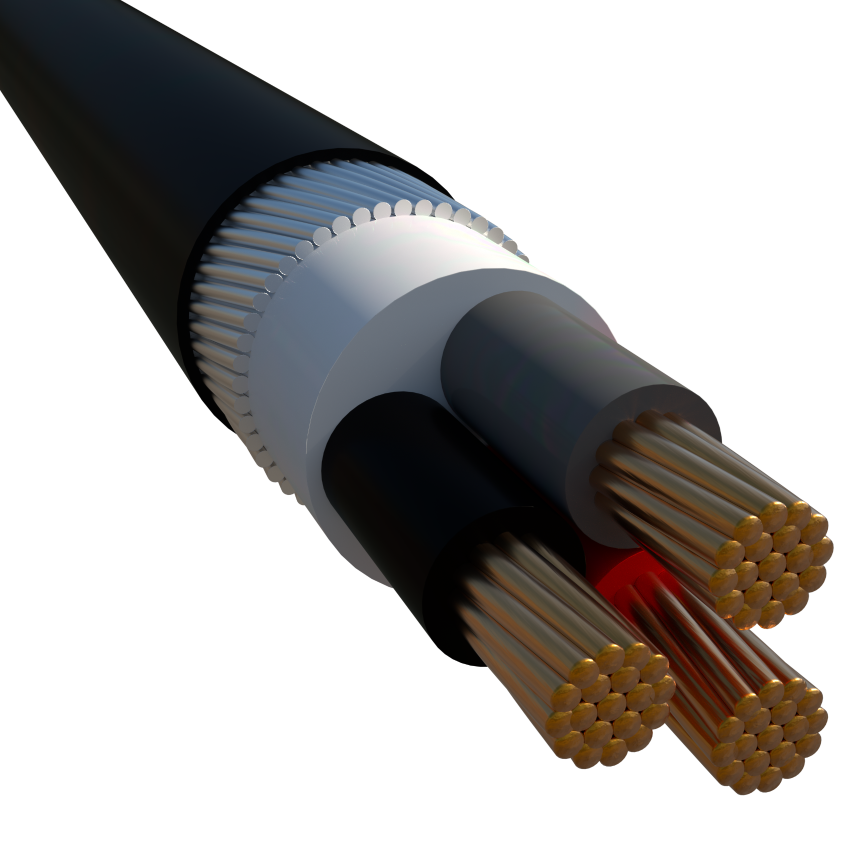

Multicore SWA Armored, PVC insulated, PVC sheathed
Multicore SWA Armored, PVC insulated, PVC sheathed
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreEYR 16*1.5
Nexans ref. EYR 006425 - Country ref. EYR 16*1.5
- Outer sheath: PVC
- Number of cores: 16
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 22.0 mm
- Approximate weight: 945 kg/km
EYR 24*1.5
Nexans ref. EYR 006429 - Country ref. EYR 24*1.5
- Outer sheath: PVC
- Number of cores: 24
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 27.0 mm
- Approximate weight: 1390 kg/km
EYR 4*50
Nexans ref. EYR 000352 - Country ref. EYR 4*50
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal overall diameter: 36.0 mm
- Approximate weight: 3442 kg/km
EYR 7*1.5
Nexans ref. EYR 004513 - Country ref. EYR 7*1.5
- Outer sheath: PVC
- Number of cores: 7
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 16.0 mm
- Approximate weight: 464 kg/km
EYR 10*1.5
Nexans ref. EYR....004534 - Country ref. EYR 10*1.5
- Outer sheath: PVC
- Number of cores: 10
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 19.5 mm
- Approximate weight: 733 kg/km
EYR 10*1.5RE//5
Nexans ref. EYR 014534 - Country ref. EYR 10*1.5RE//5
- Outer sheath: PVC
- Number of cores: 10
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 19.5 mm
- Approximate weight: 710 kg/km
EYR 10*2.5
Nexans ref. EYR 004613 - Country ref. EYR 10*2.5
- Outer sheath: PVC
- Number of cores: 10
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 22.0 mm
- Approximate weight: 895 kg/km
EYR 12*1.5
Nexans ref. EYR 006416 - Country ref. EYR 12*1.5
- Outer sheath: PVC
- Number of cores: 12
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 20.0 mm
- Approximate weight: 787 kg/km
EYR 12*2.5
Nexans ref. EYR 004616 - Country ref. EYR 12*2.5
- Outer sheath: PVC
- Number of cores: 12
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 22.0 mm
- Approximate weight: 978 kg/km
EYR 14*2.5
Nexans ref. EYR 004617 - Country ref. EYR 14*2.5
- Outer sheath: PVC
- Number of cores: 14
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 24.0 mm
- Approximate weight: 1192 kg/km
EYR 15*1.5RE//5
Nexans ref. EYR 000753 - Country ref. EYR 15*1.5RE//5
- Outer sheath: PVC
- Number of cores: 15
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 21.5 mm
- Approximate weight: 888 kg/km
EYR 16*2.5RE//5
Nexans ref. EYR 000754 - Country ref. EYR 16*2.5RE//5
- Outer sheath: PVC
- Number of cores: 16
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 24.0 mm
- Approximate weight: 1237 kg/km
EYR 19*1.5RE//5
Nexans ref. EYR 001752 - Country ref. EYR 19*1.5RE//5
- Outer sheath: PVC
- Number of cores: 19
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 23.0 mm
- Approximate weight: 1116 kg/km
EYR 19*2.5
Nexans ref. EYR 004653 - Country ref. EYR 19*2.5
- Outer sheath: PVC
- Number of cores: 19
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 26.0 mm
- Approximate weight: 1434 kg/km
EYR 2*1.5
Nexans ref. EYR 002108 - Country ref. EYR 2*1.5
- Outer sheath: PVC
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 13.0 mm
- Approximate weight: 294 kg/km
EYR 2*10
Nexans ref. EYR 002123 - Country ref. EYR 2*10
- Outer sheath: PVC
- Number of cores: 2
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 19.0 mm
- Approximate weight: 771 kg/km
EYR 2*16
Nexans ref. EYR 002125 - Country ref. EYR 2*16
- Outer sheath: PVC
- Number of cores: 2
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 21.0 mm
- Approximate weight: 963 kg/km
EYR 2*2.5
Nexans ref. EYR 002113 - Country ref. EYR 2*2.5
- Outer sheath: PVC
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 14.0 mm
- Approximate weight: 343 kg/km
EYR 2*25
Nexans ref. EYR 002128 - Country ref. EYR 2*25
- Outer sheath: PVC
- Number of cores: 2
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 25.0 mm
- Approximate weight: 1429 kg/km
EYR 2*35
Nexans ref. EYR 002130 - Country ref. EYR 2*35
- Outer sheath: PVC
- Number of cores: 2
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 27.0 mm
- Approximate weight: 1729 kg/km
EYR 2*4
Nexans ref. EYR 002118 - Country ref. EYR 2*4
- Outer sheath: PVC
- Number of cores: 2
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 15.5 mm
- Approximate weight: 444 kg/km
EYR 2*4
Nexans ref. EYR 000500 - Country ref. EYR 2*4(AT)
- Outer sheath: Anti-termite PVC
- Number of cores: 2
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 15.5 mm
- Approximate weight: 444 kg/km
EYR 2*50
Nexans ref. EYR 001050 - Country ref. EYR 2*50
- Outer sheath: PVC
- Number of cores: 2
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal overall diameter: 31.0 mm
- Approximate weight: 2260 kg/km
EYR 2*6
Nexans ref. EYR 002120 - Country ref. EYR 2*6
- Outer sheath: PVC
- Number of cores: 2
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 17.0 mm
- Approximate weight: 620 kg/km
EYR 20*1.5RE//5
Nexans ref. EYR 000755 - Country ref. EYR 20*1.5RE//5
- Outer sheath: PVC
- Number of cores: 20
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 24.0 mm
- Approximate weight: 1177 kg/km
EYR 20*2.5
Nexans ref. EYR 004628 - Country ref. EYR 20*2.5
- Outer sheath: PVC
- Number of cores: 20
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 27.0 mm
- Approximate weight: 1523 kg/km
EYR 3*1.5
Nexans ref. EYR 002208 - Country ref. EYR 3*1.5
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 13.0 mm
- Approximate weight: 324 kg/km
EYR 3*1.5RE//5-N
Nexans ref. EYR 000749 - Country ref. EYR 3*1.5RE//5-N
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 13.0 mm
- Approximate weight: 324 kg/km
EYR 3*10
Nexans ref. EYR 002223 - Country ref. EYR 3*10
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 20.0 mm
- Approximate weight: 396 kg/km
EYR 3*120SM
Nexans ref. EYR 002240 - Country ref. EYR 3*120SM
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal overall diameter: 42.0 mm
- Approximate weight: 5245 kg/km
EYR 3*150SM
Nexans ref. EYR 002243 - Country ref. EYR 3*150SM
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal overall diameter: 49.0 mm
- Approximate weight: 6780 kg/km
EYR 3*16
Nexans ref. EYR 002225 - Country ref. EYR 3*16
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 22.0 mm
- Approximate weight: 1141 kg/km
EYR 3*2.5
Nexans ref. EYR 002213 - Country ref. EYR 3*2.5
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 14.0 mm
- Approximate weight: 384 kg/km
EYR 3*240SM
Nexans ref. EYR 002248 - Country ref. EYR 3*240SM
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal overall diameter: 57.0 mm
- Approximate weight: 10045 kg/km
EYR 3*25
Nexans ref. EYR 002228 - Country ref. EYR 3*25
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 26.0 mm
- Approximate weight: 1703 kg/km
EYR 3*300SM
Nexans ref. EYR 004441 - Country ref. EYR 3*300SM
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 2.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.1 mm
- Nominal overall diameter: 63.0 mm
- Approximate weight: 12292 kg/km
EYR 3*35
Nexans ref. EYR 003350 - Country ref. EYR 3*35
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 28.0 mm
- Approximate weight: 1966 kg/km
EYR 3*4
Nexans ref. EYR 002218 - Country ref. EYR 3*4
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 17.0 mm
- Approximate weight: 598 kg/km
EYR 3*50
Nexans ref. EYR 001352 - Country ref. EYR 3*50
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal overall diameter: 32.0 mm
- Approximate weight: 2550 kg/km
EYR 3*6
Nexans ref. EYR 002220 - Country ref. EYR 3*6
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 18.5 mm
- Approximate weight: 712 kg/km
EYR 3*70SM
Nexans ref. EYR 002235 - Country ref. EYR 3*70SM
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal overall diameter: 34.0 mm
- Approximate weight: 3392 kg/km
EYR 3*95SM
Nexans ref. EYR 002238 - Country ref. EYR 3*95SM
- Outer sheath: PVC
- Number of cores: 3
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal overall diameter: 39.0 mm
- Approximate weight: 4384 kg/km
EYR 30*1.5
Nexans ref. EYR....006435 - Country ref. EYR 30*1.5
- Outer sheath: PVC
- Number of cores: 30
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 28.0 mm
- Approximate weight: 1880 kg/km
EYR 30*1.5RE//5
Nexans ref. EYR 000756 - Country ref. EYR 30*1.5RE//5
- Outer sheath: PVC
- Number of cores: 30
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 27.0 mm
- Approximate weight: 1523 kg/km
EYR 30*2.5
Nexans ref. EYR 100302 - Country ref. EYR 30*2.5
- Outer sheath: PVC
- Number of cores: 30
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal overall diameter: 32.0 mm
- Approximate weight: 2198 kg/km
EYR 37*2.5
Nexans ref. EYR 000556 - Country ref. EYR 37*2.5
- Outer sheath: PVC
- Number of cores: 37
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal overall diameter: 34.0 mm
- Approximate weight: 2334 kg/km
EYR 4*1.5
Nexans ref. EYR 002308 - Country ref. EYR 4*1.5
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 14.0 mm
- Approximate weight: 367 kg/km
EYR 4*10
Nexans ref. EYR 002323 - Country ref. EYR 4*10
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 21.0 mm
- Approximate weight: 1055 kg/km
EYR 4*120SM
Nexans ref. EYR 002340 - Country ref. EYR 4*120SM
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal overall diameter: 48.0 mm
- Approximate weight: 7091 kg/km
EYR 4*150SM
Nexans ref. EYR 002343 - Country ref. EYR 4*150SM
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.7 mm
- Nominal overall diameter: 53.0 mm
- Approximate weight: 8568 kg/km
EYR 4*16
Nexans ref. EYR 002325 - Country ref. EYR 4*16
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 24.0 mm
- Approximate weight: 1479 kg/km
EYR 4*185SM
Nexans ref. EYR 002345 - Country ref. EYR 4*185SM
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 2.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal overall diameter: 58.0 mm
- Approximate weight: 10429 kg/km
EYR 4*2.5
Nexans ref. EYR 002313 - Country ref. EYR 4*2.5
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 15.0 mm
- Approximate weight: 439 kg/km
EYR 4*2.5
Nexans ref. EYR 000501 - Country ref. EYR 4*2.5(AT)
- Outer sheath: Anti-termite PVC
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 15.0 mm
- Approximate weight: 439 kg/km
EYR 4*240SM
Nexans ref. EYR 002348 - Country ref. EYR 4*240SM
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.1 mm
- Nominal overall diameter: 64.0 mm
- Approximate weight: 12886 kg/km
EYR 4*25
Nexans ref. EYR 002328 - Country ref. EYR 4*25
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 28.0 mm
- Approximate weight: 2042 kg/km
EYR 4*300SM
Nexans ref. EYR 002350 - Country ref. EYR 4*300SM
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 2.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.3 mm
- Nominal overall diameter: 71.0 mm
- Approximate weight: 15841 kg/km
EYR 4*35
Nexans ref. EYR 000435 - Country ref. EYR 4*35
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal overall diameter: 31.0 mm
- Approximate weight: 2435 kg/km
EYR 4*4
Nexans ref. EYR 002318 - Country ref. EYR 4*4
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 18.0 mm
- Approximate weight: 687 kg/km
EYR 4*4
Nexans ref. EYR 000069 - Country ref. EYR 4*4(AT)
- Outer sheath: Anti-termite PVC
- Number of cores: 4
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 18.0 mm
- Approximate weight: 687 kg/km
EYR 4*6
Nexans ref. EYR 002320 - Country ref. EYR 4*6
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 19.5 mm
- Approximate weight: 819 kg/km
EYR 4*70SM
Nexans ref. EYR 002335 - Country ref. EYR 4*70SM
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal overall diameter: 38.0 mm
- Approximate weight: 4273 kg/km
EYR 4*95SM
Nexans ref. EYR 000045 - Country ref. EYR 4*95SM
- Outer sheath: PVC
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal overall diameter: 45.0 mm
- Approximate weight: 5898 kg/km
EYR 40*2.5
Nexans ref. EYR 000302 - Country ref. EYR 40*2.5
- Outer sheath: PVC
- Number of cores: 40
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal overall diameter: 35.0 mm
- Approximate weight: 2684 kg/km
EYR 5*1.5RE//5
Nexans ref. EYR 000751 - Country ref. EYR 5*1.5RE//5
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 14.5 mm
- Approximate weight: 387 kg/km
EYR 5*10
Nexans ref. EYR 005035 - Country ref. EYR 5*10
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 24.0 mm
- Approximate weight: 1344 kg/km
EYR 5*120
Nexans ref. EYR 005090 - Country ref. EYR 5*120
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.7 mm
- Nominal overall diameter: 55.0 mm
- Approximate weight: 8765 kg/km
EYR 5*150
Nexans ref. EYR 005091 - Country ref. EYR 5*150
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal overall diameter: 61.0 mm
- Approximate weight: 10613 kg/km
EYR 5*16
Nexans ref. EYR 005045 - Country ref. EYR 5*16
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 26.0 mm
- Approximate weight: 1665 kg/km
EYR 5*185
Nexans ref. EYR 005092 - Country ref. EYR 5*185
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 2.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal overall diameter: 67.0 mm
- Approximate weight: 12769 kg/km
EYR 5*2.5
Nexans ref. EYR 004605 - Country ref. EYR 5*2.5
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 16.0 mm
- Approximate weight: 480 kg/km
EYR 5*25
Nexans ref. EYR 005050 - Country ref. EYR 5*25
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal overall diameter: 31.0 mm
- Approximate weight: 2319 kg/km
EYR 5*300
Nexans ref. EYR 005093 - Country ref. EYR 5*300
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 2.4 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.6 mm
- Nominal overall diameter: 84.0 mm
- Approximate weight: 20485 kg/km
EYR 5*35
Nexans ref. EYR 001435 - Country ref. EYR 5*35
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal overall diameter: 34.0 mm
- Approximate weight: 3111 kg/km
EYR 5*4
Nexans ref. EYR 004607 - Country ref. EYR 5*4
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 19.0 mm
- Approximate weight: 786 kg/km
EYR 5*50
Nexans ref. EYR 005075 - Country ref. EYR 5*50
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal overall diameter: 39.0 mm
- Approximate weight: 4045 kg/km
EYR 5*6
Nexans ref. EYR 004608 - Country ref. EYR 5*6
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 21.0 mm
- Approximate weight: 945 kg/km
EYR 5*70
Nexans ref. EYR 005080 - Country ref. EYR 5*70
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal overall diameter: 44.0 mm
- Approximate weight: 5253 kg/km
EYR 5*95
Nexans ref. EYR 005082 - Country ref. EYR 5*95
- Outer sheath: PVC
- Number of cores: 5
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal overall diameter: 51.0 mm
- Approximate weight: 7298 kg/km
EYR 6*4
Nexans ref. EYR 005757 - Country ref. EYR 6*4
- Outer sheath: PVC
- Number of cores: 6
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 21.0 mm
- Approximate weight: 869 kg/km
EYR 7*1.5RE//5
Nexans ref. EYR 000752 - Country ref. EYR 7*1.5RE//5
- Outer sheath: PVC
- Number of cores: 7
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 15.5 mm
- Approximate weight: 450 kg/km
EYR 7*2.5
Nexans ref. EYR 004610 - Country ref. EYR 7*2.5
- Outer sheath: PVC
- Number of cores: 7
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal armour wire diameter: 1.25 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 18.0 mm
- Approximate weight: 677 kg/km
EYR 8*6
Nexans ref. EYR 000806 - Country ref. EYR 8*6
- Outer sheath: PVC
- Number of cores: 8
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal overall diameter: 25.0 mm
- Approximate weight: 1387 kg/km
Description
Description
Standards
-
InternationalIEC 60228; IEC 60332-1-2; IEC 60502-1
1. SCOPE
This specification covers PVC insulated, multicore armoured cables, rated at 0.6/1 KV to international standard IEC 60502-1 for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present.
2. CONSTRUCTION
2.1 Conductor
Plain, annealed copper conductors, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.
2.4 Armour
Galvanized round wires, completely covering the assembly of cores; complying to the applicable requirements of IEC 60502-1.
2.5 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
TEST AT WORKS according to IEC 60502-1 armored
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Voltage test acc. to IEC 60502-1 parag. 15.1 & 15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation: according to IEC 60502-1 Parag. 16.5.2
Armour: according to IEC 60502-1 Parag. 16.7
Oversheath: according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables
Cable identification - LV cables ≤ 1KV
INSULATION COLORS:
|
|
Neutral |
Cond.1 |
Cond.2 |
Cond.3 |
Cond.4 |
|
1 Conductor |
|
BLACK |
|
|
|
|
2 Conductors |
GREY |
BLACK |
|
|
|
|
3 Conductors |
|
BLACK |
RED |
BLUE |
|
|
4 Conductors |
GREY |
BLACK |
RED |
BLUE |
|
|
5 Conductors |
GREY |
BLACK |
RED |
BLUE |
GREEN |
All numbered control cables (6 conductors and above), are insulated with white color, and numbered with black digits
CABLE MARKING OVER THE OUTER JACKET (by inkjet printing):
LIBAN CABLES DESCRIPTION RATED VOLTAGE SECTION MM2 Year of manufacture meter marking
Other cable identification requirements are available upon request
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Resources
Resources
Documentation
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
