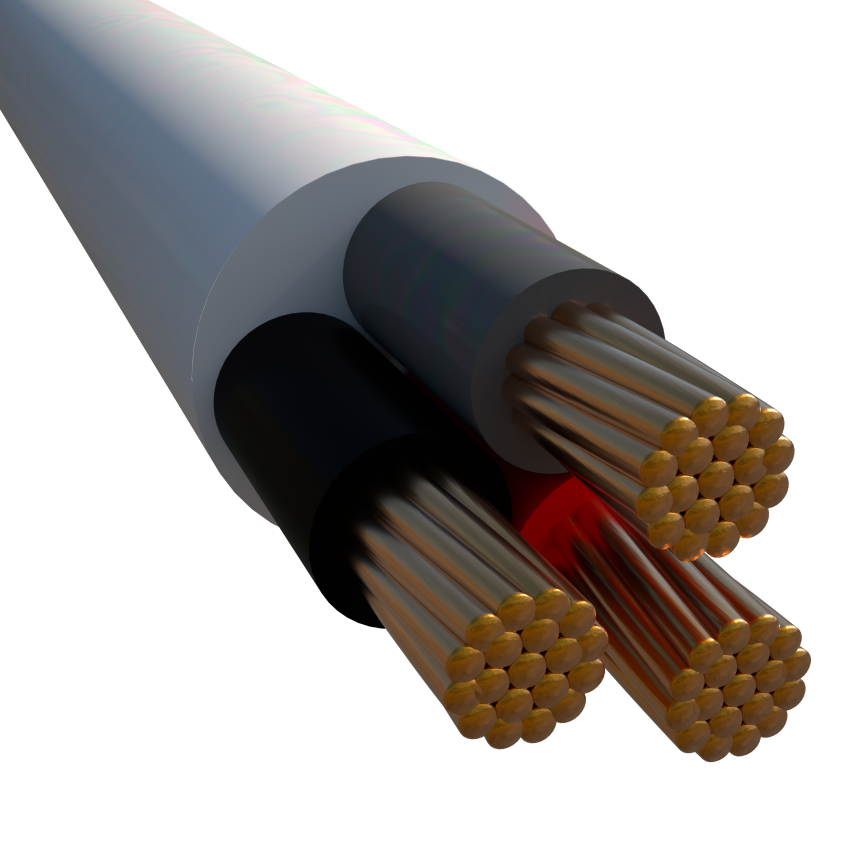

Unarmored, Flexible multicore XLPE insulation, PVC sheathed
Unarmored, Flexible multicore XLPE insulation, PVC sheathed
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreF5XY 2*0.75
Nexans ref. F5XY 000110 - Country ref. F5XY 2*0.75
- Number of conductors: 2
- Conductor cross-section: 0.75 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 8.5 mm
- Approximate weight: 88 kg/km
- Max. DC resistance of the conductor at 20°C: 26 Ohm/km
- Permissible current rating in open air: 15 A
- Permissible current rating when buried: - A
F5XY 2*1
Nexans ref. F5XY 000110 - Country ref. F5XY 2*1
- Number of conductors: 2
- Conductor cross-section: 1 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 8.7 mm
- Approximate weight: 96 kg/km
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Permissible current rating in open air: 21 A
- Permissible current rating when buried: - A
F5XY 2*1.5
Nexans ref. F5XY 000101 - Country ref. F5XY 2*1.5
- Number of conductors: 2
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 9.0 mm
- Approximate weight: 112 kg/km
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 27 A
- Permissible current rating when buried: 34 A
F5XY 2*10
Nexans ref. F5XY 002010 - Country ref. F5XY 2*10
- Number of conductors: 2
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.5 mm
- Approximate weight: 363 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 88 A
- Permissible current rating when buried: 101 A
F5XY 2*16
Nexans ref. F5XY 002016 - Country ref. F5XY 2*16
- Number of conductors: 2
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 17.0 mm
- Approximate weight: 526 kg/km
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 119 A
- Permissible current rating when buried: 128 A
F5XY 2*4
Nexans ref. F5XY 000111 - Country ref. F5XY 2*4
- Number of conductors: 2
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.0 mm
- Approximate weight: 188 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 50 A
- Permissible current rating when buried: 59 A
F5XY 3*1.5
Nexans ref. F5XY 000304 - Country ref. F5XY 3*1.5
- Number of conductors: 3
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 10.0 mm
- Approximate weight: 128 kg/km
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 22 A
- Permissible current rating when buried: 29 A
F5XY 3*10
Nexans ref. F5XY 000320 - Country ref. F5XY 3*10
- Number of conductors: 3
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.5 mm
- Approximate weight: 440 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
F5XY 3*16
Nexans ref. F5XY 100425 - Country ref. F5XY 3*16
- Number of conductors: 3
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 18.0 mm
- Approximate weight: 662 kg/km
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
F5XY 3*2.5
Nexans ref. F5XY 000305 - Country ref. F5XY 3*2.5
- Number of conductors: 3
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 10.5 mm
- Approximate weight: 160 kg/km
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
F5XY 3*4
Nexans ref. F5XY 000310 - Country ref. F5XY 3*4
- Number of conductors: 3
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 12.0 mm
- Approximate weight: 217 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
F5XY 3*6
Nexans ref. F5XY 000315 - Country ref. F5XY 3*6
- Number of conductors: 3
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.0 mm
- Approximate weight: 294 kg/km
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
F5XY 3*6 - M
Nexans ref. F5XY 700315 - Country ref. F5XY 3*6//COIL-M
- Packaging: Coil (100m)
- Number of conductors: 3
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.0 mm
- Approximate weight: 294 kg/km
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
F5XY 3*70
Nexans ref. F5XY 003528 - Country ref. F5XY 3*70
- Number of conductors: 3
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 32.0 mm
- Approximate weight: 2527 kg/km
- Max. DC resistance of the conductor at 20°C: 0.272 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
F5XY 4*1.5
Nexans ref. F5XY 000102 - Country ref. F5XY 4*1.5
- Number of conductors: 4
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 10.5 mm
- Approximate weight: 150 kg/km
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 22 A
- Permissible current rating when buried: 29 A
F5XY 4*10
Nexans ref. F5XY 000420 - Country ref. F5XY 4*10
- Number of conductors: 4
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 17.0 mm
- Approximate weight: 558 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
F5XY 4*120
Nexans ref. F5XY 000455 - Country ref. F5XY 4*120
- Number of conductors: 4
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 46.0 mm
- Approximate weight: 5284 kg/km
- Max. DC resistance of the conductor at 20°C: 0.161 Ohm/km
- Permissible current rating in open air: 339 A
- Permissible current rating when buried: 345 A
F5XY 4*16
Nexans ref. F5XY 000425 - Country ref. F5XY 4*16
- Number of conductors: 4
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 20.0 mm
- Approximate weight: 824 kg/km
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
F5XY 4*2.5
Nexans ref. F5XY 000405 - Country ref. F5XY 4*2.5
- Number of conductors: 4
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.5 mm
- Approximate weight: 197 kg/km
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
F5XY 4*240
Nexans ref. F5XY 000470 - Country ref. F5XY 4*240
- Number of conductors: 4
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 63.0 mm
- Approximate weight: 5284 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0801 Ohm/km
- Permissible current rating in open air: 522 A
- Permissible current rating when buried: 504 A
F5XY 4*25
Nexans ref. F5XY 000430 - Country ref. F5XY 4*25
- Number of conductors: 4
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 24.0 mm
- Approximate weight: 1219 kg/km
- Max. DC resistance of the conductor at 20°C: 0.78 Ohm/km
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 141 A
F5XY 4*35
Nexans ref. F5XY 000435 - Country ref. F5XY 4*35
- Number of conductors: 4
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 27.0 mm
- Approximate weight: 1648 kg/km
- Max. DC resistance of the conductor at 20°C: 0.554 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
F5XY 4*4
Nexans ref. F5XY 000410 - Country ref. F5XY 4*4
- Number of conductors: 4
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.0 mm
- Approximate weight: 272 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
F5XY 4*50
Nexans ref. F5XY 000436 - Country ref. F5XY 4*50
- Number of conductors: 4
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 31.0 mm
- Approximate weight: 2320 kg/km
- Max. DC resistance of the conductor at 20°C: 0.386 Ohm/km
- Permissible current rating in open air: 190 A
- Permissible current rating when buried: 204 A
F5XY 4*6
Nexans ref. F5XY 000415 - Country ref. F5XY 4*6
- Number of conductors: 4
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.0 mm
- Approximate weight: 360 kg/km
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
F5XY 4*70
Nexans ref. F5XY 000445 - Country ref. F5XY 4*70
- Number of conductors: 4
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 36.0 mm
- Approximate weight: 3198 kg/km
- Max. DC resistance of the conductor at 20°C: 0.272 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
F5XY 4*95
Nexans ref. F5XY 000450 - Country ref. F5XY 4*95
- Number of conductors: 4
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 41.0 mm
- Approximate weight: 4144 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Permissible current rating in open air: 293 A
- Permissible current rating when buried: 302 A
F5XY 5*1.5
Nexans ref. F5XY 000503 - Country ref. F5XY 5*1.5
- Number of conductors: 5
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.0 mm
- Approximate weight: 160 kg/km
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 22 A
- Permissible current rating when buried: 29 A
F5XY 5*10
Nexans ref. F5XY 000515 - Country ref. F5XY 5*10
- Number of conductors: 5
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 18.5 mm
- Approximate weight: 661 kg/km
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
F5XY 5*16
Nexans ref. F5XY 000616 - Country ref. F5XY 5*16
- Number of conductors: 5
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 22.0 mm
- Approximate weight: 1006 kg/km
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
F5XY 5*2.5
Nexans ref. F5XY 000508 - Country ref. F5XY 5*2.5
- Number of conductors: 5
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 12.0 mm
- Approximate weight: 212 kg/km
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
F5XY 5*25
Nexans ref. F5XY 000404 - Country ref. F5XY 5*25
- Number of conductors: 5
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 27.0 mm
- Approximate weight: 1518 kg/km
- Max. DC resistance of the conductor at 20°C: 0.78 Ohm/km
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 141 A
F5XY 5*4
Nexans ref. F5XY 000514 - Country ref. F5XY 5*4
- Number of conductors: 5
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.0 mm
- Approximate weight: 312 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
F5XY 5*6
Nexans ref. F5XY 000614 - Country ref. F5XY 5*6
- Number of conductors: 5
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.5 mm
- Approximate weight: 431 kg/km
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
F5XY 7*2.5
Nexans ref. F5XY 001508 - Country ref. F5XY 7*2.5
- Number of conductors: 7
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.5 mm
- Approximate weight: 267 kg/km
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 46 A
F5XY 7*4
Nexans ref. F5XY 001509 - Country ref. F5XY 7*4
- Number of conductors: 7
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.0 mm
- Approximate weight: 381 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 45 A
- Permissible current rating when buried: 59 A
F5XY 7*6
Nexans ref. F5XY 001510 - Country ref. F5XY 7*6
- Number of conductors: 7
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 17.0 mm
- Approximate weight: 517 kg/km
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 58 A
- Permissible current rating when buried: 74 A
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2
Scope
This specification covers XLPE insulated, circular , multicore unarmoured cables, rated at 0.6/1 KV according to IEC 60502-1.
2.1 Conductor
Plain, annealed copper conductors, circular flexible conductor, conforming to the applicable requirements of IEC 60228 class 5.
2.2 Insulation
XLPE, conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material.
2.4 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.5 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
TEST AT WORKS unarmored multicore
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Voltage test acc. to IEC 60502-1 parag. 15.1 & 15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided .
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Oversheath : according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables
DRAWING Flexible cable
Cable identification - LV cables ≤ 1KV
INSULATION COLORS:
|
|
Neutral |
Cond.1 |
Cond.2 |
Cond.3 |
Cond.4 |
|
1 Conductor |
|
BLACK |
|
|
|
|
2 Conductors |
GREY |
BLACK |
|
|
|
|
3 Conductors |
|
BLACK |
RED |
BLUE |
|
|
4 Conductors |
GREY |
BLACK |
RED |
BLUE |
|
|
5 Conductors |
GREY |
BLACK |
RED |
BLUE |
GREEN |
All numbered control cables (6 conductors and above), are insulated with white color, and numbered with black digits
CABLE MARKING OVER THE OUTER JACKET (by inkjet printing):
LIBAN CABLES DESCRIPTION RATED VOLTAGE SECTION MM2 Year of manufacture meter marking
Other cable identification requirements are available upon request
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Find a Distributor
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
