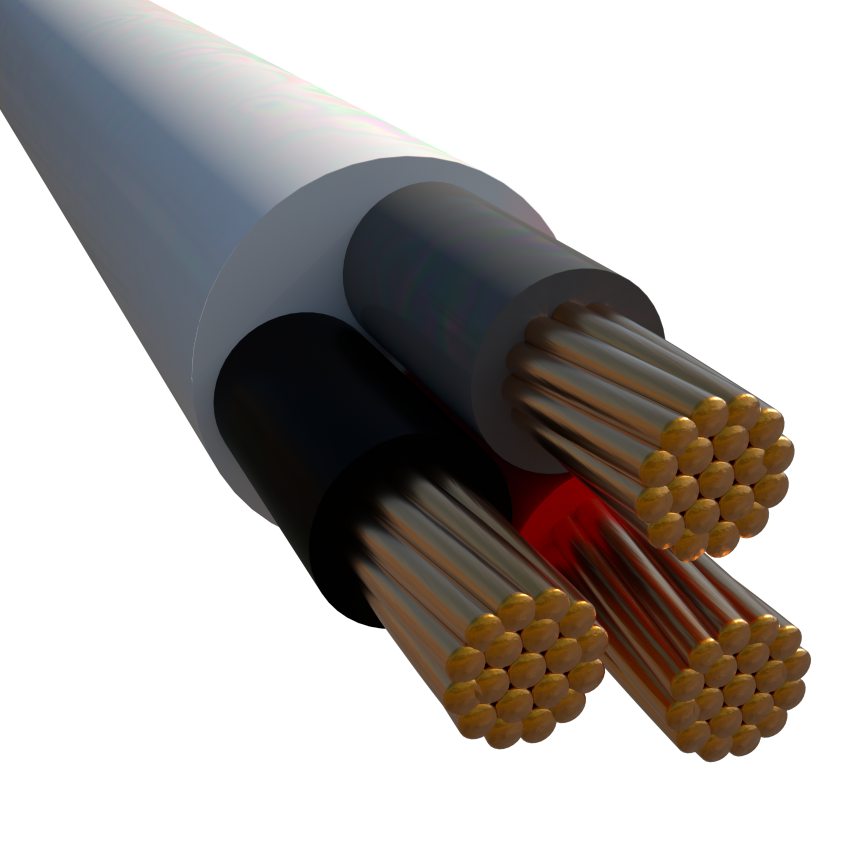

Unarmored, Flexible multicore PVC insulation, PVC sheathed
Unarmored, Flexible multicore PVC insulation, PVC sheathed
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreF5YY 2*1.5
Nexans ref. F5YY 000430 - Country ref. F5YY 2*1.5
- Packaging: Cut to length (m)
- Number of conductors: 2
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 9.5 mm
- Approximate weight: 125 kg/km
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 20 A
F5YY 2*2.5
Nexans ref. F5YY 000436 - Country ref. F5YY 2*2.5
- Packaging: Cut to length (m)
- Number of conductors: 2
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 10.5 mm
- Approximate weight: 155 kg/km
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 26 A
F5YY 2*4
Nexans ref. F5YY 000444 - Country ref. F5YY 2*4
- Packaging: Cut to length (m)
- Number of conductors: 2
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.0 mm
- Approximate weight: 227 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 32 A
F5YY 3*1.5
Nexans ref. F5YY 000434 - Country ref. F5YY 3*1.5
- Packaging: Cut to length (m)
- Number of conductors: 3
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 10.0 mm
- Approximate weight: 145 kg/km
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 18 A
F5YY 3*16
Nexans ref. F5YY 006616 - Country ref. F5YY 3*16
- Packaging: Cut to length (m)
- Number of conductors: 3
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 20.0 mm
- Approximate weight: 739 kg/km
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 76 A
F5YY 3*2.5 NEW
Nexans ref. F5YY 006610 - Country ref. F5YY 3*2.5
- Packaging: Cut to length (m)
- Number of conductors: 3
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.0 mm
- Approximate weight: 179 kg/km
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 24 A
F5YY 3*25
Nexans ref. F5YY 000618 - Country ref. F5YY 3*25
- Packaging: Cut to length (m)
- Number of conductors: 3
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 23.0 mm
- Approximate weight: 1078 kg/km
- Max. DC resistance of the conductor at 20°C: 0.78 Ohm/km
- Permissible current rating in open air: 101 A
F5YY 3*35
Nexans ref. F5YY 003035 - Country ref. F5YY 3*35
- Packaging: Cut to length (m)
- Number of conductors: 3
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 26.0 mm
- Approximate weight: 1415 kg/km
- Max. DC resistance of the conductor at 20°C: 0.554 Ohm/km
- Permissible current rating in open air: 125 A
F5YY 3*4 NEW
Nexans ref. F5YY 006612 - Country ref. F5YY 3*4
- Packaging: Cut to length (m)
- Number of conductors: 3
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.0 mm
- Approximate weight: 263 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 32 A
F5YY 3*6
Nexans ref. F5YY 000613 - Country ref. F5YY 3*6
- Packaging: Cut to length (m)
- Number of conductors: 3
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.5 mm
- Approximate weight: 347 kg/km
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 41 A
F5YY 3*70
Nexans ref. F5YY 000624 - Country ref. F5YY 3*70
- Packaging: Cut to length (m)
- Number of conductors: 3
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 34.0 mm
- Approximate weight: 2637 kg/km
- Max. DC resistance of the conductor at 20°C: 0.272 Ohm/km
- Permissible current rating in open air: 192 A
F5YY 3*95
Nexans ref. F5YY 000626 - Country ref. F5YY 3*95
- Packaging: Cut to length (m)
- Number of conductors: 3
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 39.0 mm
- Approximate weight: 3491 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Permissible current rating in open air: 232 A
F5YY 4*1.5
Nexans ref. F5YY 000432 - Country ref. F5YY 4*1.5
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 10.86 mm
- Approximate weight: 171 kg/km
- Max. DC resistance of the conductor at 20°C: 13.3 Ohm/km
- Permissible current rating in open air: 18 A
F5YY 4*10 NEW
Nexans ref. F5YY 006675 - Country ref. F5YY 4*10
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 18.5 mm
- Approximate weight: 626 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
F5YY 4*120
Nexans ref. F5YY 005445 - Country ref. F5YY 4*120
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 48.0 mm
- Approximate weight: 5612 kg/km
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
- Permissible current rating in open air: 269 A
F5YY 4*150
Nexans ref. F5YY 000636 - Country ref. F5YY 4*150
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal outer diameter: 50.0 mm
- Approximate weight: 6798 kg/km
- Max. DC resistance of the conductor at 20°C: 0.132 Ohm/km
- Permissible current rating in open air: 309 A
F5YY 4*150
Nexans ref. F5YY 100636 - Country ref. F5YY 4*150
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal outer diameter: 50.0 mm
- Approximate weight: 6798 kg/km
- Max. DC resistance of the conductor at 20°C: 0.132 Ohm/km
- Permissible current rating in open air: 309 A
F5YY 4*16 NEW
Nexans ref. F5YY 006680 - Country ref. F5YY 4*16
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 22.0 mm
- Approximate weight: 908 kg/km
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 76 A
F5YY 4*185
Nexans ref. F5YY 005455 - Country ref. F5YY 4*185
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 2.0 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 60.0 mm
- Approximate weight: 8572 kg/km
- Max. DC resistance of the conductor at 20°C: 0.106 Ohm/km
- Permissible current rating in open air: 353 A
F5YY 4*2.5
Nexans ref. F5YY 006673 - Country ref. F5YY 4*2.5
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 12.0 mm
- Approximate weight: 222 kg/km
- Max. DC resistance of the conductor at 20°C: 7.98 Ohm/km
- Permissible current rating in open air: 24 A
F5YY 4*240
Nexans ref. F5YY 005460 - Country ref. F5YY 4*240
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal outer diameter: 66.0 mm
- Approximate weight: 11031 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0801 Ohm/km
- Permissible current rating in open air: 415 A
F5YY 4*25 NEW
Nexans ref. F5YY 006685 - Country ref. F5YY 4*25
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 26.0 mm
- Approximate weight: 1333 kg/km
- Max. DC resistance of the conductor at 20°C: 0.78 Ohm/km
- Permissible current rating in open air: 101 A
F5YY 4*35 NEW
Nexans ref. F5YY 006715 - Country ref. F5YY 4*35
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 29.0 mm
- Approximate weight: 1760 kg/km
- Max. DC resistance of the conductor at 20°C: 0.554 Ohm/km
- Permissible current rating in open air: 125 A
F5YY 4*4
Nexans ref. F5YY 006701 - Country ref. F5YY 4*4
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.24 mm
- Approximate weight: 329 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 32 A
F5YY 4*50 NEW
Nexans ref. F5YY 005430 - Country ref. F5YY 4*50
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 33.0 mm
- Approximate weight: 2486 kg/km
- Max. DC resistance of the conductor at 20°C: 0.386 Ohm/km
- Permissible current rating in open air: 151 A
F5YY 4*6
Nexans ref. F5YY 000867 - Country ref. F5YY 4*6
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.5 mm
- Approximate weight: 426 kg/km
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 41 A
F5YY 4*70 NEW
Nexans ref. F5YY 005435 - Country ref. F5YY 4*70
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 38.0 mm
- Approximate weight: 3378 kg/km
- Max. DC resistance of the conductor at 20°C: 0.272 Ohm/km
- Permissible current rating in open air: 192 A
F5YY 4*95 NEW
Nexans ref. F5YY 005440 - Country ref. F5YY 4*95
- Packaging: Cut to length (m)
- Number of conductors: 4
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 43.0 mm
- Approximate weight: 4436 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Permissible current rating in open air: 232 A
F5YY 5*10
Nexans ref. F5YY 000445 - Country ref. F5YY 5*10
- Packaging: Cut to length (m)
- Number of conductors: 5
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 20.0 mm
- Approximate weight: 766 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 57 A
F5YY 5*16
Nexans ref. F5YY 000446 - Country ref. F5YY 5*16
- Packaging: Cut to length (m)
- Number of conductors: 5
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 23.0 mm
- Approximate weight: 1034 kg/km
- Max. DC resistance of the conductor at 20°C: 1.21 Ohm/km
- Permissible current rating in open air: 76 A
F5YY 5*25 NEW
Nexans ref. F5YY 000450 - Country ref. F5YY 5*25
- Packaging: Cut to length (m)
- Number of conductors: 5
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 28.0 mm
- Approximate weight: 1515 kg/km
- Max. DC resistance of the conductor at 20°C: 0.78 Ohm/km
- Permissible current rating in open air: 101 A
F5YY 5*35 NEW
Nexans ref. F5YY 000455 - Country ref. F5YY 5*35
- Packaging: Cut to length (m)
- Number of conductors: 5
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 32.0 mm
- Approximate weight: 2012 kg/km
- Max. DC resistance of the conductor at 20°C: 0.554 Ohm/km
- Permissible current rating in open air: 125 A
F5YY 5*4 NEW
Nexans ref. F5YY 000438 - Country ref. F5YY 5*4
- Packaging: Cut to length (m)
- Number of conductors: 5
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.5 mm
- Approximate weight: 393 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 32 A
F5YY 5*6
Nexans ref. F5YY 006005 - Country ref. F5YY 5*6
- Packaging: Cut to length (m)
- Number of conductors: 5
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 17.0 mm
- Approximate weight: 505 kg/km
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 41 A
F5YY 5*95 NEW
Nexans ref. F5YY 000461 - Country ref. F5YY 5*95
- Packaging: Cut to length (m)
- Number of conductors: 5
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 48.0 mm
- Approximate weight: 5471 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Permissible current rating in open air: 232 A
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2
Scope
This specification covers PVC insulated, circular , multicore unarmoured cables, rated at 0.6/1 KV according to IEC 60502-1.
Construction
2.1 Conductor
Plain, annealed copper conductors, circular flexible conductor, conforming to the applicable requirements of IEC 60228 class 5.
2.2 Insulation
PVC, conforming to the applicable requirements of IEC 60502-1.
2.3 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.4 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
TEST AT WORKS unarmored multicore
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Voltage test acc. to IEC 60502-1 parag. 15.1 & 15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided .
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Oversheath : according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables
Cable identification - LV cables ≤ 1KV
INSULATION COLORS:
|
|
Neutral |
Cond.1 |
Cond.2 |
Cond.3 |
Cond.4 |
|
1 Conductor |
|
BLACK |
|
|
|
|
2 Conductors |
GREY |
BLACK |
|
|
|
|
3 Conductors |
|
BLACK |
RED |
BLUE |
|
|
4 Conductors |
GREY |
BLACK |
RED |
BLUE |
|
|
5 Conductors |
GREY |
BLACK |
RED |
BLUE |
GREEN |
All numbered control cables (6 conductors and above), are insulated with white color, and numbered with black digits
CABLE MARKING OVER THE OUTER JACKET (by inkjet printing):
LIBAN CABLES DESCRIPTION RATED VOLTAGE SECTION MM2 Year of manufacture meter marking
Other cable identification requirements are available upon request
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
