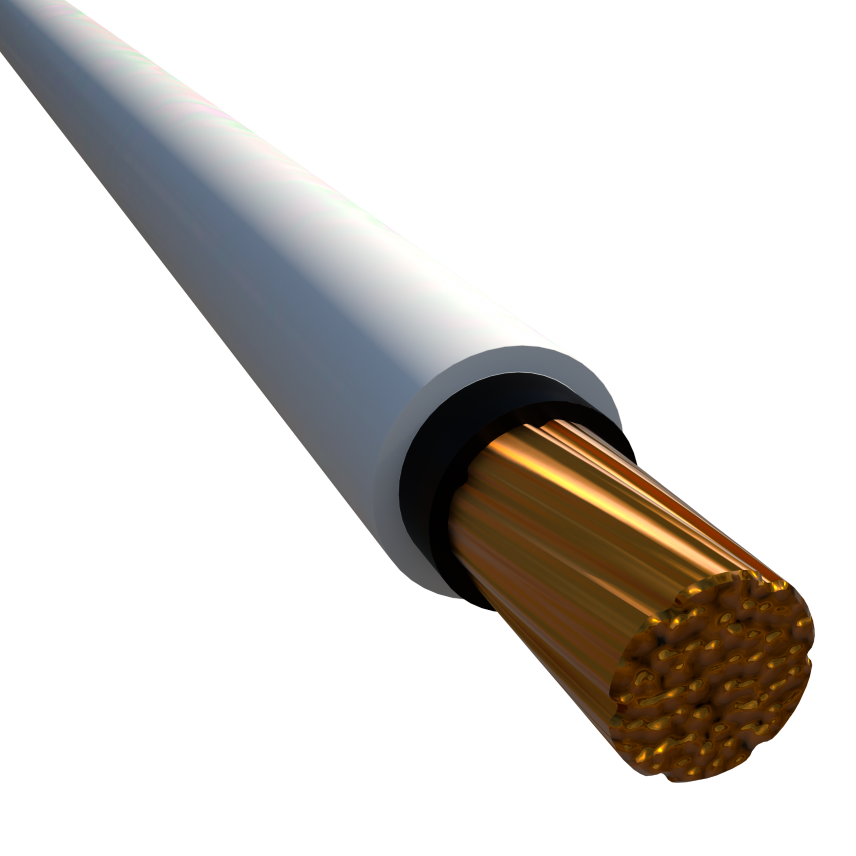

Unarmored, Flexible single core PVC insulation, PVC sheathed
Unarmored, Flexible single core PVC insulation, PVC sheathed
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreF5YY 1*150
Nexans ref. F5YY 006553 - Country ref. F5YY 1*150
- Packaging: Cut to length (m)
- Sheath colour: -
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 1.6 mm
- Nominal outer diameter: 22.0 mm
- Approximate weight: 1523 kg/km
- Max. DC resistance of the conductor at 20°C: 0.129 Ohm/km
- Permissible current rating in open air: 344 A
- Permissible current rating when buried: 365 A
- Max. conductor temperature in service: 70 °C
F5YY 1*185 NEW
Nexans ref. F5YY 006554 - Country ref. F5YY 1*185
- Packaging: Cut to length (m)
- Sheath colour: -
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 2.0 mm
- Nominal outer sheath thickness: 1.7 mm
- Nominal outer diameter: 26.0 mm
- Approximate weight: 1913 kg/km
- Max. DC resistance of the conductor at 20°C: 0.106 Ohm/km
- Permissible current rating in open air: 392 A
- Permissible current rating when buried: 412 A
- Max. conductor temperature in service: 70 °C
F5YY 1*120 NEW
Nexans ref. F5YY 006110 - Country ref. F5YY 1*120
- Packaging: Cut to length (m)
- Sheath colour: -
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 1.5 mm
- Nominal outer diameter: 21.0 mm
- Approximate weight: 1244 kg/km
- Max. DC resistance of the conductor at 20°C: 0.161 Ohm/km
- Permissible current rating in open air: 299 A
- Permissible current rating when buried: 327 A
- Max. conductor temperature in service: 70 °C
F5YY 1*120//105
Nexans ref. F5YY 006126 - Country ref. F5YY 1*120//105
- Packaging: Cut to length (m)
- Sheath colour: -
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 1.5 mm
- Nominal outer diameter: 21.0 mm
- Approximate weight: 1244 kg/km
- Max. DC resistance of the conductor at 20°C: 0.161 Ohm/km
- Permissible current rating in open air: 299 A
- Permissible current rating when buried: 327 A
- Max. conductor temperature in service: 105 °C
F5YY 1*240 NEW
Nexans ref. F5YY 006555 - Country ref. F5YY 1*240
- Packaging: Cut to length (m)
- Sheath colour: -
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 28.0 mm
- Approximate weight: 2464 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0801 Ohm/km
- Permissible current rating in open air: 461 A
- Permissible current rating when buried: 477 A
- Max. conductor temperature in service: 70 °C
F5YY 1*300 NEW
Nexans ref. F5YY 006560 - Country ref. F5YY 1*300
- Packaging: Cut to length (m)
- Sheath colour: -
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 2.4 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 34.0 mm
- Approximate weight: 3160 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0641 Ohm/km
- Permissible current rating in open air: 525 A
- Permissible current rating when buried: 540 A
- Max. conductor temperature in service: 70 °C
F5YY 1*35 NEW
Nexans ref. F5YY 006531 - Country ref. F5YY 1*35
- Packaging: Cut to length (m)
- Sheath colour: -
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 13.0 mm
- Approximate weight: 407 kg/km
- Max. DC resistance of the conductor at 20°C: 0.554 Ohm/km
- Permissible current rating in open air: 138 A
- Permissible current rating when buried: 161 A
- Max. conductor temperature in service: 70 °C
F5YY 1*4//BLACK
Nexans ref. F5YY 000610 - Country ref. F5YY 1*4//BLACK
- Packaging: Cut to length (m)
- Sheath colour: Black
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 6.9 mm
- Approximate weight: 82 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 35 A
- Permissible current rating when buried: 46 A
- Max. conductor temperature in service: 70 °C
F5YY 1*4//RED
Nexans ref. F5YY 000611 - Country ref. F5YY 1*4//RED
- Packaging: Cut to length (m)
- Sheath colour: Red
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 6.9 mm
- Approximate weight: 82 kg/km
- Max. DC resistance of the conductor at 20°C: 4.95 Ohm/km
- Permissible current rating in open air: 35 A
- Permissible current rating when buried: 46 A
- Max. conductor temperature in service: 70 °C
F5YY 1*400
Nexans ref. F5YY 006565 - Country ref. F5YY 1*400
- Packaging: Cut to length (m)
- Sheath colour:
- Conductor cross-section: 400 mm²
- Nominal insulation thickness: 2.6 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 38.0 mm
- Approximate weight: 4105 kg/km
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Permissible current rating in open air: 845 A
- Permissible current rating when buried: 590 A
- Max. conductor temperature in service: 70 °C
F5YY 1*50
Nexans ref. F5YY 006552 - Country ref. F5YY 1*50
- Packaging: Cut to length (m)
- Sheath colour: Black
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 13.0 mm
- Approximate weight: 407 kg/km
- Max. DC resistance of the conductor at 20°C: 0.386 Ohm/km
- Permissible current rating in open air: 168 A
- Permissible current rating when buried: 193 A
- Max. conductor temperature in service: 70 °C
F5YY 1*500
Nexans ref. F5YY 005570 - Country ref. F5YY 1*500
- Packaging: Cut to length (m)
- Sheath colour: -
- Conductor cross-section: 500 mm²
- Nominal insulation thickness: 2.8 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 42.0 mm
- Approximate weight: 5157 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0384 Ohm/km
- Permissible current rating in open air: 687 A
- Permissible current rating when buried: 403 A
- Max. conductor temperature in service: 70 °C
F5YY 1*6//BLACK
Nexans ref. F5YY 000612 - Country ref. F5YY 1*6//BLACK
- Packaging: Cut to length (m)
- Sheath colour: Black
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 7.4 mm
- Approximate weight: 104 kg/km
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 46 A
- Permissible current rating when buried: 61 A
- Max. conductor temperature in service: 70 °C
F5YY 1*6//RED
Nexans ref. F5YY 000609 - Country ref. F5YY 1*6//RED
- Packaging: Cut to length (m)
- Sheath colour: Red
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 7.4 mm
- Approximate weight: 104 kg/km
- Max. DC resistance of the conductor at 20°C: 3.3 Ohm/km
- Permissible current rating in open air: 46 A
- Permissible current rating when buried: 61 A
- Max. conductor temperature in service: 70 °C
F5YY 1*70 NEW
Nexans ref. F5YY 004001 - Country ref. F5YY 1*70
- Packaging: Cut to length (m)
- Sheath colour: -
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 16.5 mm
- Approximate weight: 766 kg/km
- Max. DC resistance of the conductor at 20°C: 0.272 Ohm/km
- Permissible current rating in open air: 213 A
- Permissible current rating when buried: 238 A
- Max. conductor temperature in service: 70 °C
F5YY 1*95 NEW
Nexans ref. F5YY 006101 - Country ref. F5YY 1*95
- Packaging: Cut to length (m)
- Sheath colour: -
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 1.5 mm
- Nominal outer diameter: 19.0 mm
- Approximate weight: 1003 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Permissible current rating in open air: 258 A
- Permissible current rating when buried: 286 A
- Max. conductor temperature in service: 70 °C
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2
Scope
This specification covers PVC insulated, circular , single core unarmoured cables, rated at 0.6/1 KV according to IEC 60502-1.
Construction
2.1 Conductor
Plain, annealed copper conductors, circular flexible conductor, conforming to the applicable requirements of IEC 60228 class 5.
2.2 Insulation
PVC, conforming to the applicable requirements of IEC 60502-1.
2.3 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.4 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
TEST AT WORKS unarmored single core
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Spark test during insulation
Liban Cables will carry out these tests on all the length and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Oversheath : according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length during of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order.
Tests certificates will be provided by Liban Cables
