Unarmored , Halogen free, Low smoke, Fire & UV resistant cables

Unarmored , Halogen free, Low smoke, Fire & UV resistant cables

Unarmored , Halogen free, Low smoke, Fire & UV resistant cables

0.6/1kv POWER CABLES conforming to IEC 60502-1 & IEC 60331

Read more
Find distributor
Contact us

Products

Actions
Filters

  • products

SFC2XU 2*1.5

Nexans ref. SFC2XU 000408 - Country ref. SFC2XU 2*1.5//CEI-UV

  • Number of conductors: 2
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 10.7 mm
  • Approximate weight: 154 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km



SFC2XU 2*185

Nexans ref. SFC2XU 001113 - Country ref. SFC2XU 2*185//CEI-UV

  • Number of conductors: 2
  • Conductor cross-section: 185 mm²
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal overall diameter: 44.0 mm
  • Approximate weight: 4995 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km



SFC2XU 2*2.5

Nexans ref. SFC2XU 000402 - Country ref. SFC2XU 2*2.5//CEI-UV

  • Number of conductors: 2
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 11.5 mm
  • Approximate weight: 192 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km



SFC2XU 2*4

Nexans ref. SFC2XU 000403 - Country ref. SFC2XU 2*4//CEI-UV

  • Number of conductors: 2
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 13.0 mm
  • Approximate weight: 253 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km



SFC2XU 3*1.5

Nexans ref. SFC2XU 000602 - Country ref. SFC2XU 3*1.5//CEI-UV

  • Number of conductors: 3
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 11.5 mm
  • Approximate weight: 171 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km



SFC2XU 3*10

Nexans ref. SFC2XU 001360 - Country ref. SFC2XU 3*10//CEI-UV

  • Number of conductors: 3
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 16.0 mm
  • Approximate weight: 511 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km



SFC2XU 3*16

Nexans ref. SFC2XU 001041 - Country ref. SFC2XU 3*16//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 18.0 mm
  • Approximate weight: 720 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km



SFC2XU 3*185

Nexans ref. SFC2XU 001379 - Country ref. SFC2XU 3*185//CEI-UV

  • Number of conductors: 3
  • Conductor cross-section: 185 mm²
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal overall diameter: 47.0 mm
  • Approximate weight: 6587 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km



SFC2XU 3*2.5

Nexans ref. SFC2XU 001351 - Country ref. SFC2XU 3*2.5//CEI-UV

  • Number of conductors: 3
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 12.5 mm
  • Approximate weight: 217 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km



SFC2XU 3*25

Nexans ref. SFC2XU 001363 - Country ref. SFC2XU 3*25//CEI-UV

  • Number of conductors: 3
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 22.0 mm
  • Approximate weight: 1072 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km



SFC2XU 3*4

Nexans ref. SFC2XU 001401 - Country ref. SFC2XU 3*4//CEI-UV

  • Number of conductors: 3
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 13.5 mm
  • Approximate weight: 280 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km



SFC2XU 3*6

Nexans ref. SFC2XU 001354 - Country ref. SFC2XU 3*6//CEI-UV

  • Number of conductors: 3
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 14.5 mm
  • Approximate weight: 351 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km



SFC2XU 4*1.5

Nexans ref. SFC2XU 001281 - Country ref. SFC2XU 4*1.5//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 1.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 12.0 mm
  • Approximate weight: 209 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km



SFC2XU 4*10

Nexans ref. SFC2XU 000286 - Country ref. SFC2XU 4*10//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 17.5 mm
  • Approximate weight: 607 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km



SFC2XU 4*120

Nexans ref. SFC2XU 000996 - Country ref. SFC2XU 4*120//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 120 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal overall diameter: 43.0 mm
  • Approximate weight: 5495 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km



SFC2XU 4*150

Nexans ref. SFC2XU 000997 - Country ref. SFC2XU 4*150//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 150 mm²
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal overall diameter: 47.0 mm
  • Approximate weight: 6746 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km



SFC2XU 4*16

Nexans ref. SFC2XU 001001 - Country ref. SFC2XU 4*16//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 19.5 mm
  • Approximate weight: 870 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km



SFC2XU 4*185

Nexans ref. SFC2XU 001111 - Country ref. SFC2XU 4*185//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 185 mm²
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal overall diameter: 53.0 mm
  • Approximate weight: 8604 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km



SFC2XU 4*2.5

Nexans ref. SFC2XU 000386 - Country ref. SFC2XU 4*2.5//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 13.5 mm
  • Approximate weight: 256 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km



SFC2XU 4*240

Nexans ref. SFC2XU 000600 - Country ref. SFC2XU 4*240//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 240 mm²
  • Nominal insulation thickness: 1.7 mm
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal overall diameter: 59.0 mm
  • Approximate weight: 10793 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km



SFC2XU 4*240//LAM

Nexans ref. SFC2XU 000738 - Country ref. SFC2XU 4*240//LAM

  • Number of conductors: 4
  • Conductor cross-section: 240 mm²
  • Nominal insulation thickness: 1.7 mm
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal overall diameter: 59.0 mm
  • Approximate weight: 10793 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km



SFC2XU 4*25

Nexans ref. SFC2XU 001008 - Country ref. SFC2XU 4*25//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 24.0 mm
  • Approximate weight: 1308 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km



SFC2XU 4*300 NEW

Nexans ref. SFC2XU 002692 - Country ref. SFC2XU 4*300//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 300 mm²
  • Nominal insulation thickness: 1.8 mm
  • Nominal outer sheath thickness: 3.0 mm
  • Nominal overall diameter: 66.0 mm
  • Approximate weight: 13453 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km



SFC2XU 4*35

Nexans ref. SFC2XU 000373 - Country ref. SFC2XU 4*35//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 35 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 26.0 mm
  • Approximate weight: 1732 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km



SFC2XU 4*4

Nexans ref. SFC2XU 000706 - Country ref. SFC2XU 4*4//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 15.0 mm
  • Approximate weight: 325 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km



SFC2XU 4*50

Nexans ref. SFC2XU 001007 - Country ref. SFC2XU 4*50//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 50 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal overall diameter: 30.0 mm
  • Approximate weight: 2325 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km



SFC2XU 4*6

Nexans ref. SFC2XU 000953 - Country ref. SFC2XU 4*6//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 15.5 mm
  • Approximate weight: 423 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km



SFC2XU 4*70

Nexans ref. SFC2XU 001000 - Country ref. SFC2XU 4*70//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal overall diameter: 34.0 mm
  • Approximate weight: 3244 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km



SFC2XU 4*95

Nexans ref. SFC2XU 001112 - Country ref. SFC2XU 4*95//CEI-UV

  • Number of conductors: 4
  • Conductor cross-section: 95 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal overall diameter: 38.0 mm
  • Approximate weight: 5036 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km



SFC2XU 5*10

Nexans ref. SFC2XU 001003 - Country ref. SFC2XU 5*10//CEI-UV

  • Number of conductors: 5
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 19.0 mm
  • Approximate weight: 741 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km



SFC2XU 5*16

Nexans ref. SFC2XU 001002 - Country ref. SFC2XU 5*16//CEI-UV

  • Number of conductors: 5
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 22.0 mm
  • Approximate weight: 1068 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km



SFC2XU 5*185

Nexans ref. SFC2XU 001570 - Country ref. SFC2XU 5*185//CEI-UV

  • Number of conductors: 5
  • Conductor cross-section: 185 mm²
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal overall diameter: 59.0 mm
  • Approximate weight: 10458 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km



SFC2XU 5*2.5

Nexans ref. SFC2XU 000391 - Country ref. SFC2XU 5*2.5//CEI-UV

  • Number of conductors: 5
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 14.5 mm
  • Approximate weight: 273 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km



SFC2XU 5*25 NEW

Nexans ref. SFC2XU 000601 - Country ref. SFC2XU 5*25//CEI-UV

  • Number of conductors: 5
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 26.0 mm
  • Approximate weight: 1612 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km



SFC2XU 5*35

Nexans ref. SFC2XU 000461 - Country ref. SFC2XU 5*35//CEI-UV

  • Number of conductors: 5
  • Conductor cross-section: 35 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 29.0 mm
  • Approximate weight: 2120 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km



SFC2XU 5*4

Nexans ref. SFC2XU 001005 - Country ref. SFC2XU 5*4//CEI-UV

  • Number of conductors: 5
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 16.0 mm
  • Approximate weight: 401 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km



SFC2XU 5*50

Nexans ref. SFC2XU 000462 - Country ref. SFC2XU 5*50//CEI-UV

  • Number of conductors: 5
  • Conductor cross-section: 50 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal overall diameter: 33.0 mm
  • Approximate weight: 2902 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km



SFC2XU 5*6

Nexans ref. SFC2XU 001004 - Country ref. SFC2XU 5*6//CEI-UV

  • Number of conductors: 5
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 17.0 mm
  • Approximate weight: 513 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km



SFC2XU 5*70

Nexans ref. SFC2XU 00116 - Country ref. SFC2XU 5*70//CEI-UV

  • Number of conductors: 5
  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal overall diameter: 38.0 mm
  • Approximate weight: 4030 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km



SFC2XU 5*95

Nexans ref. SFC2XU 001161 - Country ref. SFC2XU 5*95//CEI-UV

  • Number of conductors: 5
  • Conductor cross-section: 95 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal overall diameter: 43.0 mm
  • Approximate weight: 5448 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km



SFC2XU 7*2.5

Nexans ref. SFC2XU.001705 - Country ref. SFC2XU 7*2.5//CEI-UV

  • Number of conductors: 7
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 15.5 mm
  • Approximate weight: 336 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km



Description

Description

Standards

  • Product
    IEC 60502-1
  • Test
    IEC 60331

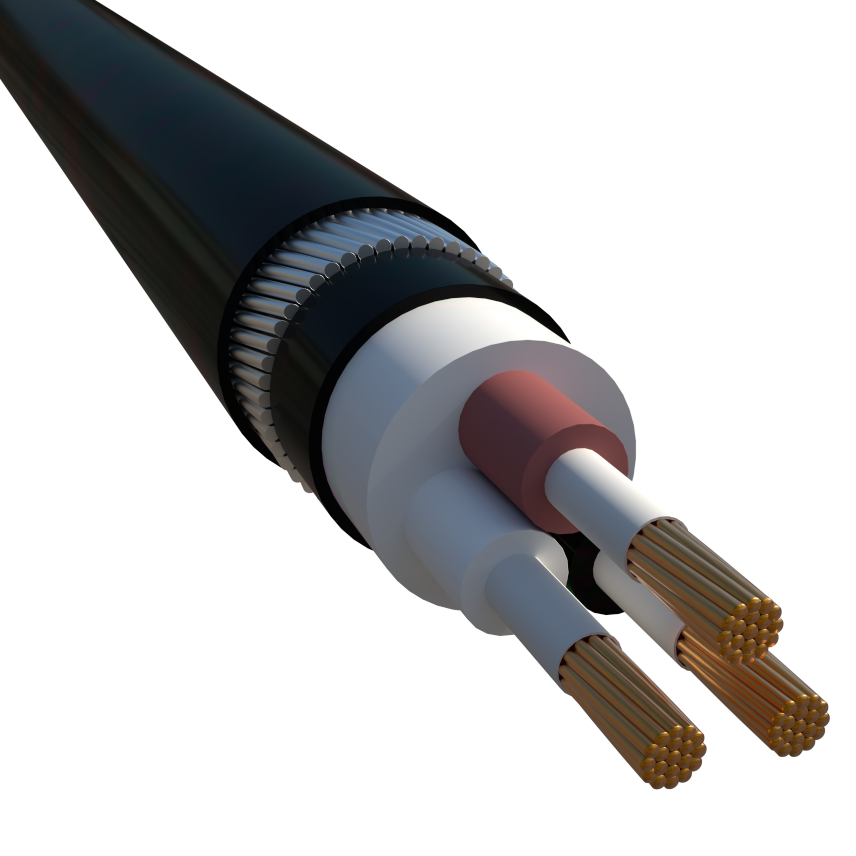

CONSTRUCTION

1- Conductors

stranded-class 2  according to IEC 60228

2 - Mica tape

MICA/GLASS FIRE RESISTANT TAPE

3 - Insulation

XLPE

4 - Outer sheath

Halogen free compound, Color as per customer requirement

5 - Packing

Drums can be wooden or steel

TEST AT WORKS FOR FIRE RESISTANT MULTICORE CABLES

Routine Tests

 - Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2

 - Voltage test acc. to IEC 60502-1  parag.15.1& 15.3

Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.



Sample Tests

 - Check of the build - up and color coding of the cable

 - Check of dimensions

            Insulation          :           according to IEC 60502-1                       Parag.  16.5.2

            Oversheath       :           according to IEC 60502-1                       Parag.  16.5.3



These tests will be carried out on one length of each size during each inspection .

Tests certificates will be provided by Liban Cables



Type Tests

Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break ) in accordance with IEC 60502-1.

Fire resistance test according to IEC 60331-21 ( 750°C for 90 mins. ) :

            - 500V between conductors

These tests will be carried out on one length of the order .

Tests certificates will be provided by Liban Cables

Cable identification - LV cables ≤ 1KV

INSULATION COLORS:



Neutral

Cond.1

Cond.2

 Cond.3

Cond.4

1 Conductor



BLACK







2 Conductors

GREY

BLACK







3 Conductors



BLACK

RED

BLUE



4 Conductors

GREY

BLACK

RED

BLUE



5 Conductors

GREY

BLACK

RED

BLUE

GREEN



All numbered control cables (6 conductors and above), are insulated with white color, and numbered with black digits



CABLE MARKING OVER THE OUTER JACKET  (by inkjet printing):

LIBAN CABLES     DESCRIPTION     RATED VOLTAGE     SECTION MM2     Year of manufacture     meter marking



Other cable identification requirements are available upon request

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2
Conductor material
Copper class 2
Conductor shape
Circular
Insulation
Micatape + XLPE
Outer sheath
Halogen free compound

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Test voltage
3500 V

Usage characteristics

Usage characteristics

U.V resistance
Yes
Fire resistant
IEC 60331-21
Flame retardant
IEC 60332-1-2
Operating temperature, range
-25 ... 55 °C
Short-circuit max. conductor temperature
250 °C
Max. conductor temperature in service
90 °C
Installation temperature, range
-5 ... 50 °C

Resources

Resources

Find a Distributor

Waiting…

No items found

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
