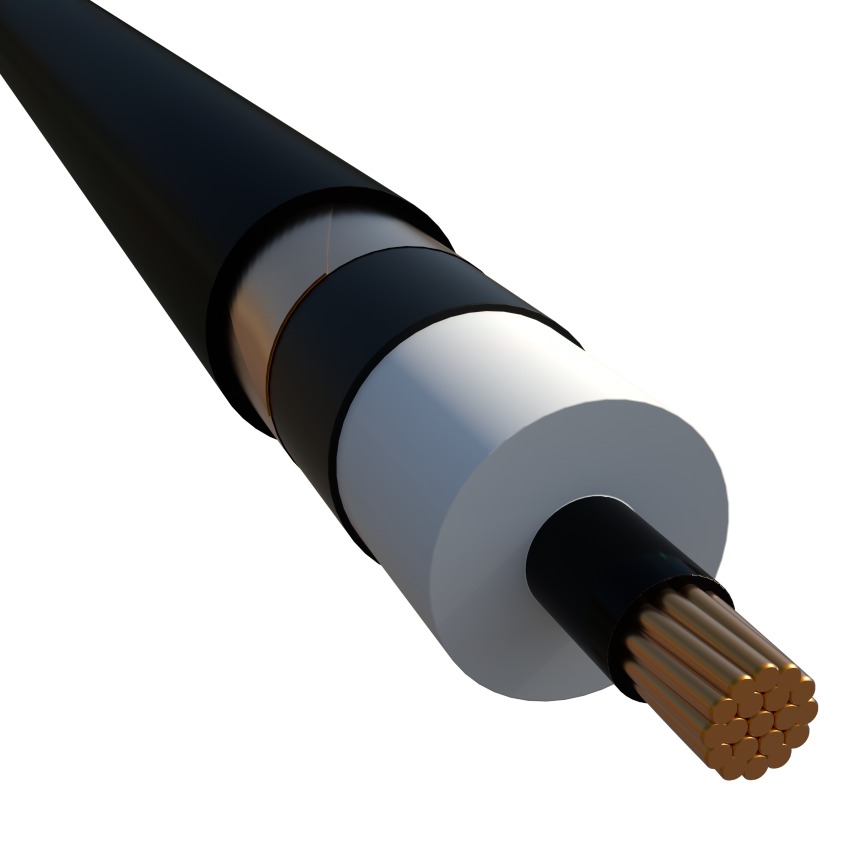

Single Core Cu Cond. CTS Unarmored

Single Core Cu Cond. CTS Unarmored

Single Core Cu Cond. CTS Unarmored

Read more
Contact us

Products

Actions
Filters

  • products

M2N2 1*95 NEW

Nexans ref. M2N2 001706 - Country ref. M2N2 1*95

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 2.5 mm
  • Nominal outer sheath thickness: 1.7 mm
  • Nominal outer diameter: 22.0 mm
  • Approximate net weight: 1156 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M3N2 1*120

Nexans ref. M3N2 000250 - Country ref. M3N2 1*120

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.0 mm
  • Approximate net weight: 1481 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M3N2 1*150

Nexans ref. M3N2 000362 - Country ref. M3N2 1*150

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 26.0 mm
  • Approximate net weight: 1766 kg/km
  • Perm current rating in air 30°C: 473 A
  • Permissible current rating when buried: 361 A
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km



M3N2 1*185

Nexans ref. M3N2 000364 - Country ref. M3N2 1*185

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 15.9 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 28.0 mm
  • Approximate net weight: 2128 kg/km
  • Perm current rating in air 30°C: 543 A
  • Permissible current rating when buried: 406 A
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.128 Ohm/km



M3N2 1*240

Nexans ref. M3N2 000264 - Country ref. M3N2 1*240

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 30.0 mm
  • Approximate net weight: 2668 kg/km
  • Perm current rating in air 30°C: 641 A
  • Permissible current rating when buried: 469 A
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km



M3N2 1*300

Nexans ref. M3N2 000257 - Country ref. M3N2 1*300

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 33.0 mm
  • Approximate net weight: 3287 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0791 Ohm/km



M3N2 1*35

Nexans ref. M3N2 000241 - Country ref. M3N2 1*35

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal outer diameter: 18.0 mm
  • Approximate net weight: 597 kg/km
  • Perm current rating in air 30°C: 198 A
  • Permissible current rating when buried: 166 A
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km



M3N2 1*400

Nexans ref. M3N2 000855 - Country ref. M3N2 1*400

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 36.0 mm
  • Approximate net weight: 4133 kg/km
  • Perm current rating in air 30°C: 845 A
  • Permissible current rating when buried: 590 A
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0646 Ohm/km



M3N2 1*50

Nexans ref. M3N2 000055 - Country ref. M3N2 1*50

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 1.7 mm
  • Nominal outer diameter: 20.0 mm
  • Approximate net weight: 727 kg/km
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating when buried: 196 A
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.494 Ohm/km



M3N2 1*50

Nexans ref. M3N2 000155 - Country ref. M3N2 1*50//R

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Red
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 1.7 mm
  • Nominal outer diameter: 20.0 mm
  • Approximate net weight: 727 kg/km
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating when buried: 196 A
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.494 Ohm/km



M3N2 1*500

Nexans ref. M3N2 000255 - Country ref. M3N2 1*500

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 40.0 mm
  • Approximate net weight: 5218 kg/km
  • Perm current rating in air 30°C: 1013 A
  • Permissible current rating when buried: 671 A
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0501 Ohm/km



M3N2 1*630

Nexans ref. M3N2 000259 - Country ref. M3N2 1*630

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 30.2 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 45.0 mm
  • Approximate net weight: 6628 kg/km
  • Perm current rating in air 30°C: 1154 A
  • Permissible current rating when buried: 749 A
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0407 Ohm/km



M3N2 1*70

Nexans ref. M3N2 000050 - Country ref. M3N2 1*70

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 1.7 mm
  • Nominal outer diameter: 22.0 mm
  • Approximate net weight: 952 kg/km
  • Perm current rating in air 30°C: 296 A
  • Permissible current rating when buried: 239 A
  • Max. DC resistance of the conductor at 20°C: 0.342 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.268 Ohm/km



M3N2 1*95

Nexans ref. M3N2 000247 - Country ref. M3N2 1*95

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 23.0 mm
  • Approximate net weight: 1228 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M3N3 1*300

Nexans ref. M3N3 001700 - Country ref. M3N3 1*300

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded strippable
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 33.0 mm
  • Approximate net weight: 3287 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0791 Ohm/km



M3N3 1*95

Nexans ref. M3N3 000855 - Country ref. M3N3 1*95

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded semicond.comp.-Easy Strippable
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 23.0 mm
  • Approximate net weight: 1228 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M4N2 1*120

Nexans ref. M4N2 001610 - Country ref. DMV TO CHECK

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 27.0 mm
  • Approximate net weight: 1580 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M4N2 1*150

Nexans ref. M4N2 001150 - Country ref. M4N2 1*150

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 28.0 mm
  • Approximate net weight: 1856 kg/km
  • Perm current rating in air 30°C: 473 A
  • Permissible current rating when buried: 361 A
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km



M4N2 1*185

Nexans ref. M4N2 001185 - Country ref. M4N2 1*185

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 15.9 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 30.0 mm
  • Approximate net weight: 2225 kg/km
  • Perm current rating in air 30°C: 543 A
  • Permissible current rating when buried: 406 A
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.128 Ohm/km



M4N2 1*240

Nexans ref. M4N2 000261 - Country ref. M4N2 1*240

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 33.0 mm
  • Approximate net weight: 2788 kg/km
  • Perm current rating in air 30°C: 641 A
  • Permissible current rating when buried: 469 A
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km



M4N2 1*35

Nexans ref. M4N2 000133 - Country ref. M4N2 1*35

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal outer sheath thickness: 1.7 mm
  • Nominal outer diameter: 21.0 mm
  • Approximate net weight: 673 kg/km
  • Perm current rating in air 30°C: 198 A
  • Permissible current rating when buried: 166 A
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km



M4N2 1*500

Nexans ref. M4N2 000308 - Country ref. M4N2 1*500

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 43.0 mm
  • Approximate net weight: 5373 kg/km
  • Perm current rating in air 30°C: 1013 A
  • Permissible current rating when buried: 671 A
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0501 Ohm/km



M4N2 1*630

Nexans ref. M4N2 000271 - Country ref. M4N2 1*630

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 30.2 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 47.0 mm
  • Approximate net weight: 6774 kg/km
  • Perm current rating in air 30°C: 1154 A
  • Permissible current rating when buried: 749 A
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0407 Ohm/km



M4N2 1*95

Nexans ref. M4N2 000140 - Country ref. M4N2 1*95

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.0 mm
  • Approximate net weight: 1309 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M5N2 1*120

Nexans ref. M5N2 000120 - Country ref. M5N2 1*120

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 29.0 mm
  • Approximate net weight: 1663 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M5N2 1*150

Nexans ref. M5N2 000283 - Country ref. M5N2 1*150

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 30.0 mm
  • Approximate net weight: 1963 kg/km
  • Perm current rating in air 30°C: 473 A
  • Permissible current rating when buried: 361 A
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km



M5N2 1*240

Nexans ref. M5N2 000121 - Country ref. M5N2 1*240

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 34.0 mm
  • Approximate net weight: 2863 kg/km
  • Perm current rating in air 30°C: 641 A
  • Permissible current rating when buried: 469 A
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km



M5N2 1*300 NEW

Nexans ref. M5N2 000300 - Country ref. M5N2 1*300

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 37.0 mm
  • Approximate net weight: 3522 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0792 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0601 Ohm/km



M5N2 1*35

Nexans ref. M5N2 000450 - Country ref. M5N2 1*35

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 23.0 mm
  • Approximate net weight: 765 kg/km
  • Perm current rating in air 30°C: 198 A
  • Permissible current rating when buried: 166 A
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km



M5N2 1*400

Nexans ref. M5N2 000310 - Country ref. M5N2 1*400

  • Packaging: Cut to length (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 40.0 mm
  • Approximate net weight: 4388 kg/km
  • Perm current rating in air 30°C: 845 A
  • Permissible current rating when buried: 590 A
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0646 Ohm/km



M5N2 1*50 NEW

Nexans ref. M5N2 000500 - Country ref. M5N2 1*50

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 24.0 mm
  • Approximate net weight: 904 kg/km
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating when buried: 196 A
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.494 Ohm/km



M5N2 1*630

Nexans ref. M5N2 001615 - Country ref. M5N2 1*630

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 30.2 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 49.0 mm
  • Approximate net weight: 6935 kg/km
  • Perm current rating in air 30°C: 1154 A
  • Permissible current rating when buried: 749 A
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0407 Ohm/km



M5N2 1*95 NEW

Nexans ref. M5N2 000205 - Country ref. M5N2 1*95

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 27.0 mm
  • Approximate net weight: 1419 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M5N3 1*150

Nexans ref. M5N3 001150 - Country ref. M5N3 1*150

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded strippable
  • Colour: Black
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 30.0 mm
  • Approximate net weight: 1963 kg/km
  • Perm current rating in air 30°C: 473 A
  • Permissible current rating when buried: 361 A
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km



M5N3 1*35

Nexans ref. M5N3 004252 - Country ref. M5N3 1*35//EDL-SP

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded strippable
  • Colour: Black
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 23.0 mm
  • Approximate net weight: 765 kg/km
  • Perm current rating in air 30°C: 198 A
  • Permissible current rating when buried: 166 A
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km



M5N3 1*35

Nexans ref. M5N3 000570 - Country ref. M5N3 1*35//KAD

  • Material of the external semi-conductor: Extruded strippable
  • Colour: Black
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 23.0 mm
  • Approximate net weight: 765 kg/km
  • Perm current rating in air 30°C: 198 A
  • Permissible current rating when buried: 166 A
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km



M6N2 1*120

Nexans ref. M6N2 000210 - Country ref. M6N2 1*120

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 33.0 mm
  • Approximate net weight: 1902 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M6N2 1*150

Nexans ref. M6N2 000220 - Country ref. M6N2 1*150

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 35.0 mm
  • Approximate net weight: 2231 kg/km
  • Perm current rating in air 30°C: 473 A
  • Permissible current rating when buried: 361 A
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km



M6N2 1*240

Nexans ref. M6N2 000230 - Country ref. M6N2 1*240

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate net weight: 3187 kg/km
  • Perm current rating in air 30°C: 641 A
  • Permissible current rating when buried: 469 A
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km



M6N2 1*300

Nexans ref. M6N2 000237 - Country ref. M6N2 1*300

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 41.5 mm
  • Approximate net weight: 3813 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0792 Ohm/km



M6N2 1*35

Nexans ref. M6N2 000101 - Country ref. M6N2 1*35

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 29.0 mm
  • Approximate net weight: 1004 kg/km
  • Perm current rating in air 30°C: 198 A
  • Permissible current rating when buried: 166 A
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km



M6N2 1*400

Nexans ref. M6N2 002121 - Country ref. M6N2 1*400

  • Packaging: Cut to length (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 45.0 mm
  • Approximate net weight: 4735 kg/km
  • Perm current rating in air 30°C: 845 A
  • Permissible current rating when buried: 590 A
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0646 Ohm/km



M6N2 1*50 NEW

Nexans ref. M6N2 000103 - Country ref. M6N2 1*50

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 28.0 mm
  • Approximate net weight: 1092 kg/km
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating when buried: 196 A
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.494 Ohm/km



M6N2 1*500

Nexans ref. M6N2 001210 - Country ref. M6N2 1*500

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 43.0 mm
  • Approximate net weight: 5822 kg/km
  • Perm current rating in air 30°C: 1013 A
  • Permissible current rating when buried: 671 A
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0497 Ohm/km



M6N2 1*630//VIN

Nexans ref. M6N2 000802 - Country ref. M6N2 1*630//VIN

  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 30.2 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 53.0 mm
  • Approximate net weight: 7388 kg/km
  • Perm current rating in air 30°C: 1154 A
  • Permissible current rating when buried: 749 A
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0407 Ohm/km



M6N2 1*70

Nexans ref. M6N2 000105 - Country ref. M6N2 1*70

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 30.0 mm
  • Approximate net weight: 1347 kg/km
  • Perm current rating in air 30°C: 296 A
  • Permissible current rating when buried: 239 A
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.342 Ohm/km



M6N2 1*95

Nexans ref. M6N2 000200 - Country ref. M6N2 1*95

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded fully bonded
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 32.0 mm
  • Approximate net weight: 1650 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M6N3 1*120

Nexans ref. M6N3 001146 - Country ref. M6N3 1*120

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded strippable
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 33.0 mm
  • Approximate net weight: 1902 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M6N3 1*300

Nexans ref. M6N3 000030 - Country ref. M6N3 1*300

  • Material of the external semi-conductor: Extruded strippable
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 41.5 mm
  • Approximate net weight: 3813 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0792 Ohm/km



M6N3 1*400

Nexans ref. M6N3 100155 - Country ref. M6N3 1*400

  • Packaging: Cut to length (m)
  • Material of the external semi-conductor: Extruded strippable
  • Colour: Black
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 45.0 mm
  • Approximate net weight: 4735 kg/km
  • Perm current rating in air 30°C: 845 A
  • Permissible current rating when buried: 590 A
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0646 Ohm/km



M6N3 1*95

Nexans ref. M6N3 000108 - Country ref. M6N3 1*95

  • Packaging: Drum (m)
  • Material of the external semi-conductor: Extruded semicond.comp.-Easy Strippable
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 32.0 mm
  • Approximate net weight: 1650 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



Description

Description

Standards

  • International
    IEC 60228; IEC 60332-1-2; IEC 60502-2

1-SCOPE

This specification covers Single core unarmoured cables, conforming to IEC 60502-2 Specifications.


2. CONSTRUCTION

2.1 Conductor

Plain, annealed electrolytic copper conductors, circular stranded,conforming to the applicable requirements of IEC 60228.

2.2 Insulation

Extruded inner semi conductive layer, XLPE insulation and  extruded outer semi conductive layer .

2.3 Metallic Screen Layer

Copper tape

2.4 Sheath

PVC .

3. TESTS

All tests required by IEC 60502-2 either on Raw material or on finished products.

TEST AT WORKS according to IEC 60502-2

Liban Cables will carry out these tests on all the lengths and tests certificates will be provided



Sample tests

 -          Check of the build - up and color coding of the cable

 -          Check of dimensions

            Insulation          :           according to IEC 60502-2                       Parag.  17.5.2

            Metallic screen  :           according to IEC 60502-2                       Parag.  17.7

            Oversheath       :           according to IEC 60502-2                       Parag.  17.5.3

- Hot Set Test for XLPE insulation according to IEC 60502-2 parag. 17.10



These tests will be carried out on one length of each size during each inspection .

Tests certificates will be provided by Liban Cables



Type tests

Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-2.

These tests will be carried out on one length of the order.

Tests certificates will be provided by Liban Cables

DRAWING MV 1C UNARMORED

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Number of conductors
1
Conductor shape
Circular
Material of the inner semi-conductor
Extruded
Insulation
XLPE
Screen
Copper tape
Outer sheath
PVC
Conductor flexibility
Class 2 IEC 60228

Electrical characteristics

Electrical characteristics

Thermal soil resistivity wet zone
1.5 °K.m/W

Mechanical characteristics

Mechanical characteristics

Cable flexibility
10xD

Usage characteristics

Usage characteristics

Laying depth, center of system
800 mm
Ambient air temperature
30 °C
Ambient ground temperature
20 °C
Max. conductor temperature in service
90 °C
Operating temperature, range
-15 ... 55 °C
Short-circuit max. conductor temperature
250 °C

Resources

Resources

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
