M2N2W 1*120

Nexans ref. M2N2W 000231 - Country ref. M2N2W 1*120

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 2.5 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 29.0 mm
  • Approximate net weight: 1821 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M2N2W 1*150

Nexans ref. M2N2W 000397 - Country ref. M2N2W 1*150

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 2.5 mm
  • Nominal armour wire diameter: - mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 30.0 mm
  • Approximate net weight: 2130 kg/km
  • Perm current rating in air 30°C: 473 A
  • Permissible current rating when buried: 361 A
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km



M2N2W 1*300

Nexans ref. M2N2W 000132 - Country ref. M2N2W 1*300

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 2.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 38.0 mm
  • Approximate net weight: 3808 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0791 Ohm/km



M2N2W 1*400

Nexans ref. M2N2W 000410 - Country ref. M2N2W 1*400

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Nominal insulation thickness: 3.0 mm
  • Nominal armour wire diameter: - mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 43.0 mm
  • Approximate net weight: 4814 kg/km
  • Perm current rating in air 30°C: 845 A
  • Permissible current rating when buried: 590 A
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0646 Ohm/km



M2N2W 1*500 NEW

Nexans ref. M2N2W 001120 - Country ref. M2N2W 1*500//O

  • Insulation: XLPE
  • Colour: Orange
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Nominal insulation thickness: 3.2 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 48.0 mm
  • Approximate net weight: 6108 kg/km
  • Perm current rating in air 30°C: 1013 A
  • Permissible current rating when buried: 671 A
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0497 Ohm/km



M2N2W 1*630

Nexans ref. M2N2W 000122 - Country ref. M2N2W 1*630

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 30.2 mm
  • Nominal insulation thickness: 3.2 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 52.0 mm
  • Approximate net weight: 7608 kg/km
  • Perm current rating in air 30°C: 1154 A
  • Permissible current rating when buried: 749 A
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0407 Ohm/km



M2N2W 1*70

Nexans ref. M2N2W 000230 - Country ref. M2N2W 1*70

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.71 mm
  • Nominal insulation thickness: 2.5 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 26.0 mm
  • Approximate net weight: 1259 kg/km
  • Perm current rating in air 30°C: 296 A
  • Permissible current rating when buried: 239 A
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.342 Ohm/km



M3N2W 1*120

Nexans ref. M3N2W 000178 - Country ref. M3N2W 1*120

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 31.0 mm
  • Approximate net weight: 1954 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M3N2W 1*150

Nexans ref. M3N2W 000515 - Country ref. M3N2W 1*150

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 33.0 mm
  • Approximate net weight: 2284 kg/km
  • Perm current rating in air 30°C: 473 A
  • Permissible current rating when buried: 361 A
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km



M3N2W 1*185 NEW

Nexans ref. M3N2W 000860 - Country ref. M3N2W 1*185

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 15.9 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 34.0 mm
  • Approximate net weight: 2638 kg/km
  • Perm current rating in air 30°C: 543 A
  • Permissible current rating when buried: 406 A
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.128 Ohm/km



M3N2W 1*240 NEW

Nexans ref. M3N2W 000535 - Country ref. M3N2W 1*240

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 37.0 mm
  • Approximate net weight: 3235 kg/km
  • Perm current rating in air 30°C: 641 A
  • Permissible current rating when buried: 469 A
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km



M3N2W 1*300

Nexans ref. M3N2W 000540 - Country ref. M3N2W 1*300

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate net weight: 3899 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0791 Ohm/km



M3N2W 1*35

Nexans ref. M3N2W 000275 - Country ref. M3N2W 1*35

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.0 mm
  • Approximate net weight: 937 kg/km
  • Perm current rating in air 30°C: 198 A
  • Permissible current rating when buried: 166 A
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km



M3N2W 1*35 RED

Nexans ref. M3N2W 001275 - Country ref. M3N2W 1*35//R

  • Insulation: XLPE
  • Colour: Red
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.0 mm
  • Approximate net weight: 937 kg/km
  • Perm current rating in air 30°C: 198 A
  • Permissible current rating when buried: 166 A
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km



M3N2W 1*400

Nexans ref. M3N2W 000890 - Country ref. M3N2W 1*400

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 44.0 mm
  • Approximate net weight: 4974 kg/km
  • Perm current rating in air 30°C: 845 A
  • Permissible current rating when buried: 590 A
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0646 Ohm/km



M3N2W 1*50

Nexans ref. M3N2W 000503 - Country ref. M3N2W 1*50

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 26.0 mm
  • Approximate net weight: 1088 kg/km
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating when buried: 196 A
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.494 Ohm/km



M3N2W 1*500

Nexans ref. M3N2W 000213 - Country ref. M3N2W 1*500

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 48.0 mm
  • Approximate net weight: 6121 kg/km
  • Perm current rating in air 30°C: 1013 A
  • Permissible current rating when buried: 671 A
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0497 Ohm/km



M3N2W 1*630

Nexans ref. M3N2W 000151 - Country ref. M4N2W 1*630

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 30.2 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 52.0 mm
  • Approximate net weight: 7647 kg/km
  • Perm current rating in air 30°C: 1154 A
  • Permissible current rating when buried: 749 A
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0407 Ohm/km



M3N2W 1*70

Nexans ref. M3N2W 000505 - Country ref. M3N2W 1*70

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.71 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 28.0 mm
  • Approximate net weight: 1357 kg/km
  • Perm current rating in air 30°C: 296 A
  • Permissible current rating when buried: 239 A
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.342 Ohm/km



M3N2W 1*95

Nexans ref. M3N2W 000510 - Country ref. M3N2W 1*95

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 29.0 mm
  • Approximate net weight: 1651 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M3N2W 1*95 RED

Nexans ref. M3N2W 001510 - Country ref. M3N2W 1*95//R

  • Insulation: XLPE
  • Colour: Red
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 29.0 mm
  • Approximate net weight: 1635 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M3N3W 1*300

Nexans ref. M3N3W 000543 - Country ref. M3N3W 1*300

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate net weight: 3922 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0791 Ohm/km



M4N2W 1*120

Nexans ref. M4N2W 000137 - Country ref. M4N2W 1*120

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 34.0 mm
  • Approximate net weight: 2110 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M4N2W 1*150

Nexans ref. M4N2W 000140 - Country ref. M4N2W 1*150

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 35.0 mm
  • Approximate net weight: 2408 kg/km
  • Perm current rating in air 30°C: 473 A
  • Permissible current rating when buried: 361 A
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km



M4N2W 1*185 NEW

Nexans ref. M4N2W 000147 - Country ref. M4N2W 1*185

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 15.9 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 37.0 mm
  • Approximate net weight: 2809 kg/km
  • Perm current rating in air 30°C: 543 A
  • Permissible current rating when buried: 406 A
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.128 Ohm/km



M4N2W 1*240

Nexans ref. M4N2W 000173 - Country ref. M4N2W 1*240

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 3.4 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate net weight: 3393 kg/km
  • Perm current rating in air 30°C: 641 A
  • Permissible current rating when buried: 469 A
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km



M4N2W 1*300

Nexans ref. M4N2W 000295 - Country ref. M4N2W 1*300

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 42.0 mm
  • Approximate net weight: 4091 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0791 Ohm/km



M4N2W 1*50

Nexans ref. M4N2W 000151 - Country ref. M4N2W 1*50

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 28.0 mm
  • Approximate net weight: 1220 kg/km
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating when buried: 196 A
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.494 Ohm/km



M4N2W 1*500

Nexans ref. M4N2W 000305 - Country ref. M4N2W 1*500

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 50.0 mm
  • Approximate net weight: 6316 kg/km
  • Perm current rating in air 30°C: 1013 A
  • Permissible current rating when buried: 671 A
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0497 Ohm/km



M4N2W 1*630

Nexans ref. M4N2W 000150 - Country ref. M4N2W 1*630

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 30.2 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 55.0 mm
  • Approximate net weight: 7897 kg/km
  • Perm current rating in air 30°C: 1154 A
  • Permissible current rating when buried: 749 A
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0407 Ohm/km



M4N2W 1*70

Nexans ref. M4N2W 000170 - Country ref. M4N2W 1*70

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 30.0 mm
  • Approximate net weight: 1468 kg/km
  • Perm current rating in air 30°C: 296 A
  • Permissible current rating when buried: 239 A
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.342 Ohm/km



M4N2W 1*95

Nexans ref. M4N2W 000133 - Country ref. M4N2W 1*95

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 32.0 mm
  • Approximate net weight: 1824 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M5N2W 1x400

Nexans ref. M5N2W 000999 - Country ref. M5N2W 1x400

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 48.0 mm
  • Approximate net weight: 5355 kg/km
  • Perm current rating in air 30°C: 845 A
  • Permissible current rating when buried: 590 A
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0646 Ohm/km



M5N2W 1*120

Nexans ref. M5N2W 000225 - Country ref. M5N2W 1*120

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.86 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 35.0 mm
  • Approximate net weight: 2222 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M5N2W 1*240

Nexans ref. M5N2W 000685 - Country ref. M5N2W 1*240

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 41.0 mm
  • Approximate net weight: 3544 kg/km
  • Perm current rating in air 30°C: 641 A
  • Permissible current rating when buried: 469 A
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km



M5N2W 1*300

Nexans ref. M5N2W 000988 - Country ref. M5N2W 1*300

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 45.0 mm
  • Approximate net weight: 4365 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0792 Ohm/km



M5N2W 1*35

Nexans ref. M5N2W 000035 - Country ref. M5N2W 1*35

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.93 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 28.0 mm
  • Approximate net weight: 1144 kg/km
  • Perm current rating in air 30°C: 198 A
  • Permissible current rating when buried: 166 A
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km



M5N2W 1*50

Nexans ref. M5N2W 000040 - Country ref. M5N2W 1*50

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 30.0 mm
  • Approximate net weight: 1345 kg/km
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating when buried: 196 A
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.494 Ohm/km



M5N2W 1*500

Nexans ref. M5N2W 001006 - Country ref. M5N2W 1*500

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Nominal insulation thickness: 4.5 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 52.0 mm
  • Approximate net weight: 6513 kg/km
  • Perm current rating in air 30°C: 1013 A
  • Permissible current rating when buried: 671 A
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0497 Ohm/km



M5N2W 1*70

Nexans ref. M5N2W 000201 - Country ref. M5N2W 1*70

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 32.0 mm
  • Approximate net weight: 1612 kg/km
  • Perm current rating in air 30°C: 296 A
  • Permissible current rating when buried: 239 A
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.342 Ohm/km



M5N2W 1*95

Nexans ref. M5N2W 000890 - Country ref. M5N2W 1*95

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 34.0 mm
  • Approximate net weight: 1940 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M5N3W 1*120

Nexans ref. M5N3W 101630 - Country ref. M5N3W 1*120

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.86 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 35.0 mm
  • Approximate net weight: 2222 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M5N3W 1*240

Nexans ref. M5N3W 101631 - Country ref. M5N3W 1*240

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 41.0 mm
  • Approximate net weight: 3544 kg/km
  • Perm current rating in air 30°C: 641 A
  • Permissible current rating when buried: 469 A
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km



M5N3W 1*35

Nexans ref. M5N3W 101632 - Country ref. M5N3W 1*35

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.93 mm
  • Nominal insulation thickness: 5.5 mm
  • Nominal armour wire diameter: 1.7 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 28.0 mm
  • Approximate net weight: 1144 kg/km
  • Perm current rating in air 30°C: 198 A
  • Permissible current rating when buried: 166 A
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km



M6N2W 1*120

Nexans ref. M6N2W 000705 - Country ref. M6N2W 1*120

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 40.0 mm
  • Approximate net weight: 2591 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M6N2W 1*150

Nexans ref. M6N2W 000720 - Country ref. M6N2W 1*150

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 30.0 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 43.0 mm
  • Approximate net weight: 3039 kg/km
  • Perm current rating in air 30°C: 473 A
  • Permissible current rating when buried: 361 A
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km



M6N2W 1*185 NEW

Nexans ref. M6N2W 000717 - Country ref. M6N2W 1*185

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 15.9 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 45.0 mm
  • Approximate net weight: 3471 kg/km
  • Perm current rating in air 30°C: 543 A
  • Permissible current rating when buried: 406 A
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.128 Ohm/km



M6N2W 1*240

Nexans ref. M6N2W 000725 - Country ref. M6N2W 1*240

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 47.0 mm
  • Approximate net weight: 4092 kg/km
  • Perm current rating in air 30°C: 641 A
  • Permissible current rating when buried: 469 A
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km



M6N2W 1*240 RED

Nexans ref. M6N2W 001311 - Country ref. M6N2W 1*240//R

  • Insulation: XLPE
  • Colour: Red
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 47.0 mm
  • Approximate net weight: 4092 kg/km
  • Perm current rating in air 30°C: 641 A
  • Permissible current rating when buried: 469 A
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km



M6N2W 1*300

Nexans ref. M6N2W 000088 - Country ref. M6N2W 1*300

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 36.1 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 50.0 mm
  • Approximate net weight: 4796 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0792 Ohm/km



M6N2W 1*300

Nexans ref. M6N2W 001701 - Country ref. M6N2W 1*300//KEP

  • Insulation: TR-XLPE (Tree-Retardant Cross-linked Polyethylene)
  • Colour: Black
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 36.1 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 50.0 mm
  • Approximate net weight: 4796 kg/km
  • Perm current rating in air 30°C: 735 A
  • Permissible current rating when buried: 526 A
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0792 Ohm/km



M6N2W 1*35

Nexans ref. M6N2W 000478 - Country ref. M6N2W 1*35

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: - mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 35.0 mm
  • Approximate net weight: 1580 kg/km
  • Perm current rating in air 30°C: 198 A
  • Permissible current rating when buried: 166 A
  • Max. DC resistance of the conductor at 20°C: 0.668 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.524 Ohm/km



M6N2W 1*400

Nexans ref. M6N2W 000988 - Country ref. M6N2W 1*400

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 53.0 mm
  • Approximate net weight: 5827 kg/km
  • Perm current rating in air 30°C: 845 A
  • Permissible current rating when buried: 590 A
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0646 Ohm/km



M6N2W 1*50

Nexans ref. M6N2W 000488 - Country ref. M6N2W 1*50

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 35.0 mm
  • Approximate net weight: 1666 kg/km
  • Perm current rating in air 30°C: 238 A
  • Permissible current rating when buried: 196 A
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.494 Ohm/km



M6N2W 1*500 NEW

Nexans ref. M6N2W 000962 - Country ref. M6N2W 1*500

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.9 mm
  • Nominal outer diameter: 57.0 mm
  • Approximate net weight: 7015 kg/km
  • Perm current rating in air 30°C: 1013 A
  • Permissible current rating when buried: 671 A
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0497 Ohm/km



M6N2W 1*630

Nexans ref. M6N2W 000968 - Country ref. M6N2W 1*630

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 30.2 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 3.0 mm
  • Nominal outer diameter: 62.0 mm
  • Approximate net weight: 8652 kg/km
  • Perm current rating in air 30°C: 1154 A
  • Permissible current rating when buried: 749 A
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0407 Ohm/km



M6N2W 1*70

Nexans ref. M6N2W 000490 - Country ref. M6N2W 1*70

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.71 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 36.0 mm
  • Approximate net weight: 1933 kg/km
  • Perm current rating in air 30°C: 296 A
  • Permissible current rating when buried: 239 A
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.342 Ohm/km



M6N2W 1*95

Nexans ref. M6N2W 000715 - Country ref. M6N2W 1*95

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 27.2 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate net weight: 2269 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M6N2W 1*95

Nexans ref. M6N2W 001700 - Country ref. M6N2W 1*95//KEP

  • Insulation: TR-XLPE (Tree-Retardant Cross-linked Polyethylene)
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 27.2 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 38.0 mm
  • Approximate net weight: 2245 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M6N2W 1*95 RED

Nexans ref. M6N2W 020716 - Country ref. M6N2W 1*95//R

  • Insulation: XLPE
  • Colour: Red
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate net weight: 2269 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



M6N3W 1*630

Nexans ref. M6N3W 000250 - Country ref. M6N3W 1*630

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 30.2 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 3.0 mm
  • Nominal outer diameter: 62.0 mm
  • Approximate net weight: 8577 kg/km
  • Perm current rating in air 30°C: 1154 A
  • Permissible current rating when buried: 749 A
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0407 Ohm/km



M7N2W 1*120

Nexans ref. M7N2W 700716 - Country ref. M7N2W 1*120

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 40.0 mm
  • Approximate net weight: 2635 kg/km
  • Perm current rating in air 30°C: 417 A
  • Permissible current rating when buried: 323 A
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km



M7N2W 1*95

Nexans ref. M7N2W 700715 - Country ref. M7N2W 1*95

  • Insulation: XLPE
  • Colour: Black
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 8.0 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate net weight: 2313 kg/km
  • Perm current rating in air 30°C: 361 A
  • Permissible current rating when buried: 285 A
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km



Description

Description

Standards

  • Product
    IEC 60502-2
  • Test
    IEC 60332-1-2

SCOPE

This specification covers single core armoured cables.

Construction

2.1 Conductor

Plain, annealed electrolytic copper conductors, circular stranded, conforming to the applicable requirements of IEC 60228.

2.2 Insulation

Extruded inner semi conductive layer, XLPE insulation and  extruded outer semi conductive layer .

2.3 Metallic Screen Layer

Copper Tape

2.4 Separation Sheath

PVC sheath .

2.5 Armour

ALUMINUM WIRES .

2.5 Sheath

PVC sheath .

TEST AT WORKS according to IEC 60502-2 for armored cables

Routine Tests

 -          Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-2 parag.16.1 & 16.2

 -          High voltage test acc. to IEC 60502-2  parag. 16.1 & 16.4

 -          Max. partial discharge test  at 1.73 Uo acc. to IEC 60502-2  parag.16.1 & 16.3

Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.



Sample Tests

 -          Check of the build - up and color coding of the cable

 -          Check of dimensions

            Insulation                      :           according to IEC 60502-2           Parag.  17.5.2

            Separation sheath         :           according to IEC 60502-2           Parag.  17.5.3

            Armouring                     :           according to IEC 60502-2          Parag.  17.7

            Oversheath                   :           according to IEC 60502-2           Parag.  17.5.3

-           Hot Set Test                  :           according to IEC 60502-2           Parag.  17.10

These tests will be carried out on one length of each size during each inspection .

Tests certificates will be provided by Liban Cables



Type Tests

Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break  ) in accordance with IEC 60502-2.

These tests will be carried out on one length of the order .

Tests certificates will be provided by Liban Cables

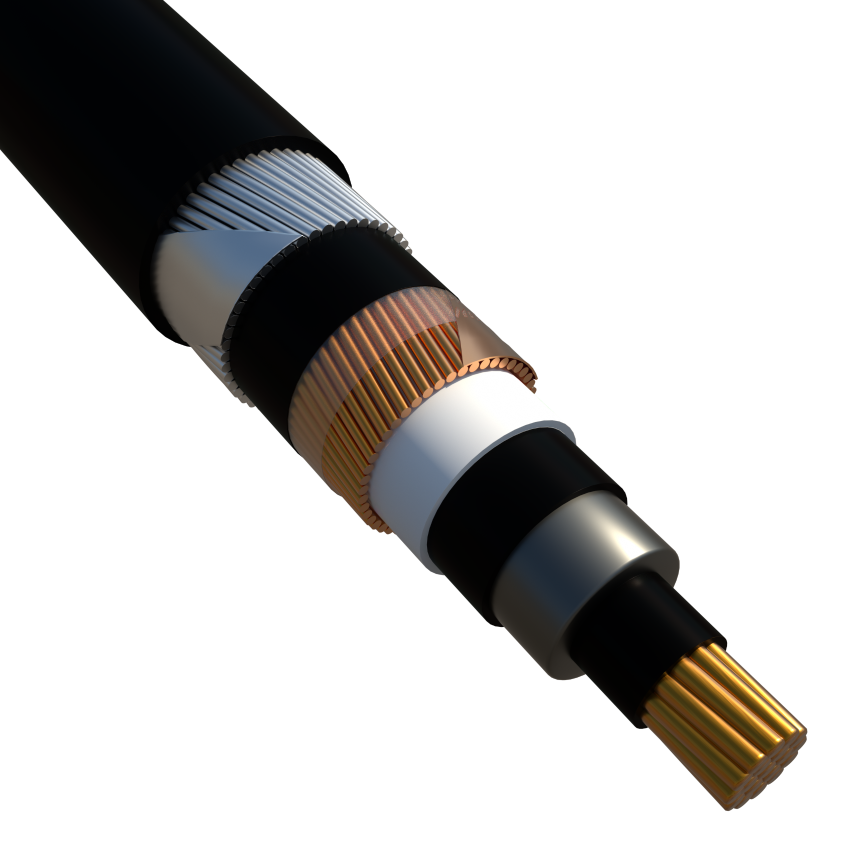

DRAWING MV 1C AWA

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Number of conductors
1
Conductor shape
Circular
Material of the inner semi-conductor
Extruded
Screen
Copper tape
Armour type
Aluminium Wire
Outer sheath
PVC
Conductor flexibility
Class 2 IEC 60228

Electrical characteristics

Electrical characteristics

Thermal soil resistivity wet zone
1.5 °K.m/W

Usage characteristics

Usage characteristics

Laying depth, center of system
800 mm
Ambient air temperature
30 °C
Ambient ground temperature
20 °C
Max. conductor temperature in service
90 °C
Operating temperature, range
-15 ... 55 °C
Short-circuit max. conductor temperature
250 °C

Resources

Resources

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
