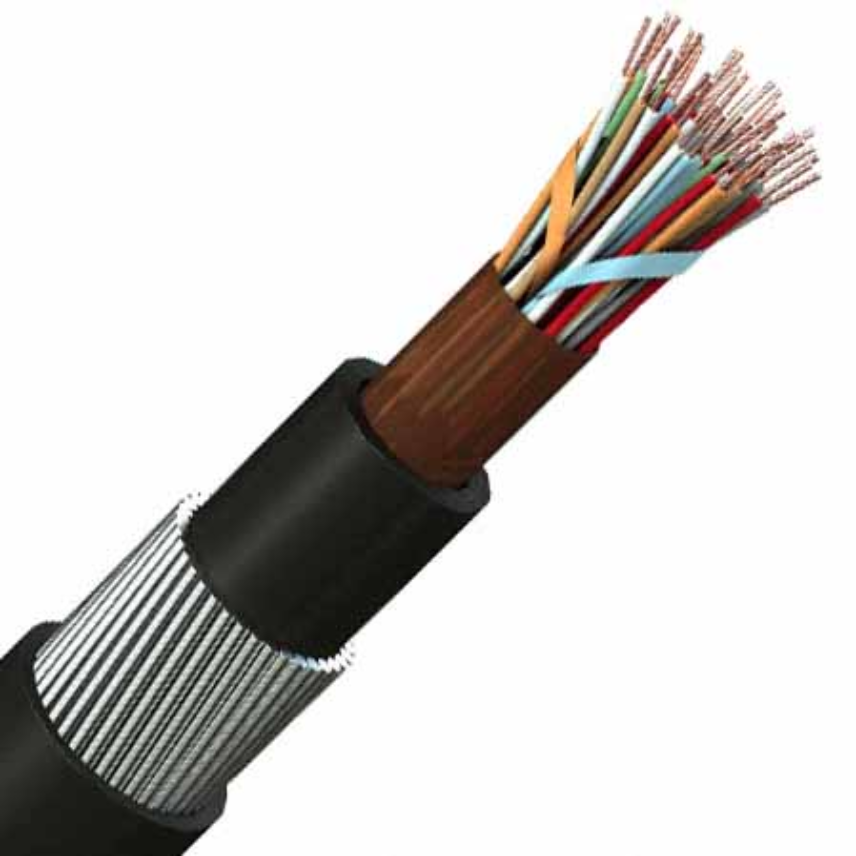

Indoor Telephone cables
Indoor Telephone cables
LIBTEL Indoor surface and conduit wiring
LIBTLV Switchboard cable, tinned conductors
LIBTLS Screened
LIBTLA Armoured for use where mechanical stresses are encountered
Based on IEC 60189-1/2
T LIBTEL 10P05
Nexans ref. TLIBTEL001101 - Country ref. TLIBTEL 10P05
- Number of pairs: 10
- Number of spare pairs: -
- Nominal overall diameter: 6.6 mm
- Approximate weight: 70 kg/km
- Nominal outer sheath thickness: 0.8 mm
T LIBTEL 153P05
Nexans ref. TLIBTEL002010 - Country ref. T LIBTEL 153P05
- Number of pairs: 153
- Number of spare pairs: 3
- Nominal overall diameter: 21.5 mm
- Approximate weight: 813 kg/km
- Nominal outer sheath thickness: 1.3 mm
T LIBTEL 15P05
Nexans ref. TLIBTEL001201 - Country ref. TLIBTEL 15P05
- Number of pairs: 15
- Number of spare pairs: -
- Nominal overall diameter: 7.5 mm
- Approximate weight: 97 kg/km
- Nominal outer sheath thickness: 0.8 mm
T LIBTEL 1T05
Nexans ref. TLIBTEL000201 - Country ref. TLIBTEL 1T05
- Packaging: Cut to length (m)
- Number of pairs: -
- Number of spare pairs: -
- Nominal overall diameter: 3.0 mm
- Approximate weight: 13 kg/km
- Nominal outer sheath thickness: 0.6 mm
T LIBTEL 20P05
Nexans ref. TLIBTEL001301 - Country ref. TLIBTEL 20P05
- Number of pairs: 20
- Number of spare pairs: -
- Nominal overall diameter: 8.6 mm
- Approximate weight: 127 kg/km
- Nominal outer sheath thickness: 0.9 mm
T LIBTEL 25P05
Nexans ref. TLIBTEL001401 - Country ref. TLIBTEL 25P05
- Number of pairs: 25
- Number of spare pairs: -
- Nominal overall diameter: 9.42 mm
- Approximate weight: 153 kg/km
- Nominal outer sheath thickness: - mm
T LIBTEL 2P05
Nexans ref. TLIBTEL000301 - Country ref. TLIBTEL 2P05
- Number of pairs: 2
- Number of spare pairs: -
- Nominal overall diameter: 4.1 mm
- Approximate weight: 22 kg/km
- Nominal outer sheath thickness: 0.6 mm
T LIBTEL 30P05
Nexans ref. TLIBTEL001501 - Country ref. TLIBTEL 30P05
- Number of pairs: 30
- Number of spare pairs: -
- Nominal overall diameter: 10.5 mm
- Approximate weight: 178 kg/km
- Nominal outer sheath thickness: - mm
T LIBTEL 3P05
Nexans ref. TLIBTEL000401 - Country ref. TLIBTEL 3P05
- Number of pairs: 3
- Number of spare pairs: -
- Nominal overall diameter: 4.4 mm
- Approximate weight: 27 kg/km
- Nominal outer sheath thickness: - mm
T LIBTEL 4P05
Nexans ref. TLIBTEL000501 - Country ref. TLIBTEL 4P05
- Number of pairs: 4
- Number of spare pairs: -
- Nominal overall diameter: 4.8 mm
- Approximate weight: 32 kg/km
- Nominal outer sheath thickness: - mm
T LIBTEL 50P05
Nexans ref. TLIBTEL001801 - Country ref. TLIBTEL 51P05
- Number of pairs: 51
- Number of spare pairs: 1
- Nominal overall diameter: 13.5 mm
- Approximate weight: 295 kg/km
- Nominal outer sheath thickness: - mm
T LIBTEL 6P05
Nexans ref. TLIBTEL000701 - Country ref. TLIBTEL 6P05
- Number of pairs: 4
- Number of spare pairs: -
- Nominal overall diameter: 5.5 mm
- Approximate weight: 44 kg/km
- Nominal outer sheath thickness: 0.7 mm
Description
Description
Standards
-
InternationalIEC 60189-1
CONSTRUCTION
Conductors
Copper 0.5 - 0.6 mm diameter bare or tinned.
Insulation
PVC coloured in the mass with surface ring marking for identification.
Twisting
Pair or other as request.
Stranding
Concentric including earth continuity insulated tinned wire, protected with overlapped non-hygroscopic tape.
Moisture barrierand screen
( S - type ) Aluminium foil applied with overlap.
Armour
( A - type ) double steel tape applied on inner PVC sheath.
Outersheath
Grey PVC : Arip cord is laid up under the sheath for easy stripping
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
