Products

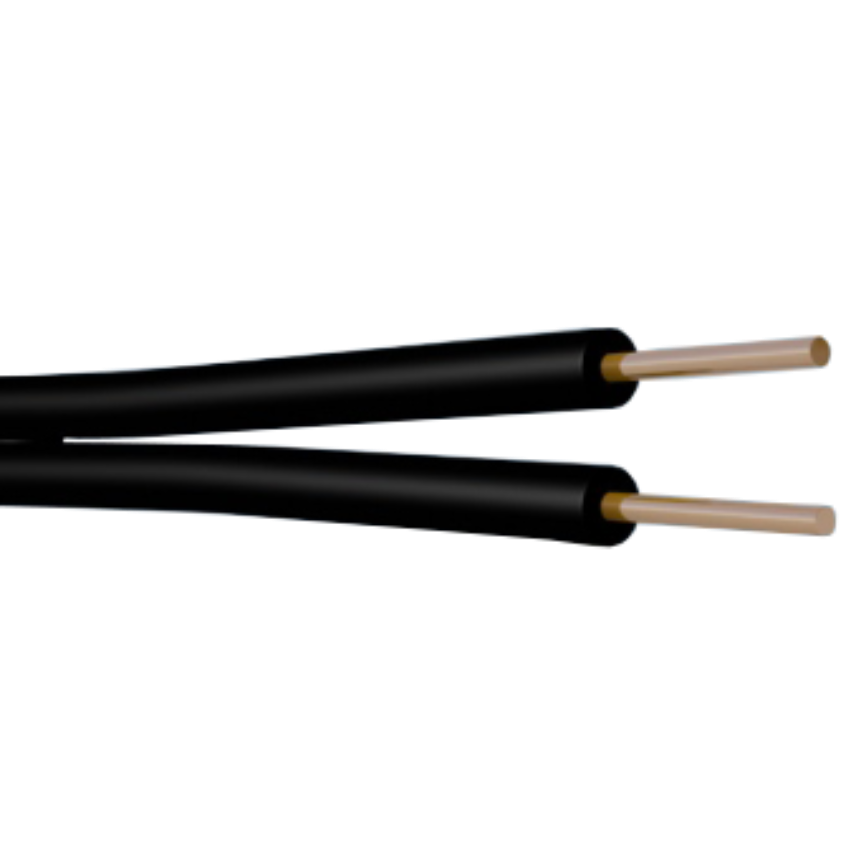

TJWIRE 2*0.5

Nexans ref. TJWIRE.000101 - Country ref. TJWIRE 2*0.5//PLM



Description

Description

Standards

  • National
    Customer specification

CONSTRUCTION

Conductor

Solid, annealed, bare copper wire, diameter 0.5 mm.

Insulation

PVC coloured for identification.

Stranding

Two conductors twisted together.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Solid bare copper
Insulation
PVC

Dimensional characteristics

Dimensional characteristics

Conductor diameter
0.5 mm
Number of cores
2
Nominal overall diameter
6.0 mm
Approximate weight
6 kg/km

Electrical characteristics

Electrical characteristics

Loop resistance, max. at 20°C
192 Ohm/km
Minimum insulation resistance
500 MOhm.km
Dielectric strength core to core DC, min.
1500.0 kV

Resources

Resources

Documentation

Jumper wire pdf — 47.7 kB
