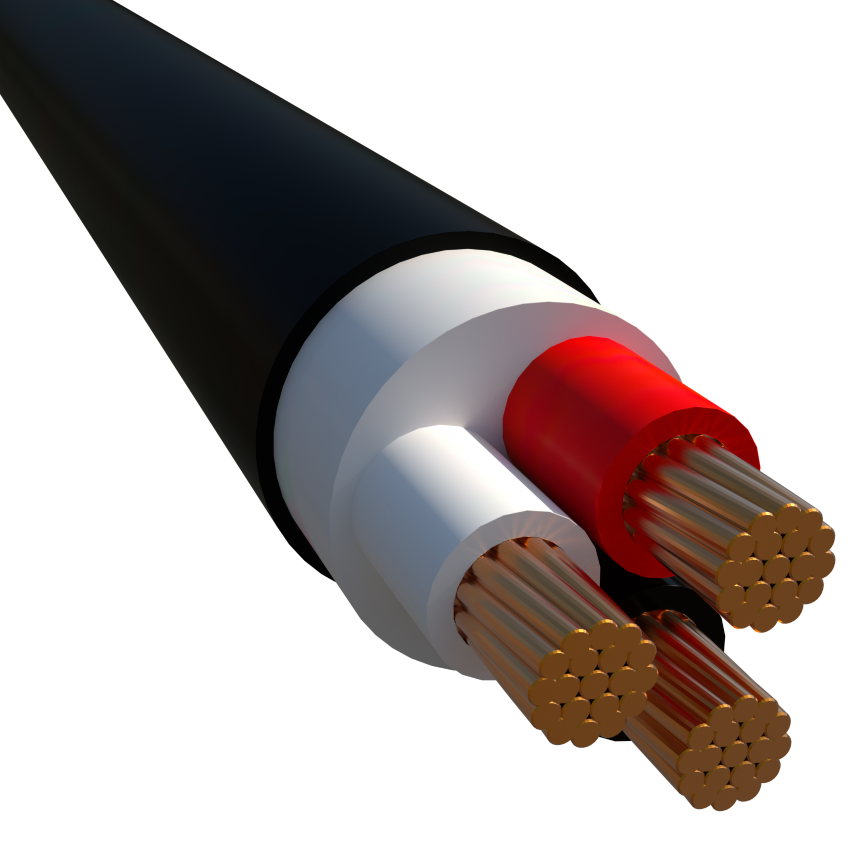

Fire retardant, Unarmored, multicore XLPE insulation, PVC sheathed
Fire retardant, Unarmored, multicore XLPE insulation, PVC sheathed
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreEX 2*25
Nexans ref. EX 001977 - Country ref. EX 2*25//FR
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 20.0 mm
- Approximate weight: 777 kg/km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 142 A
- Permissible current rating when buried: 162 A
EX 2*4
Nexans ref. EX 000403 - Country ref. EX 2*4//FR
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 12.0 mm
- Approximate weight: 184 kg/km
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 45 A
- Permissible current rating when buried: 59 A
EX 3*10
Nexans ref. EX 001403 - Country ref. EX 3*10 //FR
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.0 mm
- Approximate weight: 468 kg/km
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
EX 3*16
Nexans ref. EX 001405 - Country ref. EX 3*16//FR
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 17.0 mm
- Approximate weight: 662 kg/km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
EX 3*185SM
Nexans ref. EX 002302 - Country ref. EX 3*185SM//FR
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 46.0 mm
- Approximate weight: 5865 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 444 A
- Permissible current rating when buried: 435 A
EX 3*2.5
Nexans ref. EX 001395 - Country ref. EX 3*2.5//FR
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.0 mm
- Approximate weight: 170 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
EX 3*240SM
Nexans ref. EX 002404 - Country ref. EX 3*240SM//FR
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 51.0 mm
- Approximate weight: 7549 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 522 A
- Permissible current rating when buried: 504 A
EX 3*35
Nexans ref. EX 001805 - Country ref. EX 3*35//FR
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 23.0 mm
- Approximate weight: 1286 kg/km
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
EX 3*4
Nexans ref. EX 001204 - Country ref. EX 3*4//FR
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 12.5 mm
- Approximate weight: 244 kg/km
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
EX 3*70SM
Nexans ref. EX 001904 - Country ref. EX 3*70SM//FR
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 30.0 mm
- Approximate weight: 2282 kg/km
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
EX 4*10
Nexans ref. EX 003106 - Country ref. EX 4*10//FR
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.5 mm
- Approximate weight: 565 kg/km
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
EX 4*120SM
Nexans ref. EX 003812 - Country ref. EX 4*120SM//FR
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 42.0 mm
- Approximate weight: 5094 kg/km
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 339 A
- Permissible current rating when buried: 345 A
EX 4*150SM
Nexans ref. EX 003912 - Country ref. EX 4*150SM//FR
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 46.0 mm
- Approximate weight: 6229 kg/km
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 390 A
- Permissible current rating when buried: 386 A
EX 4*16
Nexans ref. EX 003108 - Country ref. EX 4*16//FR
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 19.0 mm
- Approximate weight: 811 kg/km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
EX 4*185SM
Nexans ref. EX 004011 - Country ref. EX 4*185SM//FR
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 52.0 mm
- Approximate weight: 7795 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 444 A
- Permissible current rating when buried: 435 A
EX 4*240SM
Nexans ref. EX 004240 - Country ref. EX 4*240SM//FR
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 58.0 mm
- Approximate weight: 10028 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 522 A
- Permissible current rating when buried: 504 A
EX 4*25
Nexans ref. EX 003303 - Country ref. EX 4*25//FR
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 23.0 mm
- Approximate weight: 1230 kg/km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 141 A
EX 4*300SM
Nexans ref. EX 004242 - Country ref. EX 4*300SM//FR
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 64.0 mm
- Approximate weight: 12610 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 595 A
- Permissible current rating when buried: 571 A
EX 4*35
Nexans ref. EX 003730 - Country ref. EX 4*35//FR
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 26.0 mm
- Approximate weight: 1637 kg/km
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
EX 4*4
Nexans ref. EX 003903 - Country ref. EX 4*4//FR
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.5 mm
- Approximate weight: 294 kg/km
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
EX 4*50
Nexans ref. EX 003732 - Country ref. EX 4*50//FR
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 29.0 mm
- Approximate weight: 2208 kg/km
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 190 A
- Permissible current rating when buried: 204 A
EX 4*6
Nexans ref. EX 003003 - Country ref. EX 4*6//FR
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.5 mm
- Approximate weight: 386 kg/km
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
EX 4*70SM
Nexans ref. EX 003505 - Country ref. EX 4*70SM//FR
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 34.0 mm
- Approximate weight: 2999 kg/km
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
EX 4*95SM
Nexans ref. EX 003712 - Country ref. EX 4*95SM//FR
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 38.0 mm
- Approximate weight: 4030 kg/km
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 293 A
- Permissible current rating when buried: 302 A
EX 5*6
Nexans ref. EX 005482 - Country ref. EX 5*6//FR
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.5 mm
- Approximate weight: 440 kg/km
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2; IEC 60332-3
Scope
This specification covers XLPE insulated, circular or shaped, multicore unarmoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, and in cable ducts.
Construction
2.1 Conductor
Plain, annealed electrolytic copper conductors, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
XLPE material, conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material.
2.4 Sheath
Special fire retardant PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.5 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
Test at works
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Voltage test acc. to IEC 60502-1 parag.15.1& 15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Oversheath : according to IEC 60502-1 Parag. 16.5.3
- Hot Set Test : according to IEC 60502-1 Parag. 16.9
These tests will be carried out on one length during of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
Fire retardance test according to IEC 60332-3.
These tests will be carried out on one length of the order
Tests certificates will be provided by Liban Cables
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Find a Distributor
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
