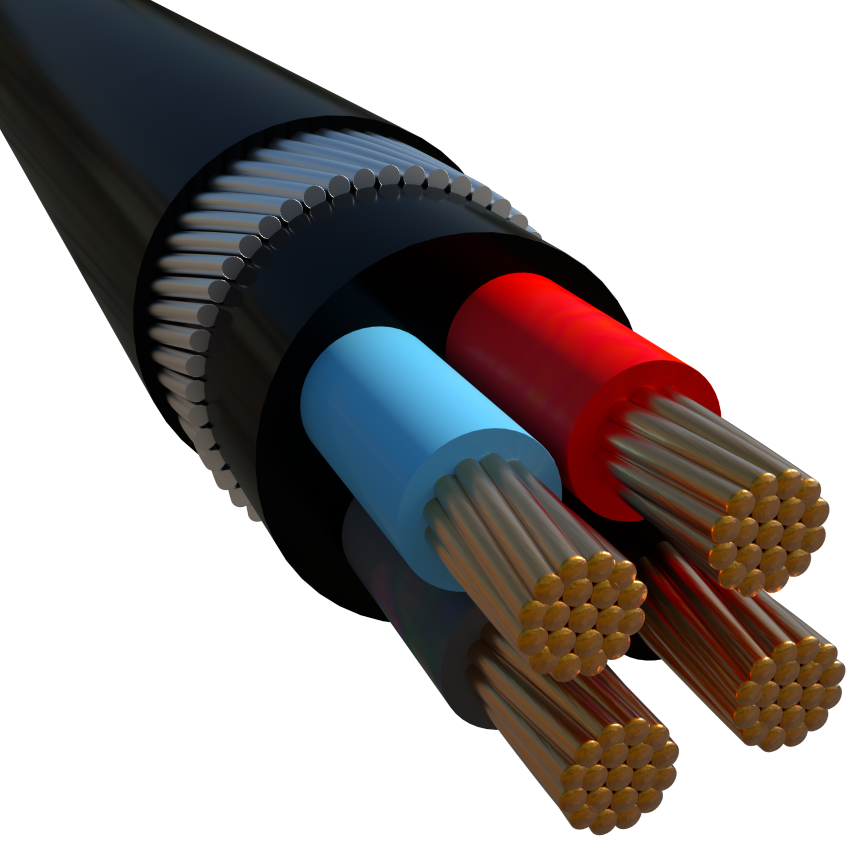

Fire retardant & UV resistant, Multicore SWA Armored, XLPE insulated, PVC sheathed

Fire retardant & UV resistant, Multicore SWA Armored, XLPE insulated, PVC sheathed

Fire retardant & UV resistant, Multicore SWA Armored, XLPE insulated, PVC sheathed

0.6 / 1 KV POWER & CONTROL CABLES
Conforming to IEC 60502-1

Read more
Find distributor
Contact us

Products

Actions
Filters

  • products

EXR 10*2.5

Nexans ref. EXR 004298 - Country ref. EXR 10*2.5//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 21.0 mm
  • Approximate weight: 816 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 46 A



EXR 12*2.5

Nexans ref. EXR 004299 - Country ref. EXR 12*2.5//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 22.0 mm
  • Approximate weight: 888 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 46 A



EXR 19*2.5

Nexans ref. EXR 008125 - Country ref. EXR 19*2.5//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.0 mm
  • Approximate weight: 1296 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 46 A



EXR 2*10

Nexans ref. EXR 003770 - Country ref. EXR 2*10//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 18.0 mm
  • Approximate weight: 696 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 80 A
  • Permissible current rating when buried: 101 A



EXR 2*120

Nexans ref. EXR 010871 - Country ref. EXR 2*120//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 120 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 41.0 mm
  • Approximate weight: 4399 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 379 A
  • Permissible current rating when buried: 397 A



EXR 2*150

Nexans ref. EXR 010877 - Country ref. EXR 2*150//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 150 mm²
  • Nominal insulation thickness: 1.4 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 45.0 mm
  • Approximate weight: 5234 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 435 A
  • Permissible current rating when buried: 444 A



EXR 2*16

Nexans ref. EXR 003771 - Country ref. EXR 2*16//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 19.5 mm
  • Approximate weight: 885 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 107 A
  • Permissible current rating when buried: 128 A



EXR 2*2.5

Nexans ref. EXR 028126 - Country ref. EXR 2*2.5//CTRL-UV

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 13.0 mm
  • Approximate weight: 294 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 46 A



EXR 2*2.5 CONTROL

Nexans ref. EXR 017813 - Country ref. EXR 2*2.5//FR-UV-C

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 13.0 mm
  • Approximate weight: 294 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 36 A



EXR 2*25

Nexans ref. EXR 003772 - Country ref. EXR 2*25//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 24.0 mm
  • Approximate weight: 1329 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 142 A
  • Permissible current rating when buried: 162 A



EXR 2*35

Nexans ref. EXR 003773 - Country ref. EXR 2*35//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 35 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 26.0 mm
  • Approximate weight: 1620 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 175 A
  • Permissible current rating when buried: 195 A



EXR 2*4

Nexans ref. EXR 008218 - Country ref. EXR 2*4//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 14.0 mm
  • Approximate weight: 383 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 45 A
  • Permissible current rating when buried: 59 A



EXR 2*50

Nexans ref. EXR 000860 - Country ref. EXR 2*50//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 50 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 29.0 mm
  • Approximate weight: 2031 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 212 A
  • Permissible current rating when buried: 235 A



EXR 2*6

Nexans ref. EXR 006201 - Country ref. EXR 2*6//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 15.5 mm
  • Approximate weight: 457 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 58 A
  • Permissible current rating when buried: 74 A



EXR 2*70

Nexans ref. EXR 000863 - Country ref. EXR 2*70//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 33.0 mm
  • Approximate weight: 2656 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 270 A
  • Permissible current rating when buried: 290 A



EXR 2*95

Nexans ref. EXR 000864 - Country ref. EXR 2*95//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 95 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 37.0 mm
  • Approximate weight: 3638 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 327 A
  • Permissible current rating when buried: 347 A



EXR 27*2.5

Nexans ref. EXR 028125 - Country ref. EXR 27*2.5//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 29.0 mm
  • Approximate weight: 1669 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 46 A



EXR 3*10

Nexans ref. EXR 004293 - Country ref. EXR 3*10//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 18.5 mm
  • Approximate weight: 807 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 71 A
  • Permissible current rating when buried: 88 A



EXR 3*120SM

Nexans ref. EXR 006319 - Country ref. EXR 3*120SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 120 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 40.0 mm
  • Approximate weight: 4964 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 339 A
  • Permissible current rating when buried: 345 A



EXR 3*150SM

Nexans ref. EXR 006989 - Country ref. EXR 3*150SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 150 mm²
  • Nominal insulation thickness: 1.4 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 48.0 mm
  • Approximate weight: 6533 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 390 A
  • Permissible current rating when buried: 386 A



EXR 3*16

Nexans ref. EXR 008120 - Country ref. EXR 3*16//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 21.0 mm
  • Approximate weight: 1046 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 96 A
  • Permissible current rating when buried: 111 A



EXR 3*185SM

Nexans ref. EXR 006348 - Country ref. EXR 3*185SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 185 mm²
  • Nominal insulation thickness: 1.6 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 50.0 mm
  • Approximate weight: 7706 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 444 A
  • Permissible current rating when buried: 435 A



EXR 3*2.5

Nexans ref. EXR 007748 - Country ref. EXR 3*2.5//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 13.5 mm
  • Approximate weight: 356 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 30 A
  • Permissible current rating when buried: 40 A



EXR 3*2.5 CONTROL

Nexans ref. EXR 028127 - Country ref. EXR 3*2.5//CTRL-UV

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 13.5 mm
  • Approximate weight: 335 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 30 A
  • Permissible current rating when buried: 40 A



EXR 3*2.5 CONTROL

Nexans ref. EXR 017814 - Country ref. EXR 3*2.5//FR-UV-C

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 13.5 mm
  • Approximate weight: 335 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 30 A
  • Permissible current rating when buried: 40 A



EXR 3*240SM

Nexans ref. EXR 008203 - Country ref. EXR 3*240SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 240 mm²
  • Nominal insulation thickness: 1.7 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 56.0 mm
  • Approximate weight: 9619 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 522 A
  • Permissible current rating when buried: 504 A



EXR 3*25

Nexans ref. EXR 006380 - Country ref. EXR 3*25//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.0 mm
  • Approximate weight: 1582 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 127 A
  • Permissible current rating when buried: 141 A



EXR 3*300SM

Nexans ref. EXR 020865 - Country ref. EXR 3*300SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 300 mm²
  • Nominal insulation thickness: 1.8 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 3.0 mm
  • Nominal outer diameter: 61.0 mm
  • Approximate weight: 11745 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 595 A
  • Permissible current rating when buried: 571 A



EXR 3*35

Nexans ref. EXR 008202 - Country ref. EXR 3*35//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 35 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 27.0 mm
  • Approximate weight: 1958 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 157 A
  • Permissible current rating when buried: 170 A



EXR 3*4

Nexans ref. EXR 008200 - Country ref. EXR 3*4//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 15.0 mm
  • Approximate weight: 433 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 40 A
  • Permissible current rating when buried: 51 A



EXR 3*4 CONTROL

Nexans ref. EXR 017816 - Country ref. EXR 3*4//FR-UV-C

  • Conductor shape: Circular
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 15.0 mm
  • Approximate weight: 406 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 40 A
  • Permissible current rating when buried: 51 A



EXR 3*50

Nexans ref. EXR 003660 - Country ref. EXR 3*50//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 50 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 31.0 mm
  • Approximate weight: 2498 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 190 A
  • Permissible current rating when buried: 204 A



EXR 3*6

Nexans ref. EXR 008201 - Country ref. EXR 3*6//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 16.0 mm
  • Approximate weight: 525 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 52 A
  • Permissible current rating when buried: 64 A



EXR 3*70SM

Nexans ref. EXR 005520 - Country ref. EXR 3*70SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 33.0 mm
  • Approximate weight: 3190 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 242 A
  • Permissible current rating when buried: 252 A



EXR 3*95SM

Nexans ref. EXR 006339 - Country ref. EXR 3*95SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 95 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 37.0 mm
  • Approximate weight: 4088 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 293 A
  • Permissible current rating when buried: 302 A



EXR 4*10

Nexans ref. EXR 008208 - Country ref. EXR 4*10//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 20.0 mm
  • Approximate weight: 948 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 71 A
  • Permissible current rating when buried: 88 A



EXR 4*120SM

Nexans ref. EXR 008214 - Country ref. EXR 4*120SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 120 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 47.0 mm
  • Approximate weight: 6814 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 339 A
  • Permissible current rating when buried: 345 A



EXR 4*150SM

Nexans ref. EXR 008210 - Country ref. EXR 4*150SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 150 mm²
  • Nominal insulation thickness: 1.4 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 51.0 mm
  • Approximate weight: 8105 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 390 A
  • Permissible current rating when buried: 386 A



EXR 4*150SM FR+AT

Nexans ref. EXR 013902 - Country ref. EXR 4*150SM(AT)//SKM

  • Conductor shape: Shaped
  • Conductor cross-section: 150 mm²
  • Nominal insulation thickness: 1.4 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 51.0 mm
  • Approximate weight: 8085 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 390 A
  • Permissible current rating when buried: 386 A



EXR 4*16

Nexans ref. EXR 004297 - Country ref. EXR 4*16//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 23.0 mm
  • Approximate weight: 1357 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 96 A
  • Permissible current rating when buried: 111 A



EXR 4*185SM

Nexans ref. EXR 008209 - Country ref. EXR 4*185SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 185 mm²
  • Nominal insulation thickness: 1.6 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 56.0 mm
  • Approximate weight: 9864 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 444 A
  • Permissible current rating when buried: 435 A



EXR 4*2.5 CONTROL

Nexans ref. EXR 017815 - Country ref. EXR 4*2.5//FR-UV-C

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 14.5 mm
  • Approximate weight: 385 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 30 A
  • Permissible current rating when buried: 40 A



EXR 4*240SM

Nexans ref. EXR 008207 - Country ref. EXR 4*240SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 240 mm²
  • Nominal insulation thickness: 1.7 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 3.0 mm
  • Nominal outer diameter: 62.0 mm
  • Approximate weight: 12316 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 522 A
  • Permissible current rating when buried: 504 A



EXR 4*25

Nexans ref. EXR 007745 - Country ref. EXR 4*25//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 27.0 mm
  • Approximate weight: 1894 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 127 A
  • Permissible current rating when buried: 141 A



EXR 4*300SM

Nexans ref. EXR 003961 - Country ref. EXR 4*300SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 300 mm²
  • Nominal insulation thickness: 1.8 mm
  • Nominal armour wire diameter: 2.5 mm
  • Nominal outer sheath thickness: 3.2 mm
  • Nominal outer diameter: 68.0 mm
  • Approximate weight: 15094 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 595 A
  • Permissible current rating when buried: 571 A



EXR 4*35

Nexans ref. EXR 008223 - Country ref. EXR 4*35//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 35 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 30.0 mm
  • Approximate weight: 2292 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 157 A
  • Permissible current rating when buried: 170 A



EXR 4*4

Nexans ref. EXR 007746 - Country ref. EXR 4*4//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 16.0 mm
  • Approximate weight: 499 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 40 A
  • Permissible current rating when buried: 51 A



EXR 4*50

Nexans ref. EXR 003774 - Country ref. EXR 4*50//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 50 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 35.0 mm
  • Approximate weight: 3338 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 190 A
  • Permissible current rating when buried: 204 A



EXR 4*6

Nexans ref. EXR 008205 - Country ref. EXR 4*6//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 18.0 mm
  • Approximate weight: 722 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 52 A
  • Permissible current rating when buried: 64 A



EXR 4*70SM

Nexans ref. EXR 007740 - Country ref. EXR 4*70SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 37.0 mm
  • Approximate weight: 4045 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 242 A
  • Permissible current rating when buried: 252 A



EXR 4*95SM

Nexans ref. EXR 008224 - Country ref. EXR 4*95SM//FR-UV

  • Conductor shape: Shaped
  • Conductor cross-section: 95 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 41.0 mm
  • Approximate weight: 5186 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 293 A
  • Permissible current rating when buried: 302 A



EXR 5*16

Nexans ref. EXR 008121 - Country ref. EXR 5*16//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.6 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.0 mm
  • Approximate weight: 1596 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 96 A
  • Permissible current rating when buried: 111 A



EXR 5*2.5

Nexans ref. EXR 008123 - Country ref. EXR 5*2.5//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 15.5 mm
  • Approximate weight: 443 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 30 A
  • Permissible current rating when buried: 40 A



EXR 5*4

Nexans ref. EXR 008212 - Country ref. EXR 5*4//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 18.0 mm
  • Approximate weight: 685 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 40 A
  • Permissible current rating when buried: 51 A



EXR 5*6

Nexans ref. EXR 008206 - Country ref. EXR 5*6//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 19.5 mm
  • Approximate weight: 835 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 52 A
  • Permissible current rating when buried: 64 A



EXR 5*70

Nexans ref. EXR 007240 - Country ref. EXR 5*70//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal armour wire diameter: 2 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 43.0 mm
  • Approximate weight: 5251 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 242 A
  • Permissible current rating when buried: 252 A



EXR 7*2.5

Nexans ref. EXR 007749 - Country ref. EXR 7*2.5//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 17.5 mm
  • Approximate weight: 621 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 46 A



EXR 9*2.5

Nexans ref. EXR 007750 - Country ref. EXR 9*2.5//FR-UV

  • Conductor shape: Circular
  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal armour wire diameter: 1.25 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 21.0 mm
  • Approximate weight: 774 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 33 A
  • Permissible current rating when buried: 46 A



Description

Description

Standards

  • Product
    IEC 60228; IEC 60502-1
  • Test
    IEC 60332-1-2; IEC 60332-3

Scope

This specification covers XLPE insulated, circular or shaped, multicore armoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present.

Construction

2.1 Conductor

Plain, annealed electrolytic copper conductors, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.

2.2 Insulation

XLPE thermosetting material, conforming to the applicable requirements of IEC 60502-1.

2.3 Assembly

Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.

2.4 Armour

Galvanized round wires completely covering the assembly of cores complying to the applicable requirements of IEC 60502-1.

2.5 Sheath

Special Fire retardant PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.

2.6 TESTS

Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.

TEST AT WORKS ACCORDING TO IEC 60502-1 & IEC 60332-3

Routine Tests

 -          Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2

 -          Voltage test acc. to IEC 60502-1  parag.15.1& 15.3



Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.



Sample Tests

 -          Check of the build - up and color coding of the cable

 -          Check of dimensions

            Insulation          :           according to IEC 60502-1                      Parag.  16.5.2

            Armour             :           according to IEC 60502-1                       Parag.  16.7

            Oversheath       :           according to IEC 60502-1                      Parag.  16.5.3

 Hot Set Test for XLPE insulation: according to IEC 60502-1                 Parag.  16.9



These tests will be carried out on one length of each size during each inspection .

Tests certificates will be provided by Liban Cables



Type Tests

Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break ) in accordance with IEC 60502-1.

Fire retardance test according to IEC 60332-3.

These tests will be carried out on one length of the order.

Tests certificates will be provided by Liban Cables.

Drawing Circular Conductor

Drawing Shaped Conductors

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
XLPE
Armour type
Galvanized steel wires
Outer sheath
PVC

Electrical characteristics

Electrical characteristics

Test voltage
3500 V
Rated Voltage Uo/U (Um)
0,6/1 kV
Thermal soil resistivity wet zone
1 °K.m/W

Mechanical characteristics

Mechanical characteristics

Cable flexibility
10xD

Usage characteristics

Usage characteristics

Laying depth, center of system
600 mm
Operating temperature, range
-15 ... 55 °C
Installation temperature, range
-5 ... 50 °C
Ambient air temperature
30 °C
Maximum operating temperature
90 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
IEC 60332-1-2
Fire retardant
IEC 60332-3
U.V resistance
Yes

Resources

Resources

Find a Distributor

Waiting…

No items found

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
