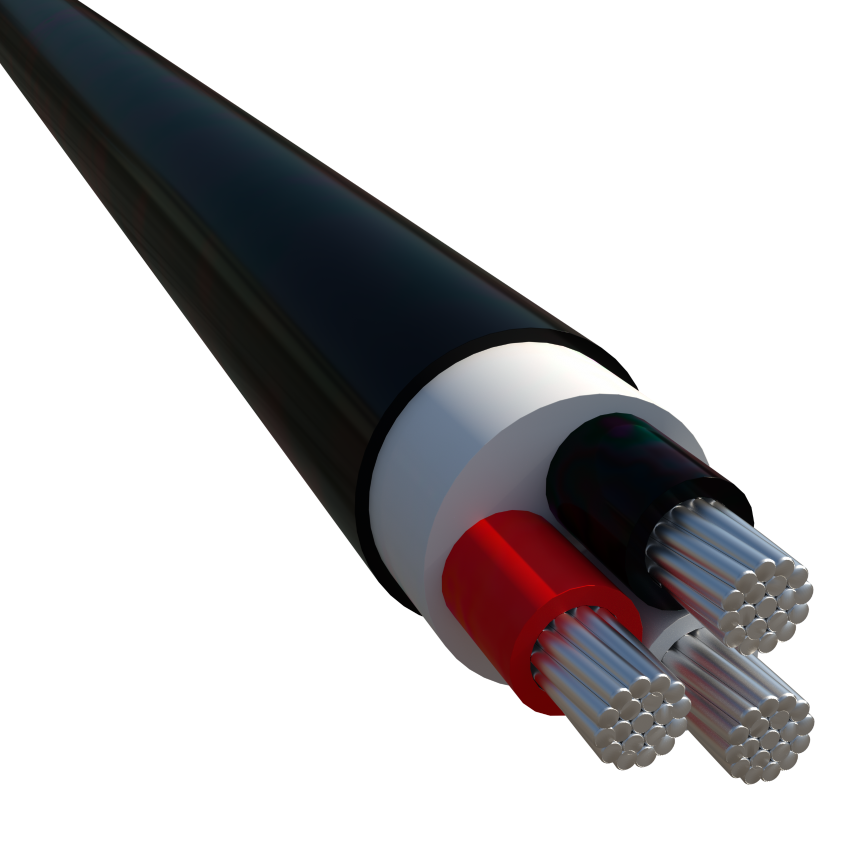

AL, Multicore SWA Armored, PVC insulated, PVC sheathed
AL, Multicore SWA Armored, PVC insulated, PVC sheathed
0.6 / 1 KV POWER CABLES
Conforming to IEC 60502-1
EAYR 3*120SM
Nexans ref. EAYR 001110 - Country ref. EAYR 3*120SM
- Number of conductors: 3
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 42.0 mm
- Approximate weight: 3069 kg/km
- Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
- Permissible current rating in open air: 210 A
- Permissible current rating when buried: 243 A
EAYR 3*240SM
Nexans ref. EAYR 003241 - Country ref. EAYR 3*240SM
- Number of conductors: 3
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal outer diameter: 58.0 mm
- Approximate weight: 5769 kg/km
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- Permissible current rating in open air: 325 A
- Permissible current rating when buried: 243 A
EAYR 4*150
Nexans ref. EAYR 004000 - Country ref. EAYR 4*150
- Number of conductors: 4
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.7 mm
- Nominal outer diameter: 55.0 mm
- Approximate weight: 5078 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Permissible current rating in open air: 240 A
- Permissible current rating when buried: 271 A
EAYR 4*185
Nexans ref. EAYR 004001 - Country ref. EAYR 4*185
- Number of conductors: 4
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 2.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal outer diameter: 61.0 mm
- Approximate weight: 6190 kg/km
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
- Permissible current rating in open air: 275 A
- Permissible current rating when buried: 306 A
EAYR 4*240
Nexans ref. EAYR 004002 - Country ref. EAYR 4*240
- Number of conductors: 4
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.1 mm
- Nominal outer diameter: 67.0 mm
- Approximate weight: 7272 kg/km
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- Permissible current rating in open air: 325 A
- Permissible current rating when buried: 354 A
EAYR 4*35
Nexans ref. EAYR 001176 - Country ref. EAYR 4*35
- Number of conductors: 4
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal armour wire diameter: 1.6 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 31.0 mm
- Approximate weight: 1609 kg/km
- Max. DC resistance of the conductor at 20°C: 0.868 Ohm/km
- Permissible current rating in open air: 97 A
- Permissible current rating when buried: 119 A
Description
Description
Standards
-
InternationalIEC 60228; IEC 60332-1-2; IEC 60502-1
1. SCOPE
This specification covers PVC insulated, circular or shaped, multicore armoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present.
2. CONSTRUCTION
2.1 Conductor
Aluminum conductors, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
PVC material, conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.
2.4 Armour
Galvanized round wires completely covering the assembly of cores complying to the applicable requirements of IEC 60502-1.
2.5 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.6 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
Cable identification - LV cables ≤ 1KV
INSULATION COLORS:
|
|
Neutral |
Cond.1 |
Cond.2 |
Cond.3 |
Cond.4 |
|
1 Conductor |
|
BLACK |
|
|
|
|
2 Conductors |
GREY |
BLACK |
|
|
|
|
3 Conductors |
|
BLACK |
RED |
BLUE |
|
|
4 Conductors |
GREY |
BLACK |
RED |
BLUE |
|
|
5 Conductors |
GREY |
BLACK |
RED |
BLUE |
GREEN |
All numbered control cables (6 conductors and above), are insulated with white color, and numbered with black digits
CABLE MARKING OVER THE OUTER JACKET (by inkjet printing):
LIBAN CABLES DESCRIPTION RATED VOLTAGE SECTION MM2 Year of manufacture meter marking
Other cable identification requirements are available upon request
