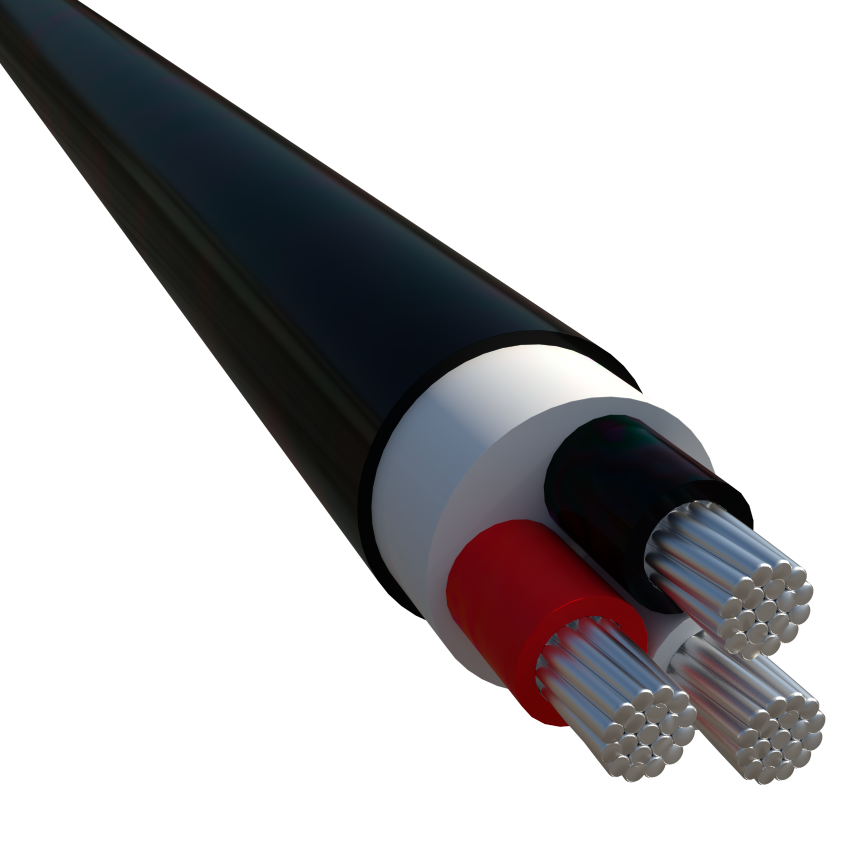

AL, Unarmored, multicore XLPE insulation, PVC sheathed
AL, Unarmored, multicore XLPE insulation, PVC sheathed
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreEAX 2*16
Nexans ref. EAX 000816 - Country ref. EAX 2*16
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.0 mm
- Approximate weight: 286 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 83 A
- Permissible current rating when buried: 100 A
EAX 3*120 NEW
Nexans ref. EAX 004178 - Country ref. EAX 3*120SM
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 34.0 mm
- Approximate weight: 1387 kg/km
- Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
- Permissible current rating in open air: 269 A
- Permissible current rating when buried: 269 A
EAX 3*150 NEW
Nexans ref. EAX 003218 - Country ref. EAX 3*150SM
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 40.0 mm
- Approximate weight: 1738 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Permissible current rating in open air: 309 A
- Permissible current rating when buried: 301 A
EAX 3*16
Nexans ref. EAX 004557 - Country ref. EAX 3*16
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 17.0 mm
- Approximate weight: 327 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 75 A
- Permissible current rating when buried: 87 A
EAX 3*185
Nexans ref. EAX 003260 - Country ref. EAX 3*185SM
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 42.0 mm
- Approximate weight: 2167 kg/km
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
- Permissible current rating in open air: 353 A
- Permissible current rating when buried: 339 A
EAX 3*240
Nexans ref. EAX 003225 - Country ref. EAX 3*240SM
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 47.0 mm
- Approximate weight: 2714 kg/km
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- Permissible current rating in open air: 415 A
- Permissible current rating when buried: 393 A
EAX 3*25
Nexans ref. EAX 000800 - Country ref. EAX 3*25
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 20.0 mm
- Approximate weight: 484 kg/km
- Max. DC resistance of the conductor at 20°C: 1.2 Ohm/km
- Permissible current rating in open air: 99 A
- Permissible current rating when buried: 110 A
EAX 3*300
Nexans ref. EAX 010800 - Country ref. EAX 3*300SM
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 2.7 mm
- Nominal outer diameter: 52.0 mm
- Approximate weight: 3344 kg/km
- Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
- Permissible current rating in open air: 472 A
- Permissible current rating when buried: 495 A
EAX 3*35
Nexans ref. EAX 000801 - Country ref. EAX 3*35
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 22.0 mm
- Approximate weight: 521 kg/km
- Max. DC resistance of the conductor at 20°C: 0.868 Ohm/km
- Permissible current rating in open air: 125 A
- Permissible current rating when buried: 133 A
EAX 3*50
Nexans ref. EAX 000802 - Country ref. EAX 3*50
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 683 kg/km
- Max. DC resistance of the conductor at 20°C: 0.641 Ohm/km
- Permissible current rating in open air: 151 A
- Permissible current rating when buried: 159 A
EAX 3*70
Nexans ref. EAX 00803 - Country ref. EAX 3*70SM
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 27.0 mm
- Approximate weight: 862 kg/km
- Max. DC resistance of the conductor at 20°C: 0.443 Ohm/km
- Permissible current rating in open air: 192 A
- Permissible current rating when buried: 197 A
EAX 3*95 NEW
Nexans ref. EAX 003209 - Country ref. EAX 3*95SM
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 31.0 mm
- Approximate weight: 1118 kg/km
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
- Permissible current rating in open air: 232 A
- Permissible current rating when buried: 236 A
EAX 4*120
Nexans ref. EAX 003750 - Country ref. EAX 4*120SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 39.0 mm
- Approximate weight: 1843 kg/km
- Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
- Permissible current rating in open air: 269 A
- Permissible current rating when buried: 269 A
EAX 4*150
Nexans ref. EAX 003800 - Country ref. EAX 4*150SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 43.0 mm
- Approximate weight: 2262 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Permissible current rating in open air: 309 A
- Permissible current rating when buried: 301 A
EAX 4*16 NEW
Nexans ref. EAX 003465 - Country ref. EAX 4*16
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 18.0 mm
- Approximate weight: 389 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 75 A
- Permissible current rating when buried: 87 A
EAX 4*185
Nexans ref. EAX 003915 - Country ref. EAX 4*185SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 48.0 mm
- Approximate weight: 2854 kg/km
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
- Permissible current rating in open air: 353 A
- Permissible current rating when buried: 339 A
EAX 4*240
Nexans ref. EAX 003935 - Country ref. EAX 4*240SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 54.0 mm
- Approximate weight: 3602 kg/km
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- Permissible current rating in open air: 415 A
- Permissible current rating when buried: 393 A
EAX 4*25 NEW
Nexans ref. EAX 003470 - Country ref. EAX 4*25
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 22.0 mm
- Approximate weight: 580 kg/km
- Max. DC resistance of the conductor at 20°C: 1.2 Ohm/km
- Permissible current rating in open air: 99 A
- Permissible current rating when buried: 110 A
EAX 4*300
Nexans ref. EAX 003955 - Country ref. EAX 4*300SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 60.0 mm
- Approximate weight: 4468 kg/km
- Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
- Permissible current rating in open air: 472 A
- Permissible current rating when buried: 495 A
EAX 4*35
Nexans ref. EAX 003475 - Country ref. EAX 4*35
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 665 kg/km
- Max. DC resistance of the conductor at 20°C: 0.868 Ohm/km
- Permissible current rating in open air: 125 A
- Permissible current rating when buried: 133 A
EAX 4*50
Nexans ref. EAX 001715 - Country ref. EAX 4*50
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 28.0 mm
- Approximate weight: 886 kg/km
- Max. DC resistance of the conductor at 20°C: 0.641 Ohm/km
- Permissible current rating in open air: 151 A
- Permissible current rating when buried: 159 A
EAX 4*70
Nexans ref. EAX 003601 - Country ref. EAX 4*70SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 31.0 mm
- Approximate weight: 1115 kg/km
- Max. DC resistance of the conductor at 20°C: 0.443 Ohm/km
- Permissible current rating in open air: 192 A
- Permissible current rating when buried: 197 A
EAX 4*95
Nexans ref. EAX 003702 - Country ref. EAX 4*95SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 35.0 mm
- Approximate weight: 1472 kg/km
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
- Permissible current rating in open air: 232 A
- Permissible current rating when buried: 236 A
EAX 5*150
Nexans ref. EAX 700530 - Country ref. EAX 5*150
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 51.0 mm
- Approximate weight: 2853 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Permissible current rating in open air: 309 A
- Permissible current rating when buried: 301 A
EAX 5*16
Nexans ref. EAX 005652 - Country ref. EAX 5*16
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 19.5 mm
- Approximate weight: 424 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 75 A
- Permissible current rating when buried: 87 A
EAX 5*35
Nexans ref. EAX 000535 - Country ref. EAX 5*35
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 27.0 mm
- Approximate weight: 782 kg/km
- Max. DC resistance of the conductor at 20°C: 0.868 Ohm/km
- Permissible current rating in open air: 125 A
- Permissible current rating when buried: 133 A
Description
Description
Standards
-
InternationalIEC 60228; IEC 60332-1-2; IEC 60502-1
1. SCOPE
This specification covers XLPE insulated, circular or shaped, multicore unarmoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, and in cable ducts.
2. CONSTRUCTION
2.1 Conductor
Aluminum conductors, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
XLPE material, conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material.
2.4 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.5 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
TEST AT WORKS unarmored multicore
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Voltage test acc. to IEC 60502-1 parag. 15.1 & 15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided .
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Oversheath : according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables
Cable identification - LV cables ≤ 1KV
INSULATION COLORS:
|
|
Neutral |
Cond.1 |
Cond.2 |
Cond.3 |
Cond.4 |
|
1 Conductor |
|
BLACK |
|
|
|
|
2 Conductors |
GREY |
BLACK |
|
|
|
|
3 Conductors |
|
BLACK |
RED |
BLUE |
|
|
4 Conductors |
GREY |
BLACK |
RED |
BLUE |
|
|
5 Conductors |
GREY |
BLACK |
RED |
BLUE |
GREEN |
All numbered control cables (6 conductors and above), are insulated with white color, and numbered with black digits
CABLE MARKING OVER THE OUTER JACKET (by inkjet printing):
LIBAN CABLES DESCRIPTION RATED VOLTAGE SECTION MM2 Year of manufacture meter marking
Other cable identification requirements are available upon request
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
