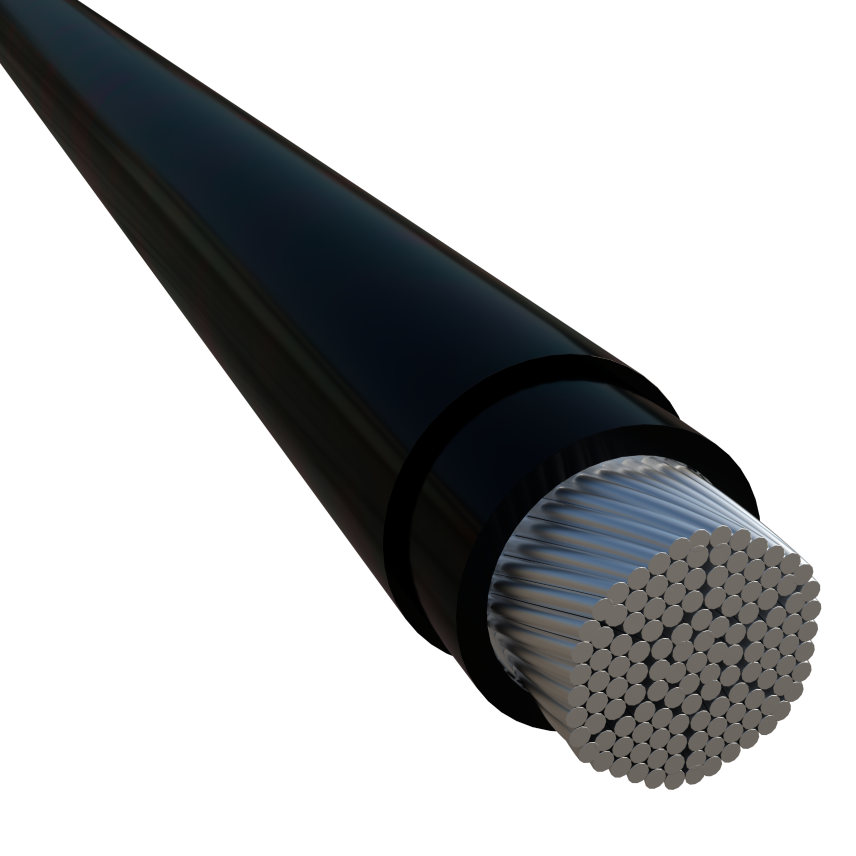

AL, Unarmored, Single core PVC insulation, PVC sheathed
AL, Unarmored, Single core PVC insulation, PVC sheathed
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreEAYY 1*120
Nexans ref. EAYY 000223 - Country ref. EAYY 1*120
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 1.5 mm
- Nominal outer diameter: 19.0 mm
- Approximate weight: 526 kg/km
- Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
- Permissible current rating in open air: 236 A
- Permissible current rating when buried: 255 A
EAYY 1*120
Nexans ref. EAYY 000225 - Country ref. EAYY 1*120//EDL-SP
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 1.5 mm
- Nominal outer diameter: 19.0 mm
- Approximate weight: 526 kg/km
- Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
- Permissible current rating in open air: 236 A
- Permissible current rating when buried: 255 A
EAYY 1*150
Nexans ref. EAYY 000224 - Country ref. EAYY 1*150
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 1.6 mm
- Nominal outer diameter: 21.0 mm
- Approximate weight: 631 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Permissible current rating in open air: 268 A
- Permissible current rating when buried: 285 A
EAYY 1*16
Nexans ref. EAYY 000212 - Country ref. EAYY 1*16
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 9.0 mm
- Approximate weight: 113 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Permissible current rating in open air: 66 A
- Permissible current rating when buried: 80 A
EAYY 1*185
Nexans ref. EAYY 000226 - Country ref. EAYY 1*185
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 2.0 mm
- Nominal outer sheath thickness: 1.7 mm
- Nominal outer diameter: 23.0 mm
- Approximate weight: 631 kg/km
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
- Permissible current rating in open air: 305 A
- Permissible current rating when buried: 321 A
EAYY 1*240
Nexans ref. EAYY 000227 - Country ref. EAYY 1*240
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 26.0 mm
- Approximate weight: 1001 kg/km
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- Permissible current rating in open air: 360 A
- Permissible current rating when buried: 372 A
EAYY 1*240
Nexans ref. EAYY 000235 - Country ref. EAYY 1*240//EDL-SP
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 26.0 mm
- Approximate weight: 1001 kg/km
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- Permissible current rating in open air: 360 A
- Permissible current rating when buried: 372 A
EAYY 1*25
Nexans ref. EAYY 000213 - Country ref. EAYY 1*25
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 11.0 mm
- Approximate weight: 159 kg/km
- Max. DC resistance of the conductor at 20°C: 1.2 Ohm/km
- Permissible current rating in open air: 87 A
- Permissible current rating when buried: 104 A
EAYY 1*300
Nexans ref. EAYY 002501 - Country ref. EAYY 1*300
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 2.4 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 29.0 mm
- Approximate weight: 1246 kg/km
- Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
- Permissible current rating in open air: 410 A
- Permissible current rating when buried: 421 A
EAYY 1*35
Nexans ref. EAYY 000216 - Country ref. EAYY 1*35
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 12.0 mm
- Approximate weight: 197 kg/km
- Max. DC resistance of the conductor at 20°C: 0.868 Ohm/km
- Permissible current rating in open air: 108 A
- Permissible current rating when buried: 126 A
EAYY 1*400
Nexans ref. EAYY 001400 - Country ref. EAYY 1*400
- Conductor cross-section: 400 mm²
- Nominal insulation thickness: 2.6 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 32.0 mm
- Approximate weight: 1563 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
- Permissible current rating in open air: 479 A
- Permissible current rating when buried: 485 A
EAYY 1*50
Nexans ref. EAYY 000218 - Country ref. EAYY 1*50
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 13.5 mm
- Approximate weight: 256 kg/km
- Max. DC resistance of the conductor at 20°C: 0.641 Ohm/km
- Permissible current rating in open air: 131 A
- Permissible current rating when buried: 151 A
EAYY 1*630
Nexans ref. EAYY 001406 - Country ref. EAYY 1*630
- Conductor cross-section: 630 mm²
- Nominal insulation thickness: 2.8 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 39.0 mm
- Approximate weight: 2419 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
- Permissible current rating in open air: 610 A
- Permissible current rating when buried: 620 A
EAYY 1*70
Nexans ref. EAYY 000220 - Country ref. EAYY 1*70
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 1.4 mm
- Nominal outer diameter: 15.0 mm
- Approximate weight: 328 kg/km
- Max. DC resistance of the conductor at 20°C: 0.443 Ohm/km
- Permissible current rating in open air: 165 A
- Permissible current rating when buried: 186 A
EAYY 1*95
Nexans ref. EAYY 000222 - Country ref. EAYY 1*95
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 1.5 mm
- Nominal outer diameter: 17.5 mm
- Approximate weight: 451 kg/km
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
- Permissible current rating in open air: 200 A
- Permissible current rating when buried: 223 A
Description
Description
Standards
-
InternationalIEC 60228; IEC 60332-1-2; IEC 60502-1
1. SCOPE
This specification covers PVC insulated, circular, single core unarmoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, and in cable ducts.
2. CONSTRUCTION
2.1 Conductor
Aluminum conductor, circular stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
PVC material, conforming to the applicable requirements of IEC 60502-1.
2.3 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.4 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
TEST AT WORKS unarmored single core
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Spark test during insulation
Liban Cables will carry out these tests on all the length and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Oversheath : according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length during of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order.
Tests certificates will be provided by Liban Cables
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
