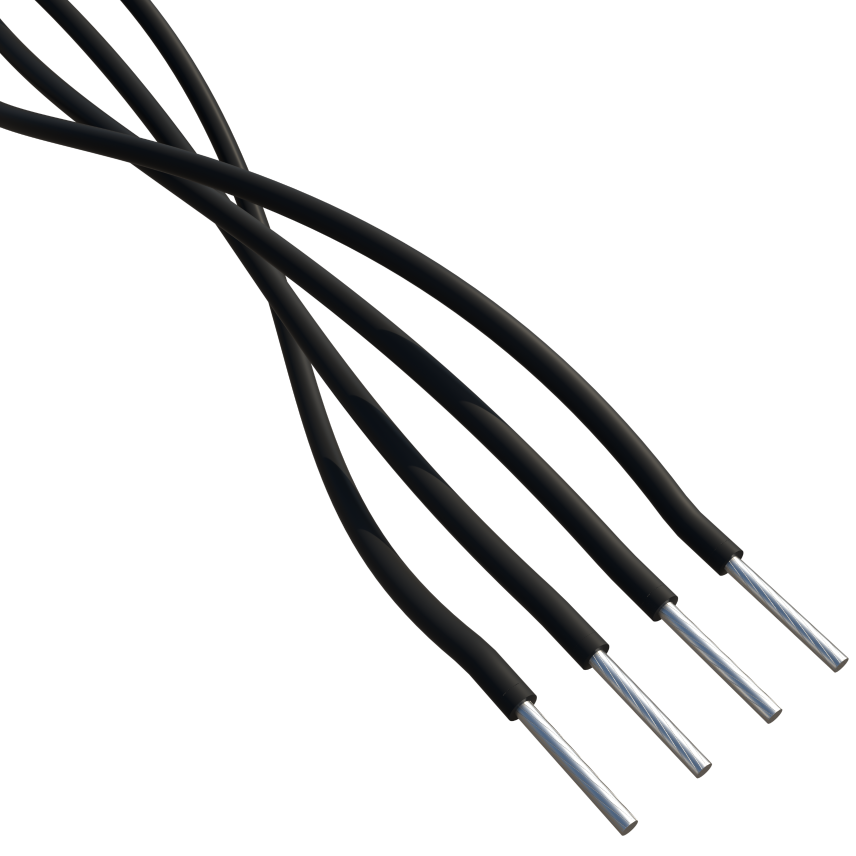

EAXT ABC cables with Messenger 70 mm²
EAXT ABC cables with Messenger 70 mm²
Generally to NF C 33-209 and IEC 60502-1
Read moreEAXT 3*120+70//E
Nexans ref. EAXT 000327 - Country ref. EAXT 3*120+70//E
- Nominal insulation thickness: 1.8 mm
- Messenger insulation thickness: 1.5 mm
- Conductor cross-section: 120 mm²
- Nominal overall diameter: 40.0 mm
- Approximate weight: 1490 kg/km
- Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
- Perm current rating in air 30°C: 299 A
EAXT 3*150+70//E
Nexans ref. EAXT 000875 - Country ref. EAXT 3*150+70//E
- Packaging: Drum (m)
- Nominal insulation thickness: 1.5 mm
- Messenger insulation thickness: 1.6 mm
- Conductor cross-section: 150 mm²
- Nominal overall diameter: 41.0 mm
- Approximate weight: 1636 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- Perm current rating in air 30°C: 344 A
EAXT 3*95+70//E
Nexans ref. EAXT 000872 - Country ref. EAXT 3*95+70//E
- Packaging: Drum (m)
- Nominal insulation thickness: 1.8 mm
- Messenger insulation thickness: 1.5 mm
- Conductor cross-section: 95 mm²
- Nominal overall diameter: 36.0 mm
- Approximate weight: 1223 kg/km
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
- Perm current rating in air 30°C: 258 A
Description
Description
Standards
-
InternationalIEC 60502-1
-
NationalNF C33-209
Application
Network distribution bundled conductors with neutral messenger are designed for rural and urban areas.
Some important cable characteristics are :
- Ultraviolet radiation resistance,
- Ozone resistance,
- High dielectric strength,
- Light and easy to handle.
Installation
These cables are NOT ALLOWED to be buried, even in conduits.
Description
The bundled conductor cables have aluminum conductors, insulated with XLPE, they have good durability and thermal resistance.
Messenger characteristics
- core : circular stranded aluminum alloy, cross section area 70 mm²
- Insulation : Black XLPE
- nominal cross section : 70 mm²
- nominal insulation thickness: 1.5 mm
Electrical characteristics
- Rated voltage : 0.6/1 kV
TEST AT WORKS for ABC cables
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Spark Test for conductors
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions: Insulation: according to IEC 60502-1 Parag. 16.5.2
- Hot Set Test: according to IEC 60502-1 Parag. 16.9
These tests will be carried out on one length during of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order
Tests certificates will be provided by Liban Cables
