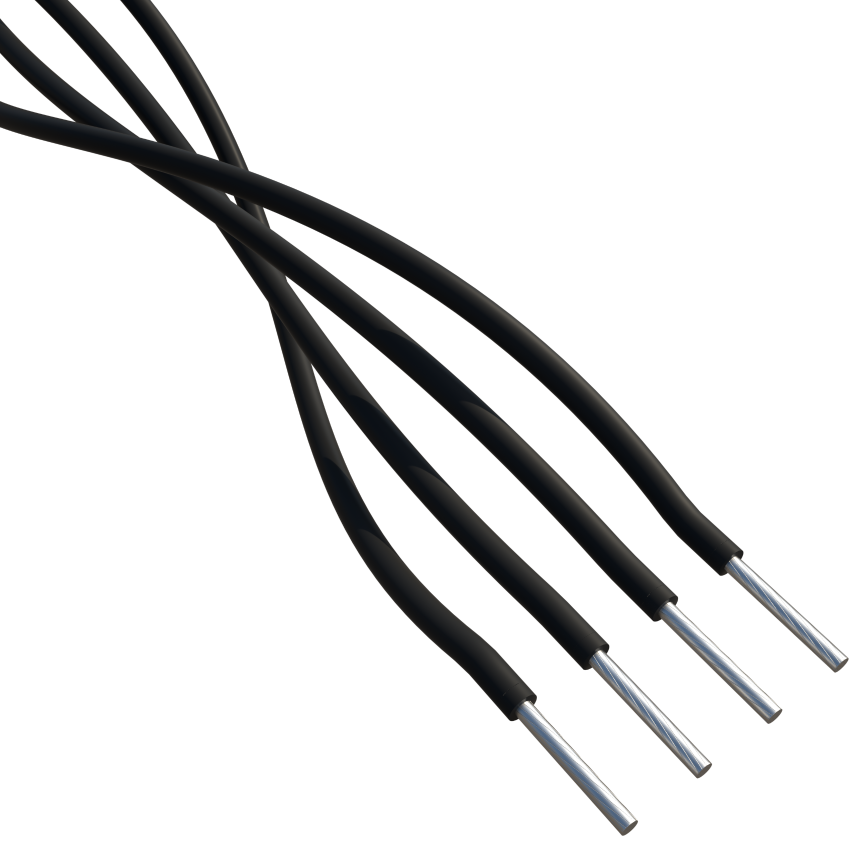

EAXT ABC cables with Messenger 54.6 mm2
EAXT ABC cables with Messenger 54.6 mm2
Generally to NF C 33-209 and testing to IEC 60502-1
Read moreEAXT 3*35+54.6//E
Nexans ref. EAXT 000835 - Country ref. EAXT 3*35+54.6//E
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal overall diameter: 25.6 mm
- Approximate weight: 608 kg/km
- Max. DC resistance of the conductor at 20°C: 0.868 Ohm/km
- Perm current rating in air 30°C: 138 A
EAXT 3*50+54.6
Nexans ref.
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal overall diameter: 28.0 mm
- Approximate weight: 730 kg/km
- Max. DC resistance of the conductor at 20°C: 0.641 Ohm/km
- Perm current rating in air 30°C: 168 A
EAXT 3*50+54.6
Nexans ref. EAXT 004045 - Country ref. EAXT 3*50+54.6//E
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal overall diameter: 28.0 mm
- Approximate weight: 730 kg/km
- Max. DC resistance of the conductor at 20°C: 0.641 Ohm/km
- Perm current rating in air 30°C: 168 A
EAXT 3*70+54.6
Nexans ref. EAXT 000127 - Country ref. EAXT 3*70+54.6
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal overall diameter: 32.0 mm
- Approximate weight: 922 kg/km
- Max. DC resistance of the conductor at 20°C: 0.443 Ohm/km
- Perm current rating in air 30°C: 213 A
EAXT 3*70+54.6//E
Nexans ref. EAXT 000862 - Country ref. EAXT 3*70+54.6//E
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal overall diameter: 32.0 mm
- Approximate weight: 922 kg/km
- Max. DC resistance of the conductor at 20°C: 0.443 Ohm/km
- Perm current rating in air 30°C: 213 A
EAXT 3*95+54.6
Nexans ref. EAXT 003955 - Country ref. EAXT 3*95+54.6
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal overall diameter: 36.0 mm
- Approximate weight: 1189 kg/km
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
- Perm current rating in air 30°C: 258 A
Description
Description
Standards
-
InternationalIEC 60502-1
-
NationalNF C33-209
Application
Network distribution bundled conductors with neutral messenger are designed for rural and urban areas.
Some important cable characteristics are :
Ultraviolet radiation resistance,
Ozone resistance,
High dielectric strength,
Light weight and easy to handle.
Anti-theft cables
Installation
These cables are NOT ALLOWED to be buried, even in conduits.
They are intended for aerial use only.
Description
The bundled conductor cables have aluminum conductors, insulated with XLPE, they have good durability and thermal resistance.
Messenger/Neutral characteristics
core : circular stranded aluminum alloy, cross section area 54.6 mm2
Insulation : Black XLPE
nominal cross section : 54.6 mm2
Electrical characteristics
Rated voltage : 0.6/1 kV
TEST AT WORKS for ABC cables
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Spark Test for conductors
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions: Insulation: according to IEC 60502-1 Parag. 16.5.2
- Hot Set Test: according to IEC 60502-1 Parag. 16.9
These tests will be carried out on one length during of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order
Tests certificates will be provided by Liban Cables
