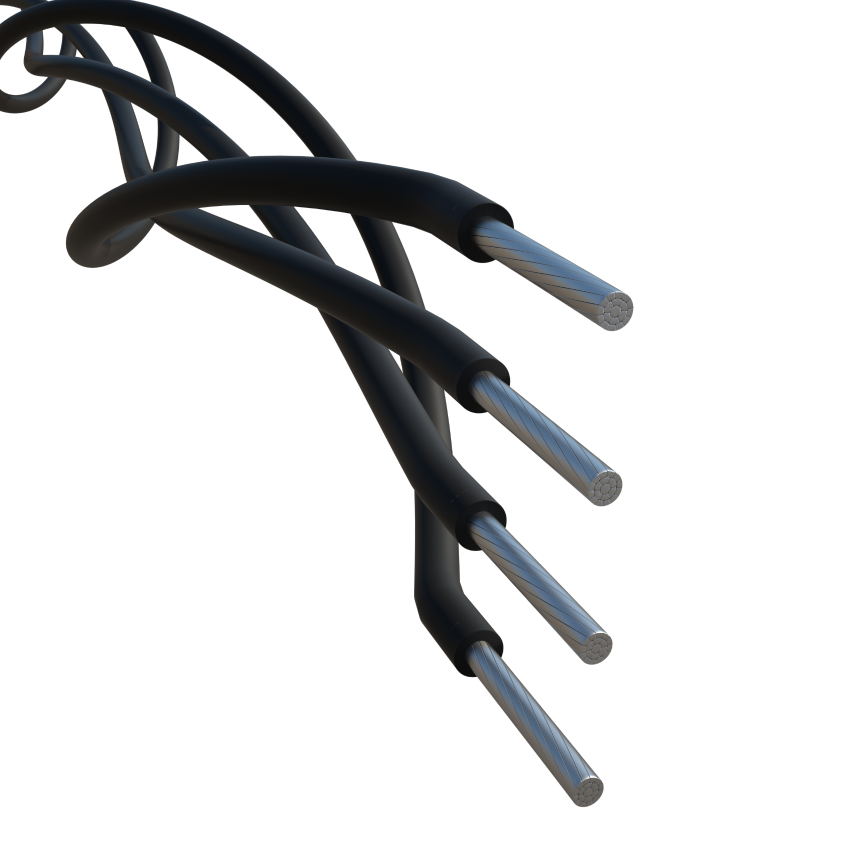

LV Aerial Bundled conductors
LV Aerial Bundled conductors
Generally to NFC 33 - 209 and IEC 60502-1
Read moreEAXT 1*16//SF
Nexans ref. EAXT 010152 - Country ref. EAXT 1*16//SF
- Number of conductors: 1
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal overall diameter: 7.0 mm
- Approximate weight: 62 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Perm current rating in air 30°C: 83 A
EAXT 1*25//SF
Nexans ref. EAXT 010153 - Country ref. EAXT 1*25//SF
- Number of conductors: 1
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal overall diameter: 8.7 mm
- Approximate weight: 96 kg/km
- Max. DC resistance of the conductor at 20°C: 1.2 Ohm/km
- Perm current rating in air 30°C: 111 A
EAXT 1*35//SF
Nexans ref. EAXT 010157 - Country ref. EAXT 1*35//SF
- Number of conductors: 1
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal overall diameter: 10.0 mm
- Approximate weight: 132 kg/km
- Max. DC resistance of the conductor at 20°C: 0.868 Ohm/km
- Perm current rating in air 30°C: 138 A
EAXT 2*16//E
Nexans ref. EAXT 000148 - Country ref. EAXT 2*16//E
- Number of conductors: 2
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal overall diameter: 14.5 mm
- Approximate weight: 127 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Perm current rating in air 30°C: 83 A
EAXT 2*25//E
Nexans ref. EAXT 000151 - Country ref. EAXT 2*25//E
- Number of conductors: 2
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal overall diameter: 17.5 mm
- Approximate weight: 195 kg/km
- Max. DC resistance of the conductor at 20°C: 1.2 Ohm/km
- Perm current rating in air 30°C: 111 A
EAXT 2*35//E
Nexans ref. EAXT 005017 - Country ref. EAXT 2*35//E
- Number of conductors: 2
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal overall diameter: 20.0 mm
- Approximate weight: 268 kg/km
- Max. DC resistance of the conductor at 20°C: 0.868 Ohm/km
- Perm current rating in air 30°C: 138 A
EAXT 3*25//E
Nexans ref. EAXT 000217 - Country ref. EAXT 3*25//E
- Number of conductors: 3
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal overall diameter: 18.5 mm
- Approximate weight: 292 kg/km
- Max. DC resistance of the conductor at 20°C: 1.2 Ohm/km
- Perm current rating in air 30°C: 111 A
EAXT 4*16//AFR
Nexans ref. EAXT 000581 - Country ref. EAXT 4*16//AFR
- Number of conductors: 4
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal overall diameter: 17.0 mm
- Approximate weight: 253 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Perm current rating in air 30°C: 75 A
EAXT 4*16//E
Nexans ref. EAXT 000152 - Country ref. EAXT 4*16//E
- Packaging: Drum (m)
- Number of conductors: 4
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal overall diameter: 17.0 mm
- Approximate weight: 253 kg/km
- Max. DC resistance of the conductor at 20°C: 1.91 Ohm/km
- Perm current rating in air 30°C: 75 A
EAXT 4*25//E NEW
Nexans ref. EAXT 000212 - Country ref. EAXT 4*25//E
- Packaging: Drum (m)
- Number of conductors: 4
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal overall diameter: 21.0 mm
- Approximate weight: 396 kg/km
- Max. DC resistance of the conductor at 20°C: 1.2 Ohm/km
- Perm current rating in air 30°C: 111 A
EAXT 4*35//E
Nexans ref. EAXT 000215 - Country ref. EAXT 4*35//E
- Packaging: Drum (m)
- Number of conductors: 4
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal overall diameter: 25.0 mm
- Approximate weight: 545 kg/km
- Max. DC resistance of the conductor at 20°C: 0.868 Ohm/km
- Perm current rating in air 30°C: 138 A
Description
Description
Standards
-
InternationalIEC 60228; IEC 60502-1
-
NationalNF C33-209
Application
Network distribution bundled conductors are designed for rural and urban areas.
Some important cable characteristics are :
· Ultraviolet radiation resistance,
· Ozone resistance,
· High dielectric strength,
· Light and easy to handle.
Installation
These cables are NOT ALLOWED to be buried, even in conduits.
Description
The bundled conductor cables have aluminum conductors, insulated with XLPE, they
have good durability and thermal resistance.
Electrical characteristics
· Rated voltage : 0.6/1 kV
· Spark test
TEST AT WORKS for ABC cables
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Spark Test for conductors
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions: Insulation: according to IEC 60502-1 Parag. 16.5.2
- Hot Set Test: according to IEC 60502-1 Parag. 16.9
These tests will be carried out on one length during of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order
Tests certificates will be provided by Liban Cables
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
