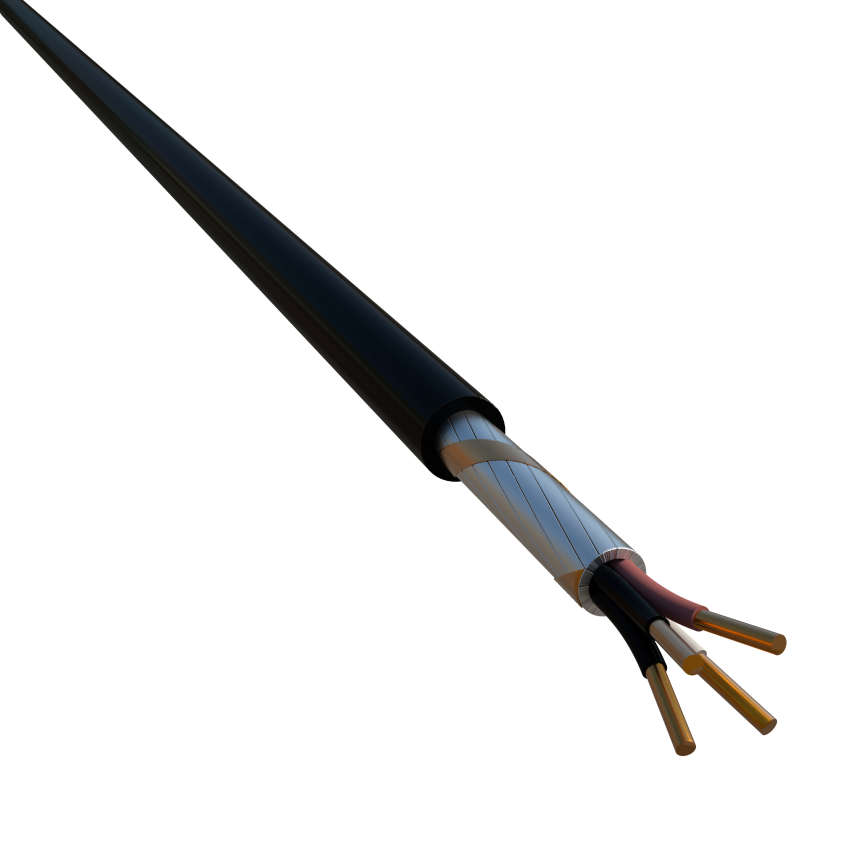

Anti-Theft Power Cable, PVC insulated PVC sheathed (ENYCY)

Anti-Theft Power Cable, PVC insulated PVC sheathed (ENYCY)

Anti-Theft Power Cable, PVC insulated PVC sheathed (ENYCY)

Anti-Theft POWER CABLES 0.6 / 1 KV
Conforming to IEC 60502-1

Read more
Find distributor
Contact us

Products

Actions
Filters

  • products

NYCY 1*10+10

Nexans ref. ENYCY 000205 - Country ref. ENYCY 1*10+10//EDL

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 1
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 10.5 mm



NYCY 1*10+10//EDL-SP

Nexans ref. ENYCY 004951 - Country ref. ENYCY 1*10+10//EDL-SP

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 1
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 11.0 mm



NYCY 1*16+16

Nexans ref. ENYCY 000305 - Country ref. ENYCY 1*16+16//EDL

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 1
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 11.5 mm



NYCY 1*16+16//EDL-SP

Nexans ref. ENYCY 004953 - Country ref. ENYCY 1*16+16//EDL-SP

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 1
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 11.5 mm



NYCY 1*6+6

Nexans ref. ENYCY 000105 - Country ref. ENYCY 1*6+6//EDL

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 1
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 9.3 mm



NYCY 1*6+6//EDL-SP

Nexans ref. ENYCY 004950 - Country ref. ENYCY 1*6+6//EDL-SP

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 1
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 9.3 mm



NYCY 10*2.5+2.5

Nexans ref. ENYCY 001724 - Country ref. ENYCY 10*2.5+2.5

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 10
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 20.0 mm



NYCY 12*2.5+4

Nexans ref. ENYCY..000124 - Country ref. NYCY 12*2.5+4

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 12
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 21.0 mm



NYCY 14*2.5+6

Nexans ref. ENYCY..001337 - Country ref. NYCY 14*2.5+6

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 14
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 22.0 mm



NYCY 19*2.5+6

Nexans ref. ENYCY 001334 - Country ref. ENYCY 19*2.5+6(AR)

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 19
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 24.0 mm



NYCY 3*95+50SM

Nexans ref. ENYCY 000454 - Country ref. ENYCY 3*95+50SM

  • Conductor shape: Shaped
  • Number of cores: 3
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 38.0 mm



NYCY 4*150+70SM

Nexans ref. ENYCY 000872 - Country ref. ENYCY 4*150+70SM

  • Conductor shape: Shaped
  • Number of cores: 4
  • Conductor cross-section: 150 mm²
  • Nominal overall diameter: 50.0 mm



NYCY 4*2.5+2.5

Nexans ref. ENYCY 001403 - Country ref. ENYCY 4*2.5+2.5(AR)

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 4
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 15.0 mm



NYCY 4*35+16

Nexans ref. ENYCY 000426 - Country ref. ENYCY 4*35+16

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 4
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 29.0 mm



NYCY 4*4+4

Nexans ref. ENYCY..000248 - Country ref. NYCY 4*4+4

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 4
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: 17.0 mm



NYCY 4*50+50

Nexans ref. ENYCY 000702 - Country ref. ENYCY 4*50+50

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 4
  • Conductor cross-section: 50 mm²
  • Nominal overall diameter: 34.0 mm



NYCY 4*6+6

Nexans ref. ENYCY..000444 - Country ref. NYCY 4*6+6

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 4
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 18.5 mm



NYCY 4*95+50SM

Nexans ref. ENYCY 000855 - Country ref. ENYCY 4*95+50SM

  • Conductor shape: Shaped
  • Number of cores: 4
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 42.0 mm



NYCY 5*10+10

Nexans ref. ENYCY 001111 - Country ref. ENYCY 5*10+10

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 5
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 22.0 mm



NYCY 5*16+16

Nexans ref. ENYCY 000262 - Country ref. ENYCY 5*16+16

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 5
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 25.0 mm



NYCY 5*2.5+2.5

Nexans ref. ENYCY 000404 - Country ref. ENYCY 5*2.5+2.5

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 5
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 15.5 mm



NYCY 5*35+16

Nexans ref. ENYCY..000427 - Country ref. ENYCY 5*35+16

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 5
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 32.0 mm



NYCY 5*4+4

Nexans ref. ENYCY 000249 - Country ref. ENYCY 5*4+4

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 5
  • Conductor cross-section: 4 mm²
  • Nominal overall diameter: 18.5 mm



NYCY 5*6+6

Nexans ref. ENYCY 000445 - Country ref. ENYCY 5*6+6

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 5
  • Conductor cross-section: 6 mm²
  • Nominal overall diameter: 20.0 mm



NYCY 7*2.5+2.5

Nexans ref. ENYCY 001424 - Country ref. ENYCY 7*2.5+2.5(AR)

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 7
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 16.5 mm



NYCY 7*2.5+2.5

Nexans ref. ENYCY 000424 - Country ref. ENYCY 7*2.5+2.5

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 7
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 16.5 mm



NYCY 9*2.5+2.5

Nexans ref. ENYCY..000800 - Country ref. NYCY 9*2.5+2.5

  • Conductor shape: Circular stranded (RM)
  • Number of cores: 9
  • Conductor cross-section: 2.5 mm²
  • Nominal overall diameter: 20.0 mm



Description

Description

Standards

  • Product
    IEC 60228; IEC 60502-1

Scope

This specification covers circular, single, twin, three or four PVC insulated conductors with a concentric conductor over the assembly of cores, rated 0.6/1KV, type NYCY to IEC 60502-1; for use in aerial, direct burial, conduit, open tray and underground duct installations, These cables offer high resistance to ageing, abrasion, moisture, chemicals, oils and acids and afford protection of phase conductors against external ingress.

Construction

Conductor

Plain, annealed electrolytic copper conductors, solid, circular stranded, or sectoral  stranded  conforming to the applicable requirements of IEC 60228.

Insulation

PVC based thermoplastic material conforming to the applicable requirements of IEC 60502-1.



Assembly

Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an additional layer of extruded thermoplastic material or a Polyester binding tape.



Concentric  Conductor

Bare, plain, annealed electrolytic copper wires are layed over the common covering of cores with a counter helix of copper tape on top.



Sheath

PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.

TEST AT WORKS unarmored multicore

Routine Tests

 - Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2

 - Voltage test acc. to IEC 60502-1  parag. 15.1 & 15.3



Liban Cables will carry out these tests on all the lengths and tests certificates will be provided .



Sample Tests

 - Check of the build - up and color coding of the cable

 - Check of dimensions

            Insulation          :           according to IEC 60502-1                       Parag.  16.5.2

            Oversheath       :           according to IEC 60502-1                       Parag.  16.5.3



These tests will be carried out on one length of each size during each inspection .

Tests certificates will be provided by Liban Cables



Type Tests

Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.

These tests will be carried out on one length of the order .

Tests certificates will be provided by Liban Cables

Cable identification - LV cables ≤ 1KV

INSULATION COLORS:



Neutral

Cond.1

Cond.2

 Cond.3

Cond.4

1 Conductor



BLACK







2 Conductors

GREY

BLACK







3 Conductors



BLACK

RED

BLUE



4 Conductors

GREY

BLACK

RED

BLUE



5 Conductors

GREY

BLACK

RED

BLUE

GREEN



All numbered control cables (6 conductors and above), are insulated with white color, and numbered with black digits



CABLE MARKING OVER THE OUTER JACKET  (by inkjet printing):

LIBAN CABLES     DESCRIPTION     RATED VOLTAGE     SECTION MM2     Year of manufacture     meter marking



Other cable identification requirements are available upon request

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2 IEC 60228
Conductor material
Copper class 2
Insulating material
PVC
Concentric conductor
Copper wires and helical copper tape
Outer sheath
PVC

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Bending factor when laying
10 (xD)
Minimum installation temperature
-15 °C
Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
