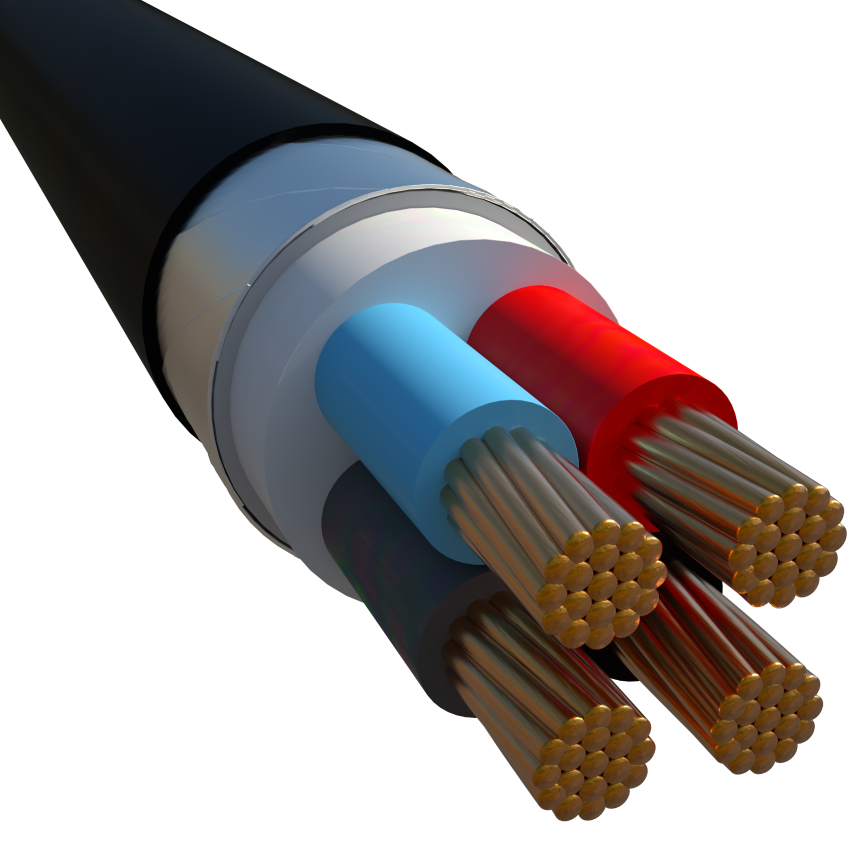

Multicore STA Armored, XLPE insulated, PVC sheathed

Multicore STA Armored, XLPE insulated, PVC sheathed

Multicore STA Armored, XLPE insulated, PVC sheathed

0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1

Read more
Find distributor
Contact us

Products

Actions
Filters

  • products

EXG 3*25

Nexans ref. EXG 003150

  • Number of conductors: 4
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 23.0 mm
  • Approximate weight: 1174 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 127 A
  • Permissible current rating when buried: 141 A



EXG 3*70SM

Nexans ref. EXG 003165 - Country ref. EXG 3*70SM

  • Number of conductors: 3
  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 30.0 mm
  • Approximate weight: 2439 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 242 A
  • Permissible current rating when buried: 252 A



EXG 3*95SM

Nexans ref. EXG 003170 - Country ref. EXG 3*95SM

  • Number of conductors: 3
  • Conductor cross-section: 95 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 34.0 mm
  • Approximate weight: 3224 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 293 A
  • Permissible current rating when buried: 302 A



EXG 4*120SM

Nexans ref. EXG 004175 - Country ref. EXG 4*120SM

  • Number of conductors: 4
  • Conductor cross-section: 120 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 43.0 mm
  • Approximate weight: 5628 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 339 A
  • Permissible current rating when buried: 345 A



EXG 4*150SM

Nexans ref. EXG 004180 - Country ref. EXG 4*150SM

  • Number of conductors: 4
  • Conductor cross-section: 150 mm²
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 48.0 mm
  • Approximate weight: 6820 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 390 A
  • Permissible current rating when buried: 386 A



EXG 4*16

Nexans ref. EXG 004145

  • Number of conductors: 4
  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 21.0 mm
  • Approximate weight: 989 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 96 A
  • Permissible current rating when buried: 111 A



EXG 4*185SM

Nexans ref. EXG 004185 - Country ref. EXG 4*185SM

  • Number of conductors: 4
  • Conductor cross-section: 185 mm²
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 53.0 mm
  • Approximate weight: 8398 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 444 A
  • Permissible current rating when buried: 435 A



EXG 4*240SM

Nexans ref. EXG 004190 - Country ref. EXG 4*240SM

  • Number of conductors: 4
  • Conductor cross-section: 240 mm²
  • Nominal insulation thickness: 1.7 mm
  • Nominal outer sheath thickness: 2.9 mm
  • Nominal outer diameter: 59.0 mm
  • Approximate weight: 10700 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 522 A
  • Permissible current rating when buried: 504 A



EXG 4*25

Nexans ref. EXG 004150 - Country ref. EXG 4*25

  • Number of conductors: 4
  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.0 mm
  • Approximate weight: 1444 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 127 A
  • Permissible current rating when buried: 141 A



EXG 4*35

Nexans ref. EXG 004156 - Country ref. EXG 4*35

  • Number of conductors: 4
  • Conductor cross-section: 35 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 27.0 mm
  • Approximate weight: 1776 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 157 A
  • Permissible current rating when buried: 170 A



EXG 4*50

Nexans ref. EXG 000020 - Country ref. EXG 4*50

  • Number of conductors: 4
  • Conductor cross-section: 50 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 31.0 mm
  • Approximate weight: 2387 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 190 A
  • Permissible current rating when buried: 204 A



EXG 4*70SM

Nexans ref. EXG 004165 - Country ref. EXG 4*70SM

  • Number of conductors: 4
  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 34.0 mm
  • Approximate weight: 3165 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 242 A
  • Permissible current rating when buried: 252 A



EXG 4*95SM

Nexans ref. EXG 004170 - Country ref. EXG 4*95SM

  • Number of conductors: 4
  • Conductor cross-section: 95 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate weight: 4513 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 293 A
  • Permissible current rating when buried: 302 A



EXG 5*10

Nexans ref. EXG 000152 - Country ref. EXG 5*10

  • Number of conductors: 5
  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 20.0 mm
  • Approximate weight: 867 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 71 A
  • Permissible current rating when buried: 88 A



Description

Description

Standards

  • Product
    IEC 60228; IEC 60502-1
  • Test
    IEC 60332-1-2

Scope

This specification covers XLPE insulated, circular or shaped, multicore armoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present.

2.1 Conductor

Plain, annealed electrolytic copper conductors, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.

2.2 Insulation

XLPE thermosetting material, conforming to the applicable requirements of IEC 60502-1.

2.3 Assembly

Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.

2.4 Armour

Galvanized Steel Tape Armor complying to the applicable requirements of IEC 60502-1.

2.5 Sheath

PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.

2.6 TESTS

Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.

TEST AT WORKS according to IEC 60502-1 armored

 Routine Tests

- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2

- Voltage test acc. to IEC 60502-1  parag. 15.1 & 15.3



Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.



Sample Tests

            - Check of the build - up and color coding of the cable

            - Check of dimensions

                        Insulation:         according to IEC 60502-1                       Parag.  16.5.2

                        Armour:             according to IEC 60502-1                       Parag.  16.7

                        Oversheath:      according to IEC 60502-1                       Parag.  16.5.3



These tests will be carried out on one length of each size during each inspection .

Tests certificates will be provided by Liban Cables



Type Tests

Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.

These tests will be carried out on one length of the order .

Tests certificates will be provided by Liban Cables

DRAWING LV STEEL TAPE ARMORED

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
XLPE
Armour type
Galvanized steel tapes
Outer sheath
PVC

Electrical characteristics

Electrical characteristics

Test voltage
3500 V
Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Flame retardant
IEC 60332-1-2
