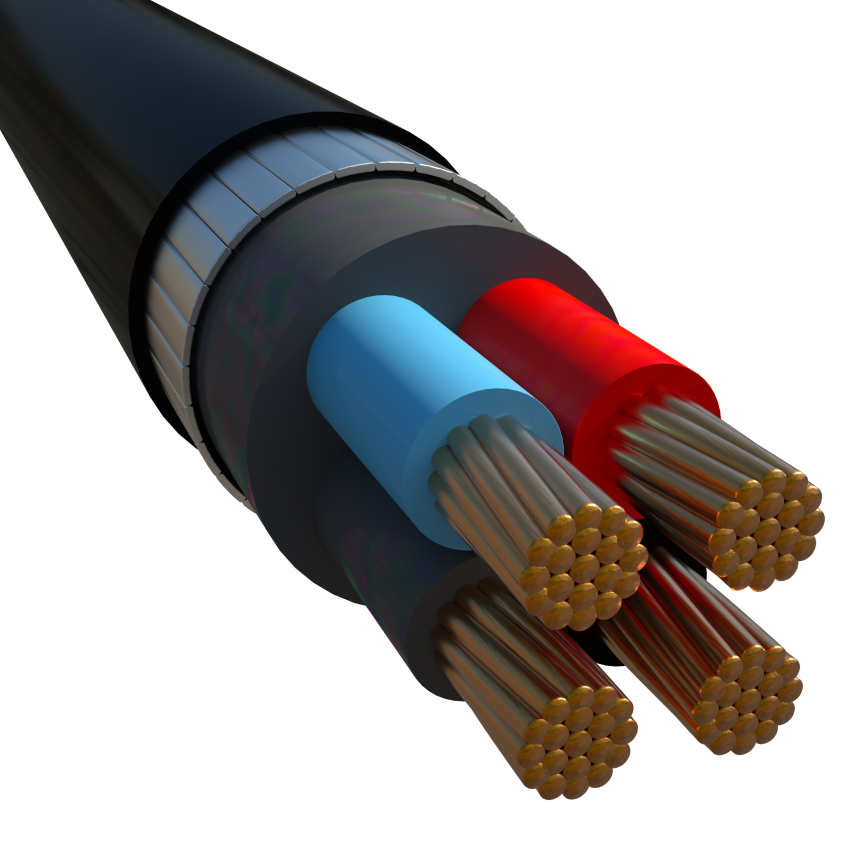

Multicore FSWA Armored, PVC insulated, PVC sheathed
Multicore FSWA Armored, PVC insulated, PVC sheathed
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreENYFGBY 27*1.5
Nexans ref. ENYFGBY001802 - Country ref. ENYFGBY 27*1.5
- Number of cores: 27
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 0.8 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 27.0 mm
- Approximate weight: 1386 kg/km
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 20 A
- Permissible current rating when buried: 30 A
ENYFGBY 4*120SM
Nexans ref. ENYFGBY004961 - Country ref. ENYFGBY 4*120SM//EDL-SP
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal overall diameter: 47.0 mm
- Approximate weight: 6390 kg/km
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 269 A
- Permissible current rating when buried: 311 A
ENYFGBY 4*240SM
Nexans ref. ENYFGBY005962 - Country ref. ENYFGBY 4*240SM//EDL-SP
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal overall diameter: 63.0 mm
- Approximate weight: 11905 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 522 A
- Permissible current rating when buried: 504 A
ENYFGBY 4*70SM
Nexans ref. ENYFGBY004960 - Country ref. ENYFGBY 4*70SM//EDL-SP
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal overall diameter: 37.0 mm
- Approximate weight: 3893 kg/km
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 192 A
- Permissible current rating when buried: 227 A
ENYFGBY 4*95SM
Nexans ref. ENYFGBY 001901 - Country ref. ENYFGBY 4*95SM
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal overall diameter: 42.0 mm
- Approximate weight: 5133 kg/km
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 232 A
- Permissible current rating when buried: 272 A
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2
Scope
This specification covers PVC insulated, multicore armoured cables, rated at 0.6/1 KV to international standard IEC 60502-1 for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present.
Construction
2.1 Conductor
Plain, annealed copper conductors, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.
2.4 Armour
Galvanized Flat Steel Wires, completely covering the assembly of cores; complying to the applicable requirements of IEC 60502-1.
2.5 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
TEST AT WORKS according to IEC 60502-1 armored
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Voltage test acc. to IEC 60502-1 parag. 15.1 & 15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation: according to IEC 60502-1 Parag. 16.5.2
Armour: according to IEC 60502-1 Parag. 16.7
Oversheath: according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables
