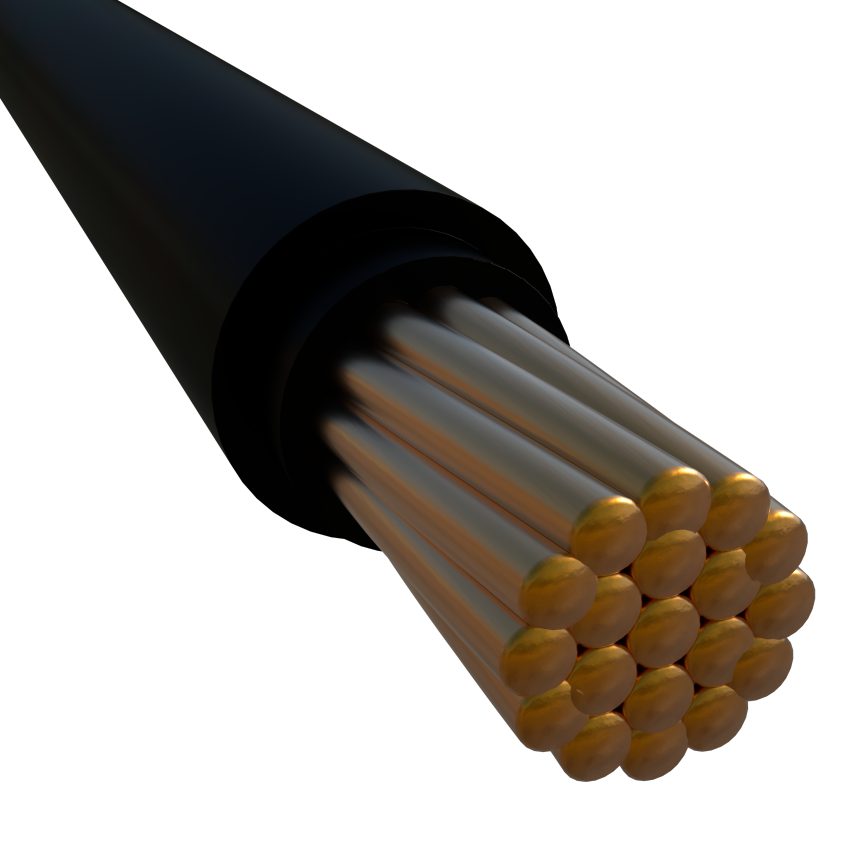

Single core YKXS 0.6/1kV
Single core YKXS 0.6/1kV
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreYKXS 1*120
Nexans ref. EX 000216 - Country ref. EX 1*120//POL
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 1.5 mm
- Nominal outer diameter: 18.0 mm
- Approximate weight: 1178 kg/km
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 379 A
- Permissible current rating when buried: 363 A
YKXS 1*150
Nexans ref. EX 007021 - Country ref. EX 1*150//POL
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 1.6 mm
- Nominal outer diameter: 19.5 mm
- Approximate weight: 1444 kg/km
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 435 A
- Permissible current rating when buried: 405 A
YKXS 1*185
Nexans ref. EX 007022 - Country ref. EX 1*185//POL
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 1.6 mm
- Nominal outer diameter: 22.0 mm
- Approximate weight: 1777 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 496 A
- Permissible current rating when buried: 457 A
YKXS 1*240
Nexans ref. EX 007023 - Country ref. EX 1*240//POL
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 1.7 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 2304 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 584 A
- Permissible current rating when buried: 529 A
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2
Scope
This specification covers XLPE insulated, circular, single core unarmoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, and in cable ducts.
Construction
2.1 Conductor
Plain, annealed electrolytic copper conductors, circular stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
XLPE material, conforming to the applicable requirements of IEC 60502-1.
2.3 Sheath
Special PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.4 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
TEST AT WORKS unarmored single core
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Spark test during insulation
Liban Cables will carry out these tests on all the length and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Oversheath : according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length during of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order.
Tests certificates will be provided by Liban Cables
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
