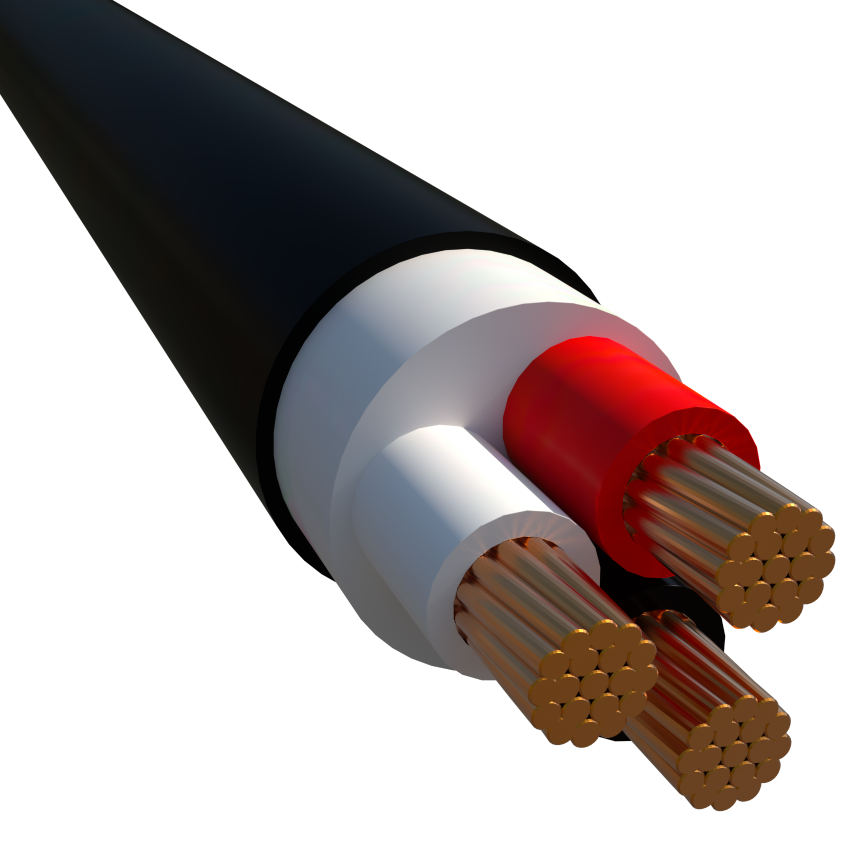

Unarmored, multicore XLPE insulation, LSZH sheathed
Unarmored, multicore XLPE insulation, LSZH sheathed
0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1
Read moreEXU 10*2.5//UV
Nexans ref. EXU 000978 - Country ref. EXU 10*2.5//UV
- Conductor shape: Circular
- Number of conductors: 10
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.5 mm
- Approximate weight: 393 kg/km
- Number of cores: 10
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 46 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 12*1.5//UV
Nexans ref. EXU 000860 - Country ref. EXU 12*1.5//UV
- Conductor shape: Circular
- Number of conductors: 12
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.0 mm
- Approximate weight: 327 kg/km
- Number of cores: 12
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 34 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 12*2.5//UV
Nexans ref. EXU 000865 - Country ref. EXU 12*2.5//UV
- Conductor shape: Circular
- Number of conductors: 12
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 17.0 mm
- Approximate weight: 452 kg/km
- Number of cores: 12
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 46 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 14*1.5(AT)//UV NEW
Nexans ref. EXU 001004 - Country ref. EXU 14*1.5(AT)//UV
- Conductor shape: Circular
- Number of conductors: 14
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.0 mm
- Approximate weight: 371 kg/km
- Number of cores: 14
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 34 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 14*1.5//UV NEW
Nexans ref. EXU 001298 - Country ref. EXU 14*1.5//UV
- Conductor shape: Circular
- Number of conductors: 14
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.0 mm
- Approximate weight: 371 kg/km
- Number of cores: 14
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 34 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 19*1.5//UV
Nexans ref. EXU 000861 - Country ref. EXU 19*1.5//UV
- Conductor shape: Circular
- Number of conductors: 19
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 18.0 mm
- Approximate weight: 475 kg/km
- Number of cores: 19
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 34 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 19*2.5//UV
Nexans ref. EXU 000975 - Country ref. EXU 19*2.5//UV
- Conductor shape: Circular
- Number of conductors: 19
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 20.0 mm
- Approximate weight: 667 kg/km
- Number of cores: 19
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 46 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 2*1.5
Nexans ref. EXU 000562 - Country ref. EXU 2*1.5
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 9.0 mm
- Approximate weight: 118 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 34 A
- Resistant to termites: No
- U.V resistance: No
EXU 2*1.5//UV NEW
Nexans ref. EXU 000855 - Country ref. EXU 2*1.5//UV
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 9.5 mm
- Approximate weight: 118 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 34 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 2*10
Nexans ref. EXU 000547 - Country ref. EXU 2*10
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.0 mm
- Approximate weight: 365 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 80 A
- Permissible current rating when buried: 101 A
- Resistant to termites: No
- U.V resistance: No
EXU 2*10//UV
Nexans ref. EXU 001375 - Country ref. EXU 2*10//UV
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.0 mm
- Approximate weight: 365 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 80 A
- Permissible current rating when buried: 101 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 2*16
Nexans ref. EXU 000560 - Country ref. EXU 2*16
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.0 mm
- Approximate weight: 512 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 107 A
- Permissible current rating when buried: 128 A
- Resistant to termites: No
- U.V resistance: No
EXU 2*16//UV
Nexans ref. EXU 000872 - Country ref. EXU 2*16//UV
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.0 mm
- Approximate weight: 512 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 107 A
- Permissible current rating when buried: 128 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 2*2.5//UV
Nexans ref. EXU 000970 - Country ref. EXU 2*2.5//UV
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 10.0 mm
- Approximate weight: 152 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 46 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 2*240
Nexans ref. EXU 100109 - Country ref. EXU 2*240//UV
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal outer diameter: 48.0 mm
- Approximate weight: 6277 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 584 A
- Permissible current rating when buried: 578 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 2*300
Nexans ref. EXU 100108 - Country ref. EXU 2*300//UV
- Conductor shape: Circular compacted
- Number of conductors: 2
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 53.0 mm
- Approximate weight: 7721 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 665 A
- Permissible current rating when buried: 656 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 2*35
Nexans ref. EXU 000236 - Country ref. EXU 2*35//UV
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 21.0 mm
- Approximate weight: 1032 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 175 A
- Permissible current rating when buried: 195 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 2*4
Nexans ref. EXU 000528 - Country ref. EXU 2*4
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.0 mm
- Approximate weight: 198 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 45 A
- Permissible current rating when buried: 59 A
- Resistant to termites: No
- U.V resistance: No
EXU 2*4//UV
Nexans ref. EXU 000971 - Country ref. EXU 2*4//UV
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.0 mm
- Approximate weight: 198 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 45 A
- Permissible current rating when buried: 59 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 2*6//UV
Nexans ref. EXU 001374 - Country ref. EXU 2*6//UV
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 12.0 mm
- Approximate weight: 256 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 58 A
- Permissible current rating when buried: 74 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 2*70
Nexans ref. EXU 001025 - Country ref. EXU 2*70
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 27.0 mm
- Approximate weight: 1871 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 270 A
- Permissible current rating when buried: 290 A
- Resistant to termites: No
- U.V resistance: No
EXU 2*70
Nexans ref. EXU 001026 - Country ref. EXU 2*70//UV
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 27.0 mm
- Approximate weight: 1900 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 270 A
- Permissible current rating when buried: 290 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 2*95
Nexans ref. EXU 001027 - Country ref. EXU 2*95//UV
- Conductor shape: Circular
- Number of conductors: 2
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 31.0 mm
- Approximate weight: 2539 kg/km
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 327 A
- Permissible current rating when buried: 347 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 24*2.5//UV
Nexans ref. EXU 000976 - Country ref. EXU 24*2.5//UV
- Conductor shape: Circular
- Number of conductors: 24
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 24.0 mm
- Approximate weight: 831 kg/km
- Number of cores: 24
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 46 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*1.5
Nexans ref. EXU 000315 - Country ref. EXU 3*1.5
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 10.0 mm
- Approximate weight: 136 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 22 A
- Permissible current rating when buried: 29 A
- Resistant to termites: No
- U.V resistance: No
EXU 3*1.5(AT)//UV NEW
Nexans ref. EXU 001000 - Country ref. EXU 3*1.5(AT)//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 9.6 mm
- Approximate weight: 135 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 22 A
- Permissible current rating when buried: 29 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 3*1.5//UV NEW
Nexans ref. EXU 001336 - Country ref. EXU 3*1.5//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 9.6 mm
- Approximate weight: 135 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 22 A
- Permissible current rating when buried: 29 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*10
Nexans ref. EXU 001408 - Country ref. EXU 3*10
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.0 mm
- Approximate weight: 451 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
- Resistant to termites: No
- U.V resistance: No
EXU 3*10(AT)//UV
Nexans ref. EXU 001006 - Country ref. EXU 3*10(AT)//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.5 mm
- Approximate weight: 451 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 3*10//UV
Nexans ref. EXU 000852 - Country ref. EXU 3*10//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.5 mm
- Approximate weight: 451 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*120SM
Nexans ref. EXU 001416 - Country ref. EXU 3*120SM
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 34.0 mm
- Approximate weight: 3581 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 339 A
- Permissible current rating when buried: 345 A
- Resistant to termites: No
- U.V resistance: No
EXU 3*16
Nexans ref. EXU 001412 - Country ref. EXU 3*16
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.5 mm
- Approximate weight: 645 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
- Resistant to termites: No
- U.V resistance: No
EXU 3*16//UV
Nexans ref. EXU 001355 - Country ref. EXU 3*16//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.5 mm
- Approximate weight: 646 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*185SM//UV
Nexans ref. EXU 004570 - Country ref. EXU 3*185SM//UV
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 42.0 mm
- Approximate weight: 5533 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 444 A
- Permissible current rating when buried: 435 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*2.5
Nexans ref. EXU 000325 - Country ref. EXU 3*2.5
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.0 mm
- Approximate weight: 176 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
- Resistant to termites: No
- U.V resistance: No
EXU 3*2.5//UV
Nexans ref. EXU 000645 - Country ref. EXU 3*2.5//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 10.5 mm
- Approximate weight: 176 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*240SM//UV
Nexans ref. EXU 000905 - Country ref. EXU 3*240SM//UV
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 47.0 mm
- Approximate weight: 7130 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 444 A
- Permissible current rating when buried: 435 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*25//UV
Nexans ref. EXU 001094 - Country ref. EXU 3*25//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 20.0 mm
- Approximate weight: 982 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 141 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*300SM//UV
Nexans ref. EXU 001905 - Country ref. EXU 3*300SM//UV
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 52.0 mm
- Approximate weight: 9003 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 595 A
- Permissible current rating when buried: 571 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*35//UV
Nexans ref. EXU 021705 - Country ref. EXU 3*35//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 22.0 mm
- Approximate weight: 1152 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*4//UV
Nexans ref. EXU 001354 - Country ref. EXU 3*4//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.5 mm
- Approximate weight: 235 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*50//UV
Nexans ref. EXU 021707 - Country ref. EXU 3*50//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 1551 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 190 A
- Permissible current rating when buried: 204 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*6
Nexans ref. EXU 001310 - Country ref. EXU 3*6
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.0 mm
- Approximate weight: 309 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
- Resistant to termites: No
- U.V resistance: No
EXU 3*6(AT)//UV
Nexans ref. EXU 001005 - Country ref. EXU 3*6(AT)//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.0 mm
- Approximate weight: 309 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 3*6//UV
Nexans ref. EXU 000856 - Country ref. EXU 3*6//UV
- Conductor shape: Circular
- Number of conductors: 3
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.0 mm
- Approximate weight: 309 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*70SM//UV
Nexans ref. EXU 021377 - Country ref. EXU 3*70SM//UV
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 27.0 mm
- Approximate weight: 2107 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 3*95SM
Nexans ref. EXU 000395 - Country ref. EXU 3*95SM
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 30.0 mm
- Approximate weight: 2835 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 293 A
- Permissible current rating when buried: 302 A
- Resistant to termites: No
- U.V resistance: No
EXU 3*95SM//UV
Nexans ref. EXU 001395 - Country ref. EXU 3*95SM//UV
- Conductor shape: Shaped
- Number of conductors: 3
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 30.0 mm
- Approximate weight: 2835 kg/km
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 293 A
- Permissible current rating when buried: 302 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*1.5
Nexans ref. EXU 003190 - Country ref. EXU 4*1.5
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 10.5 mm
- Approximate weight: 158 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 22 A
- Permissible current rating when buried: 29 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*1.5//UV NEW
Nexans ref. EXU 001337 - Country ref. EXU 4*1.5//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 10.5 mm
- Approximate weight: 159 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 22 A
- Permissible current rating when buried: 29 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*10
Nexans ref. EXU 003240 - Country ref. EXU 4*10
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.0 mm
- Approximate weight: 557 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*10(AT)//UV
Nexans ref. EXU 001008 - Country ref. EXU 4*10(AT)//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.0 mm
- Approximate weight: 557 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 4*10//UV
Nexans ref. EXU 001357 - Country ref. EXU 4*10//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 16.0 mm
- Approximate weight: 557 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*120SM
Nexans ref. EXU 003909 - Country ref. EXU 4*120SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 39.0 mm
- Approximate weight: 4788 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 339 A
- Permissible current rating when buried: 345 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*120SM//UV
Nexans ref. EXU 001378 - Country ref. EXU 4*120SM//UV
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 39.0 mm
- Approximate weight: 4789 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 339 A
- Permissible current rating when buried: 345 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*150SM
Nexans ref. EXU 003908 - Country ref. EXU 4*150SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 43.0 mm
- Approximate weight: 5892 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 390 A
- Permissible current rating when buried: 386 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*150SM//UV
Nexans ref. EXU 001344 - Country ref. EXU 4*150SM//UV
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 43.0 mm
- Approximate weight: 5892 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 390 A
- Permissible current rating when buried: 386 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*16
Nexans ref. EXU 003245 - Country ref. EXU 4*16
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 18.0 mm
- Approximate weight: 805 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*16(AT)//UV
Nexans ref. EXU 001009 - Country ref. EXU 4*16(AT)//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 18.0 mm
- Approximate weight: 805 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 4*16//UV
Nexans ref. EXU 001376 - Country ref. EXU 4*16//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 18.0 mm
- Approximate weight: 805 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*185SM
Nexans ref. EXU 003912 - Country ref. EXU 4*185SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 48.0 mm
- Approximate weight: 7269 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 444 A
- Permissible current rating when buried: 435 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*185SM(AT)//UV
Nexans ref. EXU 001022 - Country ref. EXU 4*185SM(AT)//UV
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 48.0 mm
- Approximate weight: 7370 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 444 A
- Permissible current rating when buried: 435 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 4*185SM//UV
Nexans ref. EXU 001361 - Country ref. EXU 4*185SM//UV
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 48.0 mm
- Approximate weight: 7370 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 444 A
- Permissible current rating when buried: 435 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*2.5
Nexans ref. EXU 003207 - Country ref. EXU 4*2.5
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.5 mm
- Approximate weight: 209 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*2.5//UV
Nexans ref. EXU 001338 - Country ref. EXU 4*2.5//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.5 mm
- Approximate weight: 209 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*240SM
Nexans ref. EXU 003928 - Country ref. EXU 4*240SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 54.0 mm
- Approximate weight: 9525 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 522 A
- Permissible current rating when buried: 504 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*240SM//UV
Nexans ref. EXU 001362 - Country ref. EXU 4*240SM//UV
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 54.0 mm
- Approximate weight: 9525 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- Permissible current rating in open air: 522 A
- Permissible current rating when buried: 504 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*25
Nexans ref. EXU 003260 - Country ref. EXU 4*25
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 22.0 mm
- Approximate weight: 1230 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 141 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*25//UV
Nexans ref. EXU 001345 - Country ref. EXU 4*25//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 22.0 mm
- Approximate weight: 1230 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 141 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*300SM
Nexans ref. EXU 000476 - Country ref. EXU 4*300SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 60.0 mm
- Approximate weight: 12024 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 595 A
- Permissible current rating when buried: 571 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*300SM(AT)//UV
Nexans ref. EXU 001023 - Country ref. EXU 4*300SM(AT)//UV
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 60.0 mm
- Approximate weight: 12024 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 595 A
- Permissible current rating when buried: 571 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 4*300SM//UV
Nexans ref. EXU 001363 - Country ref. EXU 4*300SM//UV
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 60.0 mm
- Approximate weight: 12024 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 595 A
- Permissible current rating when buried: 571 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*35
Nexans ref. EXU 003412 - Country ref. EXU 4*35
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 1642 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*35(AT)//UV
Nexans ref. EXU 001010 - Country ref. EXU 4*35(AT)//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 1642 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 4*35//UV
Nexans ref. EXU 001358 - Country ref. EXU 4*35//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 1642 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*4
Nexans ref. EXU 003212 - Country ref. EXU 4*4
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.0 mm
- Approximate weight: 284 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*4//UV
Nexans ref. EXU 001339 - Country ref. EXU 4*4//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 12.5 mm
- Approximate weight: 295 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*50
Nexans ref. EXU 003608 - Country ref. EXU 4*50
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 28.0 mm
- Approximate weight: 2219 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 190 A
- Permissible current rating when buried: 204 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*50(AT)//UV
Nexans ref. EXU 001011 - Country ref. EXU 4*50(AT)//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 28.0 mm
- Approximate weight: 2223 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 190 A
- Permissible current rating when buried: 204 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 4*50//UV
Nexans ref. EXU 001346 - Country ref. EXU 4*50//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 28.0 mm
- Approximate weight: 2223 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 190 A
- Permissible current rating when buried: 204 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*6
Nexans ref. EXU 003230 - Country ref. EXU 4*6
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.0 mm
- Approximate weight: 377 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*6(AT)//UV
Nexans ref. EXU 001007 - Country ref. EXU 4*6(AT)//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.0 mm
- Approximate weight: 377 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 4*6//UV
Nexans ref. EXU 001356 - Country ref. EXU 4*6//UV
- Conductor shape: Circular
- Number of conductors: 4
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.0 mm
- Approximate weight: 377 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*70(AT)SM//UV
Nexans ref. EXU 001020 - Country ref. EXU 4*70SM(AT)//UV
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 30.0 mm
- Approximate weight: 2789 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 4*70SM
Nexans ref. EXU 003514 - Country ref. EXU 4*70SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 31.0 mm
- Approximate weight: 2787 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*70SM//UV
Nexans ref. EXU 001377 - Country ref. EXU 4*70SM//UV
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 30.0 mm
- Approximate weight: 2789 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 4*95SM
Nexans ref. EXU 003516 - Country ref. EXU 4*95SM
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 34.0 mm
- Approximate weight: 3774 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 293 A
- Permissible current rating when buried: 302 A
- Resistant to termites: No
- U.V resistance: No
EXU 4*95SM(AT)//UV
Nexans ref. EXU 001021 - Country ref. EXU 4*95SM(AT)//UV
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 35.0 mm
- Approximate weight: 3774 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 293 A
- Permissible current rating when buried: 302 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 4*95SM//UV
Nexans ref. EXU 001360 - Country ref. EXU 4*95SM//UV
- Conductor shape: Shaped
- Number of conductors: 4
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 35.0 mm
- Approximate weight: 3774 kg/km
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 293 A
- Permissible current rating when buried: 302 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 5*1.5(AT)//UV NEW
Nexans ref. EXU 001001 - Country ref. EXU 5*1.5(AT)//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.0 mm
- Approximate weight: 171 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 22 A
- Permissible current rating when buried: 29 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 5*1.5//UV NEW
Nexans ref. EXU 000858 - Country ref. EXU 5*1.5//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 11.0 mm
- Approximate weight: 171 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 22 A
- Permissible current rating when buried: 29 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 5*10
Nexans ref. EXU 003448 - Country ref. EXU 5*10
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.0 mm
- Approximate weight: 682 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
- Resistant to termites: No
- U.V resistance: No
EXU 5*10(AT)//UV NEW
Nexans ref. EXU 001014 - Country ref. EXU 5*10(AT)//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 17.5 mm
- Approximate weight: 682 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 5*10//UV NEW
Nexans ref. EXU 001342 - Country ref. EXU 5*10//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 17.5 mm
- Approximate weight: 682 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- Permissible current rating in open air: 71 A
- Permissible current rating when buried: 88 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 5*120
Nexans ref. EXU 001220 - Country ref. EXU 5*120
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 46.0 mm
- Approximate weight: 6587 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 339 A
- Permissible current rating when buried: 345 A
- Resistant to termites: No
- U.V resistance: No
EXU 5*150
Nexans ref. EXU 001222 - Country ref. EXU 5*150
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 51.0 mm
- Approximate weight: 8113 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 390 A
- Permissible current rating when buried: 386 A
- Resistant to termites: No
- U.V resistance: No
EXU 5*16
Nexans ref. EXU 003450 - Country ref. EXU 5*16
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 20.0 mm
- Approximate weight: 991 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
- Resistant to termites: No
- U.V resistance: No
EXU 5*16(AT)//UV
Nexans ref. EXU 001016 - Country ref. EXU 5*16(AT)//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 19.5 mm
- Approximate weight: 991 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 5*16//UV
Nexans ref. EXU 001343 - Country ref. EXU 5*16//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 19.5 mm
- Approximate weight: 991 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 96 A
- Permissible current rating when buried: 111 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 5*185
Nexans ref. EXU 001224 - Country ref. EXU 5*185
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 57.0 mm
- Approximate weight: 10071 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- Permissible current rating in open air: 444 A
- Permissible current rating when buried: 435 A
- Resistant to termites: No
- U.V resistance: No
EXU 5*2.5
Nexans ref. EXU 001525 - Country ref. EXU 5*2.5
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 12.0 mm
- Approximate weight: 228 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
- Resistant to termites: No
- U.V resistance: No
EXU 5*2.5//UV
Nexans ref. EXU 000863 - Country ref. EXU 5*2.5//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 12.5 mm
- Approximate weight: 228 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 30 A
- Permissible current rating when buried: 40 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 5*25
Nexans ref. EXU 001204 - Country ref. EXU 5*25
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 24.0 mm
- Approximate weight: 1521 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 141 A
- Resistant to termites: No
- U.V resistance: No
EXU 5*25//UV
Nexans ref. EXU 000867 - Country ref. EXU 5*25//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 24.0 mm
- Approximate weight: 1521 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 127 A
- Permissible current rating when buried: 141 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 5*35
Nexans ref. EXU 001206 - Country ref. EXU 5*35
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 24.0 mm
- Approximate weight: 2015 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
- Resistant to termites: No
- U.V resistance: No
EXU 5*35(AT)//UV
Nexans ref. EXU 001017 - Country ref. EXU 5*35(AT)//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 26.5 mm
- Approximate weight: 1832 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 5*35//UV
Nexans ref. EXU 021706 - Country ref. EXU 5*35//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 26.5 mm
- Approximate weight: 1832 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 157 A
- Permissible current rating when buried: 170 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 5*4
Nexans ref. EXU 003444 - Country ref. EXU 5*4
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.0 mm
- Approximate weight: 343 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
- Resistant to termites: No
- U.V resistance: No
EXU 5*4(AT)//UV
Nexans ref. EXU 001012 - Country ref. EXU 5*4(AT)//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.5 mm
- Approximate weight: 343 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 5*4//UV
Nexans ref. EXU 001340 - Country ref. EXU 5*4//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.5 mm
- Approximate weight: 343 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- Permissible current rating in open air: 40 A
- Permissible current rating when buried: 51 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 5*50//UV
Nexans ref. EXU 000868 - Country ref. EXU 5*50//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 31.0 mm
- Approximate weight: 2731 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 190 A
- Permissible current rating when buried: 204 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 5*6
Nexans ref. EXU 003446 - Country ref. EXU 5*6
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.0 mm
- Approximate weight: 459 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
- Resistant to termites: No
- U.V resistance: No
EXU 5*6(AT)//UV
Nexans ref. EXU 001013 - Country ref. EXU 5*6(AT)//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.5 mm
- Approximate weight: 459 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 5*6//UV
Nexans ref. EXU 001341 - Country ref. EXU 5*6//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 15.5 mm
- Approximate weight: 459 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- Permissible current rating in open air: 52 A
- Permissible current rating when buried: 64 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 5*70
Nexans ref. EXU 001215 - Country ref. EXU 5*70
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 36.0 mm
- Approximate weight: 3846 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
- Resistant to termites: No
- U.V resistance: No
EXU 5*70(AT)//UV
Nexans ref. EXU 001018 - Country ref. EXU 5*70(AT)//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 36.0 mm
- Approximate weight: 3846 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 242 A
- Permissible current rating when buried: 252 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 5*95(AT)//UV NEW
Nexans ref. EXU 001019 - Country ref. EXU 5*95(AT)//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 41.0 mm
- Approximate weight: 5225 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 293 A
- Permissible current rating when buried: 302 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 5*95//UV NEW
Nexans ref. EXU 000869 - Country ref. EXU 5*95//UV
- Conductor shape: Circular
- Number of conductors: 5
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 41.0 mm
- Approximate weight: 5225 kg/km
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 293 A
- Permissible current rating when buried: 302 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 7*1.5(AT)//UV NEW
Nexans ref. EXU 001002 - Country ref. EXU 7*1.5(AT)//UV
- Conductor shape: Circular
- Number of conductors: 7
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 12.0 mm
- Approximate weight: 210 kg/km
- Number of cores: 7
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 34 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 7*1.5//UV NEW
Nexans ref. EXU 000859 - Country ref. EXU 7*1.5//UV
- Conductor shape: Circular
- Number of conductors: 7
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 12.0 mm
- Approximate weight: 210 kg/km
- Number of cores: 7
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 34 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 7*2.5//UV
Nexans ref. EXU 000864 - Country ref. EXU 7*2.5//UV
- Conductor shape: Circular
- Number of conductors: 7
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 13.5 mm
- Approximate weight: 285 kg/km
- Number of cores: 7
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Permissible current rating in open air: 33 A
- Permissible current rating when buried: 46 A
- Resistant to termites: No
- U.V resistance: Yes
EXU 9*1.5(AT)//UV NEW
Nexans ref. EXU 001003 - Country ref. EXU 9*1.5(AT)//UV
- Conductor shape: Circular
- Number of conductors: 9
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.5 mm
- Approximate weight: 276 kg/km
- Number of cores: 9
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 34 A
- Resistant to termites: Yes
- U.V resistance: Yes
EXU 9*1.5//UV NEW
Nexans ref. EXU 003198 - Country ref. EXU 9*1.5//UV
- Conductor shape: Circular
- Number of conductors: 9
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal outer diameter: 14.5 mm
- Approximate weight: 276 kg/km
- Number of cores: 9
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Permissible current rating in open air: 24 A
- Permissible current rating when buried: 34 A
- Resistant to termites: No
- U.V resistance: Yes
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2
Scope
This specification covers XLPE insulated, circular or shaped, multicore unarmoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, and in cable ducts.
Construction
2.1 Conductor
Plain, annealed electrolytic copper conductors, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
XLPE material, conforming to the applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material.
2.4 Sheath
LSZH compound conforming to the applicable requirements of IEC 60502-1.
2.5 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
TEST AT WORKS unarmored multicore
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Voltage test acc. to IEC 60502-1 parag. 15.1 & 15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided .
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Oversheath : according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables
Cable identification - LV cables ≤ 1KV
INSULATION COLORS:
|
|
Neutral |
Cond.1 |
Cond.2 |
Cond.3 |
Cond.4 |
|
1 Conductor |
|
BLACK |
|
|
|
|
2 Conductors |
GREY |
BLACK |
|
|
|
|
3 Conductors |
|
BLACK |
RED |
BLUE |
|
|
4 Conductors |
GREY |
BLACK |
RED |
BLUE |
|
|
5 Conductors |
GREY |
BLACK |
RED |
BLUE |
GREEN |
All numbered control cables (6 conductors and above), are insulated with white color, and numbered with black digits
CABLE MARKING OVER THE OUTER JACKET (by inkjet printing):
LIBAN CABLES DESCRIPTION RATED VOLTAGE SECTION MM2 Year of manufacture meter marking
Other cable identification requirements are available upon request
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2 IEC 60228
Conductor material
Copper
Insulation
XLPE
Outer sheath
LSF
With Green/Yellow core
No
Electrical characteristics
Electrical characteristics
Test voltage
3500 V
Rated Voltage Uo/U (Um)
0,6/1 kV
Usage characteristics
Usage characteristics
Operating temperature, range
-25 ... 55 °C
Installation temperature, range
-5 ... 50 °C
Ambient air temperature
30 °C
Maximum operating temperature
90 °C
Short-circuit max. conductor temperature
250 °C
Flame retardant
IEC 60332-1-2
Resources
Resources
Find a Distributor
Waiting…
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
