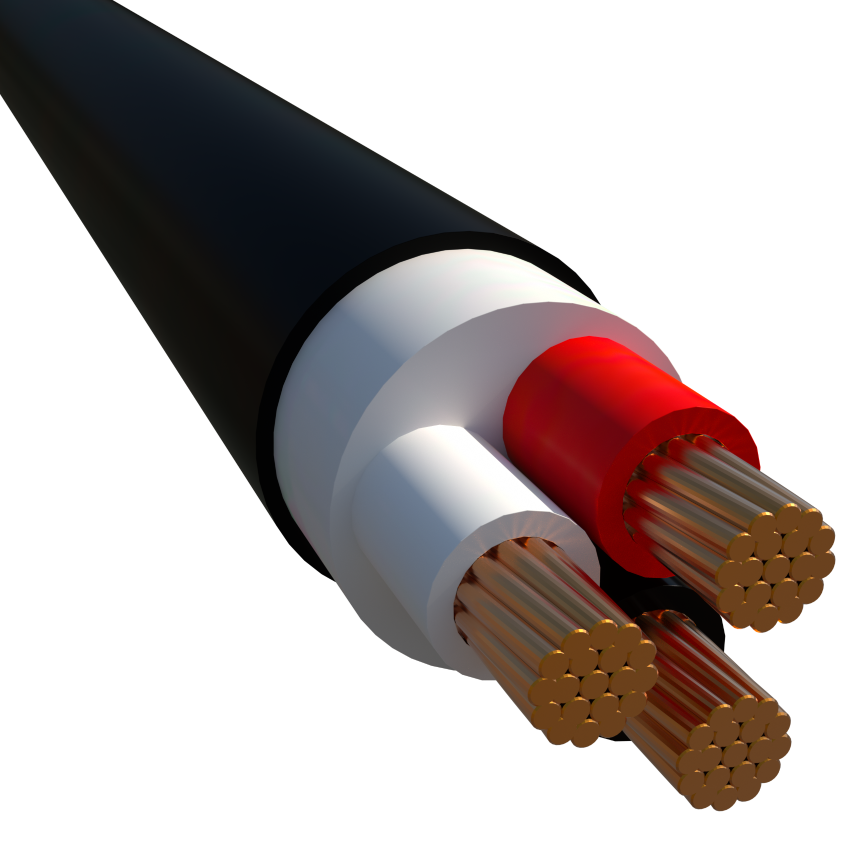

Unarmored, multicore PVC insulation, PVC sheathed

Unarmored, multicore PVC insulation, PVC sheathed

Unarmored, multicore PVC insulation, PVC sheathed

0.6 / 1 KV POWER CABLES Conforming to IEC 60502-1

Read more
Find distributor
Contact us

Products

Actions
Filters

  • products

E(NYY) 10*1.5

Nexans ref. E(NYY) 001626 - Country ref. E(NYY) 10*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 10
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 15.5 mm
  • Maximum outer diameter: 16.59 mm
  • Approximate weight: 335 kg/km
  • Number of cores: 10
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 10*2.5

Nexans ref. E(NYY) 001724 - Country ref. E(NYY) 001724

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 10
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 17.5 mm
  • Maximum outer diameter: 18.73 mm
  • Approximate weight: 448 kg/km
  • Number of cores: 10
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 26 A
  • Permissible current rating when buried: 41 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 12*1.5

Nexans ref. E(NYY) 001609 - Country ref. E(NYY) 12*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 12
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.48 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 16.0 mm
  • Maximum outer diameter: 17.2 mm
  • Approximate weight: 384 kg/km
  • Number of cores: 12
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 12*1.5RE

Nexans ref. E(NYY) 001653 - Country ref. E(NYY) 12*1.5RE//5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular solid (RE)
  • Number of conductors: 12
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 16.0 mm
  • Maximum outer diameter: 17.12 mm
  • Approximate weight: 367 kg/km
  • Number of cores: 12
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 85 °C



E(NYY) 12*2.5

Nexans ref. E(NYY) 001722 - Country ref. E(NYY) 12*2.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 12
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 18.0 mm
  • Maximum outer diameter: 19.26 mm
  • Approximate weight: 520 kg/km
  • Number of cores: 12
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 26 A
  • Permissible current rating when buried: 41 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 16*2.5

Nexans ref. E(NYY) 001729 - Country ref. E(NYY) 16*2.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 16
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 20.0 mm
  • Maximum outer diameter: 19.26 mm
  • Approximate weight: 668 kg/km
  • Number of cores: 16
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 26 A
  • Permissible current rating when buried: 41 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 19*1.5 NEW

Nexans ref. E(NYY) 001611 - Country ref. E(NYY) 19*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 19
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.48 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 19.0 mm
  • Maximum outer diameter: 20.33 mm
  • Approximate weight: 563 kg/km
  • Number of cores: 19
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 19*2.5

Nexans ref. E(NYY) 001733 - Country ref. E(NYY) 19*2.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 19
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 21.0 mm
  • Maximum outer diameter: 22.47 mm
  • Approximate weight: 771 kg/km
  • Number of cores: 19
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 26 A
  • Permissible current rating when buried: 41 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*1.5

Nexans ref. E(NYY).000710 - Country ref. E(NYY) 2*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 9.5 mm
  • Maximum outer diameter: 10.16 mm
  • Approximate weight: 123 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*1.5RE

Nexans ref. E(NYY) 000705 - Country ref. E(NYY) 2*1.5RE

  • Conductor flexibility: Class 1 acc. to IEC 60228
  • Conductor shape: Circular solid (RE)
  • Number of conductors: 2
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 9.5 mm
  • Maximum outer diameter: 10.16 mm
  • Approximate weight: 125 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*10

Nexans ref. E(NYY) 000740 - Country ref. E(NYY) 2*10

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 10 mm²
  • Conductor diameter: 1.4 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 15.0 mm
  • Maximum outer diameter: 16.05 mm
  • Approximate weight: 394 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 63 A
  • Permissible current rating when buried: 91 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*120

Nexans ref. E(NYY) 002094 - Country ref. E(NYY) 2*120

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 36.0 mm
  • Maximum outer diameter: 38.5 mm
  • Approximate weight: 3202 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 299 A
  • Permissible current rating when buried: 358 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*150

Nexans ref. E(NYY) 002096 - Country ref. E(NYY) 2*150

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 1.8 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 40.0 mm
  • Maximum outer diameter: 41.2 mm
  • Approximate weight: 3929 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 344 A
  • Permissible current rating when buried: 400 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*16

Nexans ref. E(NYY) 000745 - Country ref. E(NYY) 2*16

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 16 mm²
  • Conductor diameter: 4.7 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 17.0 mm
  • Maximum outer diameter: 18.19 mm
  • Approximate weight: 539 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 85 A
  • Permissible current rating when buried: 115 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*16//MAT-1

Nexans ref. E(NYY) 000711 - Country ref. E(NYY) 2*16//MAT-1

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 16 mm²
  • Conductor diameter: 4.7 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 17.0 mm
  • Maximum outer diameter: 18.19 mm
  • Approximate weight: 539 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 85 A
  • Permissible current rating when buried: 115 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*2.5

Nexans ref. E(NYY) 000720 - Country ref. E(NYY) 2*2.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 10.5 mm
  • Maximum outer diameter: 11.23 mm
  • Approximate weight: 156 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 26 A
  • Permissible current rating when buried: 41 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*240

Nexans ref. E(NYY) 002097 - Country ref. E(NYY) 2*240

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Round, stranded
  • Number of conductors: 2
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 50.0 mm
  • Maximum outer diameter: 53.5 mm
  • Approximate weight: 6239 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 461 A
  • Permissible current rating when buried: 522 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*25

Nexans ref. E(NYY) 000750 - Country ref. E(NYY) 2*25

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 25 mm²
  • Conductor diameter: 5.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 20.0 mm
  • Maximum outer diameter: 21.4 mm
  • Approximate weight: 801 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 112 A
  • Permissible current rating when buried: 146 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*35

Nexans ref. E(NYY) 000752 - Country ref. E(NYY) 2*35

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 23.0 mm
  • Maximum outer diameter: 24.61 mm
  • Approximate weight: 1039 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 138 A
  • Permissible current rating when buried: 176 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*4

Nexans ref. E(NYY) 000730 - Country ref. E(NYY) 2*4

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 4 mm²
  • Conductor diameter: 2.4 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 12.5 mm
  • Maximum outer diameter: 13.38 mm
  • Approximate weight: 225 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 35 A
  • Permissible current rating when buried: 53 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*50

Nexans ref. E(NYY) 000760 - Country ref. E(NYY) 2*50

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 28.0 mm
  • Maximum outer diameter: 29.96 mm
  • Approximate weight: 1495 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 168 A
  • Permissible current rating when buried: 212 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*6 NEW

Nexans ref. E(NYY) 000735 - Country ref. E(NYY) 2*6

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 6 mm²
  • Conductor diameter: 3.0 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 13.5 mm
  • Maximum outer diameter: 14.45 mm
  • Approximate weight: 283 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 46 A
  • Permissible current rating when buried: 67 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*6//MAT-1

Nexans ref. E(NYY) 000704 - Country ref. E(NYY) 2*6//MAT-1

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 6 mm²
  • Conductor diameter: 3.0 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 13.5 mm
  • Maximum outer diameter: 14.45 mm
  • Approximate weight: 283 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 46 A
  • Permissible current rating when buried: 67 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 2*70

Nexans ref. E(NYY) 000765 - Country ref. E(NYY) 2*70

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 2
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 29.0 mm
  • Maximum outer diameter: 31.03 mm
  • Approximate weight: 1900 kg/km
  • Number of cores: 2
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 213 A
  • Permissible current rating when buried: 261 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 20*1.5

Nexans ref. E(NYY) 001623 - Country ref. E(NYY) 20*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 20
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 20.0 mm
  • Maximum outer diameter: 21.4 mm
  • Approximate weight: 601 kg/km
  • Number of cores: 20
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 24*1.5

Nexans ref. E(NYY) 001633 - Country ref. E(NYY) 24*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 24
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 22.0 mm
  • Maximum outer diameter: 23.54 mm
  • Approximate weight: 700 kg/km
  • Number of cores: 24
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 27*1.5

Nexans ref. E(NYY) 001638 - Country ref. E(NYY) 27*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 27
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 22.0 mm
  • Maximum outer diameter: 23.54 mm
  • Approximate weight: 766 kg/km
  • Number of cores: 27
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 27*2.5

Nexans ref. E(NYY) 001748 - Country ref. E(NYY) 27*2.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 27
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.0 mm
  • Maximum outer diameter: 26.75 mm
  • Approximate weight: 1064 kg/km
  • Number of cores: 27
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 26 A
  • Permissible current rating when buried: 41 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*1

Nexans ref. E(NYY) 001845 - Country ref. E(NYY) 3*1

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 1 mm²
  • Conductor diameter: 1.1 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 9.5 mm
  • Maximum outer diameter: 10.16 mm
  • Approximate weight: 125 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 16 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*1.5

Nexans ref. E(NYY) 000910 - Country ref. E(NYY) 3*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 10.0 mm
  • Maximum outer diameter: 10.7 mm
  • Approximate weight: 145 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 26 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*1.5RE

Nexans ref. E(NYY) 000905 - Country ref. E(NYY) 000760

  • Conductor flexibility: Class 1 acc. to IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 10.5 mm
  • Maximum outer diameter: 11.23 mm
  • Approximate weight: 141 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 26 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*10

Nexans ref. E(NYY) 000940 - Country ref. E(NYY) 3*10

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 10 mm²
  • Conductor diameter: 1.4 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 16.0 mm
  • Maximum outer diameter: 17.12 mm
  • Approximate weight: 495 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 57 A
  • Permissible current rating when buried: 79 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*120SM

Nexans ref. E(NYY) 000975 - Country ref. E(NYY) 3*120SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 3
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 36.0 mm
  • Maximum outer diameter: 38.52 mm
  • Approximate weight: 3815 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 269 A
  • Permissible current rating when buried: 311 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*150SM

Nexans ref. E(NYY) 000980 - Country ref. E(NYY) 3*150SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 3
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 1.8 mm
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 42.0 mm
  • Maximum outer diameter: 44.94 mm
  • Approximate weight: 4706 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 309 A
  • Permissible current rating when buried: 348 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*16

Nexans ref. E(NYY) 000945 - Country ref. E(NYY) 3*16

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 16 mm²
  • Conductor diameter: 4.7 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 17.5 mm
  • Maximum outer diameter: 18.73 mm
  • Approximate weight: 690 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 76 A
  • Permissible current rating when buried: 100 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*185SM

Nexans ref. E(NYY) 000985 - Country ref. E(NYY) 3*185SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 3
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 15.9 mm
  • Nominal insulation thickness: 2.0 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 44.0 mm
  • Maximum outer diameter: 47.08 mm
  • Approximate weight: 5791 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 392 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*2.5

Nexans ref. E(NYY) 000920 - Country ref. E(NYY) 3*2.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 11.0 mm
  • Maximum outer diameter: 11.77 mm
  • Approximate weight: 194 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 24 A
  • Permissible current rating when buried: 36 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*2.5RE

Nexans ref. E(NYY) 000915 - Country ref. E(NYY) 3*2.5RE

  • Conductor flexibility: Class 1 acc. to IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.76 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 10.5 mm
  • Maximum outer diameter: - mm
  • Approximate weight: 179 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 24 A
  • Permissible current rating when buried: 36 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*240SM

Nexans ref. E(NYY) 000990 - Country ref. E(NYY) 3*240SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 3
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 50.0 mm
  • Maximum outer diameter: 53.5 mm
  • Approximate weight: 7556 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 415 A
  • Permissible current rating when buried: 454 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*25

Nexans ref. E(NYY) 000950 - Country ref. E(NYY) 3*25

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 25 mm²
  • Conductor diameter: 5.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 21.0 mm
  • Maximum outer diameter: 22.47 mm
  • Approximate weight: 1035 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 127 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*300SM

Nexans ref. E(NYY) 000995 - Country ref. E(NYY) 3*300SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 3
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 2.4 mm
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 55.0 mm
  • Maximum outer diameter: 58.85 mm
  • Approximate weight: 9509 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 472 A
  • Permissible current rating when buried: 516 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*35

Nexans ref. E(NYY) 000956 - Country ref. E(NYY) 3*35

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 23.0 mm
  • Maximum outer diameter: 24.61 mm
  • Approximate weight: 1238 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 125 A
  • Permissible current rating when buried: 153 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*4

Nexans ref. E(NYY) 000930 - Country ref. E(NYY) 3*4

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 4 mm²
  • Conductor diameter: 2.4 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 13.0 mm
  • Maximum outer diameter: 13.91 mm
  • Approximate weight: 272 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 32 A
  • Permissible current rating when buried: 46 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*50

Nexans ref. E(NYY) 000293 - Country ref. E(NYY) 3*50

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 27.0 mm
  • Maximum outer diameter: 28.89 mm
  • Approximate weight: 1684 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 151 A
  • Permissible current rating when buried: 184 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*6

Nexans ref. E(NYY) 000935 - Country ref. E(NYY) 3*6

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 3
  • Conductor cross-section: 6 mm²
  • Conductor diameter: 3.0 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 14.0 mm
  • Maximum outer diameter: 14.98 mm
  • Approximate weight: 349 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 41 A
  • Permissible current rating when buried: 58 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*70SM

Nexans ref. E(NYY) 000965 - Country ref. E(NYY) 3*70SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 3
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 28.5 mm
  • Maximum outer diameter: 30.5 mm
  • Approximate weight: 2247 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 192 A
  • Permissible current rating when buried: 227 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 3*95SM

Nexans ref. E(NYY) 000970 - Country ref. E(NYY) 3*95SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 3
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 33.0 mm
  • Maximum outer diameter: 35.31 mm
  • Approximate weight: 3064 kg/km
  • Number of cores: 3
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 232 A
  • Permissible current rating when buried: 272 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 30*1.5

Nexans ref. EYR 006435 - Country ref. E(NYY) 30*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 30
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 28.0 mm
  • Maximum outer diameter: 40.6 mm
  • Approximate weight: 1580 kg/km
  • Number of cores: 30
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 37*2.5

Nexans ref. E(NYY) 001750 - Country ref. E(NYY) 37*2.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 37
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 28.0 mm
  • Maximum outer diameter: 29.96 mm
  • Approximate weight: 1413 kg/km
  • Number of cores: 37
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 26 A
  • Permissible current rating when buried: 41 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 39*1.5

Nexans ref. E(NYY) 001629 - Country ref. E(NYY) 39*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 39
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 26.0 mm
  • Maximum outer diameter: 27.82 mm
  • Approximate weight: 1079 kg/km
  • Number of cores: 39
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*1.5

Nexans ref. E(NYY) 001010 - Country ref. E(NYY) 4*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.48 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 11.0 mm
  • Maximum outer diameter: 11.77 mm
  • Approximate weight: 180 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 27 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*10

Nexans ref. E(NYY) 001040 - Country ref. E(NYY) 4*10

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 10 mm²
  • Conductor diameter: 1.4 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 17.5 mm
  • Maximum outer diameter: 18.73 mm
  • Approximate weight: 616 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 57 A
  • Permissible current rating when buried: 79 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*120SM

Nexans ref. E(NYY) 001075 - Country ref. E(NYY) 4*120SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 41.0 mm
  • Maximum outer diameter: 43.87 mm
  • Approximate weight: 5083 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 269 A
  • Permissible current rating when buried: 311 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*150SM

Nexans ref. E(NYY) 001080 - Country ref. E(NYY) 4*150SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 1.8 mm
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 45.0 mm
  • Maximum outer diameter: 48.15 mm
  • Approximate weight: 6238 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 309 A
  • Permissible current rating when buried: 348 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*16

Nexans ref. E(NYY) 001045 - Country ref. E(NYY) 4*16

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 16 mm²
  • Conductor diameter: 4.7 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 19.5 mm
  • Maximum outer diameter: 20.86 mm
  • Approximate weight: 865 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 76 A
  • Permissible current rating when buried: 100 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*185SM

Nexans ref. E(NYY) 001085 - Country ref. E(NYY) 4*185SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 15.9 mm
  • Nominal insulation thickness: 2.0 mm
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 50.0 mm
  • Maximum outer diameter: 53.5 mm
  • Approximate weight: 7781 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 392 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*2.5

Nexans ref. E(NYY) 001020 - Country ref. E(NYY) 4*2.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 12.0 mm
  • Maximum outer diameter: 12.84 mm
  • Approximate weight: 234 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 24 A
  • Permissible current rating when buried: 36 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*2.5RE

Nexans ref. E(NYY) 001015 - Country ref. E(NYY) 4*2.5RE

  • Conductor flexibility: Solid class 1
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 12.0 mm
  • Maximum outer diameter: 12.84 mm
  • Approximate weight: 216 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 24 A
  • Permissible current rating when buried: 36 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*240SM

Nexans ref. E(NYY) 001090 - Country ref. E(NYY) 4*240SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal outer sheath thickness: 2.9 mm
  • Nominal outer diameter: 57.0 mm
  • Maximum outer diameter: 60.99 mm
  • Approximate weight: 10056 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 415 A
  • Permissible current rating when buried: 454 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*25

Nexans ref. E(NYY) 001050 - Country ref. E(NYY) 4*25

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 25 mm²
  • Conductor diameter: 5.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 24.0 mm
  • Maximum outer diameter: 25.68 mm
  • Approximate weight: 1306 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 127 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*300SM

Nexans ref. E(NYY) 001095 - Country ref. E(NYY) 4*300SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Nominal insulation thickness: 2.4 mm
  • Nominal outer sheath thickness: 3.1 mm
  • Nominal outer diameter: 63.0 mm
  • Maximum outer diameter: 67.41 mm
  • Approximate weight: 12675 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Permissible current rating in open air: 472 A
  • Permissible current rating when buried: 516 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*35

Nexans ref. E(NYY) 004350 - Country ref. E(NYY) 4*35

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 26.0 mm
  • Maximum outer diameter: 27.82 mm
  • Approximate weight: 1616 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 125 A
  • Permissible current rating when buried: 153 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*4

Nexans ref. E(NYY) 001030 - Country ref. E(NYY) 4*4

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 4 mm²
  • Conductor diameter: 2.4 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 14.0 mm
  • Maximum outer diameter: 14.98 mm
  • Approximate weight: 331 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 32 A
  • Permissible current rating when buried: 46 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*400

Nexans ref. E(NYY) 000451 - Country ref. E(NYY) 4*400

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Nominal insulation thickness: 2.6 mm
  • Nominal outer sheath thickness: 3.4 mm
  • Nominal outer diameter: 75.0 mm
  • Maximum outer diameter: 80.25 mm
  • Approximate weight: 16271 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Permissible current rating in open air: 551 A
  • Permissible current rating when buried: 592 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*50

Nexans ref. E(NYY) 000235 - Country ref. E(NYY) 4*50

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 30.0 mm
  • Maximum outer diameter: 32.1 mm
  • Approximate weight: 2223 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 151 A
  • Permissible current rating when buried: 184 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*500

Nexans ref. E(NYY) 000457 - Country ref. E(NYY) 4*500

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Nominal insulation thickness: 2.8 mm
  • Nominal outer sheath thickness: 3.6 mm
  • Nominal outer diameter: 83.0 mm
  • Maximum outer diameter: 88.81 mm
  • Approximate weight: 20694 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • Permissible current rating in open air: 687 A
  • Permissible current rating when buried: 703 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*6

Nexans ref. E(NYY) 001035 - Country ref. E(NYY) 4*6

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 6 mm²
  • Conductor diameter: 3.0 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 15.5 mm
  • Maximum outer diameter: 16.59 mm
  • Approximate weight: 429 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 41 A
  • Permissible current rating when buried: 58 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*70SM

Nexans ref. E(NYY) 001065 - Country ref. E(NYY) 4*70SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 32.0 mm
  • Maximum outer diameter: 34.24 mm
  • Approximate weight: 2976 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 192 A
  • Permissible current rating when buried: 227 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 4*95SM

Nexans ref. E(NYY) 001070 - Country ref. E(NYY) 4*95SM

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 37.0 mm
  • Maximum outer diameter: 39.59 mm
  • Approximate weight: 4061 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 232 A
  • Permissible current rating when buried: 272 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*1.5

Nexans ref. E(NYY) 001605 - Country ref. E(NYY) 5*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 11.5 mm
  • Maximum outer diameter: 12.3 mm
  • Approximate weight: 194 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 26 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*1.5//C

Nexans ref. E(NYY) 001604 - Country ref. E(NYY) 001015

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 11.5 mm
  • Maximum outer diameter: 12.3 mm
  • Approximate weight: 194 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 18 A
  • Permissible current rating when buried: 26 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*10

Nexans ref. E(NYY) 001830 - Country ref. E(NYY) 5*10

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 10 mm²
  • Conductor diameter: 1.4 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 19.0 mm
  • Maximum outer diameter: 20.33 mm
  • Approximate weight: 748 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 57 A
  • Permissible current rating when buried: 79 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*10RE

Nexans ref. E(NYY) 001831 - Country ref. E(NYY) 5*10RE

  • Conductor flexibility: Class 1 acc. to IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 10 mm²
  • Conductor diameter: 3.6 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 18.5 mm
  • Maximum outer diameter: - mm
  • Approximate weight: 741 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 57 A
  • Permissible current rating when buried: 79 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*150

Nexans ref. E(NYY) 001866 - Country ref. E(NYY) 5*150

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Round, stranded
  • Number of conductors: 5
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.2 mm
  • Nominal insulation thickness: 1.8 mm
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 53.0 mm
  • Maximum outer diameter: 57.0 mm
  • Approximate weight: 7828 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Permissible current rating in open air: 309 A
  • Permissible current rating when buried: 348 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*16

Nexans ref. E(NYY) 001840 - Country ref. E(NYY) 5*16

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 16 mm²
  • Conductor diameter: 4.7 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 22.0 mm
  • Maximum outer diameter: 23.54 mm
  • Approximate weight: 1001 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 76 A
  • Permissible current rating when buried: 100 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*185

Nexans ref. E(NYY) 001867 - Country ref. E(NYY) 5*185

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Round, stranded
  • Number of conductors: 5
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 15.9 mm
  • Nominal insulation thickness: 2.0 mm
  • Nominal outer sheath thickness: 2.9 mm
  • Nominal outer diameter: 59.0 mm
  • Maximum outer diameter: 63.0 mm
  • Approximate weight: 9713 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Permissible current rating in open air: 353 A
  • Permissible current rating when buried: 392 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*2.5

Nexans ref. E(NYY) 000391 - Country ref. E(NYY) 5*2.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 13.0 mm
  • Maximum outer diameter: 13.91 mm
  • Approximate weight: 254 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 24 A
  • Permissible current rating when buried: 36 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*2.5//C

Nexans ref. E(NYY) 000392 - Country ref. E(NYY) 5*2.5//C

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 13.0 mm
  • Maximum outer diameter: 13.91 mm
  • Approximate weight: 254 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 24 A
  • Permissible current rating when buried: 36 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*240

Nexans ref. E(NYY) 001868 - Country ref. E(NYY) 5*240

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Round, stranded
  • Number of conductors: 5
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal outer sheath thickness: 3.1 mm
  • Nominal outer diameter: 66.0 mm
  • Maximum outer diameter: 71.0 mm
  • Approximate weight: 12568 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 415 A
  • Permissible current rating when buried: 454 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*25

Nexans ref. E(NYY) 001850 - Country ref. E(NYY) 5*25

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 25 mm²
  • Conductor diameter: 5.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.5 mm
  • Maximum outer diameter: 27.29 mm
  • Approximate weight: 1505 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 127 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*35

Nexans ref. E(NYY) 001851 - Country ref. E(NYY) 5*35

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 29.0 mm
  • Maximum outer diameter: 31.03 mm
  • Approximate weight: 2003 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 125 A
  • Permissible current rating when buried: 153 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*4

Nexans ref. E(NYY) 001810 - Country ref. E(NYY) 5*4

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 4 mm²
  • Conductor diameter: 2.4 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 15.5 mm
  • Maximum outer diameter: 16.59 mm
  • Approximate weight: 397 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Permissible current rating in open air: 32 A
  • Permissible current rating when buried: 46 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*50

Nexans ref. E(NYY) 001856 - Country ref. E(NYY) 5*50

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 34.0 mm
  • Maximum outer diameter: 36.38 mm
  • Approximate weight: 2711 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 151 A
  • Permissible current rating when buried: 184 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*6

Nexans ref. E(NYY) 001820 - Country ref. E(NYY) 5*6

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 6 mm²
  • Conductor diameter: 3.0 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 17.0 mm
  • Maximum outer diameter: 18.19 mm
  • Approximate weight: 519 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 41 A
  • Permissible current rating when buried: 58 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*70

Nexans ref. E(NYY) 001857 - Country ref. E(NYY) 5*70

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 38.0 mm
  • Maximum outer diameter: 40.66 mm
  • Approximate weight: 2711 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 192 A
  • Permissible current rating when buried: 227 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 5*95

Nexans ref. E(NYY) 001858 - Country ref. E(NYY) 5*95

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 5
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 44.0 mm
  • Maximum outer diameter: 47.08 mm
  • Approximate weight: 5155 kg/km
  • Number of cores: 5
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 232 A
  • Permissible current rating when buried: 272 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 6*1.5

Nexans ref. E(NYY) 001606 - Country ref. E(NYY) 6*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 6
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 12.5 mm
  • Maximum outer diameter: 13.38 mm
  • Approximate weight: 224 kg/km
  • Number of cores: 6
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 6*2.5

Nexans ref. E(NYY) 001709 - Country ref. E(NYY) 6*2.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 6
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 14.0 mm
  • Maximum outer diameter: 14.98 mm
  • Approximate weight: 298 kg/km
  • Number of cores: 6
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 26 A
  • Permissible current rating when buried: 41 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 7*1.5

Nexans ref. E(NYY) 001607 - Country ref. E(NYY) 7*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 7
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.48 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 12.5 mm
  • Maximum outer diameter: 13.38 mm
  • Approximate weight: 244 kg/km
  • Number of cores: 7
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 7*2.5

Nexans ref. E(NYY) 001712 - Country ref. E(NYY) 7*2.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 7
  • Conductor cross-section: 2.5 mm²
  • Conductor diameter: 1.9 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 14.0 mm
  • Maximum outer diameter: 14.98 mm
  • Approximate weight: 323 kg/km
  • Number of cores: 7
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Permissible current rating in open air: 26 A
  • Permissible current rating when buried: 41 A
  • Max. conductor temperature in service: 70 °C



E(NYY) 8*1.5

Nexans ref. E(NYY) 001608 - Country ref. E(NYY) 8*1.5

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 8
  • Conductor cross-section: 1.5 mm²
  • Conductor diameter: 1.7 mm
  • Nominal insulation thickness: 0.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 13.5 mm
  • Maximum outer diameter: 14.45 mm
  • Approximate weight: 279 kg/km
  • Number of cores: 8
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Permissible current rating in open air: 20 A
  • Permissible current rating when buried: 30 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*10//EDL-SP

Nexans ref. ENYY 004970 - Country ref. ENYY 4*10//EDL-SP

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 10 mm²
  • Conductor diameter: 1.4 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 17.5 mm
  • Maximum outer diameter: 18.73 mm
  • Approximate weight: 616 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Permissible current rating in open air: 57 A
  • Permissible current rating when buried: 79 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*120SM//EDL-SP

Nexans ref. ENYY 001975 - Country ref. ENYY 4*120SM//EDL-SP

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 41.0 mm
  • Maximum outer diameter: 43.87 mm
  • Approximate weight: 5083 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 269 A
  • Permissible current rating when buried: 311 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*120SM//KAD

Nexans ref. ENYY 000959 - Country ref. ENYY 4*120SM//KAD

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.9 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 41.0 mm
  • Maximum outer diameter: 43.87 mm
  • Approximate weight: 5083 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Permissible current rating in open air: 269 A
  • Permissible current rating when buried: 311 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*16 //EDL-SP

Nexans ref. ENYY 004971 - Country ref. ENYY 4*16 //EDL-SP

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 16 mm²
  • Conductor diameter: 4.7 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 19.5 mm
  • Maximum outer diameter: 20.86 mm
  • Approximate weight: 865 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Permissible current rating in open air: 76 A
  • Permissible current rating when buried: 100 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*240SM//EDL-SP

Nexans ref. ENYY 004976 - Country ref. ENYY 4*240SM//EDL-SP

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 18.1 mm
  • Nominal insulation thickness: 2.2 mm
  • Nominal outer sheath thickness: 2.9 mm
  • Nominal outer diameter: 57.0 mm
  • Maximum outer diameter: 60.99 mm
  • Approximate weight: 10056 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Permissible current rating in open air: 415 A
  • Permissible current rating when buried: 454 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*25//EDL-SP

Nexans ref. ENYY 004972 - Country ref. ENYY 004972

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 25 mm²
  • Conductor diameter: 5.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 24.0 mm
  • Maximum outer diameter: 25.68 mm
  • Approximate weight: 1306 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Permissible current rating in open air: 101 A
  • Permissible current rating when buried: 127 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*35SM//EDL-SP

Nexans ref. ENYY 004732 - Country ref. ENYY 004972

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Sector-shaped
  • Number of conductors: 4
  • Conductor cross-section: 35 mm²
  • Conductor diameter: 6.9 mm
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 25.0 mm
  • Maximum outer diameter: 26.75 mm
  • Approximate weight: 1610 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Permissible current rating in open air: 125 A
  • Permissible current rating when buried: 153 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*50SM//EDL-SP

Nexans ref. ENYY 004973 - Country ref. ENYY 4*50SM//EDL-SP

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Sector-shaped
  • Number of conductors: 4
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal outer diameter: 30.0 mm
  • Maximum outer diameter: 32.1 mm
  • Approximate weight: 2223 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Permissible current rating in open air: 151 A
  • Permissible current rating when buried: 184 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*6

Nexans ref. ENYY 004969 - Country ref. ENYY 4*6//EDL-SP

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Circular
  • Number of conductors: 4
  • Conductor cross-section: 6 mm²
  • Conductor diameter: 3.0 mm
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal outer diameter: 15.5 mm
  • Maximum outer diameter: 16.59 mm
  • Approximate weight: 429 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Permissible current rating in open air: 41 A
  • Permissible current rating when buried: 58 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*70SM//EDL-SP

Nexans ref. ENYY 004974 - Country ref. ENYY 4*70SM//EDL-SP

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 32.0 mm
  • Maximum outer diameter: 34.24 mm
  • Approximate weight: 2976 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 192 A
  • Permissible current rating when buried: 227 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*70SM//KAD

Nexans ref. ENYY 000949 - Country ref. ENYY 4*70SM//KAD

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.7 mm
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 32.0 mm
  • Maximum outer diameter: 34.24 mm
  • Approximate weight: 2976 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Permissible current rating in open air: 192 A
  • Permissible current rating when buried: 227 A
  • Max. conductor temperature in service: 70 °C



ENYY 4*95SM//KAD

Nexans ref. ENYY 000954 - Country ref. ENYY 4*95SM//KAD

  • Conductor flexibility: Class 2 IEC 60228
  • Conductor shape: Shaped
  • Number of conductors: 4
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.4 mm
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 37.0 mm
  • Maximum outer diameter: 39.59 mm
  • Approximate weight: 4061 kg/km
  • Number of cores: 4
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Permissible current rating in open air: 232 A
  • Permissible current rating when buried: 272 A
  • Max. conductor temperature in service: 70 °C



Description

Description

Standards

  • Product
    IEC 60228; IEC 60502-1
  • Test
    IEC 60332-1-2

Scope

This specification covers PVC insulated, circular or shaped, multicore unarmoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, and in cable ducts.

Construction

2.1 Conductor

Plain, annealed electrolytic copper conductors, circular stranded, or sectoral stranded, conforming to the applicable requirements of IEC 60228.

2.2 Insulation

PVC material, conforming to the applicable requirements of IEC 60502-1.

2.3 Assembly

Insulated conductors are laid up, filled where necessary with non-hygroscopic material.

2.4 Sheath

PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.

2.5 TESTS

Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.

TEST AT WORKS unarmored multicore

Routine Tests

 - Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2

 - Voltage test acc. to IEC 60502-1  parag. 15.1 & 15.3



Liban Cables will carry out these tests on all the lengths and tests certificates will be provided .



Sample Tests

 - Check of the build - up and color coding of the cable

 - Check of dimensions

            Insulation          :           according to IEC 60502-1                       Parag.  16.5.2

            Oversheath       :           according to IEC 60502-1                       Parag.  16.5.3



These tests will be carried out on one length of each size during each inspection .

Tests certificates will be provided by Liban Cables



Type Tests

Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.

These tests will be carried out on one length of the order .

Tests certificates will be provided by Liban Cables

Cable identification - LV cables ≤ 1KV

INSULATION COLORS:



Neutral

Cond.1

Cond.2

 Cond.3

Cond.4

1 Conductor



BLACK







2 Conductors

GREY

BLACK







3 Conductors



BLACK

RED

BLUE



4 Conductors

GREY

BLACK

RED

BLUE



5 Conductors

GREY

BLACK

RED

BLUE

GREEN



All numbered control cables (6 conductors and above), are insulated with white color, and numbered with black digits



CABLE MARKING OVER THE OUTER JACKET  (by inkjet printing):

LIBAN CABLES     DESCRIPTION     RATED VOLTAGE     SECTION MM2     Year of manufacture     meter marking



Other cable identification requirements are available upon request

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
PVC
Outer sheath
PVC
With Green/Yellow core
No

Electrical characteristics

Electrical characteristics

Thermal soil resistivity wet zone
1 °K.m/W
Test voltage
3500 V
Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Laying depth, center of system
600 mm
Operating temperature, range
-15 ... 55 °C
Installation temperature, range
-5 ... 50 °C
Ambient air temperature
30 °C
Short-circuit max. conductor temperature
160 °C
Flame retardant
IEC 60332-1-2

Resources

Resources

Find a Distributor

Waiting…

No items found

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
