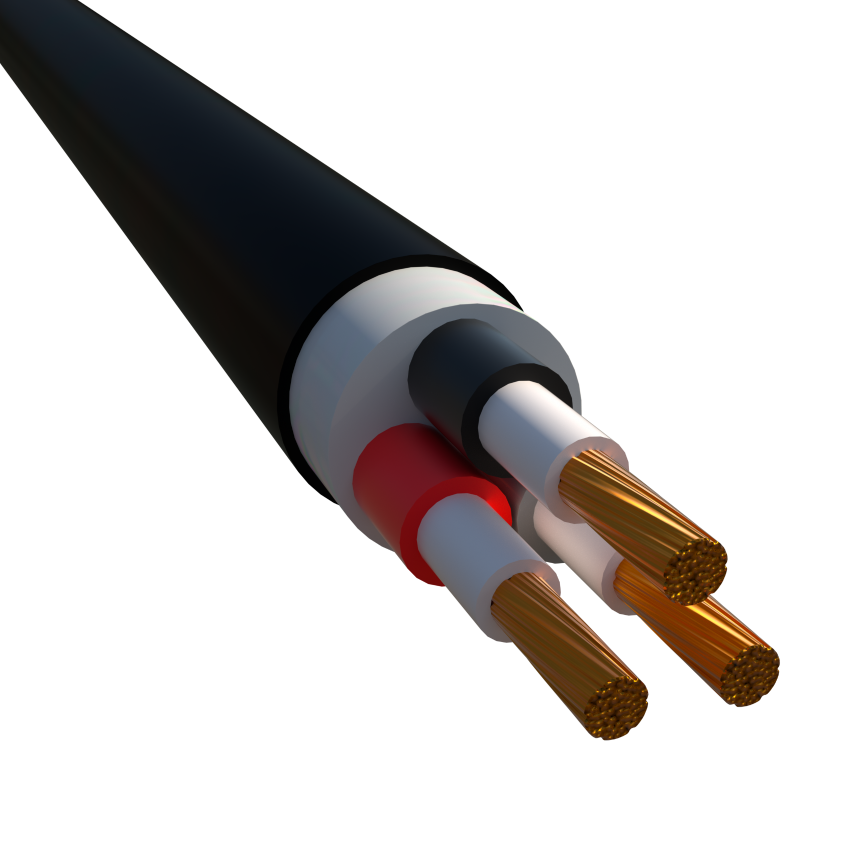

SFB2XU: Unarmored , Halogen free, Low smoke, Fire resistant cables
SFB2XU: Unarmored , Halogen free, Low smoke, Fire resistant cables
0.6/1kv POWER CABLES conforming to IEC 60502-1 for construction
• Fire Resistant:
According to BS 6387 Cat C ( 950̊C for 3 hours )
For BS 6387 CAT WZ (Refer to our available type test)
SFB2XU 2*1.5
Nexans ref. SFB2XU 000901 - Country ref. SFB2XU 2*1.5//CEI-UV
- Number of conductors: 2
- Colour: Orange
- Conductor cross-section: 1.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 12.5 mm
- Approximate weight: 201 kg/km
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- U.V resistance: Yes
SFB2XU 2*185
Nexans ref. SFB2XU 003099 - Country ref. SFB2XU 2*185//CEI
- Number of conductors: 2
- Colour: Orange
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal overall diameter: 46.0 mm
- Approximate weight: 5211 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- U.V resistance:
SFB2XU 2*2.5
Nexans ref. SFB2XU 000477 - Country ref. SFB2XU 2*2.5//CEI-UV
- Number of conductors: 2
- Colour: Orange
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 13.0 mm
- Approximate weight: 242 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- U.V resistance: Yes
SFB2XU 2*6
Nexans ref. SFB2XU 000042 - Country ref. SFB2XU 2*6//CEI-B
- Number of conductors: 2
- Colour: Orange
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 15.0 mm
- Approximate weight: 355 kg/km
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- U.V resistance: Yes
SFB2XU 3*185
Nexans ref. SFB2XU 003098 - Country ref. SFB2XU 3*185//CEI
- Number of conductors: 3
- Colour: Orange
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal overall diameter: 49.0 mm
- Approximate weight: 6748 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- U.V resistance:
SFB2XU 3*2.5
Nexans ref. SFB2XU 000803 - Country ref. SFB2XU 3*2.5//CEI-B
- Number of conductors: 3
- Colour: Orange
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 14.0 mm
- Approximate weight: 259 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- U.V resistance: -
SFB2XU 3*2.5//CEI-UV
Nexans ref. SFB2XU 000827 - Country ref. SFB2XU 3*2.5//CEI-UV
- Number of conductors: 3
- Colour: Black
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 14.0 mm
- Approximate weight: 272 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- U.V resistance: Yes
SFB2XU 3*4
Nexans ref. SFB2XU 000319 - Country ref. SFB2XU 3*4//CEI-UV
- Number of conductors: 3
- Colour: Orange
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 15.0 mm
- Approximate weight: 327 kg/km
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- U.V resistance: Yes
SFB2XU 3*4
Nexans ref. SFB2XU 000806 - Country ref. SFB2XU 3*4//CEI-B
- Number of conductors: 3
- Colour: Orange
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 15.0 mm
- Approximate weight: 341 kg/km
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- U.V resistance: Yes
SFB2XU 4*10
Nexans ref. SFB2XU 000809 - Country ref. SFB2XU 4*10//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 19.0 mm
- Approximate weight: 671 kg/km
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- U.V resistance: -
SFB2XU 4*10
Nexans ref. SFB2XU 000256 - Country ref. SFB2XU 4*10//CEI-UV
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 19.0 mm
- Approximate weight: 671 kg/km
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
- U.V resistance: Yes
SFB2XU 4*120//CEI-UV
Nexans ref. SFB2XU 000267 - Country ref. SFB2XU 4*120//CEI-UV
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal overall diameter: 45.0 mm
- Approximate weight: 5704 kg/km
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- U.V resistance: Yes
SFB2XU 4*150
Nexans ref. SFB2XU 000817 - Country ref. SFB2XU 4*150//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal overall diameter: 49.0 mm
- Approximate weight: 6922 kg/km
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- U.V resistance: -
SFB2XU 4*150//CEI-UV
Nexans ref. SFB2XU 000269 - Country ref. SFB2XU 4*150//CEI-UV
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal overall diameter: 49.0 mm
- Approximate weight: 6922 kg/km
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- U.V resistance: Yes
SFB2XU 4*16
Nexans ref. SFB2XU 000810 - Country ref. SFB2XU 4*16//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 22.0 mm
- Approximate weight: 942 kg/km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- U.V resistance: -
SFB2XU 4*16
Nexans ref. SFB2XU 000257 - Country ref. SFB2XU 4*16//CEI-UV
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 22.0 mm
- Approximate weight: 942 kg/km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- U.V resistance: Yes
SFB2XU 4*185
Nexans ref. SFB2XU 000818 - Country ref. SFB2XU 4*185//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal overall diameter: 55.0 mm
- Approximate weight: 8551 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- U.V resistance: -
SFB2XU 4*185//CEI-UV
Nexans ref. SFB2XU 000047 - Country ref. SFB2XU 4*185//CEI-UV
- Number of conductors: 4
- Colour: Black
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal overall diameter: 55.0 mm
- Approximate weight: 8645 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- U.V resistance: Yes
SFB2XU 4*2.5
Nexans ref. SFB2XU 005025 - Country ref. SFB2XU 4*2.5
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 15.0 mm
- Approximate weight: 319 kg/km
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- U.V resistance: Yes
SFB2XU 4*240
Nexans ref. SFB2XU 000271 - Country ref. SFB2XU 4*240//CEI-UV
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal overall diameter: 61.0 mm
- Approximate weight: 11001 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- U.V resistance: Yes
SFB2XU 4*240
Nexans ref. SFB2XU 000819 - Country ref. SFB2XU 4*240//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal overall diameter: 61.0 mm
- Approximate weight: 11108 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- U.V resistance:
SFB2XU 4*25
Nexans ref. SFB2XU 000811 - Country ref. SFB2XU 4*25//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 26.0 mm
- Approximate weight: 1395 kg/km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- U.V resistance: -
SFB2XU 4*25
Nexans ref. SFB2XU 001811 - Country ref. SFB2XU 4*25//CEI-UV
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 26.0 mm
- Approximate weight: 1395 kg/km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- U.V resistance: Yes
SFB2XU 4*300
Nexans ref. SFB2XU 000826 - Country ref. SFB2XU 4*300//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal overall diameter: 67.0 mm
- Approximate weight: 13814 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- U.V resistance:
SFB2XU 4*35
Nexans ref. SFB2XU 000812 - Country ref. SFB2XU 4*35//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 27.5 mm
- Approximate weight: 1857 kg/km
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- U.V resistance:
SFB2XU 4*35//CEI-UV
Nexans ref. SFB2XU 000258 - Country ref. SFB2XU 4*35//CEI-UV
- Number of conductors: 4
- Colour: Black
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 28.0 mm
- Approximate weight: 1857 kg/km
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- U.V resistance: Yes
SFB2XU 4*4
Nexans ref. SFB2XU 001807 - Country ref. SFB2XU 4*4//CEI-UV
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 16.0 mm
- Approximate weight: 388 kg/km
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- U.V resistance: Yes
SFB2XU 4*4
Nexans ref. SFB2XU 000807 - Country ref. SFB2XU 4*4//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 16.0 mm
- Approximate weight: 403 kg/km
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
- U.V resistance:
SFB2XU 4*50
Nexans ref. SFB2XU 000813 - Country ref. SFB2XU 4*50//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal overall diameter: 32.0 mm
- Approximate weight: 2436 kg/km
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- U.V resistance: -
SFB2XU 4*50
Nexans ref. SFB2XU 000259 - Country ref. SFB2XU 4*50//CEI-UV
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal overall diameter: 32.0 mm
- Approximate weight: 2436 kg/km
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- U.V resistance: Yes
SFB2XU 4*6
Nexans ref. SFB2XU 000045 - Country ref. SFB2XU 4*6//CEI-UV
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 17.0 mm
- Approximate weight: 480 kg/km
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- U.V resistance: Yes
SFB2XU 4*6
Nexans ref. SFB2XU 000808 - Country ref. SFB2XU 4*6//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 17.0 mm
- Approximate weight: 496 kg/km
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
- U.V resistance:
SFB2XU 4*70
Nexans ref. SFB2XU 000814 - Country ref. SFB2XU 4*70//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal overall diameter: 36.0 mm
- Approximate weight: 3374 kg/km
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- U.V resistance: -
SFB2XU 4*70//CEI-UV
Nexans ref. SFB2XU 000261 - Country ref. SFB2XU 4*70//CEI-UV
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal overall diameter: 36.0 mm
- Approximate weight: 3374 kg/km
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- U.V resistance: Yes
SFB2XU 4*95
Nexans ref. SFB2XU 000815 - Country ref. SFB2XU 4*95//CEI-B
- Number of conductors: 4
- Colour: Orange
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal overall diameter: 40.0 mm
- Approximate weight: 4502 kg/km
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- U.V resistance: -
SFB2XU 5*16
Nexans ref. SFB2XU 001293 - Country ref. SFB2XU 5*16//CEI-B
- Number of conductors: 5
- Colour: Black
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 23.0 mm
- Approximate weight: 1181 kg/km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- U.V resistance:
SFB2XU 5*16
Nexans ref. SFB2XU 002293 - Country ref. SFB2XU 5*16//CEI-UV
- Number of conductors: 5
- Colour: Black
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.7 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 23.0 mm
- Approximate weight: 1181 kg/km
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- U.V resistance: Yes
SFB2XU 5*25//CEI-UV
Nexans ref. SFB2XU 100294 - Country ref. SFB2XU 5*25//CEI-UV
- Number of conductors: 5
- Colour: Black
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Nominal outer sheath thickness: 1.8 mm
- Nominal overall diameter: 27.0 mm
- Approximate weight: 1748 kg/km
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- U.V resistance:
Description
Description
Standards
-
ProductIEC 60502-1
-
TestBS 6387 CWZ
CONSTRUCTION
1- Conductors
stranded-class 2 according to IEC 60228
2 - Mica tape
MICA/GLASS FIRE RESISTANT TAPE
3 - Insulation
XLPE
4 - Outer sheath
Halogen free compound, Color as per customer requirement
5 - Packing
Drums can be wooden or steel
TEST AT WORKS ACCORDING TO BS 6387 CAT CWZ
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Voltage test acc. to IEC 60502-1 parag.15.1& 15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
Check of the build - up and color coding of the cable
Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Oversheath : according to IEC 60502-1 Parag. 16.5.3
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1
Fire resistance test according to BS 6387 CAT C (950°C for 3hrs) :
- 500V between conductors
These tests will be carried out on one length of the order.
Tests certificates will be provided by Liban Cables.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Find a Distributor
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
