Single core, Unarmored , Halogen free, Low smoke, Fire resistant cables

Single core, Unarmored , Halogen free, Low smoke, Fire resistant cables Single core, Unarmored , Halogen free, Low smoke, Fire resistant cables

Single core, Unarmored , Halogen free, Low smoke, Fire resistant cables

0.6/1kv POWER CABLES conforming to IEC 60502-1 & IEC 60331

Read more
Find distributor
Contact us

Products

Actions
Filters

  • products

SFC2XU 1*10

Nexans ref. SFC2XU 000171 - Country ref. SFC2XU 1*10//CEI-1

  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 8.5 mm
  • Approximate weight: 146 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km



SFC2XU 1*120

Nexans ref. SFC2XU 001330 - Country ref. SFC2XU 1*120

  • Conductor cross-section: 120 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.5 mm
  • Nominal overall diameter: 18.5 mm
  • Approximate weight: 1220 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km



SFC2XU 1*150

Nexans ref. SFC2XU 000181 - Country ref. SFC2XU 1*150//CEI-1

  • Conductor cross-section: 150 mm²
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 21.0 mm
  • Approximate weight: 1498 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km



SFC2XU 1*16

Nexans ref. SFC2XU 000172 - Country ref. SFC2XU 1*16//CEI-1

  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 9.3 mm
  • Approximate weight: 206 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km



SFC2XU 1*2.5

Nexans ref. SFC2XU 000168 - Country ref. SFC2XU 1*2.5//CEI-1

  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 6.5 mm
  • Approximate weight: 66 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km



SFC2XU 1*25

Nexans ref. SFC2XU 000173 - Country ref. SFC2XU 1*25//CEI-1

  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 11.0 mm
  • Approximate weight: 304 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km



SFC2XU 1*35

Nexans ref. SFC2XU 000174 - Country ref. SFC2XU 1*35//CEI-1

  • Conductor cross-section: 35 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 12.0 mm
  • Approximate weight: 396 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km



SFC2XU 1*4//CEI-1

Nexans ref. SFC2XU 000169 - Country ref. SFC2XU 1*4//CEI-1

  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 7.0 mm
  • Approximate weight: 84 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km



SFC2XU 1*400//CEI-1

Nexans ref. SFC2XU 001400 - Country ref. SFC2XU 1*400//CEI-1

  • Conductor cross-section: 400 mm²
  • Nominal insulation thickness: 2.0 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal overall diameter: 32.0 mm
  • Approximate weight: 3778 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km



SFC2XU 1*50

Nexans ref. SFC2XU 000176 - Country ref. SFC2XU 1*50//CEI-1

  • Conductor cross-section: 50 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 13.5 mm
  • Approximate weight: 524 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km



SFC2XU 1*6

Nexans ref. SFC2XU.001508 - Country ref. SFC2XU 1*6//CEI-1

  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 7.6 mm
  • Approximate weight: 104 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km



SFC2XU 1*630

Nexans ref. SFC2XU 002999 - Country ref. SFC2XU 1*630//CEI-1

  • Conductor cross-section: 630 mm²
  • Nominal insulation thickness: 2.4 mm
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal overall diameter: 40.0 mm
  • Approximate weight: 6235 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km



SFC2XU 1*70

Nexans ref. SFC2XU 000177 - Country ref. SFC2XU 1*70//CEI-1

  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 15.0 mm
  • Approximate weight: 724 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km



Description

Description

Standards

  • Product
    IEC 60502-1
  • Test
    IEC 60331

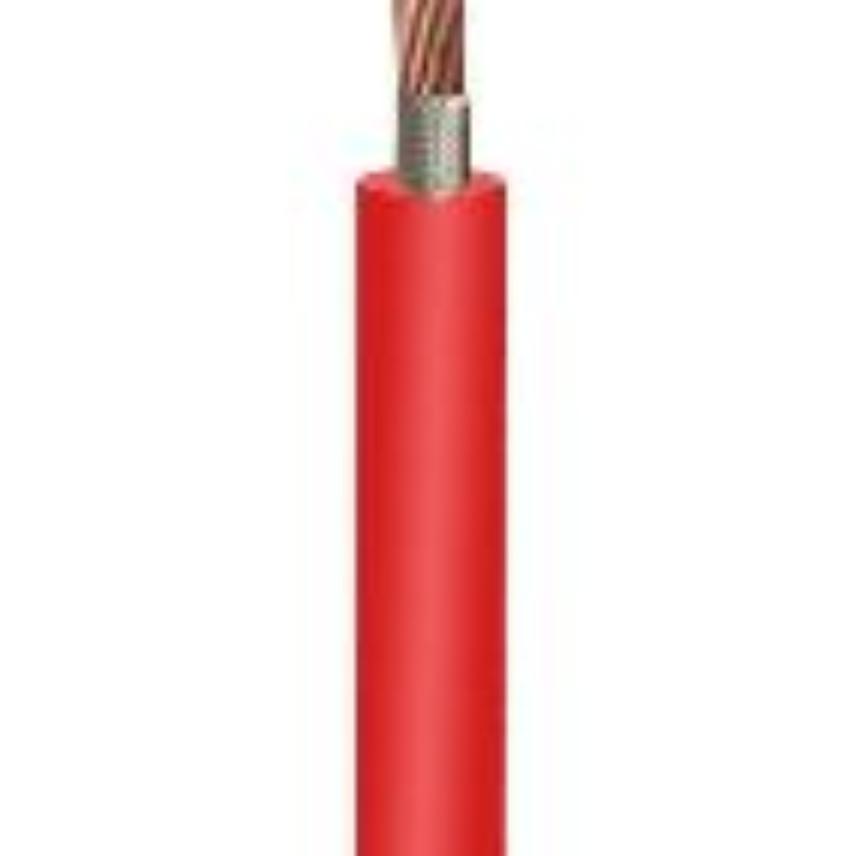

CONSTRUCTION

1- Conductors

stranded-class 2  according to IEC 60228

2 - Mica tape

MICA/GLASS FIRE RESISTANT TAPE

3 - Insulation

XLPE

4 - Outer sheath

Low Fire hazard compound, Color as per customer requirement

5 - Packing

Drums can be wooden or steel

TEST AT WORKS FIRE RESISTANT SINGLE CORE

Routine Tests

 -          Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag.15.1&15.2

 -          Spark test during insulation



Liban Cables will carry out these tests on all the lengths and tests certificates will be provided



Sample Tests

 -          Check of the build - up and color coding of the cable

 -          Check of dimensions

            Insulation          :           according to IEC 60502-1                       Parag.  16.5.2

            Oversheath       :           according to IEC 60502-1                       Parag.  16.5.3



Type Tests

Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.

Fire resistance test according to IEC 60331-21 (750°C for 90 min) :

 -          300 V between conductor & earth

These tests will be carried out on one length of the order.

Tests certificates will be provided by Liban Cables

1C FIRE RESISTANT DRAWING

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2
Conductor material
Copper class 2
Conductor shape
Circular
Number of conductors
1
Insulation
Micatape + XLPE
Outer sheath
LFH (Low Fire hazard) compound

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV

Usage characteristics

Usage characteristics

Fire resistant
IEC 60331-21
Flame retardant
IEC 60332-1-2
Operating temperature, range
-25 ... 55 °C
Short-circuit max. conductor temperature
250 °C
Max. conductor temperature in service
90 °C
Installation temperature, range
-5 ... 50 °C
