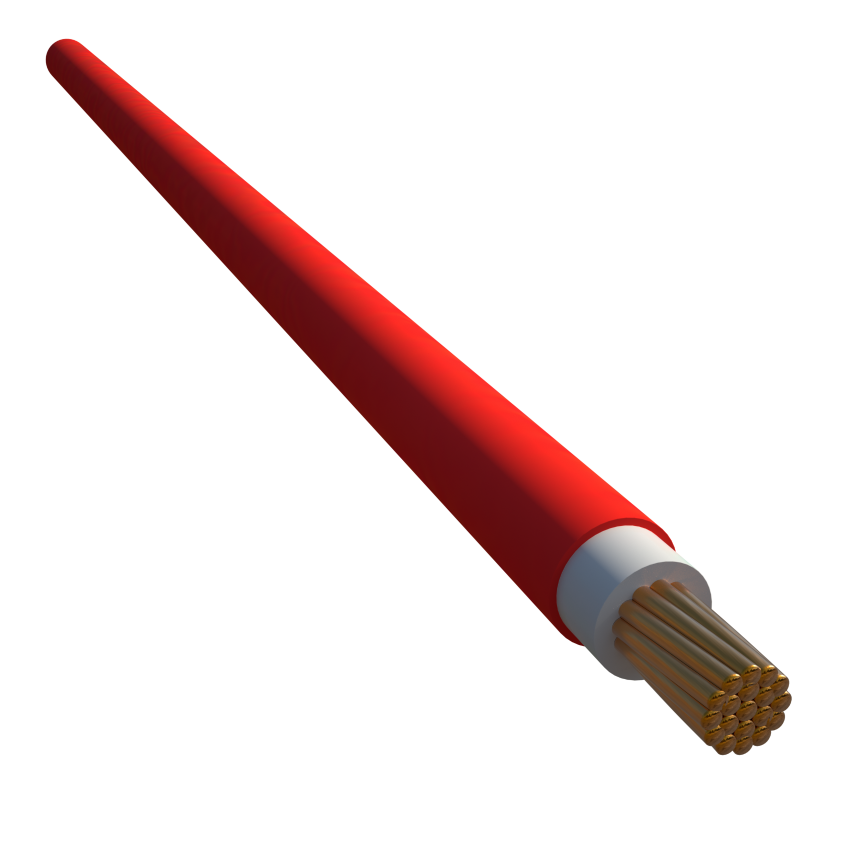

Single core, Unarmored , Halogen free, Low smoke, Fire & UV resistant cables

Single core, Unarmored , Halogen free, Low smoke, Fire & UV resistant cables

Single core, Unarmored , Halogen free, Low smoke, Fire & UV resistant cables

0.6/1kv POWER CABLES conforming to IEC 60502-1 & IEC 60331

Read more
Find distributor
Contact us

Products

Actions
Filters

  • products

SFC2XU 1*10 NEW

Nexans ref. SFC2XU 001703 - Country ref. SFC2XU 1*10//CEI-UV

  • Conductor cross-section: 10 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 8.3 mm
  • Approximate weight: 146 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km



SFC2XU 1*120

Nexans ref. SFC2XU 001331 - Country ref. SFC2XU 1*120//CEI-UV

  • Conductor cross-section: 120 mm²
  • Nominal insulation thickness: 1.2 mm
  • Nominal outer sheath thickness: 1.5 mm
  • Nominal overall diameter: 18.5 mm
  • Approximate weight: 1219 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km



SFC2XU 1*150 NEW

Nexans ref. SFC2XU 010181 - Country ref. SFC2XU 1*150//CEI-UV

  • Conductor cross-section: 150 mm²
  • Nominal insulation thickness: 1.4 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 21.0 mm
  • Approximate weight: 1499 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km



SFC2XU 1*16

Nexans ref. SFC2XU 000917 - Country ref. SFC2XU 1*16//CEI-UV

  • Conductor cross-section: 16 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 9.25 mm
  • Approximate weight: 206 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km



SFC2XU 1*185

Nexans ref. SFC2XU 010182 - Country ref. SFC2XU 1*185//CEI-UV

  • Conductor cross-section: 185 mm²
  • Nominal insulation thickness: 1.6 mm
  • Nominal outer sheath thickness: 1.6 mm
  • Nominal overall diameter: 23.0 mm
  • Approximate weight: 1837 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km



SFC2XU 1*2.5

Nexans ref. SFC2XU 000243 - Country ref. SFC2XU 1*2.5//CEI-UV

  • Conductor cross-section: 2.5 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 6.7 mm
  • Approximate weight: 66 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km



SFC2XU 1*240 NEW

Nexans ref. SFC2XU 001305 - Country ref. SFC2XU 1*240//CEI-UV

  • Conductor cross-section: 240 mm²
  • Nominal insulation thickness: 1.7 mm
  • Nominal outer sheath thickness: 1.7 mm
  • Nominal overall diameter: 26.0 mm
  • Approximate weight: 2374 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km



SFC2XU 1*25

Nexans ref. SFC2XU 000178 - Country ref. SFC2XU 1*25//CEI-UV

  • Conductor cross-section: 25 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 11.0 mm
  • Approximate weight: 304 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km



SFC2XU 1*300 NEW

Nexans ref. SFC2XU 001714 - Country ref. SFC2XU 1*300//CEI-UV

  • Conductor cross-section: 300 mm²
  • Nominal insulation thickness: 1.8 mm
  • Nominal outer sheath thickness: 1.8 mm
  • Nominal overall diameter: 28.0 mm
  • Approximate weight: 2962 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km



SFC2XU 1*35

Nexans ref. SFC2XU 000175 - Country ref. SFC2XU 1*35//CEI-UV

  • Conductor cross-section: 35 mm²
  • Nominal insulation thickness: 0.9 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 12.0 mm
  • Approximate weight: 395 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km



SFC2XU 1*4 NEW

Nexans ref. SFC2XU 010169 - Country ref. SFC2XU 1*4//CEI-UV

  • Conductor cross-section: 4 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 7.2 mm
  • Approximate weight: 84 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km



SFC2XU 1*400 NEW

Nexans ref. SFC2XU 001399 - Country ref. SFC2XU 1*400//CEI-UV

  • Conductor cross-section: 400 mm²
  • Nominal insulation thickness: 2.0 mm
  • Nominal outer sheath thickness: 1.9 mm
  • Nominal overall diameter: 32.0 mm
  • Approximate weight: 3778 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km



SFC2XU 1*50

Nexans ref. SFC2XU 001300 - Country ref. SFC2XU 1*50//CEI-UV

  • Conductor cross-section: 50 mm²
  • Nominal insulation thickness: 1.0 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 13.5 mm
  • Approximate weight: 524 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km



SFC2XU 1*500

Nexans ref. SFC2XU 001501 - Country ref. SFC2XU 1*500//CEI-UV

  • Conductor cross-section: 500 mm²
  • Nominal insulation thickness: 2.2 mm
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal overall diameter: 35.0 mm
  • Approximate weight: 4813 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km



SFC2XU 1*6 NEW

Nexans ref. SFC2XU 011508 - Country ref. SFC2XU 1*6//CEI-UV

  • Conductor cross-section: 6 mm²
  • Nominal insulation thickness: 0.7 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 7.6 mm
  • Approximate weight: 104 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km



SFC2XU 1*70

Nexans ref. SFC2XU 000915 - Country ref. SFC2XU 1*70//CEI-UV

  • Conductor cross-section: 70 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer sheath thickness: 1.4 mm
  • Nominal overall diameter: 15.1 mm
  • Approximate weight: 725 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km



SFC2XU 1*95

Nexans ref. SFC2XU 001302 - Country ref. SFC2XU 1*95//CEI-UV

  • Conductor cross-section: 95 mm²
  • Nominal insulation thickness: 1.1 mm
  • Nominal outer sheath thickness: 1.5 mm
  • Nominal overall diameter: 17.0 mm
  • Approximate weight: 978 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km



Description

Description

Standards

  • Product
    IEC 60502-1
  • Test
    IEC 60331

CONSTRUCTION

1- Conductors

stranded-class 2  according to IEC 60228

2 - Mica tape

MICA/GLASS FIRE RESISTANT TAPE

3 - Insulation

XLPE

4 - Outer sheath

Low Fire Hazard compound, Color as per customer requirement

5 - Packing

Drums can be wooden or steel

TEST AT WORKS FIRE RESISTANT SINGLE CORE

Routine Tests

 -          Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag.15.1&15.2

 -          Spark test during insulation



Liban Cables will carry out these tests on all the lengths and tests certificates will be provided



Sample Tests

 -          Check of the build - up and color coding of the cable

 -          Check of dimensions

            Insulation          :           according to IEC 60502-1                       Parag.  16.5.2

            Oversheath       :           according to IEC 60502-1                       Parag.  16.5.3



Type Tests

Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break) in accordance with IEC 60502-1.

Fire resistance test according to IEC 60331-21 (750°C for 90 min) :

 -          300 V between conductor & earth

These tests will be carried out on one length of the order.

Tests certificates will be provided by Liban Cables

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Class 2
Conductor material
Copper class 2
Conductor shape
Circular
Number of conductors
1
Insulation
Micatape + XLPE
Outer sheath
LFH (Low Fire hazard) compound

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV

Usage characteristics

Usage characteristics

U.V resistance
Yes
Fire resistant
IEC 60331-21
Flame retardant
IEC 60332-1-2
Operating temperature, range
-25 ... 55 °C
Short-circuit max. conductor temperature
250 °C
Max. conductor temperature in service
90 °C
Installation temperature, range
-5 ... 50 °C
