M2A2W 1*150
Nexans ref. M2A2W..100852 - Country ref. M2A2W 1*150
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.4 mm
- Nominal insulation thickness: 2.5 mm
- Nominal armour wire diameter: 1.7 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 30.0 mm
- Approximate net weight: 1248 kg/km
- Rated Voltage Uo/U (Um): 3.6 / 6 (7.2) kV
- Perm current rating in air 30°C: 368 A
- Permissible current rating when buried: 281 A
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.264 Ohm/km
M3A2W 1*120
Nexans ref. M3A2W 000182 - Country ref. M3A2W 1*120
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.8 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 31.0 mm
- Approximate net weight: 1249 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Perm current rating in air 30°C: 324 A
- Permissible current rating when buried: 252 A
- Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.323 Ohm/km
M3A2W 1*185
Nexans ref. M3A2W 000185 - Country ref. M3A2W 1*185
- Conductor cross-section: 185 mm²
- Conductor diameter: 16.2 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 35.0 mm
- Approximate net weight: 1588 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Perm current rating in air 30°C: 424 A
- Permissible current rating when buried: 317 A
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.21 Ohm/km
M3A2W 1*300 NEW
Nexans ref. M3A2W 000205 - Country ref. M3A2W 1*300
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.3 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 39.0 mm
- Approximate net weight: 2068 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Perm current rating in air 30°C: 577 A
- Permissible current rating when buried: 474 A
- Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
M3A2W 1*400
Nexans ref. M3A2W 000210 - Country ref. M3A2W 1*400
- Conductor cross-section: 400 mm²
- Conductor diameter: 23.2 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 32.0 mm
- Approximate net weight: 2619 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Perm current rating in air 30°C: 673 A
- Permissible current rating when buried: 470 A
- Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0997 Ohm/km
M3A2W 1*50
Nexans ref. M3A2W 000137 - Country ref. M3A2W 1*50
- Conductor cross-section: 50 mm²
- Conductor diameter: 8.1 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 1.7 mm
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 16.0 mm
- Approximate net weight: 833 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Perm current rating in air 30°C: 184 A
- Permissible current rating when buried: 152 A
- Max. DC resistance of the conductor at 20°C: 0.822 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.641 Ohm/km
M3A2W 1*500
Nexans ref. M3A2W 000220 - Country ref. M3A2W 1*500
- Conductor cross-section: 500 mm²
- Conductor diameter: 26.2 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal outer diameter: 48.0 mm
- Approximate net weight: 3128 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Perm current rating in air 30°C: 789 A
- Permissible current rating when buried: 537 A
- Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
M3A2W 1*630
Nexans ref. M3A2W 000230 - Country ref. M3A2W 1*630
- Conductor cross-section: 630 mm²
- Conductor diameter: 29.6 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 52.0 mm
- Approximate net weight: 3718 kg/km
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Perm current rating in air 30°C: 916 A
- Permissible current rating when buried: 611 A
- Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
M4A2W 1*240
Nexans ref. M4A2W 001240 - Country ref. M4A2W 1*240
- Conductor cross-section: 240 mm²
- Conductor diameter: 17.9 mm
- Nominal insulation thickness: 4.5 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 39.0 mm
- Approximate net weight: 1970 kg/km
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
- Perm current rating in air 30°C: 502 A
- Permissible current rating when buried: 367 A
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
M5A2W 1*120
Nexans ref. M5A2W 000200 - Country ref. M5A2W 1*120
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.8 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 35.0 mm
- Approximate net weight: 1518 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Perm current rating in air 30°C: 324 A
- Permissible current rating when buried: 252 A
- Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.323 Ohm/km
M5A2W 1*185
Nexans ref. M5A2W 001185 - Country ref. M5A2W 1*185
- Conductor cross-section: 185 mm²
- Conductor diameter: 16.2 mm
- Nominal insulation thickness: 5.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 39.0 mm
- Approximate net weight: 1862 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Perm current rating in air 30°C: 424 A
- Permissible current rating when buried: 317 A
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.21 Ohm/km
M5A2W 1*240
Nexans ref. M5A2W 000232 - Country ref. M5A2W 1*240
- Conductor cross-section: 240 mm²
- Conductor diameter: 17.9 mm
- Nominal insulation thickness: 5.5 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 41.0 mm
- Approximate net weight: 2090 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Perm current rating in air 30°C: 502 A
- Permissible current rating when buried: 367 A
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
M5A2W 1*500 NEW
Nexans ref. M5A2W 000245 - Country ref. M5A2W 1*500
- Conductor cross-section: 500 mm²
- Conductor diameter: 26.2 mm
- Nominal insulation thickness: 5.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.7 mm
- Nominal outer diameter: 52.0 mm
- Approximate net weight: 3522 kg/km
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Perm current rating in air 30°C: 789 A
- Permissible current rating when buried: 537 A
- Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
M6A2W 1*150
Nexans ref. M6A2W 000121 - Country ref. M6A2W 1*150
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.4 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 43.0 mm
- Approximate net weight: 2130 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 368 A
- Permissible current rating when buried: 281 A
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.264 Ohm/km
M6A2W 1*185
Nexans ref. M6A2W 000200 - Country ref. M6A2W 1*185
- Conductor cross-section: 185 mm²
- Conductor diameter: 16.2 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal outer diameter: 45.0 mm
- Approximate net weight: 2400 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 424 A
- Permissible current rating when buried: 317 A
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.21 Ohm/km
M6A2W 1*240
Nexans ref. M6A2W 000229 - Country ref. M6A2W 1*240
- Conductor cross-section: 240 mm²
- Conductor diameter: 17.9 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 46.0 mm
- Approximate net weight: 2600 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 502 A
- Permissible current rating when buried: 367 A
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
M6A2W 1*300
Nexans ref. M6A2W 000231 - Country ref. M6A2W 1*300
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.3 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 49.0 mm
- Approximate net weight: 2932 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 577 A
- Permissible current rating when buried: 474 A
- Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
M6A2W 1*400
Nexans ref. M6A2W 000341 - Country ref. M6A2W 1*400
- Conductor cross-section: 400 mm²
- Conductor diameter: 23.2 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 53.0 mm
- Approximate net weight: 3468 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 673 A
- Permissible current rating when buried: 470 A
- Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0997 Ohm/km
M6A2W 1*50
Nexans ref. M6A2W 000150 - Country ref. M6A2W 1*50
- Conductor cross-section: 50 mm²
- Conductor diameter: 8.1 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 35.0 mm
- Approximate net weight: 1720 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 184 A
- Permissible current rating when buried: 152 A
- Max. DC resistance of the conductor at 20°C: 0.822 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.641 Ohm/km
M6A2W 1*500 NEW
Nexans ref. M6A2W 000236 - Country ref. M6A2W 1*500
- Conductor cross-section: 500 mm²
- Conductor diameter: 26.2 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal outer diameter: 57.0 mm
- Approximate net weight: 4033 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 789 A
- Permissible current rating when buried: 537 A
- Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
M6A2W 1*630
Nexans ref. M6A2W 000250 - Country ref. M6A2W 1*630
- Conductor cross-section: 630 mm²
- Conductor diameter: 29.6 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 61.0 mm
- Approximate net weight: 4664 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 916 A
- Permissible current rating when buried: 611 A
- Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
M6A2W 1*95
Nexans ref. M6A2W 000227 - Country ref. M6A2W 1*95
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.7 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 39.0 mm
- Approximate net weight: 1720 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 280 A
- Permissible current rating when buried: 221 A
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.41 Ohm/km
M6A3W 1*630
Nexans ref. M6A3W 000250 - Country ref. M6A3W 1*630
- Conductor cross-section: 630 mm²
- Conductor diameter: 29.6 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 61.0 mm
- Approximate net weight: 4664 kg/km
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 916 A
- Permissible current rating when buried: 611 A
- Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
M7A2W 1*1000
Nexans ref. M7A2W 000202 - Country ref. M7A2W 1*1000
- Conductor cross-section: 1000 mm²
- Conductor diameter: 41.08 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.2 mm
- Nominal outer diameter: 74.0 mm
- Approximate net weight: 6811 kg/km
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Perm current rating in air 30°C: 1251 A
- Permissible current rating when buried: 781 A
- Max. DC resistance of the conductor at 20°C: 0.0291 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.041 Ohm/km
M7A2W 1*240
Nexans ref. M7A2W 000200 - Country ref. M7A2W 1*240
- Conductor cross-section: 240 mm²
- Conductor diameter: 17.9 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 47.0 mm
- Approximate net weight: 2705 kg/km
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Perm current rating in air 30°C: 502 A
- Permissible current rating when buried: 367 A
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
M7A2W 1*630
Nexans ref. M7A2W 000201 - Country ref. M7A2W 1*630
- Conductor cross-section: 630 mm²
- Conductor diameter: 29.6 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 61.0 mm
- Approximate net weight: 4815 kg/km
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Perm current rating in air 30°C: 916 A
- Permissible current rating when buried: 611 A
- Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-2
-
TestIEC 60332-1-2

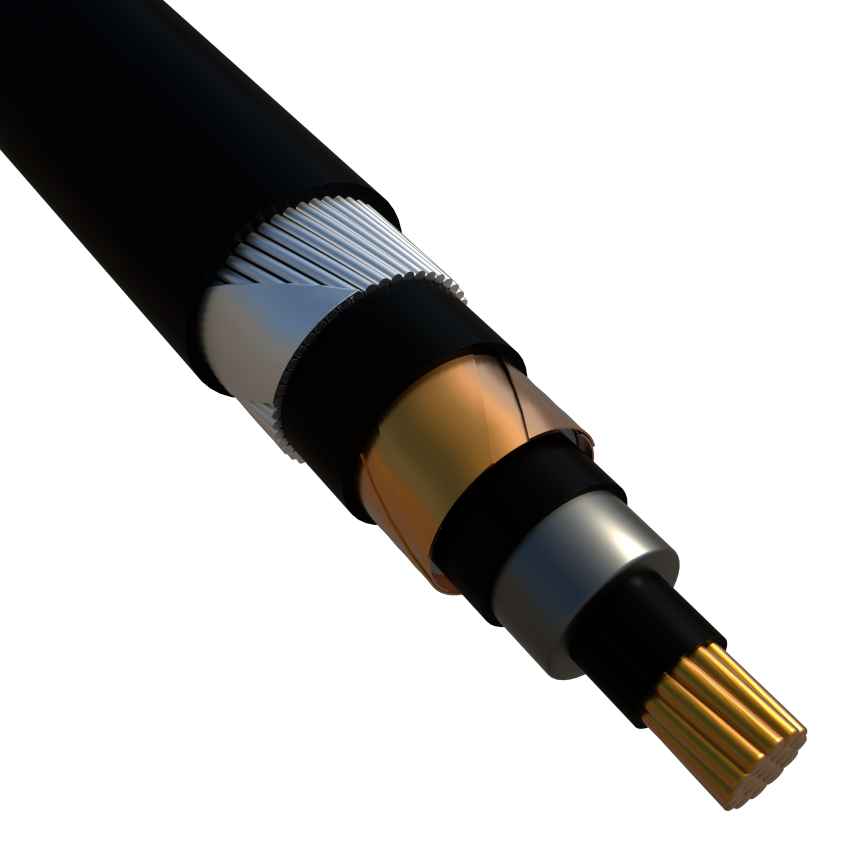

This specification covers single core armoured cables, conforming to IEC 60502-2 Specification
Construction
2.1 Conductor
Plain, Aluminum conductors, circular stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
Extruded inner semi conductive layer, XLPE insulation and extruded outer semi conductive layer .
2.3 Metallic Screen Layer
Copper tape
2.4 Separation Sheath
PVC .
2.5 Armour
ALUMINUM WIRES .
2.5 Sheath
PVC .
Tests
All tests required by IEC 60502-2 either on Raw material or on finished products.
TEST AT WORKS according to IEC 60502-2 for armored cables
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-2 parag.16.1 & 16.2
- High voltage test acc. to IEC 60502-2 parag. 16.1 & 16.4
- Max. partial discharge test at 1.73 Uo acc. to IEC 60502-2 parag.16.1 & 16.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-2 Parag. 17.5.2
Separation sheath : according to IEC 60502-2 Parag. 17.5.3
Armouring : according to IEC 60502-2 Parag. 17.7
Oversheath : according to IEC 60502-2 Parag. 17.5.3
- Hot Set Test : according to IEC 60502-2 Parag. 17.10
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break ) in accordance with IEC 60502-2.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables
DRAWING 1C AL COND AWA ARMORED
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
