M3A2R 3*150
Nexans ref. M3A2R 002115 - Country ref. M3A2R 3*150
- Material of the external semi-conductor: Extruded fully bonded
- Conductor flexibility: Class 2 acc. to IEC 60228
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.4 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.1 mm
- Nominal outer diameter: 64.0 mm
- Approximate net weight: 5914 kg/km
- Test voltage: 21 kV
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Perm current rating in air 30°C: 309 A
- Permissible current rating when buried: 259 A
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.264 Ohm/km
- Permissible short circuit current conductor 1s: 14.5 kA
M3A2R 3*185
Nexans ref. M3A2R 002117 - Country ref. M3A2R 3*185
- Material of the external semi-conductor: Extruded fully bonded
- Conductor flexibility: -
- Conductor cross-section: 185 mm²
- Conductor diameter: 16.2 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.3 mm
- Nominal outer diameter: 68.0 mm
- Approximate net weight: 6812 kg/km
- Test voltage: 21 kV
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Perm current rating in air 30°C: 354 A
- Permissible current rating when buried: 293 A
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.21 Ohm/km
- Permissible short circuit current conductor 1s: 17.9 kA
M3A2R 3*400
Nexans ref. M3A2R 002129 - Country ref. M3A2R 3*400
- Material of the external semi-conductor: Extruded fully bonded
- Conductor flexibility: Stranded class 2
- Conductor cross-section: 400 mm²
- Conductor diameter: 23.2 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.9 mm
- Nominal outer diameter: 87.0 mm
- Approximate net weight: 11245 kg/km
- Test voltage: 21 kV
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Perm current rating in air 30°C: 454 A
- Permissible current rating when buried: 432 A
- Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0997 Ohm/km
- Permissible short circuit current conductor 1s: 38.3 kA
M3A2R 3*95
Nexans ref. M3A2R 002113 - Country ref. M3A2R 3*95
- Material of the external semi-conductor: Extruded fully bonded
- Conductor flexibility: -
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.7 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal outer diameter: 57.0 mm
- Approximate net weight: 4872 kg/km
- Test voltage: 21 kV
- Rated Voltage Uo/U (Um): 6 / 10 (12) kV
- Perm current rating in air 30°C: 238 A
- Permissible current rating when buried: 204 A
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.41 Ohm/km
- Permissible short circuit current conductor 1s: 9.2 kA
M4A2R 3*95
Nexans ref. M4A2R 000230 - Country ref. M4A2R 3*95
- Material of the external semi-conductor: Extruded fully bonded
- Conductor flexibility: Class 2 acc. to IEC 60228
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.7 mm
- Nominal insulation thickness: 4.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.1 mm
- Nominal outer diameter: 62.0 mm
- Approximate net weight: 5556 kg/km
- Test voltage: 30 kV
- Rated Voltage Uo/U (Um): 8.7 / 15 (17.5) kV
- Perm current rating in air 30°C: 238 A
- Permissible current rating when buried: 204 A
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.41 Ohm/km
- Permissible short circuit current conductor 1s: 9.2 kA
M5A2R 3*185
Nexans ref. M5A2R 000120 - Country ref. M5A2R 3*185
- Material of the external semi-conductor: Extruded fully bonded
- Conductor flexibility: -
- Conductor cross-section: 185 mm²
- Conductor diameter: 16.2 mm
- Nominal insulation thickness: 5.5 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.6 mm
- Nominal outer diameter: 78.0 mm
- Approximate net weight: 8896 kg/km
- Test voltage: 42 kV
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Perm current rating in air 30°C: 354 A
- Permissible current rating when buried: 293 A
- Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.21 Ohm/km
- Permissible short circuit current conductor 1s: 17.9 kA
M5A3R 3*300
Nexans ref. M5A3R 000300 - Country ref. M5A3R 3*300
- Material of the external semi-conductor: Extruded strippable
- Conductor flexibility: -
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.3 mm
- Nominal insulation thickness: 5.5 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.0 mm
- Nominal outer diameter: 88.0 mm
- Approximate net weight: 11090 kg/km
- Test voltage: 42 kV
- Rated Voltage Uo/U (Um): 12 / 20 (24) kV
- Perm current rating in air 30°C: 472 A
- Permissible current rating when buried: 380 A
- Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
- Permissible short circuit current conductor 1s: 17.9 kA
M6A2R 3*120
Nexans ref. M6A2R 003120 - Country ref. M6A2R 3*120
- Material of the external semi-conductor: Extruded fully bonded
- Conductor flexibility: -
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.8 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.8 mm
- Nominal outer diameter: 81.0 mm
- Approximate net weight: 8896 kg/km
- Test voltage: 63 kV
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 274 A
- Permissible current rating when buried: 232 A
- Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.323 Ohm/km
- Permissible short circuit current conductor 1s: 11.6 kA
M6A2R 3*240
Nexans ref. M6A2R 000424 - Country ref. M6A2R 3*240
- Material of the external semi-conductor: Extruded fully bonded
- Conductor flexibility: Stranded class 2
- Conductor cross-section: 240 mm²
- Conductor diameter: 17.9 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.2 mm
- Nominal outer diameter: 93.0 mm
- Approximate net weight: 11524 kg/km
- Test voltage: 63 kV
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 415 A
- Permissible current rating when buried: 338 A
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
- Permissible short circuit current conductor 1s: 23.1 kA
M6A2R 3*50
Nexans ref. M6A2R 003050 - Country ref. M6A2R 3*50
- Material of the external semi-conductor: Extruded fully bonded
- Conductor flexibility: Stranded class 2
- Conductor cross-section: 50 mm²
- Conductor diameter: 8.1 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.4 mm
- Nominal outer diameter: 70.0 mm
- Approximate net weight: 6910 kg/km
- Test voltage: 63 kV
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 159 A
- Permissible current rating when buried: 140 A
- Max. DC resistance of the conductor at 20°C: 0.641 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.822 Ohm/km
- Permissible short circuit current conductor 1s: 4.9 kA
M6A2R 3*500
Nexans ref. M6A2R 000166 - Country ref. M6A2R 3*500
- Material of the external semi-conductor: Extruded fully bonded
- Conductor flexibility: Class 2 acc. to IEC 60228
- Conductor cross-section: 500 mm²
- Conductor diameter: 26.2 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.8 mm
- Nominal outer diameter: 115.0 mm
- Approximate net weight: 16766 kg/km
- Test voltage: 63 kV
- Rated Voltage Uo/U (Um): 18 / 30 (36) kV
- Perm current rating in air 30°C: 957 A
- Permissible current rating when buried: 680 A
- Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
- Permissible short circuit current conductor 1s: 47.9 kA
M7A2R 3*240
Nexans ref. M7A2R 000424 - Country ref. M7A2R 3*240
- Material of the external semi-conductor: Extruded fully bonded
- Conductor flexibility: Stranded class 2
- Conductor cross-section: 240 mm²
- Conductor diameter: 17.9 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.2 mm
- Nominal outer diameter: 94.0 mm
- Approximate net weight: 11758 kg/km
- Test voltage: 71 kV
- Rated Voltage Uo/U (Um): 20 / 35 (42) kV
- Perm current rating in air 30°C: 415 A
- Permissible current rating when buried: 338 A
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
- Permissible short circuit current conductor 1s: 23.1 kA
Description
Description
Standards
-
InternationalIEC 60332-1-2; IEC 60502-2
1-SCOPE

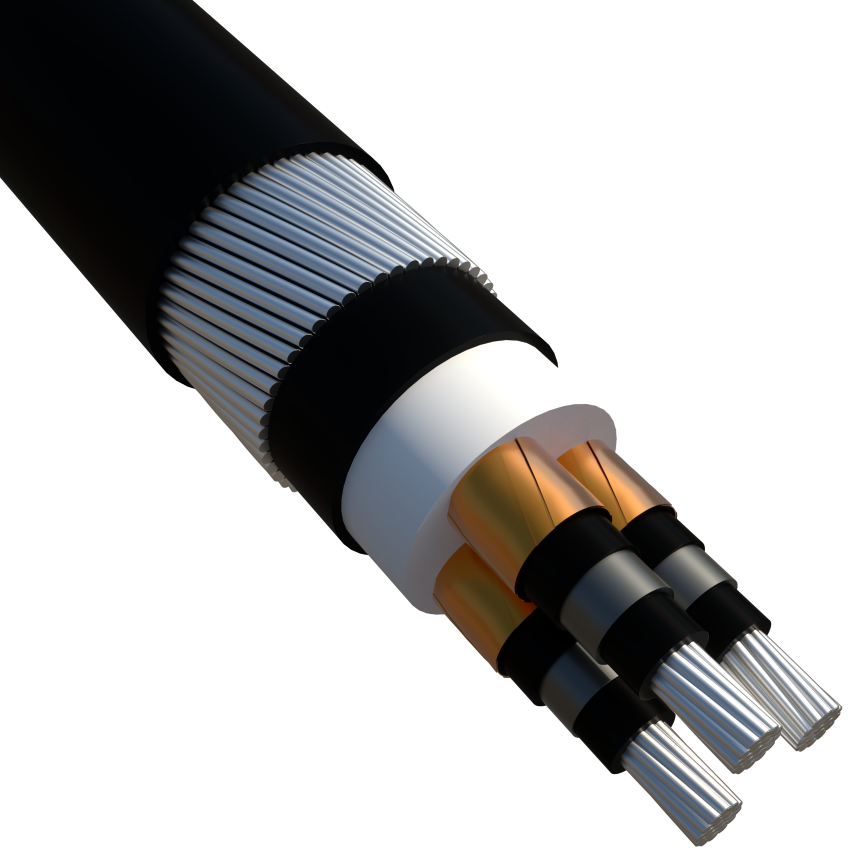

This specification covers three core armoured cables conforming to IEC 60502-2 Specifications.
2. CONSTRUCTION
2.1 Conductor
Aluminum conductors, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
Extruded inner semi conductive layer, XLPE insulation and extruded outer semi conductive layer .
2.3 Metallic Screen Layer
Copper tape on each core
2.4 Separation Sheath
PVC .
2.5 Armour
GALVANIZED STEEL WIRES .
2.5 Sheath
PVC .
3. TESTS
All tests required by IEC 60502-2 either on Raw material or on finished products.
TEST AT WORKS according to IEC 60502-2 for armored cables
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-2 parag.16.1 & 16.2
- High voltage test acc. to IEC 60502-2 parag. 16.1 & 16.4
- Max. partial discharge test at 1.73 Uo acc. to IEC 60502-2 parag.16.1 & 16.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-2 Parag. 17.5.2
Separation sheath : according to IEC 60502-2 Parag. 17.5.3
Armouring : according to IEC 60502-2 Parag. 17.7
Oversheath : according to IEC 60502-2 Parag. 17.5.3
- Hot Set Test : according to IEC 60502-2 Parag. 17.10
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break ) in accordance with IEC 60502-2.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
