M2N2R 3*120
Nexans ref. M2N2R 001381 - Country ref. M2N2R 3*120
- Colour: Black
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.9 mm
- Nominal insulation thickness: 2.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal outer diameter: 56.0 mm
- Approximate net weight: 7147 kg/km
- Perm current rating in air 30°C: 352 A
- Permissible current rating when buried: 298 A
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km
M2N2R 3*150
Nexans ref. M2N2R 001375 - Country ref. M2N2R 3*150
- Colour: Black
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.2 mm
- Nominal insulation thickness: 2.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 60.0 mm
- Approximate net weight: 8163 kg/km
- Perm current rating in air 30°C: 397 A
- Permissible current rating when buried: 332 A
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km
M2N2R 3*300
Nexans ref. M2N2R 000335 - Country ref. M2N2R 3*300
- Colour: Black
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.3 mm
- Nominal insulation thickness: 2.8 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.5 mm
- Nominal outer diameter: 77.0 mm
- Approximate net weight: 14743 kg/km
- Perm current rating in air 30°C: 599 A
- Permissible current rating when buried: 482 A
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0792 Ohm/km
M2N2R 3*300 NEW
Nexans ref. M2N2R 001335 - Country ref. M2N2R 3*300//O
- Colour: Orange
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.3 mm
- Nominal insulation thickness: 2.8 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.5 mm
- Nominal outer diameter: 77.0 mm
- Approximate net weight: 14743 kg/km
- Perm current rating in air 30°C: 599 A
- Permissible current rating when buried: 482 A
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0792 Ohm/km
M2N2R 3*35
Nexans ref. M2N2R 001347 - Country ref. M2N2R 3*35
- Colour: Black
- Conductor cross-section: 35 mm²
- Conductor diameter: 6.9 mm
- Nominal insulation thickness: 2.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 42.0 mm
- Approximate net weight: 3607 kg/km
- Perm current rating in air 30°C: 172 A
- Permissible current rating when buried: 154 A
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km
M2N2R 3*400 NEW
Nexans ref. M2N2R 001336 - Country ref. M2N2R 3*400//O
- Colour: Orange
- Conductor cross-section: 400 mm²
- Conductor diameter: 23.2 mm
- Nominal insulation thickness: 3.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.8 mm
- Nominal outer diameter: 86.0 mm
- Approximate net weight: 18122 kg/km
- Perm current rating in air 30°C: 683 A
- Permissible current rating when buried: 541 A
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0622 Ohm/km
M2N2R 3*50
Nexans ref. M2N2R 001351 - Country ref. M2N2R 3*50
- Colour: Black
- Conductor cross-section: 50 mm²
- Conductor diameter: 8.1 mm
- Nominal insulation thickness: 2.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.5 mm
- Nominal outer diameter: 45.0 mm
- Approximate net weight: 4110 kg/km
- Perm current rating in air 30°C: 205 A
- Permissible current rating when buried: 181 A
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0792 Ohm/km
M2N2R 3*500 NEW
Nexans ref. M2N2R 001337 - Country ref. M2N2R 3*500//O
- Colour: Orange
- Conductor cross-section: 500 mm²
- Conductor diameter: 26.2 mm
- Nominal insulation thickness: 3.2 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.1 mm
- Nominal outer diameter: 95.0 mm
- Approximate net weight: 22232 kg/km
- Perm current rating in air 30°C: 957 A
- Permissible current rating when buried: 680 A
- Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0497 Ohm/km
M2N2R 3*70
Nexans ref. M2N2R 001373 - Country ref. M2N2R 3*70
- Colour: Black
- Conductor cross-section: 70 mm²
- Conductor diameter: 9.7 mm
- Nominal insulation thickness: 2.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 49.0 mm
- Approximate net weight: 5001 kg/km
- Perm current rating in air 30°C: 253 A
- Permissible current rating when buried: 220 A
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.342 Ohm/km
M2N2R 3*95
Nexans ref. M2N2R 001380 - Country ref. M2N2R 3*95
- Colour: Black
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.4 mm
- Nominal insulation thickness: 25.0 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 53.0 mm
- Approximate net weight: 6030 kg/km
- Perm current rating in air 30°C: 307 A
- Permissible current rating when buried: 263 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km
M3N2R 3*120
Nexans ref. M3N2R 001801 - Country ref. M3N2R 3*120
- Colour: Black
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.9 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 60.0 mm
- Approximate net weight: 7583 kg/km
- Perm current rating in air 30°C: 352 A
- Permissible current rating when buried: 298 A
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km
M3N2R 3*120 RED+UV
Nexans ref. M3N2R 000962 - Country ref. M3N2R 3*120//R-UV
- Colour: Red
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.9 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 60.0 mm
- Approximate net weight: 7526 kg/km
- Perm current rating in air 30°C: 352 A
- Permissible current rating when buried: 298 A
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km
M3N2R 3*150
Nexans ref. M3N2R 001901 - Country ref. M3N2R 3*150
- Colour: Black
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.2 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.1 mm
- Nominal outer diameter: 63.0 mm
- Approximate net weight: 8649 kg/km
- Perm current rating in air 30°C: 397 A
- Permissible current rating when buried: 332 A
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km
M3N2R 3*150//R
Nexans ref. M3N2R 001980 - Country ref. M3N2R 3*150//R
- Colour: Red
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.2 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.1 mm
- Nominal outer diameter: 63.0 mm
- Approximate net weight: 8649 kg/km
- Perm current rating in air 30°C: 397 A
- Permissible current rating when buried: 332 A
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km
M3N2R 3*150//THA
Nexans ref. M3N2R 001905 - Country ref. M3N2R 3*150//THA
- Colour: Black
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.2 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.1 mm
- Nominal outer diameter: 63.0 mm
- Approximate net weight: 8649 kg/km
- Perm current rating in air 30°C: 397 A
- Permissible current rating when buried: 332 A
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km
M3N2R 3*185
Nexans ref. M3N2R 002001 - Country ref. M3N2R 3*185
- Colour: Black
- Conductor cross-section: 185 mm²
- Conductor diameter: 15.9 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.3 mm
- Nominal outer diameter: 67.0 mm
- Approximate net weight: 9957 kg/km
- Perm current rating in air 30°C: 453 A
- Permissible current rating when buried: 374 A
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.128 Ohm/km
M3N2R 3*185//R
Nexans ref. M3N2R 002301 - Country ref. M3N2R 3*185//R
- Colour: Red
- Conductor cross-section: 185 mm²
- Conductor diameter: 15.9 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.3 mm
- Nominal outer diameter: 67.0 mm
- Approximate net weight: 9957 kg/km
- Perm current rating in air 30°C: 453 A
- Permissible current rating when buried: 374 A
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.128 Ohm/km
M3N2R 3*240
Nexans ref. M3N2R 002101 - Country ref. M3N2R 3*240
- Colour: Black
- Conductor cross-section: 240 mm²
- Conductor diameter: 18.1 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.5 mm
- Nominal outer diameter: 74.0 mm
- Approximate net weight: 12833 kg/km
- Perm current rating in air 30°C: 529 A
- Permissible current rating when buried: 431 A
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km
M3N2R 3*240 RED+UV
Nexans ref. M3N2R 020717 - Country ref. M3N2R 3*240//R-UV
- Colour: Red
- Conductor cross-section: 240 mm²
- Conductor diameter: 18.1 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.5 mm
- Nominal outer diameter: 74.0 mm
- Approximate net weight: 12833 kg/km
- Perm current rating in air 30°C: 529 A
- Permissible current rating when buried: 431 A
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km
M3N2R 3*300
Nexans ref. M3N2R 002130 - Country ref. M3N2R 3*300
- Colour: Black
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.3 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.6 mm
- Nominal outer diameter: 79.0 mm
- Approximate net weight: 15115 kg/km
- Perm current rating in air 30°C: 599 A
- Permissible current rating when buried: 482 A
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0791 Ohm/km
M3N2R 3*35
Nexans ref. M3N2R 001401 - Country ref. M3N2R 3*35
- Colour: Black
- Conductor cross-section: 35 mm²
- Conductor diameter: 6.9 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 46.0 mm
- Approximate net weight: 3986 kg/km
- Perm current rating in air 30°C: 172 A
- Permissible current rating when buried: 154 A
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km
M3N2R 3*400
Nexans ref. M3N2R 002135 - Country ref. M3N2R 3*400
- Colour: Black
- Conductor cross-section: 400 mm²
- Conductor diameter: 23.2 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.9 mm
- Nominal outer diameter: 87.0 mm
- Approximate net weight: 18365 kg/km
- Perm current rating in air 30°C: 683 A
- Permissible current rating when buried: 541 A
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0646 Ohm/km
M3N2R 3*50
Nexans ref. M3N2R 001408 - Country ref. M3N2R 3*50
- Colour: Black
- Conductor cross-section: 50 mm²
- Conductor diameter: 8.1 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.7 mm
- Nominal outer diameter: 49.0 mm
- Approximate net weight: 4593 kg/km
- Perm current rating in air 30°C: 205 A
- Permissible current rating when buried: 181 A
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.494 Ohm/km
M3N2R 3*70
Nexans ref. M3N2R 001601 - Country ref. M3N2R 3*70
- Colour: Black
- Conductor cross-section: 70 mm²
- Conductor diameter: 9.7 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.8 mm
- Nominal outer diameter: 53.0 mm
- Approximate net weight: 5486 kg/km
- Perm current rating in air 30°C: 253 A
- Permissible current rating when buried: 220 A
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.342 Ohm/km
M3N2R 3*95
Nexans ref. M3N2R 001615 - Country ref. M3N2R 3*95
- Colour: Black
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.4 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal outer diameter: 57.0 mm
- Approximate net weight: 6586 kg/km
- Perm current rating in air 30°C: 307 A
- Permissible current rating when buried: 263 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km
M3N2R 3*95
Nexans ref. M3N2R 011615 - Country ref. M3N2R 3*95//1000
- Colour: Black
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.4 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal outer diameter: 57.0 mm
- Approximate net weight: 6586 kg/km
- Perm current rating in air 30°C: 307 A
- Permissible current rating when buried: 263 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km
M3N2R 3*95
Nexans ref. M3N2R 011617 - Country ref. M3N2R 3*95//1000-R
- Colour: Red
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.4 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal outer diameter: 57.0 mm
- Approximate net weight: 6586 kg/km
- Perm current rating in air 30°C: 307 A
- Permissible current rating when buried: 263 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km
M3N2R 3*95//R
Nexans ref. M3N2R 000225 - Country ref. M3N2R 3*95//R
- Colour: Red
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.4 mm
- Nominal insulation thickness: 3.4 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 2.9 mm
- Nominal outer diameter: 57.0 mm
- Approximate net weight: 6586 kg/km
- Perm current rating in air 30°C: 307 A
- Permissible current rating when buried: 263 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km
M4N2R 3*120 NEW
Nexans ref. M4N2R 001801 - Country ref. M4N2R 3*120
- Colour: Black
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.9 mm
- Nominal insulation thickness: 4.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.2 mm
- Nominal outer diameter: 65.0 mm
- Approximate net weight: 8201 kg/km
- Perm current rating in air 30°C: 352 A
- Permissible current rating when buried: 298 A
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km
M4N2R 3*150
Nexans ref. M4N2R 000904 - Country ref. M4N2R 3*150
- Colour: Black
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.2 mm
- Nominal insulation thickness: 4.5 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.4 mm
- Nominal outer diameter: 70.0 mm
- Approximate net weight: 10061 kg/km
- Perm current rating in air 30°C: 397 A
- Permissible current rating when buried: 332 A
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km
M4N2R 3*185 NEW
Nexans ref. M4N2R 000906 - Country ref. M4N2R 3*185
- Colour: Black
- Conductor cross-section: 185 mm²
- Conductor diameter: 15.9 mm
- Nominal insulation thickness: 4.5 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.5 mm
- Nominal outer diameter: 74.0 mm
- Approximate net weight: 11452 kg/km
- Perm current rating in air 30°C: 453 A
- Permissible current rating when buried: 374 A
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.128 Ohm/km
M4N2R 3*240 NEW
Nexans ref. M4N2R 003104 - Country ref. M4N2R 3*240
- Colour: Black
- Conductor cross-section: 240 mm²
- Conductor diameter: 18.1 mm
- Nominal insulation thickness: 4.5 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.6 mm
- Nominal outer diameter: 79.0 mm
- Approximate net weight: 13544 kg/km
- Perm current rating in air 30°C: 529 A
- Permissible current rating when buried: 431 A
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km
M4N2R 3*300
Nexans ref. M4N2R 000350 - Country ref. M4N2R 3*300
- Colour: Black
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.3 mm
- Nominal insulation thickness: 4.5 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.8 mm
- Nominal outer diameter: 84.0 mm
- Approximate net weight: 15898 kg/km
- Perm current rating in air 30°C: 599 A
- Permissible current rating when buried: 482 A
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0791 Ohm/km
M4N2R 3*70
Nexans ref. M4N2R 000835 - Country ref. M4N2R 3*70
- Colour: Black
- Conductor cross-section: 70 mm²
- Conductor diameter: 9.7 mm
- Nominal insulation thickness: 4.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.0 mm
- Nominal outer diameter: 57.0 mm
- Approximate net weight: 6083 kg/km
- Perm current rating in air 30°C: 253 A
- Permissible current rating when buried: 220 A
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.342 Ohm/km
M4N2R 3*95
Nexans ref. M4N2R 000901 - Country ref. M4N2R 3*95
- Colour: Black
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.4 mm
- Nominal insulation thickness: 4.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.1 mm
- Nominal outer diameter: 61.0 mm
- Approximate net weight: 7150 kg/km
- Perm current rating in air 30°C: 307 A
- Permissible current rating when buried: 263 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km
M5N2R 3*120
Nexans ref. M5N2R 001813 - Country ref. M5N2R 3*120
- Colour: Black
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.9 mm
- Nominal insulation thickness: 5.5 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.4 mm
- Nominal outer diameter: 71.0 mm
- Approximate net weight: 9481 kg/km
- Perm current rating in air 30°C: 352 A
- Permissible current rating when buried: 298 A
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km
M5N2R 3*240
Nexans ref. M5N2R 000132 - Country ref. M5N2R 3*240
- Colour: Black
- Conductor cross-section: 240 mm²
- Conductor diameter: 18.1 mm
- Nominal insulation thickness: 5.5 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.8 mm
- Nominal outer diameter: 82.5 mm
- Approximate net weight: 14145 kg/km
- Perm current rating in air 30°C: 529 A
- Permissible current rating when buried: 431 A
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km
M5N2R 3*300
Nexans ref. M5N2R 000133 - Country ref. M5N2R 3*300
- Colour: Black
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.3 mm
- Nominal insulation thickness: 5.5 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.0 mm
- Nominal outer diameter: 89.0 mm
- Approximate net weight: 16659 kg/km
- Perm current rating in air 30°C: 599 A
- Permissible current rating when buried: 482 A
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0792 Ohm/km
M5N2R 3*400
Nexans ref. M5N2R 100133 - Country ref. M5N2R 3*400
- Colour: Black
- Conductor cross-section: 400 mm²
- Conductor diameter: 23.2 mm
- Nominal insulation thickness: 5.5 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.2 mm
- Nominal outer diameter: 97.0 mm
- Approximate net weight: 20092 kg/km
- Perm current rating in air 30°C: 683 A
- Permissible current rating when buried: 541 A
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0646 Ohm/km
M5N2R 3*95
Nexans ref. M5N2R 000120 - Country ref. M5N2R 3*95
- Colour: Black
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.4 mm
- Nominal insulation thickness: 5.5 mm
- Nominal armour wire diameter: 2.5 mm
- Nominal outer sheath thickness: 3.2 mm
- Nominal outer diameter: 66.0 mm
- Approximate net weight: 7629 kg/km
- Perm current rating in air 30°C: 307 A
- Permissible current rating when buried: 263 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km
M5N3R 3*300
Nexans ref. M5N3R 000126 - Country ref. M5N3R 3*300
- Colour: Black
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.3 mm
- Nominal insulation thickness: 5.5 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.0 mm
- Nominal outer diameter: 89.0 mm
- Approximate net weight: 16659 kg/km
- Perm current rating in air 30°C: 599 A
- Permissible current rating when buried: 482 A
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0792 Ohm/km
M6N2R 3*120 NEW
Nexans ref. M6N2R 000522 - Country ref. M6N2R 3*120
- Colour: Black
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.9 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.8 mm
- Nominal outer diameter: 81.0 mm
- Approximate net weight: 11106 kg/km
- Perm current rating in air 30°C: 352 A
- Permissible current rating when buried: 298 A
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km
M6N2R 3*150
Nexans ref. M6N2R 000801 - Country ref. M6N2R 3*150
- Colour: Black
- Conductor cross-section: 150 mm²
- Conductor diameter: 14.2 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.9 mm
- Nominal outer diameter: 84.0 mm
- Approximate net weight: 12383 kg/km
- Perm current rating in air 30°C: 397 A
- Permissible current rating when buried: 332 A
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.159 Ohm/km
M6N2R 3*185
Nexans ref. M6N2R 000715 - Country ref. M6N2R 3*185
- Colour: Black
- Conductor cross-section: 185 mm²
- Conductor diameter: 15.9 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.0 mm
- Nominal outer diameter: 88.0 mm
- Approximate net weight: 13823 kg/km
- Perm current rating in air 30°C: 453 A
- Permissible current rating when buried: 374 A
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.128 Ohm/km
M6N2R 3*185 RED+UV
Nexans ref. M6N2R 020715 - Country ref. M6N2R 3*185//R-UV
- Colour: Red
- Conductor cross-section: 185 mm²
- Conductor diameter: 15.9 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.0 mm
- Nominal outer diameter: 88.0 mm
- Approximate net weight: 13823 kg/km
- Perm current rating in air 30°C: 453 A
- Permissible current rating when buried: 374 A
- Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.128 Ohm/km
M6N2R 3*240 NEW
Nexans ref. M6N2R 001210 - Country ref. M6N2R 3*240
- Colour: Black
- Conductor cross-section: 240 mm²
- Conductor diameter: 18.1 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.2 mm
- Nominal outer diameter: 93.0 mm
- Approximate net weight: 16077 kg/km
- Perm current rating in air 30°C: 529 A
- Permissible current rating when buried: 431 A
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km
M6N2R 3*240 AT
Nexans ref. M6N2R 001215 - Country ref. M6N2R 3*240(AT)
- Colour: Black
- Conductor cross-section: 240 mm²
- Conductor diameter: 18.1 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.2 mm
- Nominal outer diameter: 93.0 mm
- Approximate net weight: 15983 kg/km
- Perm current rating in air 30°C: 529 A
- Permissible current rating when buried: 431 A
- Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0981 Ohm/km
M6N2R 3*300
Nexans ref. M6N2R 000332 - Country ref. M6N2R 3*300
- Colour: Black
- Conductor cross-section: 300 mm²
- Conductor diameter: 20.3 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.4 mm
- Nominal outer diameter: 99.0 mm
- Approximate net weight: 18522 kg/km
- Perm current rating in air 30°C: 599 A
- Permissible current rating when buried: 482 A
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0792 Ohm/km
M6N2R 3*35
Nexans ref. M6N2R 000400 - Country ref. M6N2R 3*35
- Colour: Black
- Conductor cross-section: 35 mm²
- Conductor diameter: 6.9 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.3 mm
- Nominal outer diameter: 70.0 mm
- Approximate net weight: 7360 kg/km
- Perm current rating in air 30°C: 172 A
- Permissible current rating when buried: 154 A
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.668 Ohm/km
M6N2R 3*400
Nexans ref. M6N2R 003400 - Country ref. M6N2R 3*400
- Colour: Black
- Conductor cross-section: 400 mm²
- Conductor diameter: 23.2 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 4.6 mm
- Nominal outer diameter: 107.0 mm
- Approximate net weight: 22044 kg/km
- Perm current rating in air 30°C: 683 A
- Permissible current rating when buried: 541 A
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.0622 Ohm/km
M6N2R 3*50
Nexans ref. M6N2R 000401 - Country ref. M6N2R 3*50
- Colour: Black
- Conductor cross-section: 50 mm²
- Conductor diameter: 8.1 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.4 mm
- Nominal outer diameter: 70.0 mm
- Approximate net weight: 7767 kg/km
- Perm current rating in air 30°C: 205 A
- Permissible current rating when buried: 181 A
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.494 Ohm/km
M6N2R 3*70
Nexans ref. M6N2R 000515 - Country ref. M6N2R 3*70
- Colour: Black
- Conductor cross-section: 70 mm²
- Conductor diameter: 9.7 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.6 mm
- Nominal outer diameter: 74.0 mm
- Approximate net weight: 8848 kg/km
- Perm current rating in air 30°C: 253 A
- Permissible current rating when buried: 220 A
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.342 Ohm/km
M6N2R 3*95 NEW
Nexans ref. M6N2R 000518 - Country ref. M6N2R 3*95
- Colour: Black
- Conductor cross-section: 95 mm²
- Conductor diameter: 11.4 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.7 mm
- Nominal outer diameter: 78.0 mm
- Approximate net weight: 10042 kg/km
- Perm current rating in air 30°C: 307 A
- Permissible current rating when buried: 263 A
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.247 Ohm/km
M6N3R 3*70//EM
Nexans ref. M6N3R 000700 - Country ref. M6N3R 3*70//EM
- Colour: Red
- Conductor cross-section: 70 mm²
- Conductor diameter: 9.7 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.6 mm
- Nominal outer diameter: 74.0 mm
- Approximate net weight: 8929 kg/km
- Perm current rating in air 30°C: 253 A
- Permissible current rating when buried: 220 A
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.342 Ohm/km
M7N2R 3*120 NEW
Nexans ref. M7N2R 000522 - Country ref. M7N2R 3*120//O
- Colour: Orange
- Conductor cross-section: 120 mm²
- Conductor diameter: 12.9 mm
- Nominal insulation thickness: 8.0 mm
- Nominal armour wire diameter: 3.15 mm
- Nominal outer sheath thickness: 3.8 mm
- Nominal outer diameter: 82.0 mm
- Approximate net weight: 11312 kg/km
- Perm current rating in air 30°C: 352 A
- Permissible current rating when buried: 298 A
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- A.C. Conductor resist. 50Hz and at 90 °C: 0.196 Ohm/km
Description
Description
Standards
-
InternationalIEC 60332-1-2; IEC 60502-2
1-SCOPE
This specification covers three cores armoured cables, conforming to IEC 60502-2 Specifications.
2. CONSTRUCTION
2.1 Conductor
Plain, annealed electrolytic copper conductors, circular stranded,conforming to the applicable requirements of IEC 60228.
2.2 Insulation
Extruded inner semi conductive layer, XLPE insulation and extruded outer semi conductive layer .
2.3 Metallic Screen Layer
Copper tape on each core
2.4 Separation Sheath
PVC .
2.5 Armour
GALVANIZED STEEL WIRES .
2.5 Sheath
PVC .
3. TESTS
All tests required by IEC 60502-2 either on Raw material or on finished products.
TEST AT WORKS according to IEC 60502-2 for armored cables
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-2 parag.16.1 & 16.2
- High voltage test acc. to IEC 60502-2 parag. 16.1 & 16.4
- Max. partial discharge test at 1.73 Uo acc. to IEC 60502-2 parag.16.1 & 16.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-2 Parag. 17.5.2
Separation sheath : according to IEC 60502-2 Parag. 17.5.3
Armouring : according to IEC 60502-2 Parag. 17.7
Oversheath : according to IEC 60502-2 Parag. 17.5.3
- Hot Set Test : according to IEC 60502-2 Parag. 17.10
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break ) in accordance with IEC 60502-2.
These tests will be carried out on one length of the order .
Tests certificates will be provided by Liban Cables

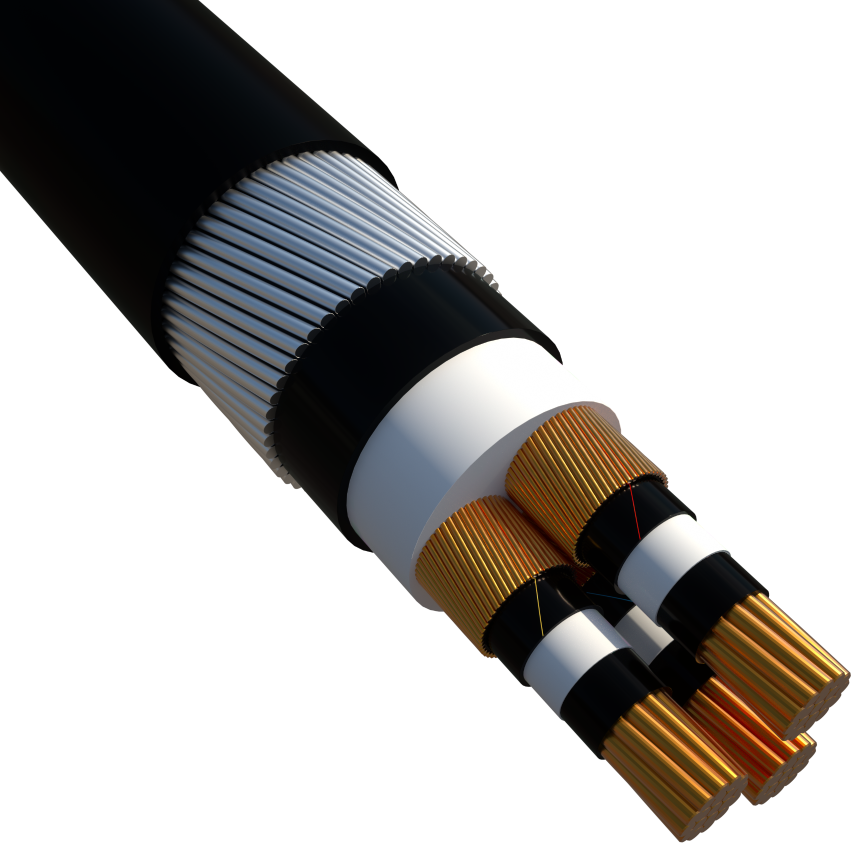

DRAWING MV
MV LAYERS
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Number of conductors
3
Conductor shape
Circular
Material of the inner semi-conductor
Extruded
Armour type
Galvanized steel wires
Insulation
XLPE
Screen
Copper tape
Outer sheath
PVC
Conductor flexibility
Class 2 IEC 60228
Electrical characteristics
Electrical characteristics
Thermal soil resistivity wet zone
1.5 °K.m/W
Mechanical characteristics
Mechanical characteristics
Cable flexibility
7xD
Usage characteristics
Usage characteristics
Laying depth, center of system
800 mm
Ambient air temperature
30 °C
Ambient ground temperature
20 °C
Max. conductor temperature in service
90 °C
Operating temperature, range
-15 ... 55 °C
Short-circuit max. conductor temperature
250 °C
Resistant to termites
Yes
Resources
Resources
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
