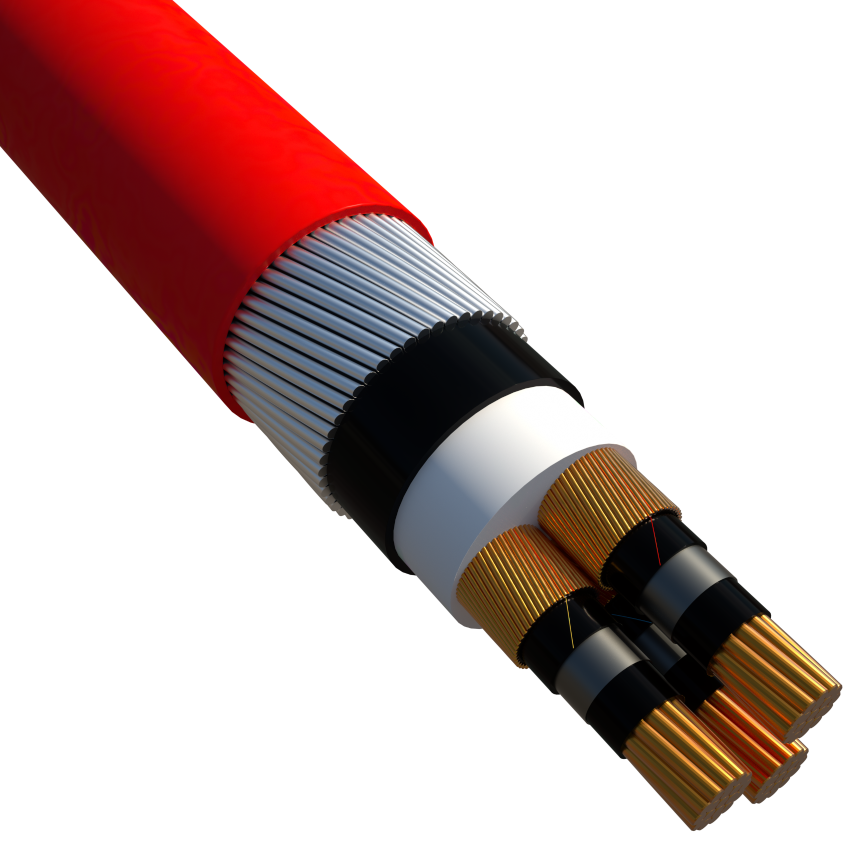

3C Cu Cond. CWS, GSWA and LSZH sheath

1-SCOPE

This specification covers three cores armoured cables.


2. CONSTRUCTION

2.1 Conductor

Plain, annealed electrolytic copper conductors, circular stranded,conforming to the applicable requirements of BS EN 60228.

2.2 Insulation

Extruded inner semi conductive layer, XLPE insulation and  extruded outer semi conductive layer .

2.3 Metallic Screen Layer

Copper wires + Open Helix Copper Tape on each core

2.4 Separation Sheath

Low Smoke Zero Halogen Compound .

2.5 Armour

GALVANIZED STEEL WIRES .

2.5 Sheath

Low Smoke Zero Halogen Compound .
