NA2XS(F)H single core 18/30kV
NA2XS(F)H single core 18/30kV

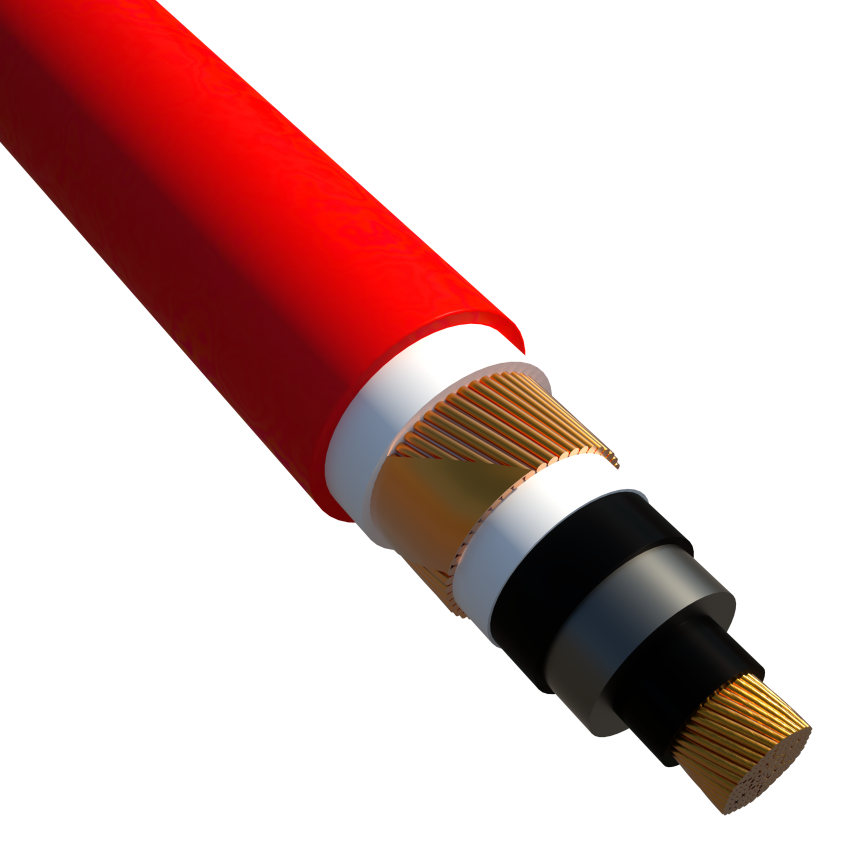

XLPE insulated LSZH sheathed Unarmored cable with aluminum conductor
Read moreNA2XS(F)H 1*120/50 18/30kV
Nexans ref. M6A4U 010306 - Country ref. M6A4U 1*120/50(F)//POL-1
- Conductor cross-section: 120 mm²
- Screen section: 50 mm²
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 37.0 mm
NA2XS(F)H 1*240/50 18/30kV
Nexans ref. M6A4U 010304 - Country ref. M6A4U 1*240/50(F)//POL-1
- Conductor cross-section: 240 mm²
- Screen section: 50 mm²
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 42.0 mm
NA2XS(F)H 1*400/50 18/30kV
Nexans ref. M6A4U 010305 - Country ref. M6A4U 1*400/50(F)//POL-1
- Conductor cross-section: 400 mm²
- Screen section: 50 mm²
- Nominal outer sheath thickness: 2.5 mm
- Nominal outer diameter: 49.0 mm
NA2XS(F)H 1*95/35 18/30kV
Nexans ref. M6A4U 010303 - Country ref. M6A4U 1*95/35(F)//POL-1
- Conductor cross-section: 95 mm²
- Screen section: 35 mm²
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 36.0 mm
Description
Description
Standards
-
InternationalIEC 60332-1-2; IEC 60502-2
AL/SC/XLPE/SC/SC SWEL/CU WIRES/SWEL/LSZH
APPLICATION
Power use outdoor application, even wet.
Suitable for fixed installations at open air, in tube or canals and underground.
Max. Operation temperature: 90°
Max. Short circuit temperature : 250° (Max 5 s)
CONSTRUCTION
1. Conductor:
Compacted Round conductor class 2
2. Insulation:
Extruded inner semi conductive layer, XLPE insulation and extruded outer semi conductive layer
3. Water proof tape:
Semi-conductive swelling tape
4. Metallic screen layer:
Copper wires with open helix copper tape
5. Water proof tape:
swelling tape
6. Outer sheath:
Low Smoke Zero Halogen compound, Black or as per customer requirement
7. Marking:
By Inkjet
8. Packing:
Drums can be wooden or steel
TEST AT WORKS ACCORDING TO IEC 60502-2 / PRÓBY FABRYCZNE XnRUHAKXS, XnRUHKXS
Routine Tests / Badania rutynowe:
• Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-2 parag.16.2 / Maks. rezystancja DC żył w temperaturze 20°C zgodnie z IEC 60228 i IEC 60502-2 pkt 16.2
• High voltage test acc. to IEC 60502-2 parag. 16.4 / Próba wysokim napięciem zgodnie z IEC 60502-2 pkt 16.4
• Max. partial discharge test at 1.73 Uo acc. to IEC 60502-2 parag. 16.3 / Badanie maksymalnych wyładowań niezupełnych przy 1,73 Uo zgodnie z IEC 60502-2 pkt 16.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided / Firma Liban Cables przeprowadzi te badania dla wszystkich odcinków kabli i dostarczy świadectwa z badań
Sample tests / Badania próbek:
• Check of the build - up and color coding of the cable / Sprawdzenie rozwijania i kolorowych oznaczeń kabla
• Check of dimensions / Sprawdzenie wymiarów
Insulation / Izolacja : according to IEC 60502-2 / zgodnie z IEC 60502-2 Parag. / pkt. 17.5.2
Metallic screen / Ekran metaliczny : according to IEC 60502-2 / zgodnie z IEC 60502-2 Parag. / pkt. 17.7
Oversheath / Powłoka zewnętrzna : according to IEC 60502-2 / zgodnie z IEC 60502-2 Parag. / pkt. 17.5.3
- Hot Set Test for XLPE insulation according to IEC 60502-2 parag. 17.10 /-Badanie stopnia usieciowania izolacji z XLPE zgodnie z IEC 60502-2 pkt 17.10
These tests will be carried out on one length of each size during each inspection . / Badania te – podczas każdej kontroli – zostaną przeprowadzone na jednym odcinku dla każdego rozmiaru kabla.
Tests certificates will be provided by Liban Cables / Świadectwa z badań dostarczy firma Liban Cables
Type tests / Próby typu
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break ) in accordance with IEC 60502-2. / Charakterystyki mechaniczne materiałów izolacji i powłoki zewnętrznej (wytrzymałość na rozciąganie i wydłużenie przy zerwaniu) zgodnie z IEC 60502-2.
These tests will be carried out on one length of the order / Badania te zostaną przeprowadzone na jednym odcinku z zamówienia
Tests certificates will be provided by Liban Cables / Świadectwa z badań dostarczy firma Liban Cables
