XHAKXS Single Core 18/30KV
XHAKXS 1*120/16 18/30KV
Nexans ref. M6A4P 100805 - Country ref. M6A4P 1*120/16(FL)//POL-1
- Conductor cross-section: 120 mm²
- Screen section: 16 mm²
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 37.0 mm
- Permissible short circuit current screen 1s: - kA
XHAKXS 1*150/25 18/30KV
Nexans ref. M6A4P 002025 - Country ref. M6A4P 1*150/25//Pol-1
- Conductor cross-section: 150 mm²
- Screen section: 25 mm²
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 37.0 mm
- Permissible short circuit current screen 1s: - kA
XHAKXS 1*185/25 18/30KV
Nexans ref. M6A4P..001001 - Country ref. M6A4P 1*185/25(F)//POL-1
- Conductor cross-section: 185 mm²
- Screen section: 25 mm²
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 40.0 mm
- Permissible short circuit current screen 1s: 5.0 kA
XHAKXS 1*185/50 18/30KV
Nexans ref. M6A4P 001616 - Country ref. M6A4P 1*185/50//POL-1
- Conductor cross-section: 185 mm²
- Screen section: 50 mm²
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 40.0 mm
- Permissible short circuit current screen 1s: - kA
XHAKXS 1*240/25 18/30KV
Nexans ref. M6A4P..000699 - Country ref. M6A4P 1*240/25(F)//POL-1
- Conductor cross-section: 240 mm²
- Screen section: 25 mm²
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 42.0 mm
- Permissible short circuit current screen 1s: 5.0 kA
XHAKXS 1*300/25 18/30KV
Nexans ref. M6A4P 002024 - Country ref. M6A4P 1*300/25//Pol-1
- Conductor cross-section: 300 mm²
- Screen section: 25 mm²
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 44.0 mm
- Permissible short circuit current screen 1s: - kA
XHAKXS 1*300/50 18/30KV
Nexans ref. M6A4P 001615 - Country ref. M6A4P 1*300/50//POL-1
- Conductor cross-section: 300 mm²
- Screen section: 50 mm²
- Nominal outer sheath thickness: 2.4 mm
- Nominal outer diameter: 44.0 mm
- Permissible short circuit current screen 1s: - kA
XHAKXS 1*500/325 18/30KV
Nexans ref. M6A4P..001003 - Country ref. M6A4P 1*500/35(F)//POL-1
- Conductor cross-section: 500 mm²
- Screen section: 25 mm²
- Nominal outer sheath thickness: 2.6 mm
- Nominal outer diameter: 53.0 mm
- Permissible short circuit current screen 1s: 6.9 kA
XHAKXS 1*630/35 18/30KV
Nexans ref. M6A4P 100120 - Country ref. M6A4P 1*630/35(FL)//POL-1
- Conductor cross-section: 630 mm²
- Screen section: 35 mm²
- Nominal outer sheath thickness: 2.7 mm
- Nominal outer diameter: 56.0 mm
- Permissible short circuit current screen 1s: - kA
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-2
Application
Power use outdoor application, even wet.
Suitable for fixed installations at open air, in tube or canals and underground.
Max. Operation temperature: 90°
Max. Short circuit temperature : 250° (Max 5 s)

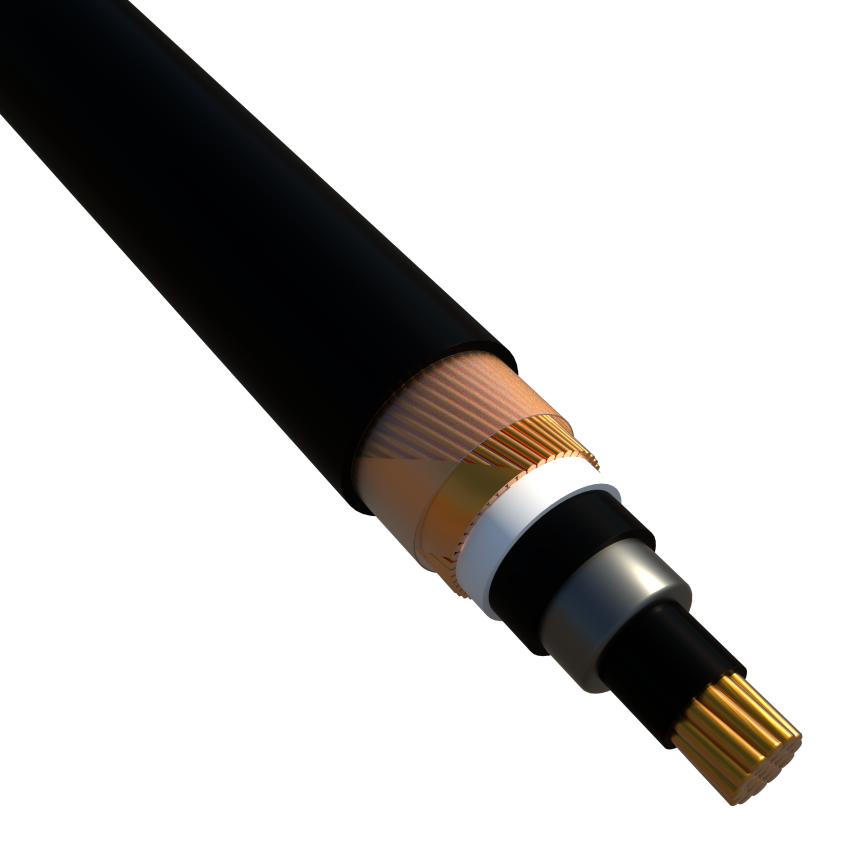

Construction
AL/SC/XLPE/SC/SC TAPE/CU WIRES/PE
1. Conductor: Compacted Round conductor class 2
2. Insulation: Extruded inner semi conductive layer, XLPE insulation and extruded outer semi conductive layer + semi conductive tape
3. Metallic screen layer: Copper wires with open helix copper tape
4. Outer sheath: PE, Black or as per customer requirement
7. Marking: By Inkjet
8. Packing: Drums can be wooden or steel
*Non adiabatic short circuit current screen 1s calculated at an inital temperature of 80 degrees and final temperature 350 degrees
