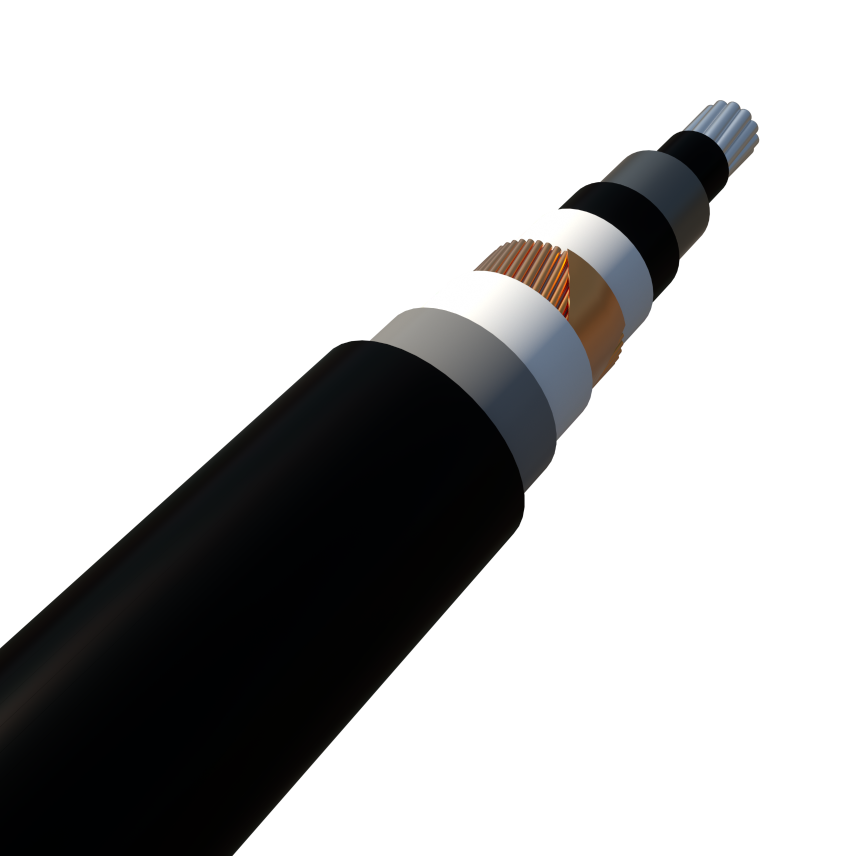

XRUHAKXS 18/30KV

XRUHAKXS 18/30KV XRUHAKXS 18/30KV

XRUHAKXS 18/30KV

Specification / Specyfikacja: MEDIUM VOLTAGE UNARMOURED CABLE CONFORMING TO IEC 60502-2 / KABLE ELEKTROENERGETYCZNE ŚREDNIEGO NAPIĘCIA, NIEOPANCERZONE, ZGODNE Z IEC 60502-2

Read more
Download all documents
Contact us

Products

Actions
Filters

  • products

XRUHAKXS 1*1000/100 18/30KV

Nexans ref. M6A4DP 000151 - Country ref. M6A4DP 1*1000/100(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Circular non compacted
  • Outer sheath: PE
  • Conductor cross-section: 1000 mm²
  • Conductor diameter: 41.08 mm
  • Screen section: 100 mm²
  • Nominal outer sheath thickness: 3.0 mm
  • Nominal outer diameter: 71.0 mm
  • Approximate net weight: 5869 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1251 A
  • Permissible current rating when buried: 781 A
  • Max. DC resistance of the conductor at 20°C: 0.0291 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.04 Ohm/km
  • Permissible short circuit current conductor 1s: 95 kA
  • Permissible short circuit current screen 1s: 14.3 kA



XRUHAKXS 1*1000/25 18/30KV

Nexans ref. M6A4DP 000502 - Country ref. M6A4DP 1*1000/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Circular non compacted
  • Outer sheath: PE
  • Conductor cross-section: 1000 mm²
  • Conductor diameter: 41.6 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 3.0 mm
  • Nominal outer diameter: 70.0 mm
  • Approximate net weight: 5173 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1251 A
  • Permissible current rating when buried: 781 A
  • Max. DC resistance of the conductor at 20°C: 0.0291 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.04 Ohm/km
  • Permissible short circuit current conductor 1s: 95 kA
  • Permissible short circuit current screen 1s: 3.57 kA



XRUHAKXS 1*1000/50 18/30KV

Nexans ref. M6A4DP 000500 - Country ref. M6A4DP 1*1000/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Circular non compacted
  • Outer sheath: PE
  • Conductor cross-section: 1000 mm²
  • Conductor diameter: 41.6 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 3.0 mm
  • Nominal outer diameter: 72.0 mm
  • Approximate net weight: 5560 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1251 A
  • Permissible current rating when buried: 781 A
  • Max. DC resistance of the conductor at 20°C: 0.0291 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.04 Ohm/km
  • Permissible short circuit current conductor 1s: 95 kA
  • Permissible short circuit current screen 1s: 7.14 kA



XRUHAKXS 1*1000/50 18/30KV

Nexans ref. M6A4DP 001103 - Country ref. M6A4DP 1*1000/50(FL)//POL-3

  • Packaging: Cut to length (m)
  • Conductor shape: Circular non compacted
  • Outer sheath: PE
  • Conductor cross-section: 1000 mm²
  • Conductor diameter: 41.6 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 3.0 mm
  • Nominal outer diameter: 72.0 mm
  • Approximate net weight: 5560 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1251 A
  • Permissible current rating when buried: 781 A
  • Max. DC resistance of the conductor at 20°C: 0.0291 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.04 Ohm/km
  • Permissible short circuit current conductor 1s: 95 kA
  • Permissible short circuit current screen 1s: 7.14 kA



XRUHAKXS 1*1000/70 18/30KV

Nexans ref. M6A4DP.000503 - Country ref. M6A4DP 1*1000/70(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Circular non compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 1000 mm²
  • Conductor diameter: 41.6 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 3.0 mm
  • Nominal outer diameter: 71.0 mm
  • Approximate net weight: 5603 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1251 A
  • Permissible current rating when buried: 781 A
  • Max. DC resistance of the conductor at 20°C: 0.0291 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.04 Ohm/km
  • Permissible short circuit current conductor 1s: 95 kA
  • Permissible short circuit current screen 1s: 7.14 kA



XRUHAKXS 1*1200/50 18/30KV

Nexans ref. M6A4DP 000501 - Country ref. M6A4DP 1*1200/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Circular non compacted
  • Outer sheath: PE
  • Conductor cross-section: 1200 mm²
  • Conductor diameter: 46.77 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 3.1 mm
  • Nominal outer diameter: 76.0 mm
  • Approximate net weight: 6435 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1375 A
  • Permissible current rating when buried: 841 A
  • Max. DC resistance of the conductor at 20°C: 0.0247 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0368 Ohm/km
  • Permissible short circuit current conductor 1s: 114.4 kA
  • Permissible short circuit current screen 1s: 7.14 kA



XRUHAKXS 1*400/100 18/30KV

Nexans ref. M6A4DP 000143 - Country ref. M6A4DP 1*400/100(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Screen section: 100 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 51.0 mm
  • Approximate net weight: 3245 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 673 A
  • Permissible current rating when buried: 470 A
  • Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.1 Ohm/km
  • Permissible short circuit current conductor 1s: 38.3 kA
  • Permissible short circuit current screen 1s: 14.3 kA



XRUHAKXS 1*400/130 18/30KV

Nexans ref. M6A4DP 000144 - Country ref. M6A4DP 1*400/130(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Screen section: 130 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 51.0 mm
  • Approximate net weight: 3517 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 673 A
  • Permissible current rating when buried: 470 A
  • Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.1 Ohm/km
  • Permissible short circuit current conductor 1s: 38.3 kA
  • Permissible short circuit current screen 1s: 18.5 kA



XRUHAKXS 1*400/16 18/30KV

Nexans ref. M6A4DP 000802 - Country ref. M6A4DP 1*400/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 49.0 mm
  • Approximate net weight: 2442 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 673 A
  • Permissible current rating when buried: 470 A
  • Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0997 Ohm/km
  • Permissible short circuit current conductor 1s: 38.3 kA
  • Permissible short circuit current screen 1s: 3.2 kA



XRUHAKXS 1*400/25 18/30KV

Nexans ref. M6A4DP 000852 - Country ref. M6A4DP 1*400/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 49.0 mm
  • Approximate net weight: 2526 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 673 A
  • Permissible current rating when buried: 470 A
  • Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0997 Ohm/km
  • Permissible short circuit current conductor 1s: 38.3 kA
  • Permissible short circuit current screen 1s: 5.0 kA



XRUHAKXS 1*400/35 18/30KV

Nexans ref. M6A4DP 000124 - Country ref. M6A4DP 1*400/35(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 49.0 mm
  • Approximate net weight: 2626 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 673 A
  • Permissible current rating when buried: 470 A
  • Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0997 Ohm/km
  • Permissible short circuit current conductor 1s: 38.3 kA
  • Permissible short circuit current screen 1s: 5.15 kA



XRUHAKXS 1*400/50 18/30KV

Nexans ref. M6A4DP 000132 - Country ref. M6A4DP 1*400/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 50.0 mm
  • Approximate net weight: 2765 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 673 A
  • Permissible current rating when buried: 470 A
  • Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.1 Ohm/km
  • Permissible short circuit current conductor 1s: 38.3 kA
  • Permissible short circuit current screen 1s: 9.8 kA



XRUHAKXS 1*400/70 18/30KV

Nexans ref. M6A4DP 000152 - Country ref. M6A4DP 1*400/70(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Screen section: 70 mm²
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 50.0 mm
  • Approximate net weight: 2946 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 673 A
  • Permissible current rating when buried: 470 A
  • Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.1 Ohm/km
  • Permissible short circuit current conductor 1s: 38.3 kA
  • Permissible short circuit current screen 1s: 10.3 kA



XRUHAKXS 1*400/90 18/30KV

Nexans ref. M6A4DP 000142 - Country ref. M6A4DP 1*400/90(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 400 mm²
  • Conductor diameter: 23.2 mm
  • Screen section: 90 mm²
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 51.0 mm
  • Approximate net weight: 3141 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 673 A
  • Permissible current rating when buried: 470 A
  • Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.1 Ohm/km
  • Permissible short circuit current conductor 1s: 38.3 kA
  • Permissible short circuit current screen 1s: 12.8 kA



XRUHAKXS 1*120/16 18/30KV

Nexans ref. M6A4DP 000805 - Country ref. XRUHAKXS 1*120/16

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.8 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 37.0 mm
  • Approximate net weight: 1286 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 324 A
  • Permissible current rating when buried: 252 A
  • Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.323 Ohm/km
  • Permissible short circuit current conductor 1s: 11.6 kA
  • Permissible short circuit current screen 1s: 3.2 kA



XRUHAKXS 1*120/25 18/30KV

Nexans ref. M6A4DP 000122 - Country ref. M6A4DP 1*120/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.8 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 37.0 mm
  • Approximate net weight: 1362 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 324 A
  • Permissible current rating when buried: 252 A
  • Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.323 Ohm/km
  • Permissible short circuit current conductor 1s: 11.6 kA
  • Permissible short circuit current screen 1s: 3.7 kA



XRUHAKXS 1*120/35 18/30KV

Nexans ref. M6A4DP 000863 - Country ref. M6A4DP 1*120/35(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.8 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 38.0 mm
  • Approximate net weight: 1474 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 324 A
  • Permissible current rating when buried: 252 A
  • Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.323 Ohm/km
  • Permissible short circuit current conductor 1s: 11.6 kA
  • Permissible short circuit current screen 1s: 5.0 kA



XRUHAKXS 1*120/50 18/30KV NEW

Nexans ref. M6A4DP 001742 - Country ref. M6A4DP 1*120/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.8 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 38.0 mm
  • Approximate net weight: 1614 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 324 A
  • Permissible current rating when buried: 252 A
  • Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.323 Ohm/km
  • Permissible short circuit current conductor 1s: 11.6 kA
  • Permissible short circuit current screen 1s: 7.15 kA



XRUHAKXS 1*120/70 18/30KV

Nexans ref. M6A4DP 001743 - Country ref. M6A4DP 1*120/70(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 120 mm²
  • Conductor diameter: 12.8 mm
  • Screen section: 70 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate net weight: 1800 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 324 A
  • Permissible current rating when buried: 252 A
  • Max. DC resistance of the conductor at 20°C: 0.253 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.323 Ohm/km
  • Permissible short circuit current conductor 1s: 11.6 kA
  • Permissible short circuit current screen 1s: 10.3 kA



XRUHAKXS 1*150/120 18/30KV

Nexans ref. M6A4DP 001130 - Country ref. M6A4DP 1*150/120(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.4 mm
  • Screen section: 120 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 41.0 mm
  • Approximate net weight: 2437 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 368 A
  • Permissible current rating when buried: 281 A
  • Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.264 Ohm/km
  • Permissible short circuit current conductor 1s: 14.5 kA
  • Permissible short circuit current screen 1s: 17.8 kA



XRUHAKXS 1*150/16 18/30KV

Nexans ref. M6A4DP 000814 - Country ref. M6A4DP 1*150/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.4 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate net weight: 1414 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 368 A
  • Permissible current rating when buried: 281 A
  • Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.264 Ohm/km
  • Permissible short circuit current conductor 1s: 14.5 kA
  • Permissible short circuit current screen 1s: 2.28 kA



XRUHAKXS 1*150/25 18/30KV

Nexans ref. M6A4DP 021130 - Country ref. M6A4DP 1*150/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.4 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate net weight: 1500 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 368 A
  • Permissible current rating when buried: 281 A
  • Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.264 Ohm/km
  • Permissible short circuit current conductor 1s: 14.5 kA
  • Permissible short circuit current screen 1s: 3.7 kA



XRUHAKXS 1*150/35 18/30KV

Nexans ref. M6A4DP 000401 - Country ref. M6A4DP 1*150/35(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.4 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 39.0 mm
  • Approximate net weight: 1598 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 368 A
  • Permissible current rating when buried: 281 A
  • Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.264 Ohm/km
  • Permissible short circuit current conductor 1s: 14.5 kA
  • Permissible short circuit current screen 1s: 5.0 kA



XRUHAKXS 1*150/50 18/30KV NEW

Nexans ref. M6A4DP 000130 - Country ref. M6A4DP 1*150/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.4 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 40.0 mm
  • Approximate net weight: 1737 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 368 A
  • Permissible current rating when buried: 281 A
  • Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.264 Ohm/km
  • Permissible short circuit current conductor 1s: 14.5 kA
  • Permissible short circuit current screen 1s: 7.15 kA



XRUHAKXS 1*150/70 18/30KV

Nexans ref. M6A4DP 002130 - Country ref. M6A4DP 1*150/70(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.4 mm
  • Screen section: 70 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 40.0 mm
  • Approximate net weight: 1925 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 368 A
  • Permissible current rating when buried: 281 A
  • Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.264 Ohm/km
  • Permissible short circuit current conductor 1s: 14.5 kA
  • Permissible short circuit current screen 1s: 10.3 kA



XRUHAKXS 1*150/95 18/30KV

Nexans ref. M6A4DP.030402 - Country ref. M6A4DP 1*150/95(FL)//POL

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 150 mm²
  • Conductor diameter: 14.4 mm
  • Screen section: 95 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 41.0 mm
  • Approximate net weight: 2166 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 368 A
  • Permissible current rating when buried: 281 A
  • Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.264 Ohm/km
  • Permissible short circuit current conductor 1s: 14.5 kA
  • Permissible short circuit current screen 1s: 7.15 kA



XRUHAKXS 1*185/100 18/30KV

Nexans ref. M6A4DP 000121 - Country ref. M6A4DP 1*185/100(FL)//POL-1

  • Packaging: Drum (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 16.2 mm
  • Screen section: 100 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 43.0 mm
  • Approximate net weight: 2411 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 424 A
  • Permissible current rating when buried: 317 A
  • Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.21 Ohm/km
  • Permissible short circuit current conductor 1s: 17.9 kA
  • Permissible short circuit current screen 1s: 14.85 kA



XRUHAKXS 1*185/16 18/30KV

Nexans ref. M6A4DP 000813 - Country ref. M6A4DP 1*185/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 16.2 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.2 mm
  • Nominal outer diameter: 41.0 mm
  • Approximate net weight: 1589 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 424 A
  • Permissible current rating when buried: 317 A
  • Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.21 Ohm/km
  • Permissible short circuit current conductor 1s: 17.9 kA
  • Permissible short circuit current screen 1s: 2.28 kA



XRUHAKXS 1*185/25 18/30KV

Nexans ref. M6A4DP 021129 - Country ref. M6A4DP 1*185/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 16.2 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 41.0 mm
  • Approximate net weight: 1686 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 424 A
  • Permissible current rating when buried: 317 A
  • Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.21 Ohm/km
  • Permissible short circuit current conductor 1s: 17.9 kA
  • Permissible short circuit current screen 1s: 3.7 kA



XRUHAKXS 1*185/35 18/30KV

Nexans ref. M6A4DP 000400 - Country ref. M6A4DP 1*185/35(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 16.2 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 42.0 mm
  • Approximate net weight: 1785 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 424 A
  • Permissible current rating when buried: 317 A
  • Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.21 Ohm/km
  • Permissible short circuit current conductor 1s: 17.9 kA
  • Permissible short circuit current screen 1s: - kA



XRUHAKXS 1*185/50 18/30KV NEW

Nexans ref. M6A4DP 000129 - Country ref. M6A4DP 1*185/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 16.2 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 42.0 mm
  • Approximate net weight: 1924 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 424 A
  • Permissible current rating when buried: 317 A
  • Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.21 Ohm/km
  • Permissible short circuit current conductor 1s: 17.9 kA
  • Permissible short circuit current screen 1s: 7.15 kA



XRUHAKXS 1*185/70 18/30KV

Nexans ref. M6A4DP 002129 - Country ref. M6A4DP 1*185/70(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 185 mm²
  • Conductor diameter: 16.2 mm
  • Screen section: 70 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 42.0 mm
  • Approximate net weight: 2112 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 424 A
  • Permissible current rating when buried: 317 A
  • Max. DC resistance of the conductor at 20°C: 0.164 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.21 Ohm/km
  • Permissible short circuit current conductor 1s: 17.9 kA
  • Permissible short circuit current screen 1s: 10.3 kA



XRUHAKXS 1*240/100 18/30KV

Nexans ref. M6A4DP 001133 - Country ref. M6A4DP 1*240/100(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 17.9 mm
  • Screen section: 100 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 45.0 mm
  • Approximate net weight: 2607 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 502 A
  • Permissible current rating when buried: 367 A
  • Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
  • Permissible short circuit current conductor 1s: 23.1 kA
  • Permissible short circuit current screen 1s: 14.3 kA



XRUHAKXS 1*240/16 18/30KV

Nexans ref. M6A4DP 000804 - Country ref. M6A4DP 1*240/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 17.9 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 43.0 mm
  • Approximate net weight: 1786 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 502 A
  • Permissible current rating when buried: 367 A
  • Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
  • Permissible short circuit current conductor 1s: 23.1 kA
  • Permissible short circuit current screen 1s: 2.28 kA



XRUHAKXS 1*240/16 18/30KV

Nexans ref. M6A4DP.000153 - Country ref. M6A4DP 1*240/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 17.9 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 43.0 mm
  • Approximate net weight: 1784 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 502 A
  • Permissible current rating when buried: 367 A
  • Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
  • Permissible short circuit current conductor 1s: 23.1 kA
  • Permissible short circuit current screen 1s: 3.2 kA



XRUHAKXS 1*240/25 18/30KV

Nexans ref. M6A4DP 000123 - Country ref. M6A4DP 1*240/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 17.9 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 43.0 mm
  • Approximate net weight: 1871 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 502 A
  • Permissible current rating when buried: 367 A
  • Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
  • Permissible short circuit current conductor 1s: 23.1 kA
  • Permissible short circuit current screen 1s: 3.7 kA



XRUHAKXS 1*240/35 18/30KV

Nexans ref. M6A4DP 000141 - Country ref. M6A4DP 1*240/35(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 17.9 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 43.0 mm
  • Approximate net weight: 1970 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 502 A
  • Permissible current rating when buried: 367 A
  • Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
  • Permissible short circuit current conductor 1s: 23.1 kA
  • Permissible short circuit current screen 1s: 5.0 kA



XRUHAKXS 1*240/50 18/30KV NEW

Nexans ref. M6A4DP 000131 - Country ref. M6A4DP 1*240/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 17.9 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 44.0 mm
  • Approximate net weight: 2122 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 502 A
  • Permissible current rating when buried: 367 A
  • Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
  • Permissible short circuit current conductor 1s: 23.1 kA
  • Permissible short circuit current screen 1s: 9.8 kA



XRUHAKXS 1*240/70 18/30KV

Nexans ref. M6A4DP 001131 - Country ref. M6A4DP 1*240/70(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 17.9 mm
  • Screen section: 70 mm²
  • Nominal outer sheath thickness: 2.3 mm
  • Nominal outer diameter: 44.0 mm
  • Approximate net weight: 2295 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 502 A
  • Permissible current rating when buried: 367 A
  • Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
  • Permissible short circuit current conductor 1s: 23.1 kA
  • Permissible short circuit current screen 1s: 10.3 kA



XRUHAKXS 1*240/90 18/30KV

Nexans ref. M6A4DP 001134 - Country ref. M6A4DP 1*240/90(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 17.9 mm
  • Screen section: 90 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 44.0 mm
  • Approximate net weight: 2504 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 502 A
  • Permissible current rating when buried: 367 A
  • Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
  • Permissible short circuit current conductor 1s: 23.1 kA
  • Permissible short circuit current screen 1s: 12.8 kA



XRUHAKXS 1*240/95 18/30KV

Nexans ref. M6A4DP 000862 - Country ref. M6A4DP 1*240/95(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 240 mm²
  • Conductor diameter: 17.9 mm
  • Screen section: 95 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 45.0 mm
  • Approximate net weight: 2550 kg/km
  • Rated Voltage Uo/U (Um): 18/30 kV
  • Perm current rating in air 30°C: 502 A
  • Permissible current rating when buried: 367 A
  • Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.161 Ohm/km
  • Permissible short circuit current conductor 1s: 23.1 kA
  • Permissible short circuit current screen 1s: 12.8 kA



XRUHAKXS 1*300/100 18/30KV

Nexans ref. M6A4DP 000133 - Country ref. M6A4DP 1*300/100(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Screen section: 100 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 47.0 mm
  • Approximate net weight: 2860 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 577 A
  • Permissible current rating when buried: 414 A
  • Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
  • Permissible short circuit current conductor 1s: 28.9 kA
  • Permissible short circuit current screen 1s: 14.3 kA



XRUHAKXS 1*300/125 - 18/30KV

Nexans ref. M6A4DP 000159 - Country ref. M6A4DP 1*300/125(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Screen section: 125 mm²
  • Nominal outer sheath thickness: 2.5 mm
  • Nominal outer diameter: 48.0 mm
  • Approximate net weight: 3100 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 577 A
  • Permissible current rating when buried: 414 A
  • Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
  • Permissible short circuit current conductor 1s: 28.9 kA
  • Permissible short circuit current screen 1s: 18.5 kA



XRUHAKXS 1*300/16 18/30KV

Nexans ref. M6A4DP 000803 - Country ref. M6A4DP 1*300/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 45.0 mm
  • Approximate net weight: 2050 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 577 A
  • Permissible current rating when buried: 414 A
  • Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
  • Permissible short circuit current conductor 1s: 28.8 kA
  • Permissible short circuit current screen 1s: 3.2 kA



XRUHAKXS 1*300/16 18/30KV

Nexans ref. M6A4DP.021140 - Country ref. M6A4DP 1*300/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 45.0 mm
  • Approximate net weight: 2050 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 577 A
  • Permissible current rating when buried: 414 A
  • Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
  • Permissible short circuit current conductor 1s: 28.8 kA
  • Permissible short circuit current screen 1s: 3.7 kA



XRUHAKXS 1*300/25 18/30KV

Nexans ref. M6A4DP 021137 - Country ref. M6A4DP 1*300/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 45.0 mm
  • Approximate net weight: 2134 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 577 A
  • Permissible current rating when buried: 414 A
  • Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
  • Permissible short circuit current conductor 1s: 28.8 kA
  • Permissible short circuit current screen 1s: 3.7 kA



XRUHAKXS 1*300/35 18/30KV

Nexans ref. M6A4DP 000861 - Country ref. M6A4DP 1*300/35(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 46.0 mm
  • Approximate net weight: 2234 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 577 A
  • Permissible current rating when buried: 414 A
  • Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
  • Permissible short circuit current conductor 1s: 28.8 kA
  • Permissible short circuit current screen 1s: 5.0 kA



XRUHAKXS 1*300/50 18/30KV NEW

Nexans ref. M6A4DP 000137 - Country ref. M6A4DP 1*300/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 46.0 mm
  • Approximate net weight: 2372 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 577 A
  • Permissible current rating when buried: 414 A
  • Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
  • Permissible short circuit current conductor 1s: 28.8 kA
  • Permissible short circuit current screen 1s: 7.15 kA



XRUHAKXS 1*300/70 18/30KV

Nexans ref. M6A4DP 002131 - Country ref. M6A4DP 1*300/70(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Screen section: 70 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 47.0 mm
  • Approximate net weight: 2558 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 577 A
  • Permissible current rating when buried: 414 A
  • Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
  • Permissible short circuit current conductor 1s: 28.8 kA
  • Permissible short circuit current screen 1s: 10.3 kA



XRUHAKXS 1*300/95 18/30KV

Nexans ref. M6A4DP.002137 - Country ref. M6A4DP 1*300/95(FL)//POL

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 300 mm²
  • Conductor diameter: 20.3 mm
  • Screen section: 95 mm²
  • Nominal outer sheath thickness: 2.4 mm
  • Nominal outer diameter: 47.0 mm
  • Approximate net weight: 2803 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 577 A
  • Permissible current rating when buried: 414 A
  • Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.129 Ohm/km
  • Permissible short circuit current conductor 1s: 28.8 kA
  • Permissible short circuit current screen 1s: 7.15 kA



XRUHAKXS 1*50/16 18/30KV

Nexans ref. M6A4DP 000808 - Country ref. M6A4DP 1*50/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 50 mm²
  • Conductor diameter: 8.1 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 33.0 mm
  • Approximate net weight: 928 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 184 A
  • Permissible current rating when buried: 152 A
  • Max. DC resistance of the conductor at 20°C: 0.641 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.822 Ohm/km
  • Permissible short circuit current conductor 1s: 4.9 kA
  • Permissible short circuit current screen 1s: 2.3 kA



XRUHAKXS 1*500/100 18/30KV

Nexans ref. M6A4DP 002134 - Country ref. M6A4DP 1*500/100(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Screen section: 100 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 54.0 mm
  • Approximate net weight: 3658 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 789 A
  • Permissible current rating when buried: 537 A
  • Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
  • Permissible short circuit current conductor 1s: 47.9 kA
  • Permissible short circuit current screen 1s: 14.3 kA



XRUHAKXS 1*500/130 18/30KV

Nexans ref. M6A4DP 000147 - Country ref. M6A4DP 1*500/130(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Screen section: 130 mm²
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 55.0 mm
  • Approximate net weight: 3946 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 789 A
  • Permissible current rating when buried: 537 A
  • Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
  • Permissible short circuit current conductor 1s: 47.9 kA
  • Permissible short circuit current screen 1s: 18.5 kA



XRUHAKXS 1*500/16 18/30KV

Nexans ref. M6A4DP 000801 - Country ref. M6A4DP 1*500/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 53.0 mm
  • Approximate net weight: 2855 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 789 A
  • Permissible current rating when buried: 537 A
  • Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
  • Permissible short circuit current conductor 1s: 47.9 kA
  • Permissible short circuit current screen 1s: 2.28 kA



XRUHAKXS 1*500/16 18/30KV

Nexans ref. M6A4DP 000160 - Country ref. M6A4DP 1*500/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 53.0 mm
  • Approximate net weight: 2857 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 789 A
  • Permissible current rating when buried: 537 A
  • Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
  • Permissible short circuit current conductor 1s: 47.9 kA
  • Permissible short circuit current screen 1s: 3.2 kA



XRUHAKXS 1*500/25 18/30KV

Nexans ref. M6A4DP 000820 - Country ref. M6A4DP 1*500/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 53.0 mm
  • Approximate net weight: 2940 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 789 A
  • Permissible current rating when buried: 537 A
  • Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
  • Permissible short circuit current conductor 1s: 47.9 kA
  • Permissible short circuit current screen 1s: 3.57 kA



XRUHAKXS 1*500/35 18/30KV

Nexans ref. M6A4DP 000119 - Country ref. M6A4DP 1*500/35(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 53.0 mm
  • Approximate net weight: 3040 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 789 A
  • Permissible current rating when buried: 537 A
  • Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
  • Permissible short circuit current conductor 1s: 47.9 kA
  • Permissible short circuit current screen 1s: 5.15 kA



XRUHAKXS 1*500/50 18/30KV

Nexans ref. M6A4DP 000134 - Country ref. M6A4DP 1*500/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 52.0 mm
  • Approximate net weight: 3173 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 789 A
  • Permissible current rating when buried: 537 A
  • Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
  • Permissible short circuit current conductor 1s: 47.9 kA
  • Permissible short circuit current screen 1s: 7.15 kA



XRUHAKXS 1*500/70 18/30KV

Nexans ref. M6A4DP 002133 - Country ref. M6A4DP 1*500/70(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Screen section: 70 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 54.0 mm
  • Approximate net weight: 3408 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 789 A
  • Permissible current rating when buried: 537 A
  • Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
  • Permissible short circuit current conductor 1s: 47.9 kA
  • Permissible short circuit current screen 1s: 7.4 kA



XRUHAKXS 1*500/90 18/30KV

Nexans ref. M6A4DP 000146 - Country ref. M6A4DP 1*500/90(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Screen section: 90 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 54.0 mm
  • Approximate net weight: 3554 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 789 A
  • Permissible current rating when buried: 537 A
  • Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
  • Permissible short circuit current conductor 1s: 47.9 kA
  • Permissible short circuit current screen 1s: 12.8 kA



XRUHAKXS 1*500/95 18/30KV

Nexans ref. M6A4DP 000139 - Country ref. M6A4DP 1*500/95(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 500 mm²
  • Conductor diameter: 26.2 mm
  • Screen section: 95 mm²
  • Nominal outer sheath thickness: 2.6 mm
  • Nominal outer diameter: 54.0 mm
  • Approximate net weight: 3601 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 789 A
  • Permissible current rating when buried: 537 A
  • Max. DC resistance of the conductor at 20°C: 0.0605 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0794 Ohm/km
  • Permissible short circuit current conductor 1s: 47.9 kA
  • Permissible short circuit current screen 1s: 14.1 kA



XRUHAKXS 1*630/100 18/30KV

Nexans ref. M6A4DP 000145 - Country ref. M6A4DP 1*630/100(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 29.6 mm
  • Screen section: 100 mm²
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 58.0 mm
  • Approximate net weight: 4241 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 916 A
  • Permissible current rating when buried: 611 A
  • Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
  • Permissible short circuit current conductor 1s: 60.2 kA
  • Permissible short circuit current screen 1s: 14.85 kA



XRUHAKXS 1*630/125 18/30KV

Nexans ref. M6A4DP000158 - Country ref. M6A4DP 1*630/125 (FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 29.031 mm
  • Screen section: 125 mm²
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 59.0 mm
  • Approximate net weight: 4469 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 916 A
  • Permissible current rating when buried: 611 A
  • Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
  • Permissible short circuit current conductor 1s: 60.2 kA
  • Permissible short circuit current screen 1s: 18.5 kA



XRUHAKXS 1*630/16 18/30KV

Nexans ref. M6A4DP 000800 - Country ref. M6A4DP 1*630/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 29.6 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 57.0 mm
  • Approximate net weight: 3416 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 916 A
  • Permissible current rating when buried: 611 A
  • Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
  • Permissible short circuit current conductor 1s: 60.2 kA
  • Permissible short circuit current screen 1s: 2.28 kA



XRUHAKXS 1*630/25 18/30KV

Nexans ref. M6A4DP 021138 - Country ref. M6A4DP 1*630/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 29.6 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 57.0 mm
  • Approximate net weight: 3506 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 916 A
  • Permissible current rating when buried: 611 A
  • Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
  • Permissible short circuit current conductor 1s: 60.2 kA
  • Permissible short circuit current screen 1s: 3.57 kA



XRUHAKXS 1*630/25 18/30KV

Nexans ref. M6A4DP 000161 - Country ref. M6A4DP 1*630/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 29.6 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 57.0 mm
  • Approximate net weight: 3500 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 916 A
  • Permissible current rating when buried: 611 A
  • Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
  • Permissible short circuit current conductor 1s: 60.2 kA
  • Permissible short circuit current screen 1s: 5.0 kA



XRUHAKXS 1*630/35 18/30KV

Nexans ref. M6A4DP 000120 - Country ref. XRUHAKXS 1*630/35

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 29.6 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 57.0 mm
  • Approximate net weight: 3604 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 916 A
  • Permissible current rating when buried: 611 A
  • Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
  • Permissible short circuit current conductor 1s: 60.2 kA
  • Permissible short circuit current screen 1s: 5.0 kA



XRUHAKXS 1*630/50 18/30KV NEW

Nexans ref. M6A4DP 000138 - Country ref. M6A4DP 1*630/50(FL)//POL-1

  • Packaging: Drum (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 29.6 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 57.0 mm
  • Approximate net weight: 3725 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 916 A
  • Permissible current rating when buried: 611 A
  • Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
  • Permissible short circuit current conductor 1s: 60.2 kA
  • Permissible short circuit current screen 1s: 9.8 kA



XRUHAKXS 1*630/70 18/30KV

Nexans ref. M6A4DP 001138 - Country ref. M6A4DP 1*630/70(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 29.6 mm
  • Screen section: 70 mm²
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 58.0 mm
  • Approximate net weight: 3923 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 916 A
  • Permissible current rating when buried: 611 A
  • Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
  • Permissible short circuit current conductor 1s: 60.2 kA
  • Permissible short circuit current screen 1s: 10.3 kA



XRUHAKXS 1*630/90 18/30KV

Nexans ref. M6A4DP 000148 - Country ref. M6A4DP 1*630/90(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 29.6 mm
  • Screen section: 90 mm²
  • Nominal outer sheath thickness: 2.7 mm
  • Nominal outer diameter: 58.0 mm
  • Approximate net weight: 4119 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 916 A
  • Permissible current rating when buried: 611 A
  • Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
  • Permissible short circuit current conductor 1s: 60.2 kA
  • Permissible short circuit current screen 1s: 12.8 kA



XRUHAKXS 1*630/95 18/30KV

Nexans ref. M6A4DP 001139 - Country ref. M6A4DP 1*630/95(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 630 mm²
  • Conductor diameter: 29.6 mm
  • Screen section: 95 mm²
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 58.0 mm
  • Approximate net weight: 4184 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 916 A
  • Permissible current rating when buried: 611 A
  • Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0626 Ohm/km
  • Permissible short circuit current conductor 1s: 60.2 kA
  • Permissible short circuit current screen 1s: 14.1 kA



XRUHAKXS 1*70/25 18/30KV NEW

Nexans ref. M6A4DP 001114 - Country ref. M6A4DP 1*70/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.8 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.0 mm
  • Nominal outer diameter: 34.0 mm
  • Approximate net weight: 1130 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 230 A
  • Permissible current rating when buried: 186 A
  • Max. DC resistance of the conductor at 20°C: 0.443 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.568 Ohm/km
  • Permissible short circuit current conductor 1s: 6.8 kA
  • Permissible short circuit current screen 1s: 3.7 kA



XRUHAKXS 1*70/35 18/30KV

Nexans ref. M6A4DP 000136 - Country ref. M6A4DP 1*70/35

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.8 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 35.0 mm
  • Approximate net weight: 1231 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 230 A
  • Permissible current rating when buried: 186 A
  • Max. DC resistance of the conductor at 20°C: 0.443 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.568 Ohm/km
  • Permissible short circuit current conductor 1s: 6.8 kA
  • Permissible short circuit current screen 1s: 5.19 kA



XRUHAKXS 1*70/50 18/30KV

Nexans ref. M6A4DP 100136 - Country ref. M6A4DP 1*70/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 70 mm²
  • Conductor diameter: 9.8 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 35.0 mm
  • Approximate net weight: 1372 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 230 A
  • Permissible current rating when buried: 186 A
  • Max. DC resistance of the conductor at 20°C: 0.443 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.568 Ohm/km
  • Permissible short circuit current conductor 1s: 6.8 kA
  • Permissible short circuit current screen 1s: 7.42 kA



XRUHAKXS 1*800/130 18/30KV

Nexans ref. M6A4DP 000149 - Country ref. M6A4DP 1*630/130(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 800 mm²
  • Conductor diameter: 35.2 mm
  • Screen section: 130 mm²
  • Nominal outer sheath thickness: 2.9 mm
  • Nominal outer diameter: 64.0 mm
  • Approximate net weight: 5258 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1086 A
  • Permissible current rating when buried: 700 A
  • Max. DC resistance of the conductor at 20°C: 0.0367 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0504 Ohm/km
  • Permissible short circuit current conductor 1s: 76.4 kA
  • Permissible short circuit current screen 1s: 18.5 kA



XRUHAKXS 1*800/16 18/30KV

Nexans ref. M6A4DP 000864 - Country ref. M6A4DP 1*800/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 800 mm²
  • Conductor diameter: 35.2 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 62.5 mm
  • Approximate net weight: 4227 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1086 A
  • Permissible current rating when buried: 700 A
  • Max. DC resistance of the conductor at 20°C: 0.0367 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0504 Ohm/km
  • Permissible short circuit current conductor 1s: 76.4 kA
  • Permissible short circuit current screen 1s: 2.28 kA



XRUHAKXS 1*800/25 18/30KV

Nexans ref. M6A4DP 000853 - Country ref. M6A4DP 1*800/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 800 mm²
  • Conductor diameter: 35.2 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 62.0 mm
  • Approximate net weight: 4266 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1086 A
  • Permissible current rating when buried: 700 A
  • Max. DC resistance of the conductor at 20°C: 0.0367 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0504 Ohm/km
  • Permissible short circuit current conductor 1s: 76.4 kA
  • Permissible short circuit current screen 1s: 5.0 kA



XRUHAKXS 1*800/35 18/30KV

Nexans ref. M6A4DP 000854 - Country ref. M6A4DP 1*800/35(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 800 mm²
  • Conductor diameter: 35.2 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 62.5 mm
  • Approximate net weight: 4405 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1086 A
  • Permissible current rating when buried: 700 A
  • Max. DC resistance of the conductor at 20°C: 0.0367 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0504 Ohm/km
  • Permissible short circuit current conductor 1s: 76.4 kA
  • Permissible short circuit current screen 1s: 5.0 kA



XRUHAKXS 1*800/50 18/30KV

Nexans ref. M6A4DP 000855 - Country ref. M6A4DP 1*800/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 800 mm²
  • Conductor diameter: 35.2 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 62.5 mm
  • Approximate net weight: 4565 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1086 A
  • Permissible current rating when buried: 700 A
  • Max. DC resistance of the conductor at 20°C: 0.0367 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0504 Ohm/km
  • Permissible short circuit current conductor 1s: 76.4 kA
  • Permissible short circuit current screen 1s: 7.15 kA



XRUHAKXS 1*800/70 18/30KV

Nexans ref. M6A4DP 002132 - Country ref. M6A4DP 1*800/70(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 800 mm²
  • Conductor diameter: 35.2 mm
  • Screen section: 70 mm²
  • Nominal outer sheath thickness: 2.9 mm
  • Nominal outer diameter: 64.0 mm
  • Approximate net weight: 4723 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1086 A
  • Permissible current rating when buried: 700 A
  • Max. DC resistance of the conductor at 20°C: 0.0367 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0504 Ohm/km
  • Permissible short circuit current conductor 1s: 76.4 kA
  • Permissible short circuit current screen 1s: 10.3 kA



XRUHAKXS 1*800/95 18/30KV

Nexans ref. M6A4DP.000154 - Country ref. M6A4DP 1*800/95(FL)//POL

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 800 mm²
  • Conductor diameter: 35.2 mm
  • Screen section: 95 mm²
  • Nominal outer sheath thickness: 2.8 mm
  • Nominal outer diameter: 63.0 mm
  • Approximate net weight: 4891 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 1086 A
  • Permissible current rating when buried: 700 A
  • Max. DC resistance of the conductor at 20°C: 0.0367 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.0504 Ohm/km
  • Permissible short circuit current conductor 1s: 76.4 kA
  • Permissible short circuit current screen 1s: 7.15 kA



XRUHAKXS 1*95/16 18/30KV

Nexans ref. M6A4DP 000806 - Country ref. M6A4DP 1*95/16(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.65 mm
  • Screen section: 16 mm²
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 36.0 mm
  • Approximate net weight: 1186 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 280 A
  • Permissible current rating when buried: 221 A
  • Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.41 Ohm/km
  • Permissible short circuit current conductor 1s: 9.2 kA
  • Permissible short circuit current screen 1s: 2.28 kA



XRUHAKXS 1*95/25 18/30KV

Nexans ref. M6A4DP 000402 - Country ref. M6A4DP 1*95/25(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: HDPE
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.65 mm
  • Screen section: 25 mm²
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 36.0 mm
  • Approximate net weight: 1263 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 280 A
  • Permissible current rating when buried: 221 A
  • Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.41 Ohm/km
  • Permissible short circuit current conductor 1s: 9.2 kA
  • Permissible short circuit current screen 1s: 3.57 kA



XRUHAKXS 1*95/35 18/30KV

Nexans ref. M6A4DP 000135 - Country ref. M6A4DP 1*95/35(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.65 mm
  • Screen section: 35 mm²
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 36.0 mm
  • Approximate net weight: 1362 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 280 A
  • Permissible current rating when buried: 221 A
  • Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.41 Ohm/km
  • Permissible short circuit current conductor 1s: 9.2 kA
  • Permissible short circuit current screen 1s: 5.0 kA



XRUHAKXS 1*95/50 18/30KV NEW

Nexans ref. M6A4DP 001129 - Country ref. M6A4DP 1*95/50(FL)//POL-1

  • Packaging: Cut to length (m)
  • Conductor shape: Round compacted
  • Outer sheath: PE
  • Conductor cross-section: 95 mm²
  • Conductor diameter: 11.65 mm
  • Screen section: 50 mm²
  • Nominal outer sheath thickness: 2.1 mm
  • Nominal outer diameter: 37.0 mm
  • Approximate net weight: 1501 kg/km
  • Rated Voltage Uo/U (Um): 18 / 30 (36) kV
  • Perm current rating in air 30°C: 280 A
  • Permissible current rating when buried: 221 A
  • Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
  • A.C. Conductor resist. 50Hz and at 90 °C: 0.41 Ohm/km
  • Permissible short circuit current conductor 1s: 9.2 kA
  • Permissible short circuit current screen 1s: 7.15 kA



Description

Description

Standards

  • Product
    IEC 60502-2

DESCRIPTION: AL/SC/XLPE/SC/SC SWEL/CU WIRES/SWEL/ALLUPE/HDPE

OPIS: AL/S.C/XLPE/S.C/S.C. Włóknina. pęczn./druty CU/Włóknina.pęczn./ALUCOPO/PE

1. Conductor / żyła:

Aluminium stranded class 2 acc. To IEC 60228 / aluminiowa wielodrutowa klasa 2 zgodnie z IEC 60228

2. Conductor screen / ekran żyły:

Extruded semi-conductor bonded to the XLPE insulation / wytłoczony półprzewodzący zespojony z izolacją z XLPE

3. Insulation / izolacja:

XLPE / XLPE

4. Insulation screen / ekran izolacji:

Extruded semi-conductor bonded to the XLPE insulation / wytłoczony półprzewodzący zespojony z izolacją z XLPE

5. Water proof tape / taśma zapewniająca wodoszczelność:

Semi-conductor swelling tape / półprzewodząca włóknina pęczniejąca

6. Screen / ekran:

Copper wires / druty miedziane

7. Water proof tape / taśma zapewniająca wodoszczelność:

Swelling tape / włóknina pęczniejąca

8. Radial water proof barrier / poprzeczna bariera wodoszczelna:

Longitudinal aluminium PE coated tape / wzdłużna taśma powlekana AL/PE

9. Oversheath / powłoka zewnętrzna:

HDPE / HDPE

*Non adiabatic short circuit current screen 1s calculated at an inital temperature of 80 degrees and final temperature 350 degrees

TEST AT WORKS / PRÓBY FABRYCZNE

Routine Tests / Badania rutynowe:

• Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-2 parag.16.2 / Maks. rezystancja DC żył w temperaturze 20°C zgodnie z IEC 60228 i IEC 60502-2 pkt 16.2

• High voltage test acc. to IEC 60502-2 parag. 16.4 / Próba wysokim napięciem zgodnie z IEC 60502-2 pkt 16.4

• Max. partial discharge test at 1.73 Uo acc. to IEC 60502-2 parag. 16.3 / Badanie maksymalnych wyładowań niezupełnych przy 1,73 Uo zgodnie z IEC 60502-2 pkt 16.3



Liban Cables will carry out these tests on all the lengths and tests certificates will be provided  / Firma Liban Cables przeprowadzi te badania dla wszystkich odcinków kabli i dostarczy świadectwa z badań



Sample tests / Badania próbek:

• Check of the build - up and color coding of the cable / Sprawdzenie rozwijania i kolorowych oznaczeń kabla

• Check of dimensions / Sprawdzenie wymiarów

Insulation / Izolacja        :           according to IEC 60502-2 / zgodnie z IEC 60502-2          Parag. / pkt.      17.5.2

Metallic screen / Ekran metaliczny          :           according to IEC 60502-2 / zgodnie z IEC 60502-2          Parag. / pkt.            17.7

Oversheath / Powłoka zewnętrzna           :           according to IEC 60502-2 / zgodnie z IEC 60502-2          Parag. / pkt.            17.5.3

- Hot Set Test for XLPE insulation according to IEC 60502-2 parag. 17.10 /-Badanie stopnia usieciowania izolacji z XLPE zgodnie z IEC 60502-2 pkt 17.10



These tests will be carried out on one length of each size during each inspection . / Badania te – podczas każdej kontroli – zostaną przeprowadzone na jednym odcinku dla każdego rozmiaru kabla.

Tests certificates will be provided by Liban Cables / Świadectwa z badań dostarczy firma Liban Cables



Type tests / Próby typu

Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break ) in accordance with IEC 60502-2. / Charakterystyki mechaniczne materiałów izolacji i powłoki zewnętrznej (wytrzymałość na rozciąganie i wydłużenie przy zerwaniu) zgodnie z IEC 60502-2.

These tests will be carried out on one length of the order / Badania te zostaną przeprowadzone na jednym odcinku z zamówienia

Tests certificates will be provided by Liban Cables / Świadectwa z badań dostarczy firma Liban Cables

DRAWING XRUHAKXS

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Aluminum
Conductor flexibility
Stranded class 2
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE
Material of the external semi-conductor
Extruded fully bonded
Material used for longitudinal water tightness
Swellable tape
Concentric conductor
Copper wires and helical copper tape
Protection
Aluminium tape
Sheath colour
Black
Number of conductors
1

Dimensional characteristics

Dimensional characteristics

Nominal insulation thickness
8.0 mm

Electrical characteristics

Electrical characteristics

Test voltage
63 kV
Frequence
50 Hz
Thermal soil resistivity wet zone
1.5 °K.m/W

Usage characteristics

Usage characteristics

Laying depth, center of system
800 mm
Ambient air temperature
30 °C
Ambient ground temperature
20 °C
Max. conductor temperature in service
90 °C
Minimum operating temperature
-35 °C
Short-circuit max. conductor temperature
250 °C

Resources

Resources

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
