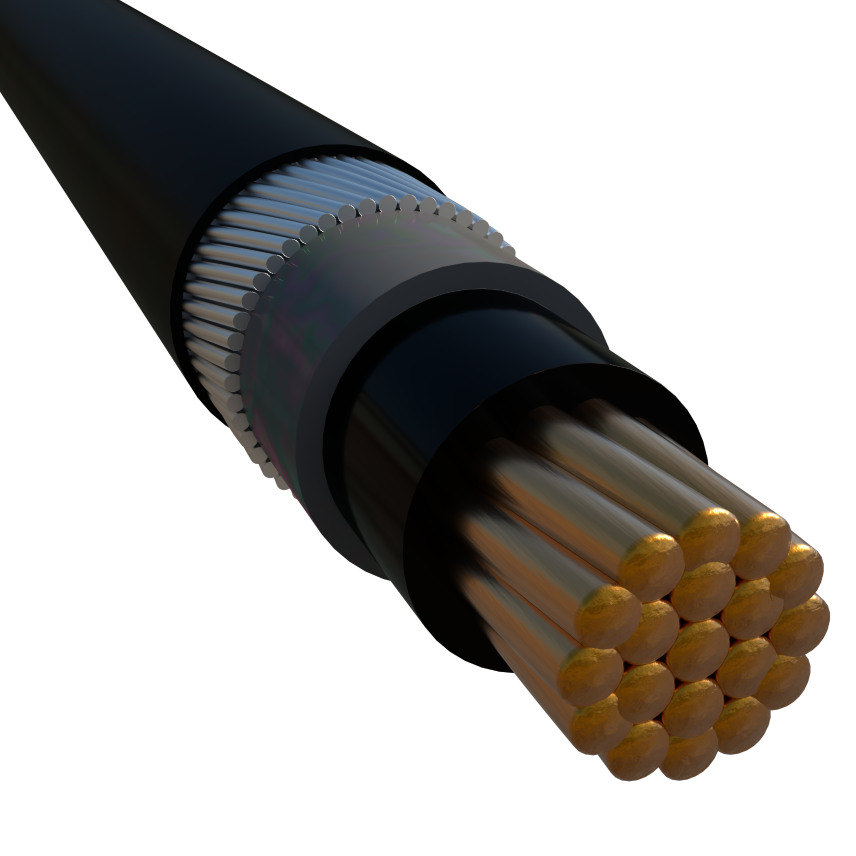

Hydrocarbon resistant & Fire retardant, Single core AWA Armored, XLPE insulated, PVC sheathed
Hydrocarbon resistant & Fire retardant, Single core AWA Armored, XLPE insulated, PVC sheathed
0.6 / 1 KV POWER CABLES
Conforming to IEC 60502-1
EXW 1*300
Nexans ref. EXW 017800 - Country ref. EXW 1*300//FMCC
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 1.8 mm
- Nominal armour wire diameter: 1.7 mm
- Nominal outer sheath thickness: 2.0 mm
- Nominal outer diameter: 33.0 mm
- Approximate weight: 3322 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
- Permissible current rating in open air: 665 A
- Permissible current rating when buried: 600 A
EXW 1*400
Nexans ref. EXW 017801 - Country ref. EXW 1*400//FMCC
- Conductor cross-section: 400 mm²
- Nominal insulation thickness: 2.0 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 37.0 mm
- Approximate weight: 4266 kg/km
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Permissible current rating in open air: 779 A
- Permissible current rating when buried: 690 A
EXW 1*500
Nexans ref. EXW 017802 - Country ref. EXW 1*500//FMCC
- Conductor cross-section: 500 mm²
- Nominal insulation thickness: 2.2 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 41.0 mm
- Approximate weight: 5355 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
- Permissible current rating in open air: 570 A
- Permissible current rating when buried: 780 A
EXW 1*630
Nexans ref. EXW 017803 - Country ref. EXW 1*630//FMCC
- Conductor cross-section: 630 mm²
- Nominal insulation thickness: 2.4 mm
- Nominal armour wire diameter: 2 mm
- Nominal outer sheath thickness: 2.3 mm
- Nominal outer diameter: 45.0 mm
- Approximate weight: 6826 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
- Permissible current rating in open air: 995 A
- Permissible current rating when buried: 880 A
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-1
-
TestIEC 60332-1-2; IEC 60332-3
Scope
This specification covers XLPE insulated, circular, single core armoured cables, rated at 0.6/1 KV according to IEC 60502-1 for use indoors, outdoors, in cable ducts and for direct burial underground, where severe mechanical stresses are present.
Construction
2.1 Conductor
Plain, annealed electrolytic copper conductors, circular stranded, conforming to the applicable requirements of IEC 60228.
2.2 Insulation
XLPE thermosetting material, conforming to the applicable requirements of IEC 60502-1.
2.3 Inner Sheath
Special Hydrocarbon resistant and fire retardant PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.4 Armour
Aluminum wires completely covering the assembly of cores complying to the applicable requirements of IEC 60502-1.
2.5 Sheath
Special Hydrocarbon resistant and fire retardant PVC based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.
2.6 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.
TEST AT WORKS ACCORDING TO IEC 60502-1 & IEC 60332-3
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Voltage test acc. to IEC 60502-1 parag.15.1& 15.3
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to IEC 60502-1 Parag. 16.5.2
Armour : according to IEC 60502-1 Parag. 16.7
Oversheath : according to IEC 60502-1 Parag. 16.5.3
Hot Set Test for XLPE insulation: according to IEC 60502-1 Parag. 16.9
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation and sheaths material (tensile strength and elongation at break ) in accordance with IEC 60502-1.
Fire retardance test according to IEC 60332-3.
These tests will be carried out on one length of the order.
Tests certificates will be provided by Liban Cables.
DRAWING SINGLE CORE, AWA ARMORED CABLE
