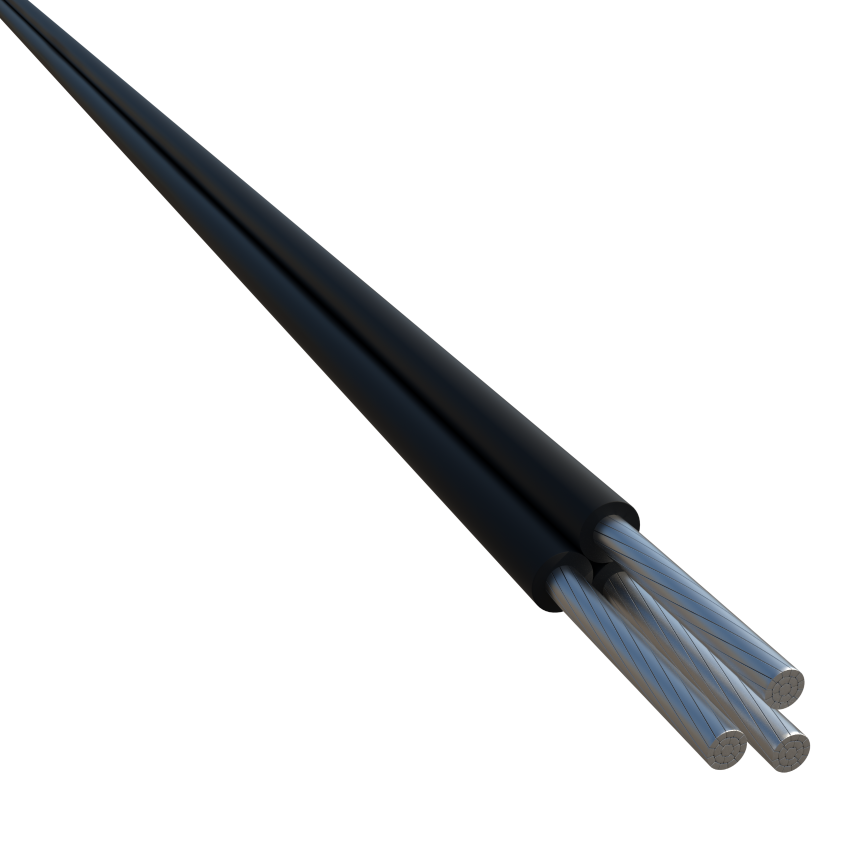

EAXT 3*35+54.6+2*16//AFR
EAXT 3*35+54.6+2*16//AFR
Generally to NF C 33-209 and IEC 60502-1
Read more- Nexans ref. : EAXT 000582
- Country ref. : EAXT 3*35+54.6+2*16//AFR
Description
Description
Standards
-
ProductIEC 60502-1; NF C33-209
Application
Network distribution bundled conductors with neutral messenger are designed for rural and urban areas.
Some important cable characteristics are :
- Ultraviolet radiation resistance,
- Ozone resistance,
- High dielectric strength,
- Light weight and easy to handle.
- Anti-theft cables
Application
These cables are NOT ALLOWED to be buried, even in conduits.
They are intended for aerial use only.
Description
The bundled conductor cables have aluminum conductors, insulated with XLPE, they have good durability and thermal resistance.
Construction
Messenger/Neutral characteristics
- core : circular stranded aluminum alloy, cross section area 54.6 mm²
- Insulation : Black XLPE
- nominal cross section : 54.6 mm²
Street lighting conductor characteristics (smaller conductor)
- core : circular stranded aluminum, cross section area 16 or 25 mm²
- Insulation : Black XLPE
- nominal cross section : 16 or 25 mm²
Electrical characteristics
- Rated voltage : 0.6/1 kV
TEST AT WORKS for ABC cables
Routine Tests
- Max. DC conductors resistance at 20°C acc. to IEC 60228 & IEC 60502-1 parag. 15.1 & 15.2
- Spark Test for conductors
Liban Cables will carry out these tests on all the lengths and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions: Insulation: according to IEC 60502-1 Parag. 16.5.2
- Hot Set Test: according to IEC 60502-1 Parag. 16.9
These tests will be carried out on one length during of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation material (tensile strength and elongation at break) in accordance with IEC 60502-1.
These tests will be carried out on one length of the order
Tests certificates will be provided by Liban Cables
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
